www.elkproducts.com ELK-7TS Touchscreen Reference Guide for M1 Controls 2ELK-7TS Touchscreen Reference Guide - M1 Controls Contents ELK-7TS Product Overview .................................3 Features ...........................................................................................3 Specifications ...................................................................................3 In the Box .........................................................................................3 Optional Accessories .......................................................................3 Installation & Wiring .............................................4 Wiring a 12VDC Power Supply ........................................................4 Connecting the ELK-POE47TS Ethernet & PoE Adapter ................4 Mounting the ELK-7TS using the wall mount plate ..........................5 Mounting the ELK-7TS to the Desk Stand .......................................5 Configuration ........................................................6 Getting Started .................................................................................6 Connecting to Wi-Fi .........................................................................6 Connecting to an M1 System ...........................................................6 Installer Settings ..............................................................................7 Operating Guide ...................................................8 Basic Navigation ..............................................................................8 Security ............................................................................................9 Lights .............................................................................................12 Climate ...........................................................................................13 Outputs ..........................................................................................15 Tasks ..............................................................................................16 Custom Settings ............................................................................17 Display Settings .............................................................................18 Regulatory Statements ......................................19 M1 Limited Warranty ..........................................20 3ELK-7TS Touchscreen Reference Guide - M1 Controls Features Specifications Optional Accessories ELK-7TS Product Overview • 7” HD Display (1024 x 600 Resolution) • Responsive capacitive touchscreen, with 5-point multi-touch • G+G Gorilla Glass screen • Wi-Fi Connectivity (802.11b/g/n 2.4GHz) • Power: 12VDC, 1A • Optional POE adapter available • Size: 7.59” x 4.56” x 0.56” The ELK-7TS is a 7” touchscreen, complementing the Alarm Engine and M1 Cross Platform Control. Installers can seamlessly choose the desired platform during setup. A touchscreen version of ElkConnect ensures a consistent user experience for Alarm Engine installations, while an all-new M1 touchscreen application introduces users to a fresh and modern interface for M1 systems. • Compatible with E27 Alarm Engine or M1 Security & Automation Controls • Connects to network via Wi-Fi • Connects to E27 or M1 over local network • Ultra Low Profile screen with slim wall mount plate • Optional Desk Stand Available • ELK-POE47TS - Ethernet & PoE Adapter • ELK-DS47TS - Desk Stand (Fixed 30°) (White) In the Box • ELK-7TS - 7” Color Touchscreen • Wall Mount Plate • Mounting Hardware • Wiring Harness 4ELK-7TS Touchscreen Reference Guide - M1 Controls Installation & Wiring Wiring a 12VDC Power Supply Connecting the ELK-POE47TS Ethernet & PoE Adapter The ELK-7TS touchscreen can be powered by a 12-14 VDC, 1.5 Amp (ELK-P1417 recommended). A wiring harness is supplied to connect the power supply to the touchscreen. Connect the red wire on the harness to the positive terminal of the power supply. Connect the black wire on the harness to the negative terminal of the power supply. Be careful to observe polarity! When using this method to power the ELK-7TS, the touchscreen can be connected to the local network via Wi-Fi. Alternately, the ELK-POE47TS can be used to connect the touchscreen to a standard (Non-POE enabled) network router or switch. P1 P2 P OE / ACCESSORY R +12V B GN D R ES E T CO MMS PO WER Back View of ELK-7TS Mounting Latch/Release Mounting Slots PoE Connector 12 VDC Power Connector Mounting Slots The ELK-POE47TS can be used as an Ethernet adapter when Wi-Fi is unavailable or not preferred. Using a standard network patch cable, connect the RJ45 port on the ELK-POE47TS to a network router or switch. When used in this manner, a separate 12VDC power source must be connected to the dedicated power connector of the touchscreen. The ELK-POE47TS can also be used to provide both power and network connectivity to the ELK-7TS when used in conjuction with a PoE enabled switch or PoE injector. Using a standard network patch cable, connect the RJ45 port on the ELK-POE47TS to a PoE switch or injector. When used in this manner, power must be supplied by the PoE switch or injector. 5ELK-7TS Touchscreen Reference Guide - M1 Controls Mounting the ELK-7TS using the wall mount plate Mounting the ELK-7TS to the Desk Stand Ideal keypad mounting height is 50-58 inches above the floor. Select a location with an ambient temperature range between 32° and 120° F (0° to +49° C). Avoid direct sunlight if possible. 1. If using an electrical box, install the box per the manufacturer’s instructions. Route wiring to the electrical box, ensuring enough wire is fed through the box to enable easy connection to the back of the touchscreen. If mounting directly to the wall, use the mounting plate to mark location of holes for wall anchors and wire cutout. Drill holes and install wall anchors. Route wiring to the wire cutout, ensuring enough wire is fed through the cutoout to enable easy connectio…
Text truncated - open the document above for the full version.
ELK Products, Inc. 3266 US Hwy 70 West Hildebran North Carolina United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-12-15 U.S. Agent Designation ELK Products, Inc. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: TMA-ELK7TS): Name and company of U.S. agent: ELK Products, Inc. Physical U.S. address of agent: 3266 US Hwy 70 West Hildebran North Carolina United States FRN of U.S. agent: 0013958731 Email address of U.S. agent: [email protected] ELK Products, Inc. acknowledges their obligation to accept service of process on behalf of ELK Products, Inc.. ELK Products, Inc. with the FRN [0013958731] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Donald Sanders Lamb, Jr. Sr. Engineer ELK Products, Inc. Signature Donald Sanders Lamb, Jr. Sr. Engineer ELK Products, Inc. 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5
Sincerely, Name/Title: Donald Sanders Lamb, Jr./Sr. Engineer Company: ELK Products, Inc. Address: 3266 US Hwy 70 West Hildebran North Carolina United States Phone: (828) 397-4200 Fax: (828) 397-4415 E-Mail: [email protected]

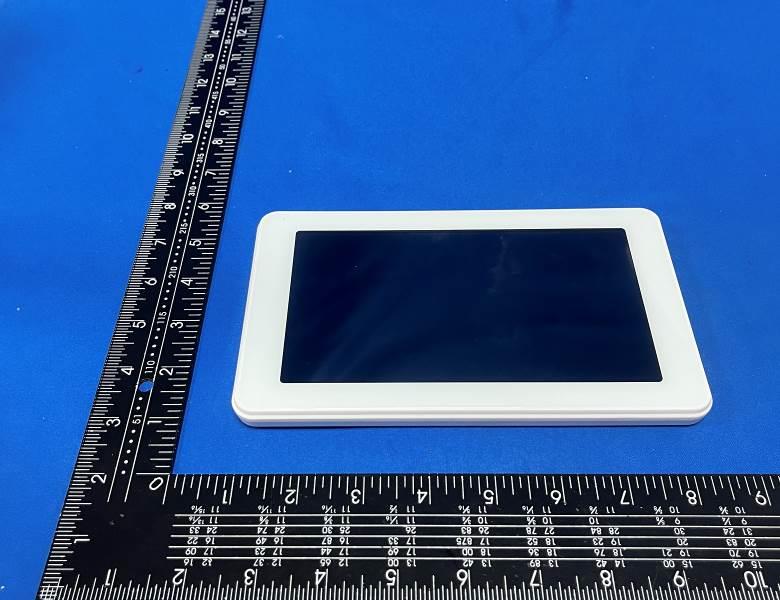

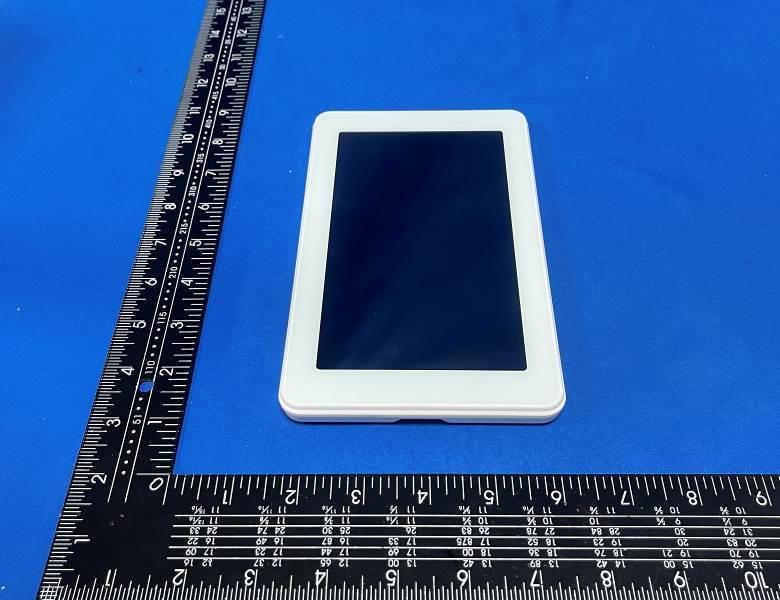

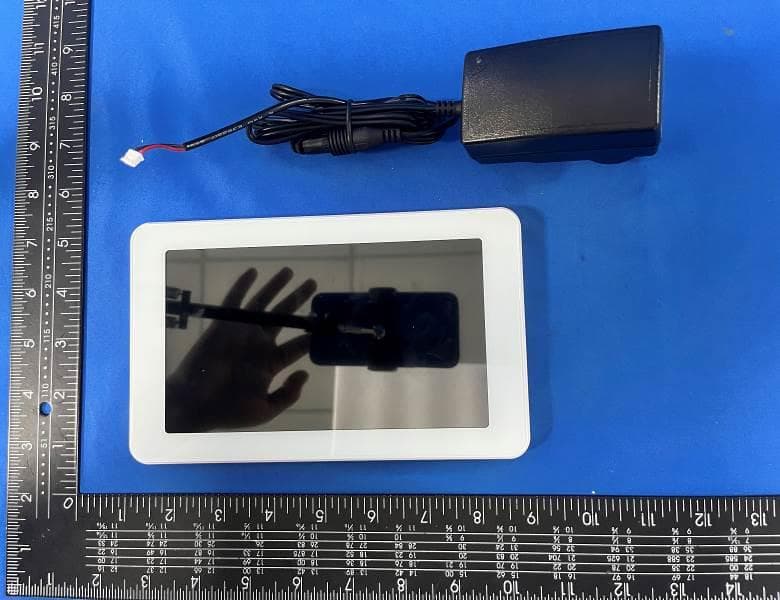

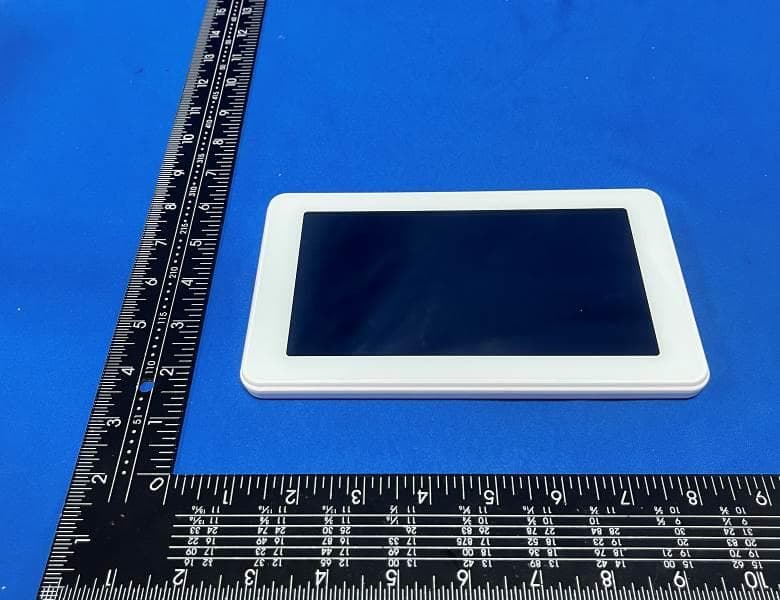

FCC ID: TMA-ELK7TS External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: TMA-ELK7TS Photo 4 Photo 5 Photo 6 FCC ID: TMA-ELK7TS Photo 7
Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : TMA-ELK7TS
FCC ID: TMA-ELK7TS Internal Photos of the EUT Photo 1 Photo 2 Photo 3 BLE/2.4G WIFI PIFA Antenna FCC ID: TMA-ELK7TS Photo 4 Photo 5 Photo 6 \ FCC ID: TMA-ELK7TS Photo 7 Photo 8
RF Exposure evaluation FCC ID: TMA-ELK7TS Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information ELK7TS can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PIFA antenna 1.82dBi for 2400-2500MHz; 2.4GWIFI / PIFA antenna 1.82dBi for 2400-2500MHz; 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 2.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 16.0 16.0 16.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 15.0 15.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 15.0 15.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT40) 2422 2437 2452 Target (dBm) 14.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.82dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 3.0 1.9953 1.82 1.5205 0.0006 1.0000 2.4GWIFI 17.0 50.1187 1.82 1.5205 0.0152 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------
1. Antenna Description: Antenna type PIFA antenna Model ELK7TS Frequency range 2400-2500MHz Manufacturer ELK Products, Inc. ANT Peak Gain 1.82 dBi 2. Antenna Photo: Length: 26.60mm Width: 17.05mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4.Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz
Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA23111601101 TMA-ELK7TS Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Nov. 20, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : ELK Products, Inc. Address ............................................ : 3266 US Hwy 70 West P.O. Box 100, Hildebran, NC 28637 Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: 7 inch Color Touch Screen for Alarm Engine and Ml Controls Trade Mark ....................................... : N/A Manufacturer .................................... : ELK Products, Inc. Model/Type reference....................... : ELK7TS Listed Models .................................. : N/A Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 12.0V From external circuit Result................................................ : PASS Report No.: CTA23111601101 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 7 inch Color Touch Screen for Alarm Engine and Ml Controls Model /Type : ELK7TS Listed Models : N/A Applicant : ELK Products, Inc. Address : 3266 US Hwy 70 West P.O. Box 100, Hildebran, NC 28637 Manufacturer : ELK Products, Inc. Address : 3266 US Hwy 70 West P.O. Box 100, Hildebran, NC 28637 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23111601101 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 21 4.4 Power Spectral Density 22 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 30 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 31 6 P H O T O S O F T H E E U T ........................................................... 32 Report No.: CTA23111601101 Page 4 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA23111601101 Page 5 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Nov. 16, 2023 Testing commenced on : Nov. 16, 2023 Testing concluded on : Nov. 20, 2023 …
Text truncated - open the document above for the full version.
Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA23111601102 TMA-ELK7TS Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 20, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : ELK Products, Inc. Address ............................................ : 3266 US Hwy 70 West P.O. Box 100, Hildebran, NC 28637 Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 7 inch Color Touch Screen for Alarm Engine and Ml Controls Trade Mark ....................................... : N/A Manufacturer .................................... : ELK Products, Inc. Model/Type reference ...................... : ELK7TS Listed Models .................................. : N/A Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA23111601102 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 7 inch Color Touch Screen for Alarm Engine and Ml Controls Model /Type : ELK7TS Series Model No. N/A Applicant : ELK Products, Inc. Address : 3266 US Hwy 70 West P.O. Box 100, Hildebran, NC 28637 Manufacturer : ELK Products, Inc. Address : 3266 US Hwy 70 West P.O. Box 100, Hildebran, NC 28637 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23111601102 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 6 2.4 Short description of the Equipment under Test (EUT) 6 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 36 5 T E S T S E T U P PH O T O S O F T H E E U T ......................................... 37 6 P H O T O S O F T H E E U T ........................................................... 38 Report No.: CTA23111601102 Page 4 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Report No.: CTA23111601102 Page 5 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A…
Text truncated - open the document above for the full version.
Report No.: CTA23111601102 Page 30 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23111601102 Page 31 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23111601102 Page 32 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 802.11n40 Reference Reference CH11 CH03 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23111601102 Page 33 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n40 Reference Reference CH06 CH09 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA23111601102 Page 34 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge Report No.: CTA23111601102 Page 35 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT20) Left bandedge Right bandedge 802.11n(HT40) Left bandedge Right bandedge Report No.: CTA23111601102 Page 36 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 1.82 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA23111601102 Page 37 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA23111601102 Page 38 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Reference to the test report No. CTA23111601101 ********************** End of Report **********************
FCC ID: TMA-ELK7TS Test Setup Photos of the EUT
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15C | 2.41 GHz - 2.46 GHz | 40.20 mW |
