TQ6BTHF107Bluetooth handsfree speaker

BlueTone™ BTHF107 User Manual . 1 Bluetooth Handsfree User Manual Model：BlueTone™ BTHF107 BlueTone™ BTHF107 User Manual . 2 Declaration: Without written permission from original manufacturer, reproduction, transfer, distribution or storage of part or all of the contents in this document in any form is prohibited. The company reserves rights to make any changes and improvements to the product described in this document without prior notice. Notice ： Please make sure your mobile phone supports Bluetooth profiles and network operator supports the functions described in this manual, otherwise the relative functions cannot be realized on this Handsfree device. Safety z Use the charger that comes with package. z Caution, risk of explosion if battery is replaced by an incorrect type. z Check the laws and regulations on the use of mobile phones and handsfree equipment in the areas where you drive. Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions require. z Do not allow children to play with your Bluetooth Handsfree Speaker since it contains small parts that could become detached and create a choking hazard. z This device contains a Li-polymer battery. Please keep it away from fire anytime (including discarding the device) or the battery may explode. z The Handsfree Speaker, especially the embedded battery must be properly disposed or may be recycled, contacts your local recycling centers for disposal methods. BlueTone™ BTHF107 User Manual . 3 Certification and Safety Approvals This product has been tested and found to comply with Bluetooth BQB requirements, part 15 of FCC rules, R&TTE Directive（99/5/EC） or CE marked requirements. Warning：Users should not make changes or modify the device in any way. Changes or modifications without expressly approved by the party responsible for compliance could void the user’s authority to operate the device. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning： This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. CE command： EN 301 489-17 v1.2.1: 2002 ETSI EN 300 328 v1.6.1:2004 IEC 60950-1:2001 / EN 60950-1:2001 BlueTone™ BTHF107 User Manual . 4 Contents ： 1. INTRODUCTION .................................................................................................................................5 1.1 BLUETOOTH TECHNOLOGY..................................................................................................................5 1.2 BLUETOOTH HANDSFREE SPEAKER......................................................................................................5 1.3 P RODUCT F EATURES ............................................................................................................................5 1.4 PACKAGE CONTENTS............................................................................................................................6 1.5 OVERVIEW...........................................................................................................................................6 2. USING YOUR HANDSFREE ..............................................................................................................7 2.1 BATTERY CHARGING AND USAGE........................................................................................................7 2.1.1 Battery Charging .........................................................................................................................7 2.1.2 Battery Information .....................................................................................................................7 2.2 MOUNTING YOUR HANDSFREE.............................................................................................................8 2.3 TURN ON/OFF HANDSFREE..................................................................................................................9 2.4 PAIRING/CONNECTING YOUR HANDSFREE WITH BLUETOOTH EQUIPMENT..........................................9 2.4.1 Pairing your Handsfree with Bluetooth handset…

Text truncated - open the document above for the full version.

Shanghai Flaircomm Inc Date: Dec 14, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: TQ6BTHF107 ATTESTATION FCC ID: TQ6BTHF107 Product: Bluetooth handsfree speaker Model: BTHF107 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ____________________________ Dawen Yang/engineer Shanghai Flaircomm Technologies

RF_160, Issue 01 Declaration of Authorization We Name: Shanghai Flaircomm Technologies Address: No211 North Urumqi Road, Suite 616, Shanghai 200040 P.R. China City: Shanghai .................................................................. . Country: P.R.China ........................................................................... . Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2nd Rd., Nei-hu District City: Taipei Country: Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Bluetooth handsfree speaker .............................. . Type designation: BTHF107 .................................... . Trademark: Flaircomm on our behalf. Date: ...... 2006/12/14 ............... .. City: ...... Shanghai ........................ .. Name: ......... .................. .. Signature: ........................ .

Shanghai Flaircomm Technologies Date: Dec 14, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: TQ6BTHF107 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dawen Yang/engineer Shanghai Flaircomm Technologies

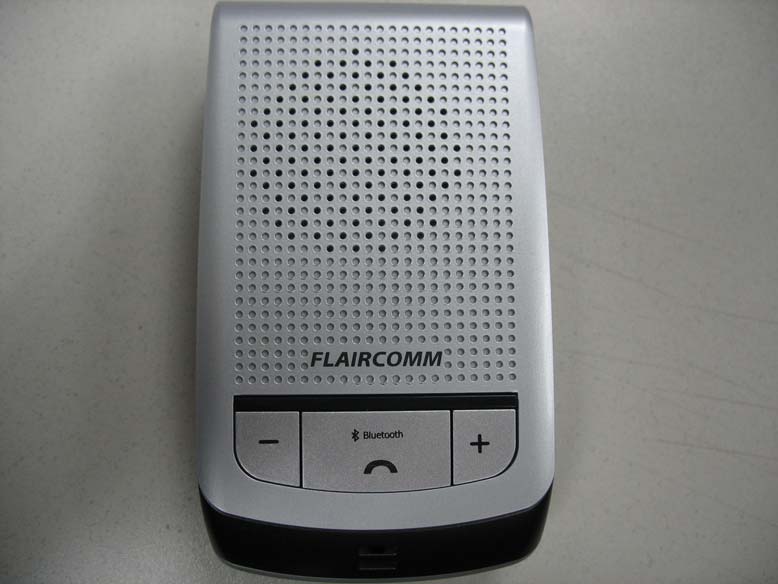

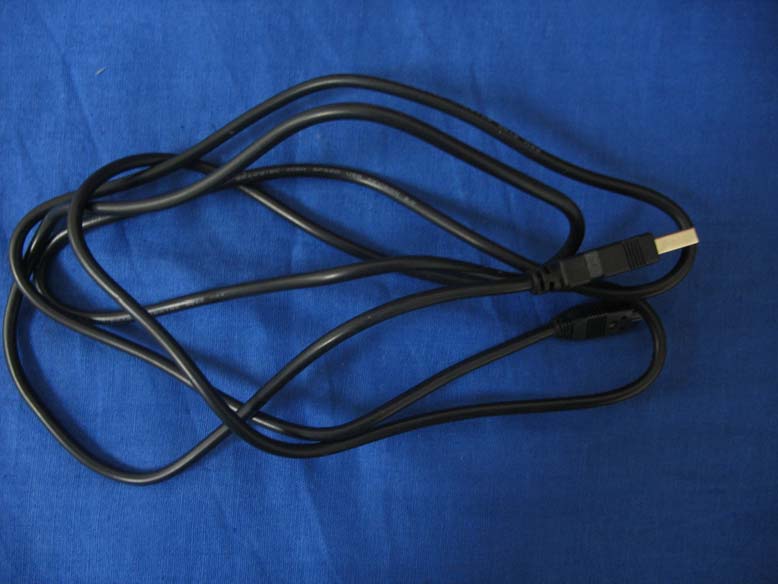

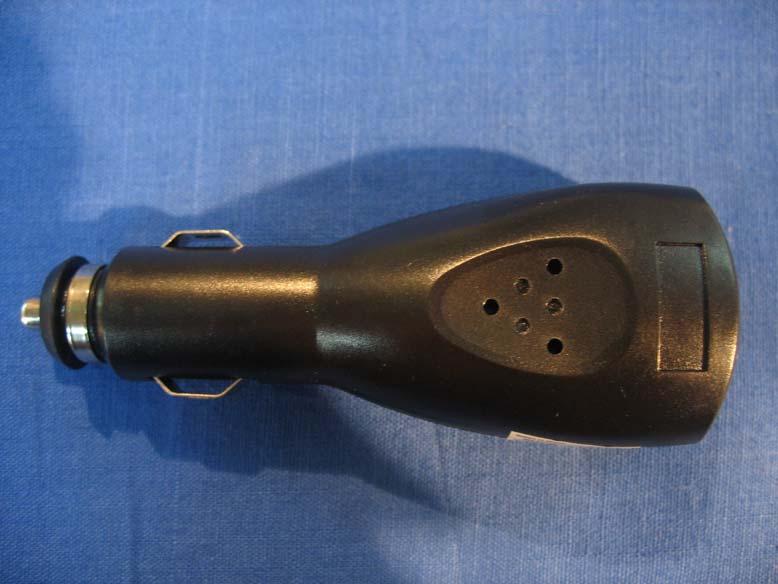

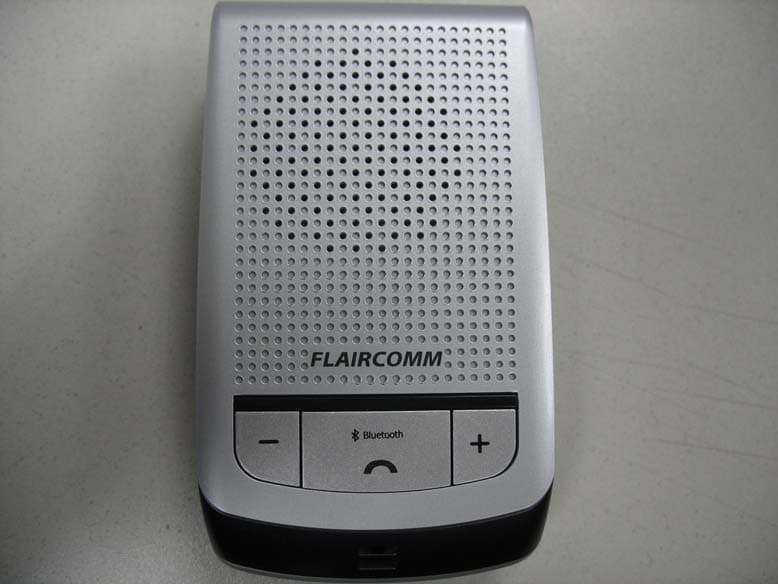

Bluetooth handsfree speaker (M/N:BTHF107) ¾ EUT Photograph – External Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6)EUT Photo (7)EUT Photo

(BTHF107) FCC ID Label FCC ID Label

Bluetooth handsfree speaker (M/N: BTHF107) FCC Label Position

Bluetooth handsfree speaker (M/N: BTHF107) ¾ EUT Photograph - Internal Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4)EUT Photo (5)EUT Photo (6)EUT Photo

RF Exposure Evaluation declaration Product Name ： Bluetooth handsfree speaker Model No. ： BTHF107 FCC ID ： TQ6BTHF107 Applicant ： Shanghai Flaircomm Technologies Address ： No211 North Urumqi Road, Suite 616, Shanghai 200040 P.R.China Date of Receipt ： 2006/11/16 Issued Date ： 2006/12/13 Report No. ： 06BS010-RF-US The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by CNLA, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 06BS010-RF-US Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No： 06BS010-RF-US Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Bluetooth handsfree speaker Test Item : RF Exposure Evaluation Test Site : AC-3 Test Mode : Mode 1: Transmitter Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is –3.5dBi or 0.45 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 00 2402.00 0.2239 0.0000199 39 2441.00 0.2061 0.0000183 78 2480.00 0.1905 0.0000169 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.

Test Report Product Name ： Bluetooth handsfree speaker Model No. ： BTHF107 FCC ID ： TQ6BTHF107 Applicant ： Shanghai Flaircomm Technologies Address ： No211 North Urumqi Road, Suite 616, Shanghai 200040 P.R.China Date of Receipt ： 2006/11/16 Issued Date ： 2006/12/13 Report No. ： 06BS010-RF-US-P06V01 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by CNLA, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 06BS010-RF-US-P06V01 Page: 2 of 71 Test Report Certification Issued Date : 2006/12/13 Report No. : 06BS010-RF-US-P06V01 Product Name : Bluetooth handsfree speaker Applicant : Shanghai Flaircomm Technologies Address : No211 North Urumqi Road, Suite 616, Shanghai 200040 P.R. China Manufacturer : Shanghai Flaircomm Technologies Model No. : BTHF107 FCC ID : TQ6BTHF107 Rated Voltage : AC 120 V / 60 Hz EUT Voltage : DC 3.7V Trade Name : Flaircomm Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2006 ANSI C63.4: 2003 Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX:+86-512-6251-5098 Documented By : ( Mandy Liu ) Reviewed By : ( Dream Cao ) Approved By : ( Gene Chang ) Report No： 06BS010-RF-US-P06V01 Page: 3 of 71 Laboratory Information We , QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited by the following accreditation Bodies in compliance with ISO 17025, EN 45001 and Guide 25: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://tw.quietek.com/modules/myalbum/ The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, DGT, CNLA Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI 0914 1313 1596 Report No： 06BS010-RF-US-P06V01 Page: 4 of 71 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 6 1.1. EUT Description ........................................................................................... 6 1.2. Mode of Operation........................................................................................ 8 1.3. Tested System Details .................................................................................. 9 1.4. Configuration of Tested System.................................................................. 10 1.5. EUT Exercise Software............................................................................... 11 2. Technical Test ........................................................................................................... 12 2.1. Summary of Test Result.............................................................................. 12 2.2. Test Environment........................................................................................ 13 3. Conducted Emission................................................................................................. 14 3.1. Test Equipment........................................................................................... 14 3.2. Test Setup .................................................................................................. 14 3.3. Limit............................................................................................................ 15 3.4. Test Procedure ........................................................................................... 15 3.5. Uncertainty ................................................................................................. 15 3.6. Test Result.................................................................................................. 15 4. Radiated Emission .................................................................................................... 16 4.1. Test Equipment........................................................................................... 16 4.2. Test Setup .................................................................................................. 16 4.3. Limit............................................................................................................ 17 4.4. Test Procedure ........................................................................................... 18 4.5. Uncertainty ................................................................................................. 18 4.6. Test Result.................................................................................................. 19 4.7. Test Photograph ......................................................................................... 39 5. Peak Power Output..............................................................................…

Text truncated - open the document above for the full version.

Bluetooth handsfree speaker (M/N: BTHF107) ¾ Test Setup Photographs Test Mode : Mode 1: Transmitter Description : Front View of Radiated Test for Under 1GHz Test Mode : Mode 1: Transmitter Description : Back View of Radiated Test for Under 1GHz Test Mode : Mode 1: Transmitter Description : Front View of Radiated Test for Above 1GHz Test Mode : Mode 1: Transmitter Description : Back View of Radiated Test for Above 1GHz
