TQN2012ROC0001WIFI-DISK

WiFi Disk simple Manual 1 WiFi Disk Simple Manual Contents 1 PRODUCT INTRODUCTION........................................................................................................... 2 1.1 PRODUCT AND ACCESSORIES........................................................................................................... 2 1.2 PRODUCT PARAMETERS AND CONFIGURATIONS...............................................................................2 1.2.1 Physical Parameters...........................................................................................................2 1.2.2 Basic Parameters................................................................................................................2 1.2.3 Operating temperature........................................................................................................2 1.3 RELATED EQUIPMENT REQUIREMENTS............................................................................................ 3 1.3.1 Ethernet Connection...........................................................................................................3 1.3.2 OS on PC..............................................................................................................................4 1.3.3 Web Browser on PC............................................................................................................4 1.3.4 Local Network......................................................................................................................4 1.4 PRODUCT VIEW...............................................................................................................................5 1.4.1 Interface Function................................................................................................................7 1.4.2 Front Panel....................................................................................................................8 1.5 PRODUCT DESCRIPTION...................................................................................................................9 2 QUICK START....................................................................................................................................9 2.1 WIFI DISK CONNECTION MODES.....................................................................................................9 3 OS START GUIDE.............................................................................................................................9 3.1 WINDOWS CLIENT TOOL.................................................................................................................9 3.1.1 Client Installation.................................................................................................................9 3.1.2 Access WiFi Disk...............................................................................................................12 3.2 WEB MANAGEMENT INTERFACE (FOR WINDOWS) .......................................................................13 3.3 IOS CLIENT TOOL.........................................................................................................................16 3.3.1 Client installation................................................................................................................16 3.3.2 Access WiFi Disk...............................................................................................................19 3.4 ANDROID CLIENT TOOL................................................................................................................21 3.4.1 Client Installation...............................................................................................................21 3.4.2 Access WiFi Disk...............................................................................................................22 删除的内容: 3 删除的内容: 3 删除的内容: 3 删除的内容: 3 删除的内容: 5 删除的内容: 5 删除的内容: 5 删除的内容: 6 删除的内容: 6 删除的内容: 7 删除的内容: 7 删除的内容: 7 删除的内容: 7 删除的内容: 7 删除的内容: 1 删除的内容: 1 删除的内容: 1 删除的内容: 1 删除的内容: 1 删除的内容: 1 删除的内容: 1 删除的内容: 2 WiFi Disk simple Manual 2 1 Product Introduction 1.1 Product and Accessories WiFi Disk consists of WiFi-storage device、power adapter、Ethernet、USB cable、 CD and QIG. 1.2 Product Parameters and Configurations 1.2.1 Physical Parameters Product Dimensions：127.3x80x25mm 1.2.2 Basic Parameters CPU：MIPS24KEc 360MHZ WIFI：Supports 802.11 b/g/n, Frequency 2.4 GHZ Network Interface： 100Mbps Ethernet RJ45 USB Interface：Micro USB 3.0 Interface can connect to the computer to transmit data and charge the device. Battery：3000mA Power： 1. Maximal power dissipation(reading and writing data)：3.7W 2. Standby power dissipation(non-reading and non-writing data)：2.5W 3. Standby power dissipation(HDD sleep)：2.1W 1.2.3 Operating temperature The operating temperature of the device should be 5-35 degrees Celsius. WiFi Disk simple Manual 3 1.3 Related equipment requirements 1.3.1 Ethernet Connection Once the Ethernet is connected, the WiFi -storage device has two operating modes, and the working modes are as follows: 1. Router Mode: 2. AP+Client Mode: WiFi Disk simple Manual 4 1.3.2 OS on PC Windows XP/Windows Vista/Windows 7 Mac OS X Tiger 10.5.0 Mac OS X Leopard Fedora 12(Linux) 1.3.3 Web Browser on PC The product on the Windows platform supports Internet Explorer 7.0 and higher versions. The product on the Mac platform supports Safari 3.0 and higher versions. The product on the windows and Mac platform supports Firefox 3.5 and higher versions. The product on the Linux platform supports Firefox 3.5 and higher versions. 1.3.4 Local Network The router/switch (It will be used under AP+Client Mode and Router Mod WiFi Disk simple Manual 5 1.4 Product View(FOUR MODElS ) There are four kinds of models .The biggest diffidence is two of the models with Network Interface。The other two models has no Network Interface.As the picture is below. It is respectively ROC-WIFI-S250UN, ROC-WIFI-S250U, VIC-WIFI-S250UN and JEW-WIFI-2517. 1,RO…

Text truncated - open the document above for the full version.

UnRegistered

UnRegistered

UnRegistered

UnRegistered

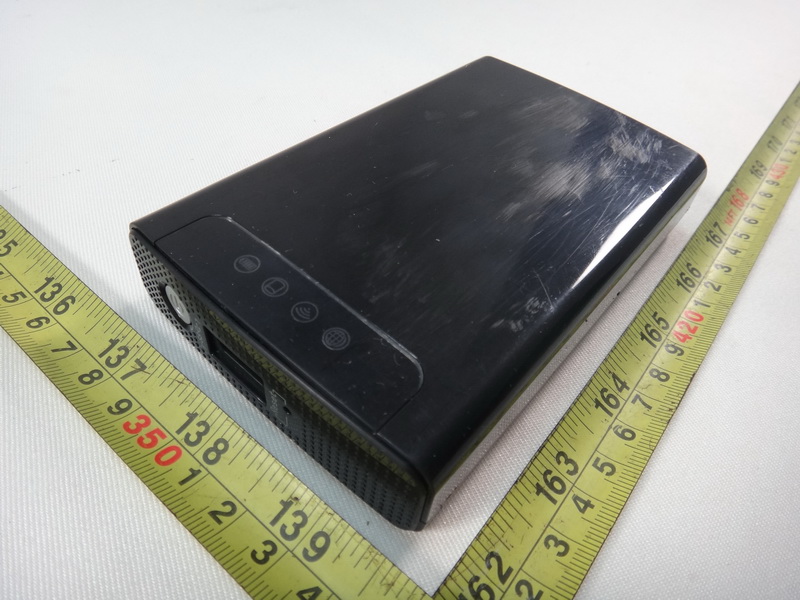

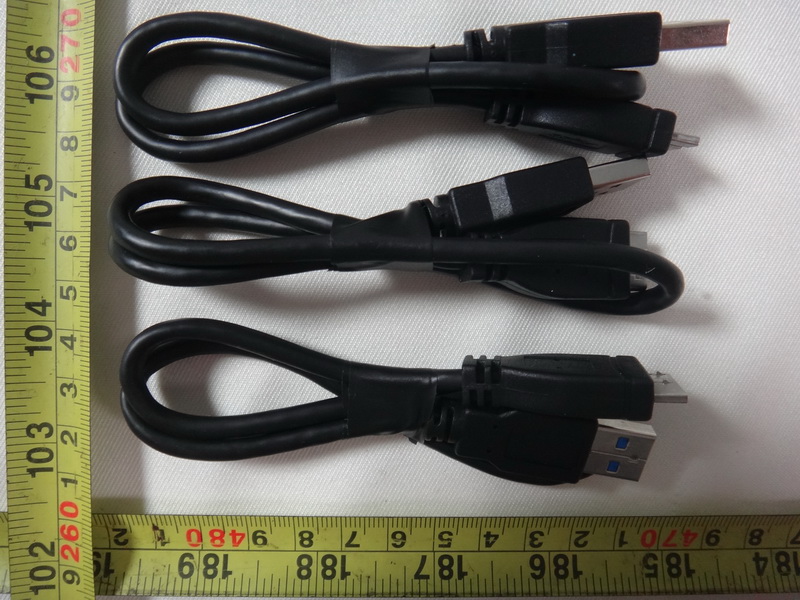

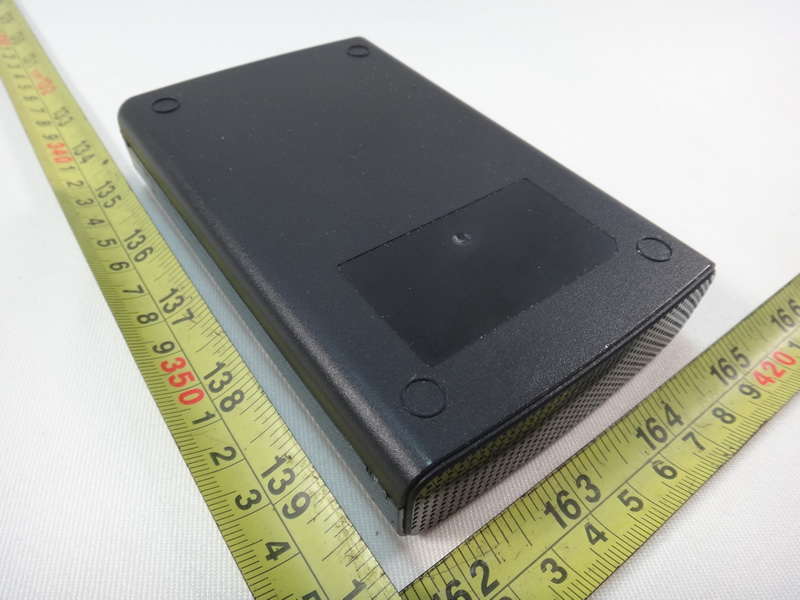

Neutron Engineering Inc. Project No.: 1207C056 Page 2 of 43 VIC-WiFi-S250UN 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 22 of 43 ROC-WIFI-S250UN 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 22 of 43 ROC-WIFI-S250UN 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 2 of 43 VIC-WiFi-S250UN 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 32 of 43 JEW-WiFi-2517 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 32 of 43 JEW-WiFi-2517 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 12 of 43 ROC-WIFI-S250U 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 12 of 43 ROC-WIFI-S250U 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 42 of 43 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 42 of 43 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 43 of 43 1207C056 1207C056 Neutron Engineering Inc. Project No.: 1207C056 Page 43 of 43 1207C056 1207C056

Batter y Level LED Read/Writ e LED WiFi LED Wan LED Power Button USB 3.0 Connector Reset Button Label This equipment complies with Part 15 of FCC RF Rules. Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Model Name: FCC ID: JEW-WiFi-2517 TQN2012ROC0001

Batter y Level LED Read/Writ e LED WiFi LED Lan LED Power Button USB 3.0 Connector Reset Button LABLE This equipment complies with Part 15 of FCC RF Rules. Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Model Name: FCC ID: ROC-WIFI-S250U TQN2012ROC0001

Batter y Level LED Read/Writ e LED WiFi LED Lan LED Power Button USB 3.0 Connector Reset Button Wan Connector LABLE This equipment complies with Part 15 of FCC RF Rules. Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Model Name: FCC ID: ROC-WIFI-S250UN TQN2012ROC0001

Batter y Level LED Read/Writ e LED WiFi LED Wan LED Wan Connector Power Button USB 3.0 Connector Reset Button Label This equipment complies with Part 15 of FCC RF Rules. Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Model Name: FCC ID: VIC-WiFi-S250UN TQN2012ROC0001

Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 33 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 34 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 35 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 36 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 37 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 38 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 39 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 40 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 41 of 43 1207C056

Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 13 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 14 of 43 1207C056 Neutron Engineering Inc. 1207C0561207C056 Project No.: 1207C056 Page 15 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 16 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 17 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 18 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 19 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 20 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 21 of 43 1207C056

Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 23 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 24 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 25 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 26 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 27 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 28 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 29 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 30 of 43 1207C056 Neutron Engineering Inc. 1207C056 Project No.: 1207C056 Page 31 of 43 1207C056

Copyright© Eternal Chip Semiconductor Co., Ltd. Ver. 1.0 1 High Performance product for you E TM Material Wi‐Fi Chip Antenna Product Product Code: (1) Product Categories A: Antenna (2) Product Material C: Ceramic (3) Working Frequency BX: 2.45GHz (4) Package Outline 321610: 3.2×1.6×1.04mm (5) Packaged form S: SMT (6) Packing Information C: Tape&Reel 1. Explanation of Product Number ECM A C BX 321610 S C E CMACBX 321610S C (1)(2)(3)(4)(5)(6) ECS CONFIDENTIAL Copyright© Eternal Chip Semiconductor Co., Ltd. Ver. 1.0 2 High Performance product for you E TM Material Wi‐Fi Chip Antenna Product * Light weight and low profile 3.2mm (L) X1.6mm (W) X1.04mm (H) * Omni‐directional in azimuth * Lead (Pb) Free * 2.4GHz wireless communications * 2.4GHz Modules * Bluetooth System * 802.11b/g Wireless LAN System Eternal chip antenna series are specially designed for Bluetooth/Wi‐Fi applications. Ba sed on Eternal proprietary design and processes, this chip antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. Characteristics Specifications Unit Center Frequency 2.45 GHz Peak Gain 2.5(Typ.) dBi VSWR 2.5max. Bandwidth 110(Typ.) MHz Impedance 50 Ω Power handling 1(Max.) W Polarization Linear Azimuth beamwidth Omni‐directional Soldering pad Natural tin Operation temperature ‐40~+85 °C Storage Temperature ‐40~+85 °C 2. Feature 5. Electrical Specifications 4. Description 3. Application ECS CONFIDENTIAL Copyright© Eternal Chip Semiconductor Co., Ltd. Ver. 1.0 3 High Performance product for you E TM Material Wi‐Fi Chip Antenna Product E F D Pin No. Pin assignment 1 Feed termination 2 Feed point mark 3 Solder termination Symbol Dimensions(mm) A 3.20±0.10 B 1.60±0.10 C 0.30±0.05 H 1.04±0.20 Symbol Dimensions(mm) D 0.70 E 1.60 F 3.20 6. Pin configuration 7. Dimensions 9. Recommended Test Board Pattern 8. PCB Foot Print ECS CONFIDENTIAL Copyright© Eternal Chip Semiconductor Co., Ltd. Ver. 1.0 4 High Performance product for you E TM Material Wi‐Fi Chip Antenna Product  Return loss  Smith Chart 10. Typical Electrical Characteristics Marker data: 1: f=2.411GHz 2: f=2.450GHz 3: f=2.492GHz ECS CONFIDENTIAL Copyright© Eternal Chip Semiconductor Co., Ltd. Ver. 1.0 5 High Performance product for you E TM Material Wi‐Fi Chip Antenna Product 11. Typical Radiation Patterns 2.45GHz H‐plane Vertical 2.45GHz H‐plane Horizontal 2.45GHz E‐plane Vertical 2.45GHz E‐plane Horizontal ECS CONFIDENTIAL Copyright© Eternal Chip Semiconductor Co., Ltd. Ver. 1.0 6 High Performance product for you E TM Material Wi‐Fi Chip Antenna Product  Reflow Soldering 12. Typical Soldering Profile for Lead‐free Process ECS CONFIDENTIAL

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: TQN2012ROC0001 Project No. : 1207C056 Equipment : WIFI-DISK Model : ROC-WIFI-S250UN; ROC-WIFI-S250U; VIC-WiFi-S250UN; JEW-WiFi-2517 Applicant : Power 7 Technology Corp. Address : 2F.NO.176.Jian-Yi Road.Chung-Ho City. Taipei Hsien. Taiwan According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand name Model Name Antenna TypeConnector Gain (dBi) 1 ECS ECM A C BX 321610 SC Chip N/A 2.5 TEST RESULTS EUT： WIFI-DISK Model Name ： ROC-WIFI-S250UN Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： B Mode/CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 17.68 58.6138 0.020746761 Complies 2.5 1.7783 18.15 65.3131 0.023118011 Complies 2.5 1.7783 17.58 57.2796 0.020274511 Complies Neutron Engineering Inc. EUT： WIFI-DISK Model Name ： ROC-WIFI-S250UN Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： G Mode/CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 22.63 183.2314 0.064856031 Complies 2.5 1.7783 22.67 184.9269 0.065456141 Complies 2.5 1.7783 22.12 162.9296 0.057670061 Complies EUT： WIFI-DISK Model Name ： ROC-WIFI-S250UN Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： N20 Mode/CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 21.76 149.9685 0.053082381 Complies 2.5 1.7783 22.52 178.6488 0.063233961 Complies 2.5 1.7783 22.65 184.0772 0.065155391 Complies EUT： WIFI-DISK Model Name ： ROC-WIFI-S250UN Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： N40 Mode/CH03/CH06/CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 21.94 156.3148 0.055328691 Complies 2.5 1.7783 22.08 161.4359 0.057141331 Complies 2.5 1.7783 22.02 159.2209 0.056357321 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 1 of 133 FCC Radio Test Report FCC ID: TQN2012ROC0001 This report concerns (check one) : Original Grant Class II Change Issued Date : Jul. 24, 2012 Project No. : 1207C056 Equipment : WIFI-DISK Model Name : ROC-WIFI-S250UN; ROC-WIFI-S250U; VIC-WiFi-S250UN; JEW-WiFi-2517 Applicant : POWER 7 TECHNOLOGY Corp. Address : 2F.NO.176.Jian-Yi Road.Chung-Ho City.Taipei Hsien.Taiwan Manufacturer : POWER 7 TECHNOLOGY Corp. Address : 2F.NO.176.Jian-Yi Road.Chung-Ho City.Taipei Hsien.Taiwan Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jul. 04, 2012 Date of Test: Jul. 04, 2012 ~ Jul. 23, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 2 of 133 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 3 of 133 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 15 4 . EMC EMISSION TEST 16 4.1 CONDUCTED EMISSION MEASUREMENT 16 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 16 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 16 4.1.3 TEST PROCEDURE 17 4.1.4 DEVIATION FROM TEST STANDARD 17 4.1.5 TEST SETUP 17 4.1.6 EUT OPERATING CONDITIONS 17 4.1.7 TEST RESULTS 18 4.2 RADIATED EMISSION MEASUREMENT 30 4.2.1 RADIATED EMISSION LIMITS 30 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 31 4.2.3 TEST PROCEDURE 32 4.2.4 DEVIATION FROM TEST STANDARD 32 4.2.5 TEST SETUP 33 4.2.6 EUT OPERATING CONDITIONS 34 4.2.7 TEST RESULTS (BELOW 30MHZ) 35 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 36 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 38 5 . BANDWIDTH TEST 86 5.1 APPLIED PROCEDURES / LIMIT 86 5.1.1 MEASUREMENT INSTRUMENTS LIST 86 5.1.2 TEST PROCEDURE 86 5.1.3 DEVIATION FROM STANDARD 86 5.1.4 TEST SETUP 86 5.1.5 EUT OPERATION CONDITIONS 86 5.1.6 TEST RESULTS 87 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 4 of 133 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 95 6.1 APPLIED PROCEDURES / LIMIT 95 6.1.1 MEASUREMENT INSTRUMENTS LIST 95 6.1.2 TEST PROCEDURE 95 6.1.3 DEVIATION FROM STANDARD 95 6.1.4 TEST SETUP 95 6.1.5 EUT OPERATION CONDITIONS 95 6.1.6 TEST RESULTS 96 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 98 7.1 APPLIED PROCEDURES / LIMIT 98 7.1.1 MEASUREMENT INSTRUMENTS LIST 98 7.1.2 TEST PROCEDURE 98 7.1.3 DEVIATION FROM STANDARD 98 7.1.4 TEST SETUP 98 7.1.5 EUT OPERATION CONDITIONS 98 7.1.6 TEST RESULTS 99 8 . POWER SPECTRAL DENSITY TEST 119 8.1 APPLIED PROCEDURES / LIMIT 119 8.1.1 MEASUREMENT INSTRUMENTS LIST 119 8.1.2 TEST PROCEDURE 119 8.1.3 DEVIATION FROM STANDARD 119 8.1.4 TEST SETUP 119 8.1.5 EUT OPERATION CONDITIONS 119 8.1.6 TEST RESULTS 120 9 . EUT TEST PHOTO 128 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 5 of 133 1. CERTIFICATION Equipment : WIFI-DISK Brand Name : POWER7 Model Name : ROC-WIFI-S250UN; ROC-WIFI-S250U; VIC-WiFi-S250UN; JEW-WiFi-2517 Applicant : POWER 7 TECHNOLOGY Corp. Factory : POWER 7 TECHNOLOGY Corp. Address : 2F.NO.176.Jian-Yi Road.Chung-Ho City.Taipei Hsien.Taiwan Date of Test : Jul. 04, 2012 ~ Jul. 23, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1207C056) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 6 of 133 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.209/15.205 Radiated Spurious Emissi…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 128 of 133 9. EUT TEST PHOTO Conducted Measurement Photos PC / USB2.0 READ&WRITE Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 128 of 133 9. EUT TEST PHOTO Conducted Measurement Photos PC / USB2.0 READ&WRITE Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 129 of 133 Conducted Measurement Photos PC / USB3.0 READ&WRITE Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 129 of 133 Conducted Measurement Photos PC / USB3.0 READ&WRITE Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 130 of 133 Conducted Measurement Photos Adapter Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 130 of 133 Conducted Measurement Photos Adapter Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 131 of 133 Radiated Measurement Photos 9K~ 30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 131 of 133 Radiated Measurement Photos 9K~ 30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 132 of 133 Radiated Measurement Photos 30MHz~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 132 of 133 Radiated Measurement Photos 30MHz~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 133 of 133 Radiated Measurement Photos Above 1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1207C056 Page 133 of 133 Radiated Measurement Photos Above 1000MHz
