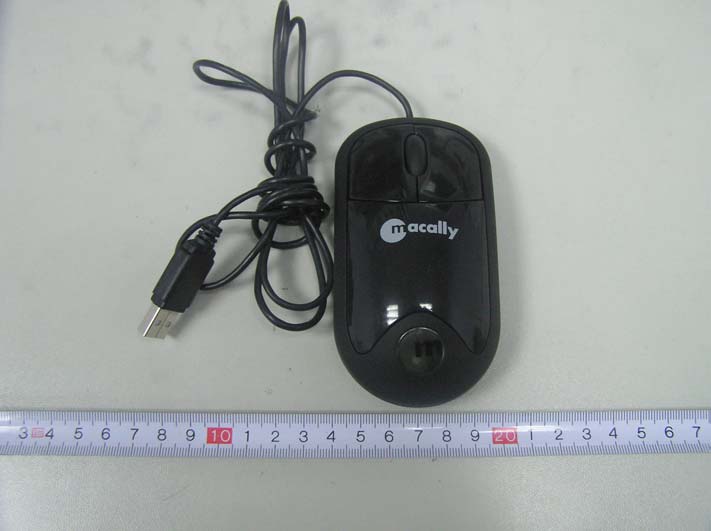

External Photos EUT-Top View EUT-Bottom View

ID Label Label FCC ID: TQNNFCENETMIC

Internal Photos EUT-Uncover View EUT- PCB (1) Top View EUT- PCB (1) with Antenna View EUT- PCB (2) Top View EUT- PCB (2) Back View EUT- Control Board Top View EUT- Control Board Separate View

NFC MOUSE CIRCUIT DESCRIPTION The NFC mouse is a full speed USB compound device. It has mouse function and RFID Reader function. The NFC mouse’s main micro controller is MC98JW32(Freescal), an USB full speed IC。 The RFID Reader PN531 (Philips) is a highly integrated transmission module for contactless communication at 13.56MHZ, ASK modulation. It uses a simple outside directly matched antenna to work. The antenna components have three parts: 1.A receiving circuit to receive data sent by the Tag. 2. A filtering and impedance transformation circuit suppresses higher harmonics and optimizes the power transmission to the reader antenna.3.A matching circuit for the antenna coil to achieve the best performance and the antenna coil itself has to be designed. MCU controls optical mouse sensor ANDS2051 (Agilent IC), and Reads data from it. At the same time, it will read commands from host(through USB bus) and send them to the RFID Reader IC PN531(through SPI port) to control it reading and writing contactless TAG, then reading response of PN531 and back to host(through USB bus).

55 44 33 22 11 D D C C B B A A REDBLUE Update POWER7 TECHNOLOGY MCU <Doc> A B 12 TitleSize Document Number Rev Date: Sheet of D- LED0 PTA6 SCLKIRQ PTA5 SDIO D- LED1 PTA4PDPTA6PTA5 PTA7 PTA4 D+ PTA3 D+ NSS0 SCK_ MOSI_ SCK MOSI LED1LED0 PTA7PTA3MOSISCKMISONSS0 MISO MISO_ NFC_PD PowerDown PowerDown +3.3V MCU5V MCU5V MCU5V 5V +3.3V MCU5V MCU5V MCU5V R27 330ohm R22 2K U1 68HC908JW32 123456789101112 13 14 15 16 17 18 19 20 21 22 23 24 363534333231302928272625 48 47 46 45 44 43 42 41 40 39 38 37 PTA0 NCNC PTC1/TCLK1 PTC3 PTB5 PTC0/T1CH0 PTE7PTE6PTE5PTE4 NC PTD0 PTD1 PTD2 PTD3 PTD4 PTD5 PTD6 NC NC PTD7 NC NC PTA7VDDPLLCGMXFCVSSPLLREG33PTE3PTE2VSS33PTB1PTB0OSC2OSC1 PTA1 PTA2 PTA3 PTA4 VSS REG25V VDD PTC2 PTA5 PTA6 IRQ RSET R5 10K R7 1K R28 330ohm + C9 10uF C70.1uF R344.7k R31 0ohm R29 330ohm C5 2.2nF U2 AS1117-3.3 3 1 2 VIN GND OUT GG S D S D Q2 FDV302P 1 2 3 Y1 4MHZ Q1 NPN BCE + C1310uF + C82.2uF R42K + C4110uF R10 2.2k + C114.7uF R6 1K L6 bead 1A R13 22 R30 330ohm R12 22 C420.1uF R110M SW1 C16100nF R32 1k + C14100uF C6 100pF R11 2.2K R354.7k C100.1uF R25 1k R38 24k R3750k SW2 R24 1k R364.7k C1710nF R8 4.7k C139P R9 4.7k C120.47uF J3CON5 12345 D1 LED BI-COLOUR C41nF R2 750K SW3 R26 330ohm C15100nF SW4 EC10E 123 QAQBVCC R37 0 L7 bead R33 0ohm R39 0 SW5 C31nF C239P R23 2K 55 44 33 22 11 D D C C B B A A Antenna 2.0mm-F 2.0mm-F 2.0mm-M2.0mm-M POWER7 TECHNOLOGY <Doc> A RF B 22 Friday, April 14, 2006 TitleSize Document Number Rev Date: Sheet of TX2TVSSTX1 TVDD TX1 TVSS TX2RX VMIDTVSSAVDDAVSSDVSS TVDD TVSS AVDD AVSSAVSS RXVMIDTVSS SCK_NSS0MISO_IRQMOSI_ PDSCLKSDIO NFC_PD +3.3V 5V +3.3V +3.3V C310.1uF C4010nF C2856P Y2 27.12MHZ J5CON6 123456 J4CON6 123456 C45NC U3 PN531 12345678910 11 12 13 14 15 16 17 18 19 20 40 39 38 37 36 35 34 33 32 31 30292827262524232221 DVSS LMOD TVSS1 TX1 TVDD TX2 TVSS2 AVDD VMID RX AVSS AUX1 AUX2 OSCIN OSCOUT I0 I1 TESTEN OSC2OUT OSC2IN VBUS DVDD RSTPD P32 P33 PVDD SCK MISO MOSI NSS DELARSTOUTIRQP30P31SVDDSIGINSIGOUTP34P35 + C4310uF C20 20P L20.56uH + C32 4.7uF C23 20P R1710K C272P + C4610uF C360.1uF C212P R182R0 C25100nF J6 CON5 12345 + C354.7uF J7 CON5 12345 R142.7K C370.1uF R191.5K C3018P C290.1uF C382.2uF + C33 4.7uF R151K R2115K C47 220P L3 0.1uH R162R0 U4 A2051 12345 678 1615 14 1312 11 10 9 SCLKXAXBYBYA XY_LED REFAREFB SDIOPD R_BIN VDDGND OSC_OUT GND OSC_IN Y3 18M C1918P C24220P C48 220P L4 0.1uH R2047K C18 1nF L10.56uH C44NC C39 100nF C26220P C340.1uF C2256P D2 LED

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.225 EMI MEASUREMENT AND TEST REPORT For Power 7 Technology Corporation 2F, No. 176, Jian-Yi Road, Chung-Ho City, Taipei Hsien, Taiwan FCC ID: TQNNFCENETMIC June 7, 2006 This Report Concerns: Original Report Equipment Type: Transmitter, eNetMouse Test Engineer: Deny Xiong, Louise Lu and Charmi Peng Report No.: RSZ06041705 Test Date: March 30-June 2, 2006 Reviewed By: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Power 7 Technology Corporation FCC ID: TQNNFCENETMIC Report # RSZ06041705 Page 2 of 21 FCC PART 15.225 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.207 - CONDUCTED EMISSION ..........................................................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP........................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA................................................................................................................................................................10 PLOT(S) OF TEST DATA..............................................................................................................................................10 §15.205, §15.209, §15.225(a) - RADIATED EMISSIONS TEST .............................................................................13 M EASUREMENT U NCERTAINTY ..................................................................................................................................13 EUT S ETUP ................................................................................................................................................................13 EMI T EST R ECEIVER S ETUP ......................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................14 TEST RESULTS SUMMARY..........................................................................................................................................14 TEST DATA...........................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission - Front View Conducted Emission - Side View Radiated Emissions-Front View (30 MHz –1000 MHz) Radiated Emissions-Rear View(30 MHz –1000 MHz) Radiated Emissions-Front View (9 KHz – 30 MHz) Radiated Emissions-Rear View (9 KHz – 30 MHz)
