TS5-6050M-GT200Mobile tracking device

SENDUM WIRELESS, CORP. Table of Contents 1 Purpose ..................................................................................................... 3 2 Introduction .............................................................................................. 3 2.1 What is a GT200 ................................................................................................. 3 2.2 How does a GT200 work..................................................................................... 3 3 Getting Started ......................................................................................... 3 3.1 Battery Tips ......................................................................................................... 3 3.2 Installing the Battery........................................................................................... 4 3.3 Removing the Battery .......................................................................................... 4 3.4 Charging the Battery........................................................................................... 4 3.4.1 Charging using the GT200 Device ............................................................. 4 4 Provisioning Your Device........................................................................ 4 5 GT200 Command Set .............................................................................. 5 6 Locating Your GT200.............................................................................. 6 6.1 Frequent Tracking .............................................................................................. 6 6.2 Periodic Tracking ............................................................................................... 6 6.3 Fast Tracking ...................................................................................................... 7 7 Using the Diagnostic Tool ....................................................................... 7 8 Troubleshooting ....................................................................................... 7 9 HUMAN EXPOSURE COMPLIANCE STATEMENT................Error! Bookmark not defined. 10 Important Safety and Legal Information .............................................. 9 10.1 RF Energy Interference/Compatibility ............................................................... 9 SENDUM WIRELESS, CORP. 1 Purpose The purpose of this guide is to describe the basic features of the GT200. 2 Introduction 2.1 What is a GT200 ¾ The GT200 is a wireless tracking device which operates on the CDMA network using assisted GPS for location. ¾ It is used for tracking valuable assets (such as tools, machinery, etc) in construction sites. 2.2 How does a GT200 work ¾ It establishes a data connection through either the cellular or the PCS band similar to a mobile phone. ¾ A user can send a SMS message through an internet connection or a mobile phone to the device by calling its phone number. The device gets its location and send it back to the user via the CDMA network. 3 Getting Started 3.1 Battery Tips Battery life depends on the network, signal strength, temperature, features, and accessories you use. ¾ Always use Sendum Original batteries and battery chargers. The warranty does not cover damage caused by non-Sendum batteries and/or chargers. ¾ New batteries or batteries stored for a long time may take more time to charge. ¾ When charging your battery, keep it near room temperature. ¾ When storing your battery, keep it uncharged in a cool, dark, dry place, such as a refrigerator. ¾ Never expose batteries to temperatures below -10°C (14°F) or above 45°C (113°F). Always take your device with you when you leave your vehicle. ¾ It is normal for batteries to gradually wear down and require longer charging times. If you notice a change in your battery life, it is probably time to purchase a new battery. Contact your local recycling center for proper battery disposal. Warning: Never dispose of batteries in a fire because they may explode. Before using your device, please read the battery safety information in the Safety and General Information section included in this guide. SENDUM WIRELESS, CORP. 3.2 Installing the Battery The battery is inaccessible by users 3.3 Removing the Battery The battery is inaccessible by users 3.4 Charging the Battery New batteries are shipped partially charged. Before you can use your device, install and charge the battery as described below. Some batteries perform best after several full charge/discharge cycles . 3.4.1 Charging using the GT200 Device Simply attached the Sendum charger into the device and plug the AC adapter to the AC outlet. 4 Provisioning Your Device ¾ Connect your device using the sendum USB cable. If problem communicating with the device. Use the following documents for troubleshooting: DEX00003 (DOC QUALCOMM USB D ¾ Open the Sendum Provisioning Tool. Should look like: SENDUM WIRELESS, CORP. ¾ Select the com port that the device is communicating, then press “Connect”. The ESN will be shown. ¾ If the device is already provisioned, the “Read” button is used to check. ¾ Now all provisioning parameters can be entered into the appropriate boxes. ¾ Press “Write” to load into the device. 5 GT200 Command Set The GT200 supports the following commands. There are sent to the device using SMS messages: //BREW:0x12345678:PSW2,PROVISION,PDE,<ip_address>:<port> Sets the PDE address used by the device. In control plane architectures, this is the address of the Control Plane Server. In user plane architectures, this is the address of the actual PDE. //BREW:0x12345678:PSW2,PROVISION,APP,<ip_address>:<port> Sets the APP address of used by the device. All messages from the device are sent to this IP address. //BREW:0x12345678:PSW2,COMMAND,STATUS Causes the device to send a status report. //BREW:0x12345678:PSW2,COMMAND,LOCATE Causes the device to locate itself and send a location report. //BREW:0x12345678:PSW2,REPORT,STATUS,<interval> Causes the device …

Text truncated - open the document above for the full version.

4500 Beedie Street, Burnaby BC, Canada, V5J 5L2 www.sendum.com Main: 604.438.3333 Fax: 604.437.5726 This document contains information which is proprietary and confidential to Sendum Wireless, Corp. Disclosure to persons other than the officers, employees, agents, or subcontractors of the Company or licensee of this document without the prior written permission of Sendum Wireless, Corp. is strictly prohibited. Date: May. 08/07 Sendum Wireless Corp. 4500 Beedie Street Burnaby, BC, V5J 5L2 Canada Attn: Reviewing Agency or TCB I certify that the submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC regulations will have affixed to it a label identical to that submitted for approval with this application. Dated this 08 day of May, 2007. By: __________________________ Kerry Zoehner Title: EVP email: [email protected] On behalf of: Sendum Wireless Corp. Telephone: (604) 438-6451 Sendum

4500 Beedie Street, Burnaby BC, Canada, V5J 5L2 www.sendum.com Main: 604.438.9741 Fax: 604.437.5726 This document contains information which is proprietary and confidential to Sendum Wireless, Corp. Disclosure to persons other than the officers, employees, agents, or subcontractors of the Company or licensee of this document without the prior written permission of Sendum Wireless, Corp. is strictly prohibited. Date: May. 05/07 Sendum Wireless Corp. 4500 Beedie Street Burnaby, BC, V5J 5L2 Canada Re: Request of Confidentiality (TS5-6050M-GT20000) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TS5-6050M-GT200 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Schematic-GT200-R3.0.pdf Parts List GT200 Parts List.pdf Block Diagram GT200Block Diagram(Sendum).pdf Operational Description GT200 TechnicalDescriptions-Draft(Sendum).pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kerry Zoehner VP of Engineering Sendum Wireless Corp. . Sendum 4500 Beedie Street, Burnaby BC, Canada, V5J 5L2 www.sendum.com Main: 604.438.9741 Fax: 604.437.5726 This document contains information which is proprietary and confidential to Sendum Wireless, Corp. Disclosure to persons other than the officers, employees, agents, or subcontractors of the Company or licensee of this document without the prior written permission of Sendum Wireless, Corp. is strictly prohibited.

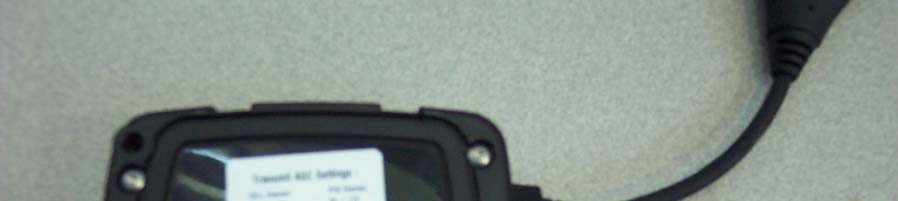

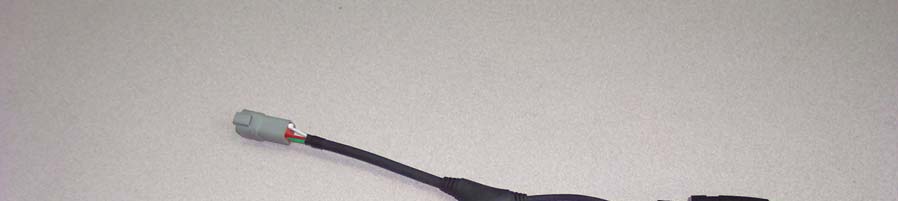

CG-547 Model GT200 Compliance Test Report Sendum Wireless FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 Date: Revision #: External Photographs GT200 TOP View CG-547 Model GT200 Compliance Test Report Sendum Wireless FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 Date: Revision #: GT200 Bottom View CG-547 Model GT200 Compliance Test Report Sendum Wireless FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 Date: Revision #: GT200 Side view

4500 Beedie Street, Burnaby BC, Canada, V5J 5L2 www.sendum.com Main: 604.438.9741 Fax: 604.437.5726 This document contains information which is proprietary and confidential to Sendum Wireless, Corp. Disclosure to persons other than the officers, employees, agents, or subcontractors of the Company or licensee of this document without the prior written permission of Sendum Wireless, Corp. is strictly prohibited. ¾ GT200 FCC label Locations: The IC number will be placed on the label underneath the FCC ID number. The model number: GT200 will be placed underneath the Part Number Sendum IC: 6234A-GT200

CG-547-RA-1-1 Model GT200 Compliance Test Report Sendum Wireless FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 Date: Revision #: Internal Photographs PCB TOP View with Shield PCB Top View Shield Removed CG-547-RA-1-1 Model GT200 Compliance Test Report Sendum Wireless FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 Date: Revision #: PCB Bottom View with Shield PCB Bottom View with Shield Removed CG-547-RA-1-1 Model GT200 Compliance Test Report Sendum Wireless FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 Date: Revision #: Antenna View

CG-547-RA-1-2 ModelGT200 Compliance Test Report Sendum Wireless FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 6 of 38 1.0 INTRODUCTION 1.1 PURPOSE The purpose of this document is to describe the tests applied by NTS Canada to demonstrate compliance of the GT200 Inc to the following specifications: FCC Part 22, Subpart H Public Mobile Services RSS-129, Issue 2 800MHz Dual-Mode CDMA Cellular Telephones FCC Part 24, Subpart E Personal Communications Services RSS-133, Issue 2, Rev.1 2GHz Personal Communications Services 2.0 EUT DESCRIPTION 2.1 CONFIGURATION Description of EUT Name ModelRevisionSerial Number EUT Tracking device with 800MHz/1900 MHz CDMA GT2002.0 Sample1: 3A358545 (modified for conducted measurements) Sample 2: 3A35851 Sample3: 3A358536 Classification Mobile Operating frequency range Cell Mode : 836.51 to 848.97 MHz, PCS Mode: 1851.25 to 1908.75 MHz Rated Output Power 25 dbm ERP (Cell mode and PCS Mode) Modulation Cell Mode: CDMA PCS Mode: CDMA Emission Designator 1M27F9W Antenna Type/Gain Internal integral antenna Cell Mode gain: 1.5 db PCS Mode gain: .5 db Manufactured by Sendum Wireless Functional description The device uses GPS technology to encode its location, which is transmitted via CDMA or PCS wireless elephony to keep track of the container or vehicle it is in. Voltage/Power source 3.7 VDC Lithium battery Voltage/current into final amplifier stage ¾ The voltage is 3.6V dc nominal and ranges from 3.2Vdc to 4.2Vdc ¾ The dc current is 500mA Tune up procedure Within the GT200, there is a digitally controlled attenuator and peak power detector for this purpose. Each unit will be calibrated at the factory for accuracy and maximum power limiting. The power detector is calibrated and set to a power limit of 23.5dBm for PCS band and 24.5dBm for Cellular band. During operation of the unit, the CDMA base station detected the transmit power from the device and command it to step up/down by 1dB depending on whether the device power is low or high. But the unit will not exceed the maximum power

RF Exposure The maximum power density permitted as per RF exposure rules is 1.00 mW/cm RF exposure calculation for a mobile device (GT200 is as follows). PG S = ---------------- 4¶ R² Where: S= power density P= power input to the antenna G= Power gain of the antenna in the direction of interest relative to an isotropic radiator R= distance to the center of radiation of the antenna EUT Information: Conducted Measured RF Power Output : 24.6 dBm or .2884 Watts Antenna Gain (Typical) - dBi : 0.5 dbi Antenna Gain – numerical : 1.12 Minimum distance : 20 cm Frequency : 824.7 MHz MPE Limit : 1.0 mW/cm² The worst case measured ERP was used for the calculation: Power Density = .2884 x 1.12 4 ¶ (20²) = 0.0643 mW/cm² The power density at 824.7 MHz is 0.0643 mW/cm² at a distance of 20 cm

RF Exposure The maximum power density permitted as per RF exposure rules is 1.00 mW/cm RF exposure calculation for a mobile device (GT200 is as follows). PG S = ---------------- 4¶ R² Where: S= power density P= power input to the antenna G= Power gain of the antenna in the direction of interest relative to an isotropic radiator R= distance to the center of radiation of the antenna EUT Information: Conducted Measured RF Power Output : 23.92 dBm or .2466 Watts Antenna Gain (Typical) - dBi : 1.5 dbi Antenna Gain – numerical : 1.41 Minimum distance : 20 cm Frequency : 1908.75 MHz MPE Limit : 1.0 mW/cm² The worst case measured ERP was used for the calculation: Power Density = .2446 x 1.41 4 ¶ (20²) = .068613 mW/cm² The power density at 824.7 MHz is .068613 mW/cm² at a distance of 20 cm

Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. Product Integrity Laboratory 5151-47 th Street, NE Calgary, Alberta T3J 3R2 Tel: (403) 568-6605 Fax : (403) 568-6970 Certification Test Report FCC Part 22, Subpart H/ Industry Canada RSS 129 Part 24, Subpart E/ Industry Canada RSS 133 Sendum Wireless Model GT200 FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 Project Code CG-547 (Report CG-547-RA-1-2) Revision: 2 May 15, 2007 Prepared for: Sendum Wireless Author: Glen Moore EMC Manager Approved by: Nick Kobrosly Lab Manager CG-547-RA-1-2 ModelGT200 Compliance Test Report Sendum Wireless FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 38 Report Summary NTS Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: FCC 101386 IC 46405-3978 File # IC3978-2 Standards Council of Canada Accredited Laboratory No. 440 Applicant: Sendum Wireless 4500 Beedie Street Burnaby, BC V5J 5L2 Tel: 604-454-3774 Customer Representative: Henry Seto EUT Description: EUT Description Manufacturer Model Revision Serial Number GT200 Sendum Wireless GT200 2.00 3A358545 CG-547-RA-1-2 ModelGT200 Compliance Test Report Sendum Wireless FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 38 Test Summary Deviations* from: Status Applicable Rule Parts Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure A Occupied BW No No No PASS Cell Mode – FCC 22.905 PCS Mode – FCC -24.238 B Peak Power Output No No No PASS Cell Mode – FCC 22.913 PCS Mode – FCC -24.232 C TX Frequency Stability No No No PASS Cell Mode – FCC 22.335 PCS Mode – FCC -24.235 D TX Conducted Spurious Emissions No No No PASS Cell Mode – FCC 22.917 PCS Mode – FCC -24.238 E TX Radiated Spurious Emissions 30 MHz- 19GHz RSS 129/133 RX Spurious Emissions No No No PASS Cell Mode – FCC 22.917 PCS Mode – FCC -24.238 F Test Equipment List No No No PASS NA Test Result: The product presented for testing complied with test requirements as shown above. Prepared By: ______________________ Glen Moore EMC Manager Reviewed By: ______________________ Alex Mathews Compliance Specialist Approved By: ______________________ Jennifer Hansen Quality Representative CG-547-RA-1-2 ModelGT200 Compliance Test Report Sendum Wireless FCC ID # TS5-6050M-GT200 IC ID # 6234A-GT200 ______________________________________________________________________ The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 38 Table of Contents FCC ID # TS5-6050M-GT200 ...........................................................................................................................................1 REPORT SUMMARY ........................................................................................................................................................2 TEST SUMMARY..............................................................................................................................................................3 REGISTER OF REVISIONS .............................................................................................................................................5 1.0 INTRODUCTION ................................................................................................................................................6 1.1 PURPOSE.................................................................................................................................................................................... 6 2.0 EUT DESCRIPTION ...........................................................................................................................................6 2.1 CONFIGURATION.......................................................................................................................................................................... 6 2.2 MODE OF OPERATION DURING TE…

Text truncated - open the document above for the full version.

CG-547-RA-1-2 GT200 Compliance Test Report Sendum Wireless Corp Test Photographs Figure 1 Radiated Emissions Test Photograph (worst case orientation)
