TS5-6055M-PT300DUAL-BAND CDMA 1xRTT ASSET TRACKING DEVICE

SENDUM WIRELESS, CORP. Table of Contents 1 Purpose ..................................................................................................... 3 2 Introduction .............................................................................................. 3 2.1 What is a PT300 .................................................................................................. 3 2.2 How does a PT300 work ..................................................................................... 3 3 Getting Started ......................................................................................... 3 3.1 Battery Tips ......................................................................................................... 3 3.2 Installing the Battery ........................................................................................... 4 3.3 Removing the Battery .......................................................................................... 4 3.4 Charging the Battery ........................................................................................... 4 3.4.1 Charging using the PT300 Device .................................................................. 4 3.4.2 Charging using Gang Charger ........................................................................ 4 4 Provisioning Your Device ........................................................................ 4 5 PT300 Command Set ............................................................................... 5 6 Locating Your PT300 .............................................................................. 6 6.1 Frequent Tracking .............................................................................................. 6 6.2 Periodic Tracking ............................................................................................... 6 6.3 Fast Tracking ...................................................................................................... 7 7 Using the Diagnostic Tool ....................................................................... 7 8 Troubleshooting ....................................................................................... 8 9 Important Safety and Legal Information ................................................. 9 9.1 RF Energy Interference/Compatibility ............................................................... 9 SENDUM WIRELESS, CORP. 1 Purpose The purpose of this guide is to describe the basic features of the PT300. 2 Introduction 2.1 What is a PT300  The PT300 is a wireless tracking device which operates on the CDMA network using assisted GPS for location.  It is used for tracking valuable packages or assets. 2.2 How does a PT300 work  It establishes a data connection through either the cellular or the PCS band similar to a mobile phone.  A user can send a SMS message through an internet connection or a mobile phone to the device by calling its phone number. The device gets its location and send it back to the user via the CDMA network. 3 Getting Started 3.1 Battery Tips Battery life depends on the network, signal strength, temperature, features, and accessories you use.  Always use Sendum Original batteries and battery chargers. The warranty does not cover damage caused by non-Sendum batteries and/or chargers.  New batteries or batteries stored for a long time may take more time to charge.  When charging your battery, keep it near room temperature.  When storing your battery, keep it uncharged in a cool, dark, dry place, such as a refrigerator.  Never expose batteries to temperatures below -10°C (14°F) or above 45°C (113°F). Always take your device with you when you leave your vehicle.  It is normal for batteries to gradually wear down and require longer charging times. If you notice a change in your battery life, it is probably time to purchase a new battery. Contact your local recycling center for proper battery disposal. Warning: Never dispose of batteries in a fire because they may explode. Before using your device, please read the battery safety information in the Safety and General Information section included in this guide. SENDUM WIRELESS, CORP. 3.2 Installing the Battery Slide the battery pack into the PT300 battery slot using the guiding tabs until the latch clicks into place. 3.3 Removing the Battery Pull the latch and slide the battery pack away from the PT300 housing at the same time. 3.4 Charging the Battery New batteries are shipped partially charged. Before you can use your device, install and charge the battery as described below. Some batteries perform best after several full charge/discharge cycles. 3.4.1 Charging using the PT300 Device Simply attached the Sendum charger into the device and plug the AC adapter to the AC outlet. 3.4.2 Charging using Gang Charger To be updated later. 4 Provisioning Your Device  Connect your device using the sendum USB cable. If problem communicating with the device. Use the following documents for troubleshooting: DEX00003 (DOC QUALCOMM USB DRIVER INSTALLATION).doc  Open the Sendum Provisioning Tool. Should look like: SENDUM WIRELESS, CORP.  Select the com port that the device is communicating, then press “Connect”. The ESN will be shown.  If the device is already provisioned, the “Read” button is used to check.  Now all provisioning parameters can be entered into the appropriate boxes.  Press “Write” to load into the device. 5 PT300 Command Set The PT300 supports the following commands. There are sent to the device using SMS messages: //BREW:0x12345678:PSW2,PROVISION,PDE,<ip_address>:<port> Sets the PDE address used by the device. In control plane architectures, this is the address of the Control Plane Server. In user plane architectures, this is the address of the actual PDE. //BREW:0x12345678:PSW2,PROVISION,APP,<ip_address>:<port> Sets the APP address of used by the device. All messages from the device are sent to this IP address. //BREW:0x12345678:PSW2,COMMAND,STATUS Causes the d…

Text truncated - open the document above for the full version.

Celltech Labs Inc. 21-364 Lougheed Road, Kelowna, B.C. Canada V1X 7R8 Tel. 250-765-7650  Fax. 250-765-4645  e-mail: [email protected] www.celltechlabs.com December 12, 2011 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: SENDUM WIRELESS CORPORATION FCC ID: TS5-6055M-PT300 FCC Part 24, Subpart E PCB - PCS Licensed Transmitter On behalf of Sendum Wireless Corporation is an application for new Certification under FCC Part 24 Subpart E of the Sendum PT300 Dual-Band CDMA Asset Tracking Device. Submitted within this application is the TCB Form 731, applicant’s agency authorization letter, applicant’s long- term confidentiality request, FCC Part 22H/24E RF measurement report and test setup photographs, MPE RF exposure data summary, internal and external device photographs, block diagram (confidential), schematic diagrams (confidential), circuit description (confidential), tune-up procedure (confidential), parts list (confidential) and the user manual. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes Project Manager Celltech Labs Inc. cc: Sendum Wireless Corporation

DATE: Dec. 01, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, Sendum Wireless Corporation, hereby authorize Jonathan Hughes of Celltech Labs Inc. to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Jonathan Hughes of Celltech Labs Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 853(a). Sincerely, ___________________ Henry Seto Senior RF Engineer/Manager Sendum Wireless Corp. Sendum

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] TCB FCC Approvals FCB Industry Canada Approval NB Notified Body for Europe JANUARY 6, 2012 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Phone: +1-301-362-3000 [email protected] To whom it may concern: The exhibit named “SBTA power analysis.pdf “was uploaded under test report when it should have been uploaded under RF Exposure. This exhibit has been superseded and uploaded correctly marked as an RF Exposure for the description. Thank you. Please feel free to contact us if you have any questions. FCCID: TS5-6055M-PT300 Thank you, Timco Engineering Inc.

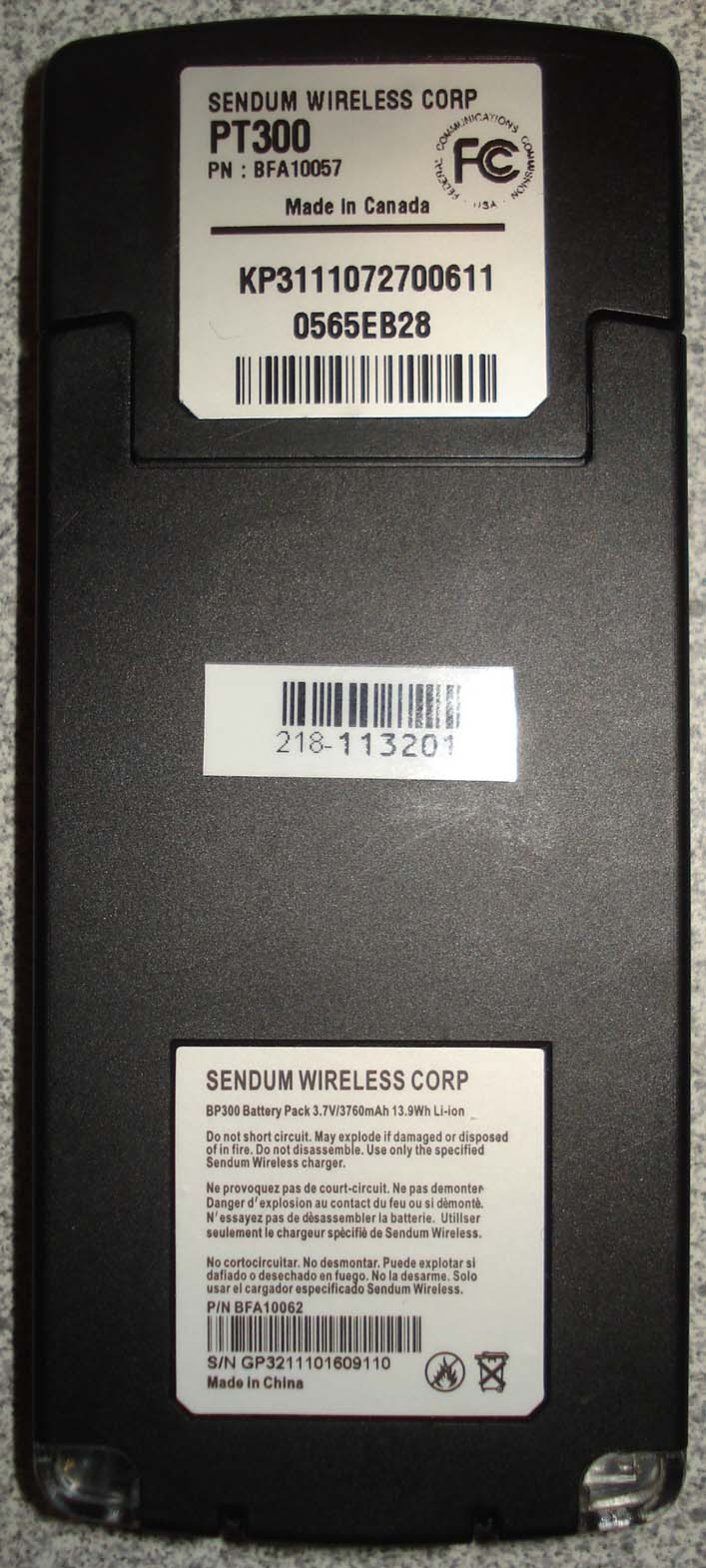

PT300 Sample Label PT300 Sample Label PT300 Label Location

Source Based Time Average output power analysis: Operation Condition: In a typical operation condition the CDMA radio is in sleep mode until a alarm situation arises. These alarm conditions can be triggered by one of several sensors in the battery pack. These sensors sense vibration, tilt, temperature, light, battery level, humidity, pressure. Once the alarm is triggered, the radio wakes up and start GPS tracking by turning on the GPS receiver and reports the location through the CDMA wide area network to the host. The duty cycle of the CDMA transceiver and the GPS receiver depends on the application. Due to the limitations on battery life requirement the reporting period is limited to a maximum of once per hour. Each report will typical take in the order of 5-10s. There is also a hard duty cycle limit of 80s/hr by the carriers. Analysis: Due to the possibility that the device could be placed in a users pocket, although not the intended usage, the following analysis shows the SBTA versus SAR power threshold. Max average power = 24.75 dBm = 298.5mW Threshold Output power: Cell Band < 60/f(GHz)mW = 71.9 mW SBTA (where f= 0.835) PCS Band < 60/f(GHz)mW = 31.9 mW SBTA (where f=1.88) Calculation Max time on = 10 seconds. Period (over 1 hour) = 3600 seconds. Worst case period apply 6 min exposure time = 360 sec SBTA factor = 10/360 = 2.8% SBTA = 0.028 * 298.5 = 8.4mW < 31.9 Conclusion: SAR evaluation not required.

Test Report Serial No.: 110811TS5-T1132-E24C Test Report Issue Date: December 12, 2011 Measurement Date(s): November 23-28, 2011 Test Report Revision No.: Revision 1.0 Measurement Standard(s): FCC 47 CFR §2, §22H, §24E Industry Canada RSS-132 & RSS-133 Test Lab Registration(s): FCC Accredited Site Industry Canada Lab File #: IC 3874A-1 Applicant: Sendum Wireless Corp. FCC ID: TS5-6055M-PT300 IC: 6234A-PT300 DUT Model: PT300 DUT Type: Asset Tracking Device (Dual-Band CDMA 1xRTT) 850 / 1900 Bands 2008 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 34 DECLARATION OF COMPLIANCE RF MEASUREMENT REPORT FCC & IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna B.C. V1X 7R8 Canada ISO 17025 A2LA Test Lab Certificate No. 2470.01 Test Lab Registration No.(s) IC 3874A-1 Name SENDUM WIRELESS CORPORATION Applicant Information Address 4500 Beedie Street, Burnaby, B.C. V5J 5L2 Canada FCC 47 CFR Part 2 47 CFR Part 22 Subpart H 47 CFR Part 24 Subpart E IC RSS-132 Issue 2 RSS-133 Issue 5 RSS-Gen Issue 3 Standard(s) & Procedure(s) ANSI TIA/EIA-603-C-2004 FCC PCS Licensed Transmitter (PCB) 47 CFR §24(E) 2 GHz Personal Communication Services RSS-133 Issue 5 Device Classification(s) IC 800 MHz Cellular Telephones Employing New Technologies RSS-132 Issue 2 Application Type(s) FCC/IC New Certification Device Identifier(s) FCC ID: TS5-6055M-PT300 IC: 6234A-PT300 Device Under Test (DUT) Asset Tracking Device Co-located Transmitter(s) None Device Model(s) PT300 Test Sample Revision No.(s) Hardware Rev 2.0 Firmware R1.43.12 Test Sample Serial No.(s) KP3111072700611 0565EB28 (Identical Prototype) Mode(s) of Operation Dual-Band CDMA 1xRTT Transmit Freq. Range(s) 850 Band 824.70 - 848.31 MHz 1900 Band 1851.25 - 1908.75 MHz Band Mode Frequency Channel dBm Watts Method 1851.25 MHz 25 26.1 0.407 EIRP 1880.00 MHz 600 27.2 0.525 EIRP 1900 CDMA 1xRTT 1908.75 MHz 1175 25.5 0.355 EIRP 824.70 MHz 1013 24.85 0.306 ERP 836.52 MHz 384 26.35 0.432 ERP Max. RF Output Power Tested 850 CDMA 1xRTT 848.31 MHz 777 26.75 0.473 ERP Antenna Type(s) Tested Internal Power Source(s) Tested Lithium-ion Rechargeable Smart Battery 3.7V 3760mAh Model: BP300 This wireless device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Rule Parts 2, 22H, 24E; Industry Canada RSS-132 Issue 2, RSS 133 Issue 5, RSS-Gen and ANSI TIA/EIA-603-C-2004. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Test Report Serial No.: 110811TS5-T1132-E24C Test Report Issue Date: December 12, 2011 Measurement Date(s): November 23-28, 2011 Test Report Revision No.: Revision 1.0 Measurement Standard(s): FCC 47 CFR §2, §22H, §24E Industry Canada RSS-132 & RSS-133 Test Lab Registration(s): FCC Accredited Site Industry Canada Lab File #: IC 3874A-1 Applicant: Sendum Wireless Corp. FCC ID: TS5-6055M-PT300 IC: 6234A-PT300 DUT Model: PT300 DUT Type: Asset Tracking Device (Dual-Band CDMA 1xRTT) 850 / 1900 Bands 2008 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 34 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 5 2.0 REFERENCES .................................................................................................................................................... 5 2.1 Normative References ......................................................................................................................................... 5 3.0 TERMS AND DEFINITIONS................................................................................................................................ 6 4.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 7 5.0 GENERAL INFORMATION ................................................................................................................................. 7 5.1 Applicant Information ........................................................................................................................................... 7 5.2 DUT Description .................................................................................................................................................. 7 5.3 Rule Part(s) & Classification(s)............................................................................................................................ 7 5.4 Mode(s) of Operation Tested............................................................................................................................... 8 5.5 Configuration Description .................................................................................................................................... 8 6.0 PASS/FAIL CRITERIA......................................................................................................................................... 8 Appendix A - Occupied Bandwidth ..................................................................................................................... 9 Appendix B Peak to Average Ratio.....................…

Text truncated - open the document above for the full version.

Test Report Serial No.: 110811TS5-T1132-E24C Test Report Issue Date: December 12, 2011 Measurement Date(s): November 23-28, 2011 Test Report Revision No.: Revision 1.0 Measurement Standard(s): FCC 47 CFR §2, §22H, §24E Industry Canada RSS-132 & RSS-133 Test Lab Registration(s): FCC Accredited Site Industry Canada Lab File #: IC 3874A-1 Applicant: Sendum Wireless Corp. FCC ID: TS5-6055M-PT300 IC: 6234A-PT300 DUT Model: PT300 DUT Type: Asset Tracking Device (Dual-Band CDMA 1xRTT) 850 / 1900 Bands 2008 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 23 of 34 D.8 SETUP PHOTOGRAPHS
