btModem User’s Manual Revision 1.0 3J Tech Co., Ltd. 342 Fu-Hsing N. Rd., 2F Taipei, Taiwan Tel: +886-2-2500 6916 [email protected] 3JTech (A3J Eng.), Inc. 15344 E. Valley Blvd., Suite C City of Industry, CA 91746 USA Tel: 1-626-934 7600 [email protected] 3JTech Co., Ltd. http://www.3jtech.com Confidential 2 Revision History Revision Date Changes 1.0 Dec.2,2005 First Release / Kiwi Huang Related Documents or Files 1) BEM 001 Bluetooth Module data sheet. 2) SI3014 silicon DAA data sheet. 3) IP568x –DS-P02-010815 modem chip set data sheet 4) AT command sets.. Table of Contents General Description Application Specification Installation Guide for btModem (Pocker PC) 3JTech Co., Ltd. http://www.3jtech.com Confidential 3 General Description The 3JTECH btModem is a highly integrated, low-cost, high performance, and low-power dissipation wireless modem. This module implements V.90 to achieve Internet connection rates up to 56Kbps, supporting existing V.34 data mode, Class 1 FAX mode. DTE terminal and provide reliable connection with connection rate ranging from 300bps up to 115200bps Comply with Bluetooth specification V1.2 CSR Blue Core2 external signal chip Bluetooth System Authentication is a mandatory feature of the dial-up networking and fax profile Transmitter power meet Class 1 requirement RF-Wireless Frequency 2400-2483.5 MHz Fully 723K bps data rate speed Support up to 7 ACL connection RF output power -12 dBm--+1 0 dBm (class 1) High receiving sensitivity (-88 dBm 0.1%BER) System support Windows 98SE, Windows ME, Windows 2000, Windows XP Application Wireless modem. Stand-alone modem Internet Access. Remote Access and control. 3JTech Co., Ltd. http://www.3jtech.com Confidential 4 Specification . Data mode capabilities: . ITU-T V.90 . ITU-T V.34 . ITU-T V.32bis, V.32 . ITU-T V.22bis,V.22 . ITU-T V.23, V.21 . Bell 212 . Bell 103 . FAX mode capabilities: . ITU-T V.17, V.29, V.27ter, and V.21 Ch 2 . TIA/EIA 578 class 1 FAX . V.42 error correction (LAPM and MNP) . V.42bis and MNP class 5 data compression . World wide call progress tone detection . TIA/EIA 602 standard for AT command set . DTE speed up to 115200 Comply with Bluetooth specification V1.2 CSR Blue Core2 external signal chip Bluetooth System Authentication is a mandatory feature of the dial-up networking and fax profile Transmitter power meet Class 1 requirement RF-Wireless Frequency 2400-2483.5 MHz Fully 723K bps data rate speed Support up to 7 ACL connection RF output power -12 dBm --+10 dBm (class 1) High receiving sensitivity (-88 dBm 0.1%BER) IP-568x V.90 Modem chipset BEM 001 Bluetooth Module SI3021SI3014 Silicon DAA RJ-11 93C56 EEPROM 36.884 Mhz Crystal Rechargeable AAA Battery x4 5.6V AIC1550 DC to DC 3.3V Converter Reset key btModem Block Diagram 3JTech Co., Ltd. http://www.3jtech.com Confidential 5 Installation Guide for btModem (Pocker PC) 1) Please make sure your PDA and btModem are functional properly. Please keep the distance between the devices within 10 meters. 2) Please initiate your PDA Bluetooth function. 3) Setup btModem and PDA connection information, Please operate according to the following steps.: A. Setup btModem for your PDA i. Initiate Bluetooth manager function ii. Tap the “Add Device” Button iii. Select ”Search for Bluetooth Devices” iv. PDA will automatically search for any Bluetooth device within the range, tap and select ”btModem” v. Input btModem 4 digit PIN Code (Please type in lower cases ) vi. Select “Dial-Up-Network” vii. Tap “finish” to complete setting. 3JTech Co., Ltd. http://www.3jtech.com Confidential 6 B. How to setup dialup connection for your PDA Dialup Setup can be done through PDA’s Bluetooth manager or Dial-Up-Networking. Please operate according to the following steps : i. Tap “Start” button in Win CE ii. Tap “Settings” iii. Tap “Connection” Tab and select COnnections iv. Select ”Add new modem connection” to setup your connection v. Please insert the desired connection name and select Bluetooth Dial-Up Modem for the modem section. vi. Input your ISP dial-up phone number and the user name/password vii. Enter ”Advance” setting and change the connection speed to “57600” bps viii. Tapping “finish” to complete setting. 3JTech Co., Ltd. http://www.3jtech.com Confidential 7 btModem User’s Manual AT Command Set Section 1. Data Mode Command A/ Executes Last Command When modem receives this command, modem executes the last command string entered. Do not conclude it by pressing “Enter”. A Answer Command This command instructs the modem to go off-hook and answer an incoming call. Bn Communication Standard Setting This command determines ITU-T vs. Bell standard. B0* Selects ITU-T V.22 mode when the modem is at 1200 bits/s. (Default) B1 Selects Bell 212A when the modem is at 1200 bits/s. Result Codes: OK : n = 0, 1 ERROR : Otherwise Dn Dial This command instructs the modem to begin the dialing sequence. A dial string can be up to 40 characters long. Any digit or symbol (0-9, *, #, A, B, C, D) could be dialed as touch-tone digits. The following may be used as dial string modifiers: P Pulse dialing. T* Touch tone dialing (Default). W Wait for second dial tone. @ Wait for quiet answer. Wait for five seconds of silence after dialing the number. ! Hook flash. , Pause during dialing. ; Return to command mode. ^ Enable data calling tone transmission. S = n Dial a telephone number previously stored using the &Zn = x command (see the &Zn = x command for further information). The range of n is 0,1,2. En Echo Command ATEn command controls whether or not the characters entered from your computer keyboard are echoed back to your monitor while the modem is in command mode. E0 Disables echo to the computer. E1* Enables echo to the computer (Default). Result Codes: OK: n = 0, 1 ERROR: Otherwise Hn Hook Control This command instructs the modem to go on-hook to disconnect a call, or off-hook to make the phone line busy. H0* Modem goes on-hook (Default). H1 Modem goes off-hook. Result Codes: OK: n = 0, 1 ERROR: Othe…

Text truncated - open the document above for the full version.

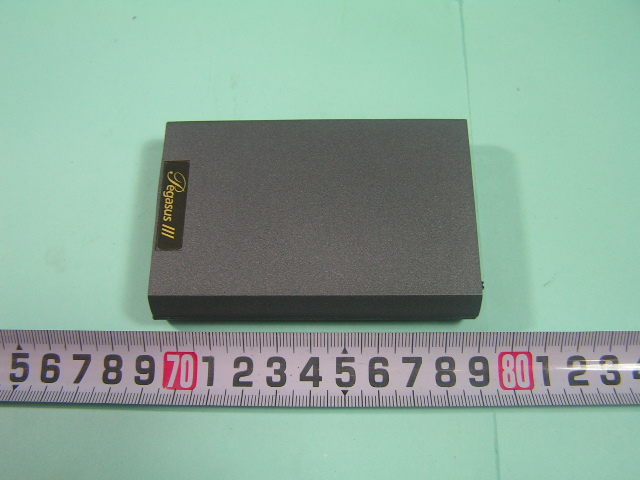

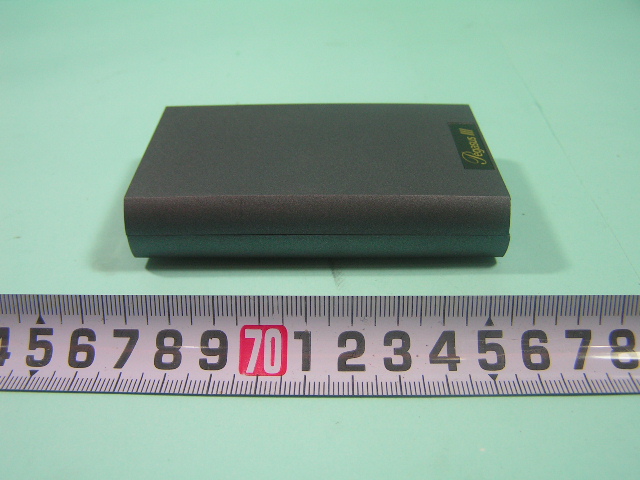

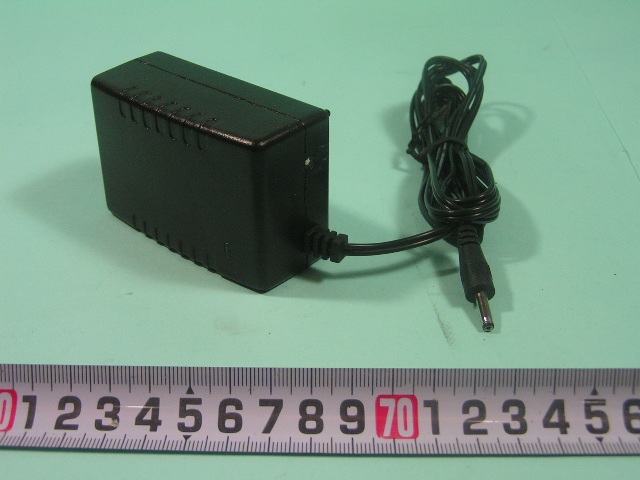

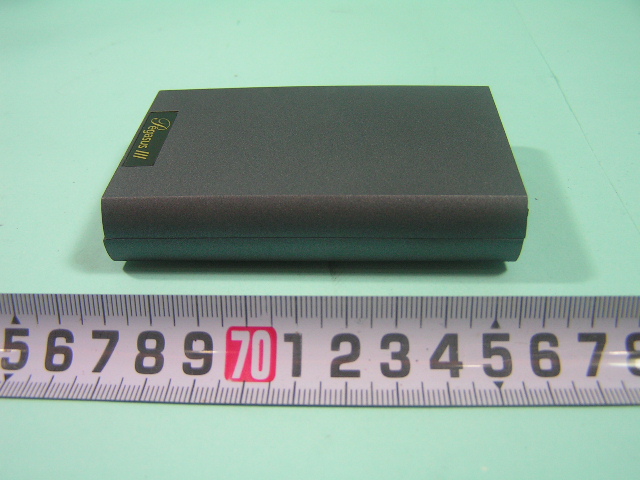

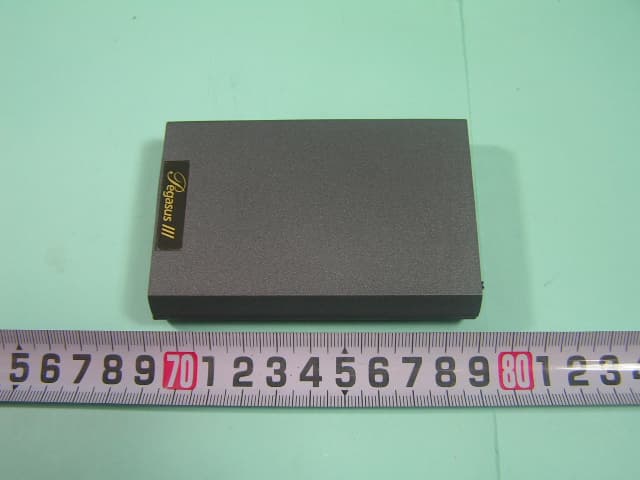

SPORTON International Inc. PAGE NUMBER : A1 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 2, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 2, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 2, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 2, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 2, 2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A6 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 2, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 2, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 2, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 2, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 2, 2005 FAX : 886-2-2696-2255

Report No.: FR591711 FCC ID: TS8BTMODEM Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR591711 FCC ID: TS8BTMODEM Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20 cm normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (mW/cm²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (mW) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (cm) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=20cm, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR591711 FCC ID: TS8BTMODEM Page No. : 3 of 3 1.3. Calculated Result and Limit Chip Antenna Max Conducted Power for Bluetooth : 10.24dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.7 1.8621 10.2400 10.5682 0.003917 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw FCC RADIO TEST REPORT Applicant’s company 3J Tech. Co., Ltd. Applicant Address 2F, No.342 Fushing N Rd. Taipei Taiwan FCC ID TS8BTMODEM Manufacturer’s company 3J Tech. Co., Ltd. Manufacturer Address 2F, No.342 Fushing N Rd. Taipei Taiwan Product Name Bluetooth Modem Brand Name Pegasus III. Model Name btModem Test Rule Part(s) 47 CFR Part 15 Subpart C. 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Sep. 27, 2005 Test Date Oct. 29, 2005 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR591711 FCC ID: TS8BTMODEM Page No. : i of ii Issued Date : Nov. 14, 2005 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................4 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................8 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................12 4.3. Hopping Channel Separation Measurement ...................................................................................................................................14 4.4. Number of Hopping Frequency Measurement.................................................................................................................................19 4.5. Dwell Time Measurement..................................................................................................................................................................21 4.6. Radiated Emissions Measurement ....................................................................................................................................................28 4.7. Band Edge Emissions Measurement .................................................................................................................................................42 4.8. Antenna Requirements .....................................................................................................................................................................45 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 46 6. SPORTON COMPANY PROFILE ........................................................................................................................ 48 6.1. Test Location.....................................................................................................................................................................................48 7. CERTIFICATE OF NVLAP ACCREDITATION ......................................................................................................... 49 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A10 APPENDIX B. TEST PHOTOS..................................................…

Text truncated - open the document above for the full version.

Report No.: FC591711 Page No. : 1 of 4 Appendix B. Test Photos Report No.: FC591711 Page No. : 2 of 4 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FC591711 Page No. : 3 of 4 Report No.: FC591711 Page No. : 4 of 4 2. Photographs of Radiated Emissions Test Configuration CRX/Normal Use/ Battery Mode FRONT VIEW REAR VIEW
