G2wifiIII User’s Guide Version: 1.0 Date: September 18, 2013 3JTech Co., Ltd. 2F, No. 342, Fu-Shing N. Rd. Taipei, Taiwan Tel: +886-2-2500 6916 e-mail: [email protected] http://www.3jtech.com.tw http://www.pnpipcameras.com G2wifiIII User’s Guide Copyright of 3JTech Co., Ltd. (also doing business as A3J Engineering Inc.) 2 Revision History Version Date Changes 1.0 09/18/2013 First Release of G2wifiIII User’s Manual http://www.3jtech.com.tw http://www.pnpipcameras.com G2wifiIII User’s Guide Copyright of 3JTech Co., Ltd. (also doing business as A3J Engineering Inc.) 3 Table of Contents Revision History .......................................................................................................................... 2 TABLE OF CONTENTS .............................................................................................................. 3 CHAPTER 1. PRODUCT OVERVIEW .......................................................................................... 6 1.1 INTRODUCTION ..................................................................................................................... 6 1.2 FEATURES ............................................................................................................................ 7 1.3 PACKAGE CONTENTS ............................................................................................................ 8 CHAPTER 2. PHYSICAL DESCRIPTION .................................................................................... 9 2.1 PANELS ................................................................................................................................ 9 2.1.1 Front Panel .................................................................................................................. 9 2.1.2 Rear Panel ................................................................................................................. 10 2.2 ILLUSTRATION .................................................................................................................... 11 2.2.1 Front Panel Information ............................................................................................ 12 Power Supply Connector ................................................................................................ 12 WAN Port ........................................................................................................................ 12 LAN Network Connectors .............................................................................................. 12 RESET Button ................................................................................................................. 12 2.2.2 Rear Panel Information ............................................................................................. 12 LEDs ................................................................................................................................ 12 2.2.3 LED Description on the Rear Panel ......................................................................... 13 CHAPTER 3. WEB-BASED MANAGEMENT ............................................................................ 14 3.1. INTERNET SETTINGS ........................................................................................................... 16 3.1.1 WAN .......................................................................................................................... 16 3.1.1.1 Static(Fixed IP) WAN Mode ............................................................................... 17 3.1.1.2 DHCP(Auto Config) WAN Mode ......................................................................... 17 3.1.1.3 PPPoE (ADSL) WAN Mode ................................................................................ 18 3.1.2 LAN ............................................................................................................................ 19 3.1.3 DHCP Client .............................................................................................................. 21 3.1.4 Advanced Routing Settings ....................................................................................... 22 3.2 WIRELESS SETTINGS ........................................................................................................... 23 3.2.1 Basic Wireless Settings ............................................................................................ 23 3.2.2 Wireless Security/Encryption Settings .................................................................... 28 3.2.2.1 Disable Mode ...................................................................................................... 28 3.2.2.2 WEPAUTO(WEP) Mode ...................................................................................... 29 3.2.2.3 WPA-PSK / WPA2-PSK Mode .......................................................................... 31 http://www.3jtech.com.tw http://www.pnpipcameras.com G2wifiIII User’s Guide Copyright of 3JTech Co., Ltd. (also doing business as A3J Engineering Inc.) 4 3.2.3 Station List ................................................................................................................ 33 3.2.4 Wireless Statistics .................................................................................................... 34 3.3 FIREWALL SETTINGS .......................................................................................................... 35 3.3.1 MAC/IP/Port Filtering Settings ................................................................................ 35 3.3.2 Port Forwarding Settings ......................................................................................... 37 3.3.2.1 Create a Port Forwarding .................................................................................. 37 3.3.3 DMZ Settings ............................................................................................................. 40 3.3.4 System Security Settings ..…
Text truncated - open the document above for the full version.
3J Tech. Co., Ltd. FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name 3J Tech. Co., Ltd. Address 2F, No.342 Fushing N Rd., City Taipei Country Taiw an request for this certification filing under: Grantee Code Product Number FCC ID: TS8 G2WIFIIII to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description √ Operational Description Operational Description explaining the functioning of the block diagram √ Block Diagrams Block Diagrams showing the systematic building blocks of the EUT √ Schematics Diagrams Schematics showing components, their values and interconnection Bill of Materials List of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Taipei, Taiwan 2014-05-22 Kiwi HuangVice President
3J Tech. Co., Ltd. FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name 3J Tech. Co., Ltd. Address 2F, No.342 Fushing N Rd., City Taipei Country Taiw an declare that the following representative (agent): Name (person) Tom Chen Company name Shenzhen Anbotek Compliance Laboratory Limited Addresss 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description WiFi Route r Type or Model(s) G2WiFi III Tradename or Brand(s) 3JTech We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Taipei, Taiwan 2014-05-22 Kiwi HuangVice President

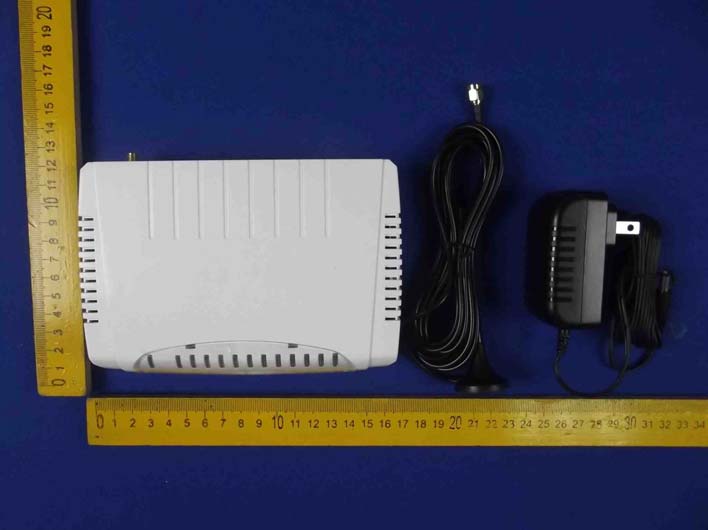

Figure 1 The EUT-Overall View Figure 2 The EUT-Front View Figure 3 The EUT-Back View Figure 4 The EUT-Port View
Label and location 3J Tech. Co., Ltd.
Figure 5 The EUT-Inside View Figure 6 PCB of the EUT View Figure 7 PCB of the EUT View Figure 8 PCB of the EUT View Figure 9 PCB of the EUT View Figure 10 PCB of the EUT View Figure 11 PCB of the EUT View
MPE Calculation FCC ID: TS8G2WIFIIII Typical use distance: d ≥ 20 cm Power density limit for mobile devices at 2.4GHz: S ≤ 1 mW/cm 2 Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation. Frequency range: 2412-2462MHz, 2422-2452 Maximum measured conducted power (Peak): P conducted = 5.79 dBm = 3.79 mW Antenna Gain: G = 0 dBi Calculation: P radiated = P conducted + G linear = 5.79 dBm + 0 dBi = 5.79 dBm = 3.79 mW Power density S = (P radiated ) / (4π x d 2 ) = 3.79 / 5026 =0.000754 mW/cm 2 is below the limit, so pass.
Shenzhen Anbotek Compliance Laboratory Limited FCC ID: TS8G2WIFIIII Page 1 of 91 Report No.: 201403921F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for 3J Tech. Co., Ltd. WiFi Router Model No.: G2WiFi III Report Number : 201403921F Date of Test : Mar. 27~ Apr. 21, 2014 Date of Report : Apr. 22, 2014 Prepared for : 3J Tech. Co., Ltd. Address : 2F, No.342 Fushing N Rd., Taipei, Taiwan Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: TS8G2WIFIIII Page 2 of 91 Report No.: 201403921F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION ..................................................................................................... 4 1.1. Description of Device (EUT) ............................................................................................................... 4 1.2. Auxiliary Equipment Used during Test ............................................................................................... 5 1.3. Description of Test Facility ................................................................................................................. 6 1.4. Measurement Uncertainty .................................................................................................................... 6 2. TEST METHODOLOGY ........................................................................................................... 7 2.1. Summary of Test Results ..................................................................................................................... 7 2.2. Description of Test Modes ................................................................................................................... 7 2.3. List of channels: ................................................................................................................................... 8 3. CONDUCTED EMISSION TEST.............................................................................................. 9 3.1. Block Diagram of Test Setup .............................................................................................................. 9 3.2. Power Line Conducted Emission Measurement Limits (15.207) ........................................................ 9 3.3. Configuration of EUT on Measurement .............................................................................................. 9 3.4. Operating Condition of EUT ............................................................................................................... 9 3.5. Test Procedure ................................................................................................................................... 10 3.6. Test equipment .................................................................................................................................. 10 3.7. Power Line Conducted Emission Measurement Results ................................................................... 10 4. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION ................. 13 4.1 Test Setup ........................................................................................................................................... 13 4.2 6dB Bandwidth ................................................................................................................................... 13 4.3. Maximum Peak output power test ..................................................................................................... 21 4.4. Band Edges Measurement ................................................................................................................. 29 4.5. Peak Power Spectral Density ............................................................................................................. 66 4.6. Radiated Emissions ............................................................................................................................ 74 5. PHOTOGRAPH ......................................................................................................................... 85 5.1. Photo of Conducted Emission Measurement ..................................................................................... 85 5.2. Photo of Radiation Emission Test ..................................................................................................... 85 APPENDIX I (EXTERNAL PHOTOS) ....................................................................................... 86 APPENDIX II(INTERNAL PHOTOS) ..................................................................................... 88 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: TS8G2WIFIIII Page 3 of 91 Report No.: 201403921F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant : 3J Tech. Co., Ltd. Manufacturer : 3J Tech. Co., Ltd. EUT : WiFi Router Model No. : G2WiFi III Serial No. : N.A. Trade Mark : 3JTech Rating : DC 12V, 1.5A Via Adapter Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Shenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requireme…
Text truncated - open the document above for the full version.
1. Photo of Power Line Conducted Emission Test 2. Photo of Radiated Emission Test
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15C | 2.42 GHz - 2.45 GHz | 3.00 mW |
