Super Modem III User’s Manual Version: 1.2 Date: September 03, 2013 Super Modem III User’s Manual 2 Revision History Version Date Changes 1.0 06/21/2013 First Release of Super Modem III User’s Manual 1.1 07/22/2013 Revise the Specification of Super Modem III’s Adaptor 1.2 09/03/2013 Add the Description of Bridge Mode and New Functions upon firmware ver. 10019 Super Modem III User’s Manual 3 Table of Contents Revision History .......................................................................................................................... 2 TABLE OF CONTENTS .............................................................................................................. 3 CHAPTER 1. PRODUCT OVERVIEW ......................................................................................... 6 1.1 INTRODUCTION ..................................................................................................................... 6 1.2 FEATURES ............................................................................................................................ 7 1.3 PACKAGE CONTENTS ............................................................................................................ 7 CHAPTER 2. PHYSICAL DESCRIPTION .................................................................................... 8 2.1 PANELS ................................................................................................................................ 8 2.1.1 Front Panel .................................................................................................................. 8 2.2 ILLUSTRATION ...................................................................................................................... 9 2.2.1 Front Panel Information .............................................................................................. 9 USB Connector ................................................................................................................. 9 LAN Port ........................................................................................................................... 9 Reset Button ..................................................................................................................... 9 Power Supply Connector .................................................................................................. 9 LEDs .................................................................................................................................. 9 2.2.2 LED Description on Super Modem III ...................................................................... 10 CHAPTER 3. WEB-BASED MANAGEMENT ............................................................................ 11 3.1. INTERNET SETTINGS ........................................................................................................... 13 3.1.1 WAN .......................................................................................................................... 13 3.1.2 LAN ............................................................................................................................ 13 3.1.3 DHCP Clients............................................................................................................. 15 3.1.4 Advanced Routing Settings ....................................................................................... 16 3.2 WIRELESS SETTINGS ........................................................................................................... 18 3.2.1 Basic Wireless Settings ............................................................................................ 18 3.2.2 Wireless Security/Encryption Settings .................................................................... 23 3.2.2.1 Disable Mode ...................................................................................................... 23 3.2.2.2 WEPAUTO(WEP) Mode ...................................................................................... 24 3.2.2.3 WPA-PSK / WPA2-PSK Mode .......................................................................... 26 3.2.3 AP Client Settings ..................................................................................................... 28 3.2.4 Station List ................................................................................................................ 29 3.2.5 Wireless Statistics .................................................................................................... 30 3.3 FIREWALL SETTINGS .......................................................................................................... 31 3.3.1 MAC/IP/Port Filtering Settings ................................................................................ 31 3.3.2 Port Forwarding Settings ......................................................................................... 33 Super Modem III User’s Manual 4 3.3.2.1 Create a Port Forwarding .................................................................................. 33 3.3.3 DMZ Settings ............................................................................................................. 36 3.3.4 System Security Settings ......................................................................................... 37 3.4 MANAGEMENT .................................................................................................................... 39 3.4.1 System Management ................................................................................................. 39 3.4.2 Firmware Upgrade .................................................................................................... 42 3.4.3 Configuration Management ....................................................................................... 43 3.4.4 Status ......................................................................................................................... 44 3.4.5 Statistics .....…
Text truncated - open the document above for the full version.
3J Tech. Co., Ltd. FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name 3J Tech. Co., Ltd. Address 2F, No.342 Fushing N Rd., City Taipei Country Taiw an declare that the following representative (agent): Name (person) Tom Chen Company name Shenzhen Anbotek Compliance Laborato ry Limited Addresss 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Super Modem III Type or Model(s) SM_III Tradename or Brand(s) 3JTech We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Taipei, Taiwan 2014-05-22 Kiwi HuangVice President

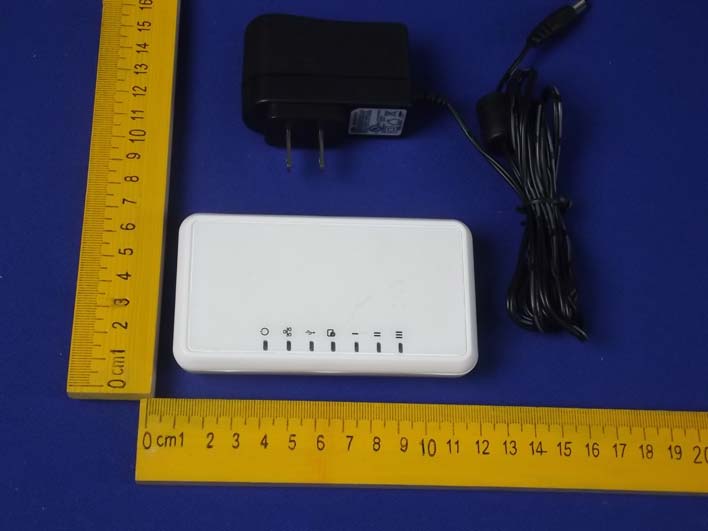

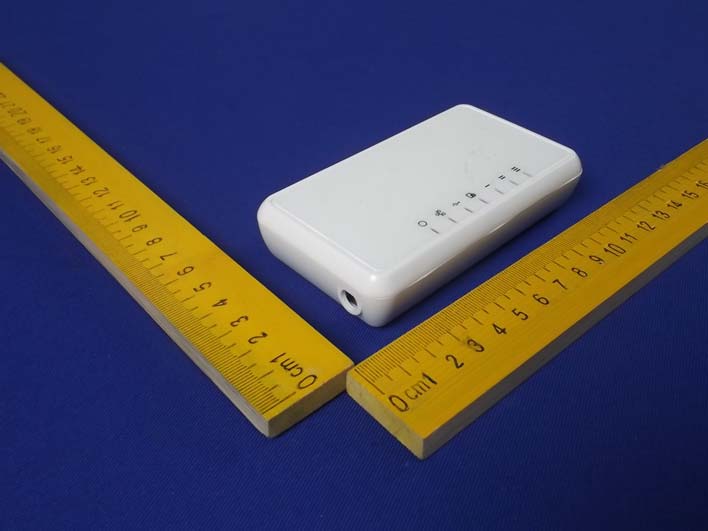

Figure 1 The EUT-Overall View Figure 2 The EUT-Front View Figure 3 The EUT-Back View Figure 4 The EUT-Port View
Label and location 3J Tech. Co., Ltd.
Figure 5 The EUT-Inside View Figure 6 PCB of the EUT-Front View Figure 7 PCB of the EUT-Back View Figure 8 PCB of the EUT-Front View Figure 9 PCB of the EUT-Back View Figure 10 PCB of the Module View
MPE Calculation FCC ID: TS8SMIII Typical use distance: d ≥ 20 cm Power density limit for mobile devices at 2.4GHz: S ≤ 1 mW/cm 2 Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation. Frequency range: 2412-2462MHz, 2422-2452 Maximum measured conducted power (Peak): P conducted = 11.9 dBm = 15.81 mW Antenna Gain: G = 0 dBi Calculation: P radiated = P conducted + G linear = 11.9 dBm + 0 dBi = 11.9 dBm = 15.81 mW Power density S = (P radiated ) / (4π x d 2 ) = 15.81 / 5026 =0.00315 mW/cm 2 is below the limit, so pass.
Shenzhen Anbotek Compliance Laboratory Limited FCC ID: TS8SMIII Page 1 of 90 Report No.: 201403920F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for 3J Tech. Co., Ltd. Super Modem III Model No.: SM_III Report Number : 201403920F Date of Test : Mar. 27~ Apr. 21, 2014 Date of Report : Apr. 22, 2014 Prepared for : 3J Tech. Co., Ltd. Address : 2F, No.342 Fushing N Rd., Taipei, Taiwan Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: TS8SMIII Page 2 of 90 Report No.: 201403920F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION ..................................................................................................... 4 1.1. Description of Device (EUT) ............................................................................................................... 4 1.2. Auxiliary Equipment Used during Test ............................................................................................... 5 1.3. Description of Test Facility ................................................................................................................. 6 1.4. Measurement Uncertainty .................................................................................................................... 6 2. TEST METHODOLOGY ........................................................................................................... 7 2.1. Summary of Test Results ..................................................................................................................... 7 2.2. Description of Test Modes ................................................................................................................... 7 2.3. List of channels: ................................................................................................................................... 8 3. CONDUCTED EMISSION TEST.............................................................................................. 9 3.1. Block Diagram of Test Setup .............................................................................................................. 9 3.2. Power Line Conducted Emission Measurement Limits (15.207) ........................................................ 9 3.3. Configuration of EUT on Measurement .............................................................................................. 9 3.4. Operating Condition of EUT ............................................................................................................... 9 3.5. Test Procedure ................................................................................................................................... 10 3.6. Test equipment .................................................................................................................................. 10 3.7. Power Line Conducted Emission Measurement Results ................................................................... 10 4. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION ................. 13 4.1 Test Setup ........................................................................................................................................... 13 4.2 6dB Bandwidth ................................................................................................................................... 13 4.3. Maximum Peak output power test ..................................................................................................... 21 4.4. Band Edges Measurement ................................................................................................................. 29 4.5. Peak Power Spectral Density ............................................................................................................. 66 4.6. Radiated Emissions ............................................................................................................................ 74 5. PHOTOGRAPH ......................................................................................................................... 85 5.1. Photo of Conducted Emission Measurement ..................................................................................... 85 5.2. Photo of Radiation Emission Test ..................................................................................................... 85 APPENDIX I (EXTERNAL PHOTOS) ....................................................................................... 86 APPENDIX II(INTERNAL PHOTOS) ..................................................................................... 88 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: TS8SMIII Page 3 of 90 Report No.: 201403920F Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant : 3J Tech. Co., Ltd. Manufacturer : 3J Tech. Co., Ltd. EUT : Super Modem III Model No. : SM_III Serial No. : N.A. Trade Mark : 3JTech Rating : DC 8V, 1A Via Adapter Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Shenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This repor…
