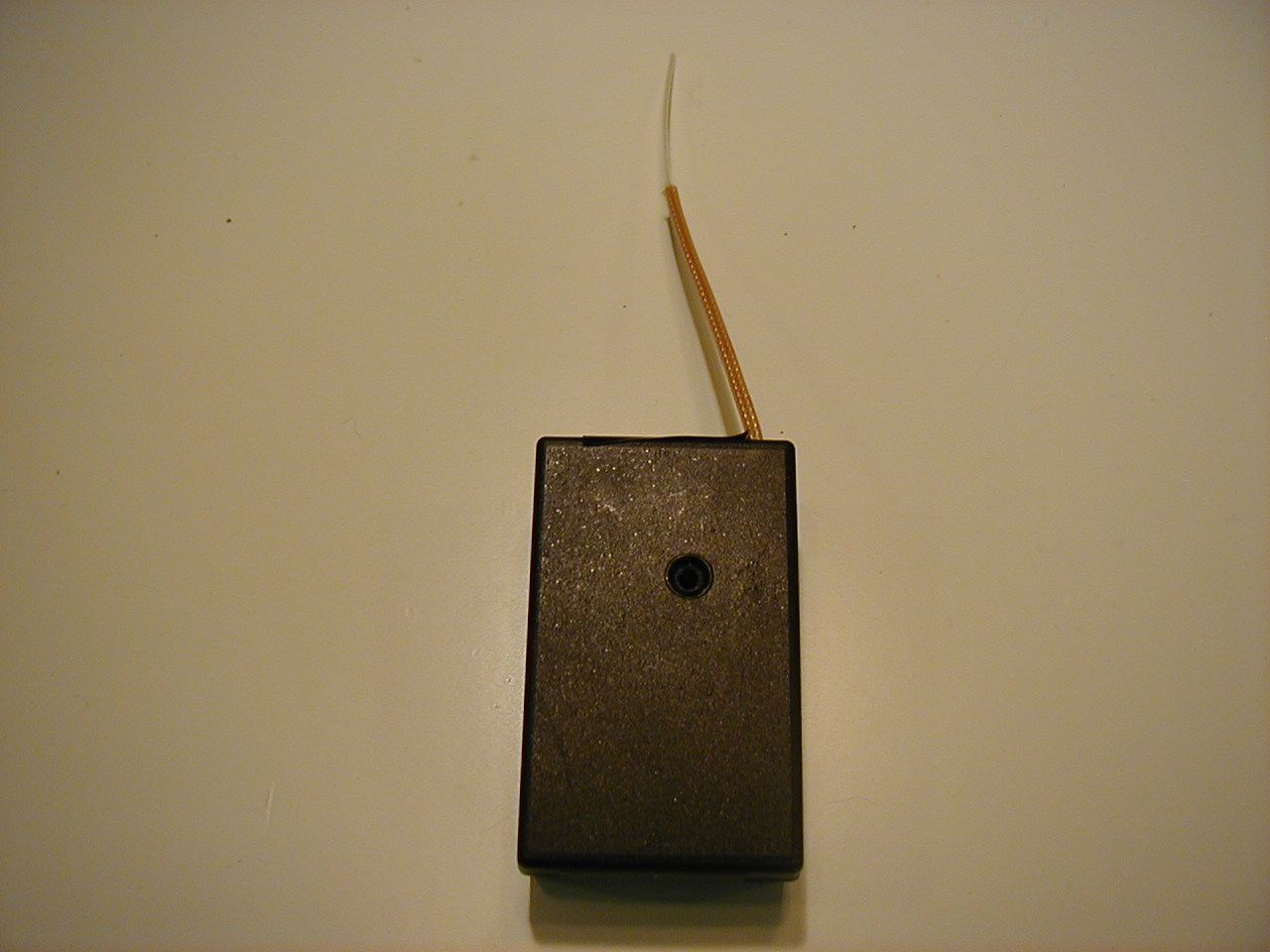

TSDNMD-AM03Remote Control Vehicle Transceiver Module

Nomadio, Inc.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Dec 01, 2005
Application Purpose: Original Equipment
Date of Application: Dec 01, 2005
Equipment Note: Remote Control Vehicle Transceiver Module
Frequency Range: 2402.00000000 - 2480.00000000
Company: Nomadio, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

USERS GUIDE Version 2.0 Published November 2005 Sensor Quick Reference Display Screen Antenna Speaker Throttle Trigger Headphone & PC Connections Steering Trim Shift Buttons Battery Compartment / Receiver Programming Cable Steering Wheel Graphic Display Screen Navigation Controls (T1) Throttle Dual Rate Trim (T2) Steering Dual Rate Trim (T3) Throttle Trim (TR) Steering Trim (TL) Steering Trim Menu Button On/Off Switch Selection Buttons Transceiver Quick Reference Receptacle for: Car Battery Sensor Receptacles for: RX Battery (power) Steering (Ch1) Throttle (Ch2) Shift Servo (Ch3) Receptacle for: Digital Sensor (e.g., RPM/Speed ) /Receiver Programming Cable BIND button (recessed) Indicator LED Receptacle for: Analog Sensors (e.g., Temp) Driving Screen Quick Reference Graph of Servo Positions Signal Strength Current Stat Value Current Model Number Currently Displayed Stat Current Stat Bar Graph Vehicle Battery Indicator (Blinks when low) Transmitter Battery Indicator (Blinks when low) Statistics: Highest value seen of current stat. Statistics: Lowest value seen of current stat. Key Drive Screen Controls Pressing this button toggles Sensor between the driving screen and the top level function menu, or returns to the previous level from a sub-menu. Displays the previous statistic. Displays the next statistic. Contents ContentsContents Contents Sensor Quick Reference .................................II Transceiver Quick Reference ....................... III Driving Screen Quick Reference ................... IV Statement of Compliance................................1 Getting to know your Sensor ..........................3 Power Switch .......................................................... 3 Display Screen......................................................... 3 Menu Button ........................................................... 3 Navigation Buttons .................................................. 3 Selection Buttons..................................................... 4 Trim Buttons ........................................................... 4 Grip Buttons............................................................ 5 Connection Ports ..................................................... 5 Charging and Installing Batteries...................6 Charging the Supplied NiMH Batteries........................ 6 Installing the Batteries ............................................. 6 Adjusting the Screen.......................................7 Converting for Left Handed Use......................8 Installing the Transceiver .............................10 Mounting the Transceiver ....................................... 10 Connecting the Transceiver .................................... 10 Installing the Sensors ...................................11 Receiver Battery Sensor ......................................... 11 Voltage Sensor ...................................................... 11 Temperature Sensor .............................................. 11 Tachometer Sensor................................................ 13 Binding the Transceiver ................................15 How the Binding Process Works .............................. 15 Sensor Controls ............................................ 18 Top Menu Level ..................................................... 19 Steering Functions ................................................. 19 Throttle Functions.................................................. 33 Channel 3 and Channel 4 Servo Functions................ 49 Advanced Features ................................................ 59 Model Management................................................ 69 Controller Setup..................................................... 74 Sensor Digital RC Desktop............................ 79 Minimum System Requirements .............................. 79 Installing the RC Desktop ....................................... 79 Connecting the Sensor to your Computer ................. 85 Using the Sensor Digital RC Desktop........................ 86 Registration........................................................... 86 Receiving Settings From the Sensor......................... 88 Editing Settings ..................................................... 89 Saving Settings...................................................... 89 Sending Settings to the Sensor ............................... 90 Installing Sensor Firmware ..................................... 90 Specifications ............................................... 91 Sensor Controller ................................................... 91 Transceiver ........................................................... 91 Support ......................................................... 92 Nomadio 3 Year Limited Warranty ............... 93 Warranty Coverage ................................................ 93 Exclusions and Limitations ...................................... 93 1 Statement of Compliance FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connect…

Text truncated - open the document above for the full version.

Block Diagram

Processor (6MHz) Analog Inputs (ADC) PWM Outputs 2.4GHz WUSB Modem & PA (13MHz) SPI 2Mhz A n t e n n a Nomadio Sensor TSDNMD-AM03 Block Diagram Nomadio Confidential Information, Copyright 2004, 2005 All Rights Reserved Digital I/O

Cover Letter(s)

Federal Communications Commission 445 Twelfth St., S.W. Washington, D.C. 20554 Dear sirs, Nomadio, Inc. is seeking FCC authorization of our Sensor Transceiver as a part 15 unlicensed modular transmitter approval. The requirements of the FCC public notice DA 00-1407 are met. The Transceiver meets all of the requirements for modular approval: 1.The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The module satisfies the RF shielding requirement. All internal RF circuitry is fully enclosed within an RF shield permanently attached to the internal circuit's laminate. See internal photos. 2.The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The module interface consists of an IC whose data inputs are buffered within the package. See Exhibit 4, schematic diagram. This interface prevents excessive data rates or over- modulation. 3.The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. The module contains its own voltage supply regulation. Changes in the supply voltage (for example caused by temperature changes or other effects) do not affect the internal operating voltage. See schematic diagram, Exhibit 4. 4.The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. The transceiver uses a permanent antenna, and is thus not user-replaceable. This ensures that end users use the same antenna used in compliance testing. See external photos. 5.The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). The transceiver was tested in a standalone configuration. Since the unit cannot be powered using AC power, testing was accomplished using a standard battery holder with leads of over 10 centimeters and 4 standard AA batteries. No other equipment was connected to the module during compliance testing. See photos of test configuration in FCC test report Exhibit. 6.The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The transceiver is labeled with it’s own FCC ID number. See attached Exhibit with label example. 7.The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The transceiver has been tested to comply with Section 15.247. No user configuration is required. 8.The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Expos…

Text truncated - open the document above for the full version.

Cover Letter(s)

1 Marie Confroy Subject: RE: Unable to Send Mail Record Hello! To whom it may concern: Originally the Peak Output Power was determined without adding in the cable loss. The test report had been revised and the Peak Output Power, including the cable loss equaled 18.17 dBm (0.06577 watts). I believe that since this change was implemented, the technical reviewer's check sheet, for use when uploading an application, was not updated as it should have been. I apologize for this oversight during my filing. I have checked with the testing engineer, and the values listed in the test report is correct. I have since revised the Grant of Authorization manually and have submitted the revised Grant to the customer. Thank you very much for catching my error. I apologize for any inconvenience this may have caused. If you have any lingering questions or concerns, please feel free to let me know. Thank you very much for your assistance and cooperation regarding this matter. They are both greatly appreciated. Have a beautiful day! Cheers! Marie Ann Confroy Documentation Department MET Laboratories (410) 354-3300 x 412 [email protected] -----Original Message----- From: Generic Office of Engineering Technology [mailto:[email protected]] Sent: Thursday, December 08, 2005 10:58 AM To: [email protected] Subject: FCC Equipment Authorization System To: Marie Confroy From: Stan Lyles [email protected] FCC Equipment Authorization Branch Re: FCC ID: TSDNMD-AM03 Applicant: Nomadio, Inc. Correspondence Reference Number: 25141 731 Confirmation Number: TC509853 Date of Original Email: 12/08/2005 Subject: FCC Equipment Authorization System 1) Form 731 has 0.0617 watts, EMC test report has peak output power 18.17 dBm (0.06577 watts). Please explain this discrepancy. 2 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal pursuant to Section 2.917(c). DO NOT Reply to this email by using the Reply button. In order for your response to be processed expeditiously, you must upload your response via the Internet at www.fcc.gov, E- Filing, OET TCB Electronic Filing, TCB Login. If the response is submitted through Add Attachments, a message which informs the processing staff that a new exhibit has been submitted must also be submitted via Submit Correspondence. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. ------_=_NextPart_001_01C5FC24.686A1D08 Content-Type: text/html Content-Transfer-Encoding: quoted-printable <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 3.2//EN"> <HTML> <HEAD> <META HTTP-EQUIV=3D"Content-Type" CONTENT=3D"text/html; = charset=3Dus-ascii"> <META NAME= 3D"Generator" CONTENT=3D"MS Exchange Server version = 5.5.2657.73"> <TITLE>RE: FCC Equipment Authorization System</TITLE> </HEAD> <BODY> Hello! To whom it may concern: Originally the Peak Output Power was determined = without  adding in the cable loss. The test report had been = revised and the Peak Output Power, including the cable loss equaled = 18.17 dBm (0.06577 watts). I believe that since this change was implemented, the = technical reviewer's check sheet, for use when uploading an = application, was not updated as it should have been. I apologize for this oversight during my filing. I = have checked with the testing engineer, and the values listed in the = test report is correct. I have since revised the Grant of Authorization = manually and have submitted the revised Grant to the = customer. Thank you very much for catching my error. I = apologize for any inconvenience this may have caused. If you have any = lingering questions or concerns, please feel free to let me know. Thank = you very much for your assistance and cooperation regarding this = matter. They are both greatly appreciated. Have a beautiful = day! Cheers! Marie Ann Confroy Documentation Department MET Laboratories (410) 354-3300 x 412 [email protected] 3 -----Original Message----- From: Generic Office of Engineering Technology [<A = HREF= 3D"mailto:[email protected]">mailto:[email protected] = </A>] Sent: Thursday, December 08, 2005 10:58 AM To: [email protected] Subject: FCC Equipment Authorization System To:     =         Marie Confroy From:   =          Stan Lyles         =          =         [email protected]         =          FCC Equipment = Authorization Branch Re:     =         FCC ID: TSDNMD-AM03 Applicant:      =          Nomadio, Inc. Correspondence Reference Number: =        =         25141 731 Confirmation Number: =     &…

Text truncated - open the document above for the full version.

ID Label/Location Info

Nomadio Transceiver TSDNMD-AM03 FCC Labeling Diagram

RF Exposure Info

Electromagnetic Compatibility Nomadio digital telemetry Emission Criteria Modular Transceiver Model AM03 CFR Title 47, Part 15, Subpart B and Subpart C MET Report: EMC18442-FCC247 © 2005, MET Laboratories, Inc. Page 33 of 54 DOC-EMC702 2/26/2004 3.7 RF Exposure RF Exposure Requirements - §15.247(i): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limits: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307 (b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1903 of this chapter. Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30 - 300 61.4 0.163 1.0 6 300 – 1500 -- -- F/300 6 1500 – 100,000 -- -- 5 6 (B) Limits for General Population / Uncontrolled Exposure 30 - 300 27.5 0.073 0.2 30 300 – 1500 -- -- F/1500 30 1500 – 100,000 -- -- 1.0 30 Table 6. Limits for Maximum Permissible Exposure (MPE) Note: F = Frequency in MHz Test Results: MPE Limit Calculation: the EUT’s operating frequencies @ 2402 – 2479 MHz; conducted power = 17.89 dBm (peak) with maximum antenna gain of 1.9 dBi. Therefore, Limit for Uncontrolled exposure: 1 mW/ cm ² or 10 W/m ² Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR² or R = √PG / 4πS Where, S = Power Density (10 W/m²) P = Power Input to antenna (0.06166 Watts) G = Antenna Gain (1.6 numeric) R = distance to the center of radiation of antenna (in meter) R = √( (0.06166 x 1.6) / 4 π 10) = 0.0280 m The distance between the human and the RF antenna should not be less than 0.0280 m. Test Engineer: Dusmantha Tennakoon, Test Date: 11/1//2005

Test Report

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 The Nation’s First Licensed Nationally Recognized Testing Laboratory Nomadio digital telemetry November 17, 2005 2400 Chestnut Street Philadelphia, PA 19103 Dear Alex Gizis, Enclosed is the EMC test report for compliance testing of the Nomadio digital telemetry, Modular Transceiver Model AM03, as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-03 ed.), Part 15 Subpart C, §15.247 for Intentional Radiators and FCC Declaration of Conformity under CFR, Part 15, Subpart B For a Class B Unintentional Radiator. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Marie Ann Confroy Documentation Department Reference: (\Nomadio digital telemetry\ Modular Transceiver\ EMC18442-FCC247) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, A2LA, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by these organizations or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. DOC-EMC702 2/26/2004 MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 DOC-EMC702 2/26/2004 Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Test Report For the Nomadio digital telemetry Modular Transceiver Model AM03 Tested in Accordance with Title 47 of the CFR FCC Part 15, Subpart B and Subpart C MET Report: 18442-FCC247 November 17, 2005 Prepared For: Nomadio digital telemetry 2400 Chestnut Street Philadelphia, PA 19103 Prepared By: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Nomadio digital telemetry Modular Transceiver Model AM03 CFR Title 47, Part 15, Subpart B and Subpart C MET Report: EMC18442-FCC247 © 2005, MET Laboratories, Inc. Page i of iv DOC-EMC702 2/26/2004 Electromagnetic Compatibility Test Report For the Nomadio digital telemetry Modular Transceiver Model AM03 Tested in Accordance with Title 47 of the CFR FCC Part 15, Subpart B and Subpart C Dusmantha Tennakoon Marie Ann Confroy Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15, §15.247 of the FCC Rules under normal use and maintenance. Kevin Mehaffey Manager, Electromagnetic Compatibility Lab Nomadio digital telemetry Modular Transceiver Model AM03 CFR Title 47, Part 15, Subpart B and Subpart C MET Report: EMC18442-FCC247 © 2005, MET Laboratories, Inc. Page ii of iv DOC-EMC702 2/26/2004 Report Status Sheet Revision Report Date Reason for Revision Ø November 17, 2005 Initial Issue. Nomadio digital telemetry Modular Transceiver Model AM03 CFR Title 47, Part 15, Subpart B and Subpart C MET Report: EMC18442-FCC247 © 2005, MET Laboratories, Inc. Page iii of iv DOC-EMC702 2/26/2004 List of Terms and Abbreviations AC Alternating Current ACF Antenna Correction Factor Cal Calibration d Measurement Distance dB Deci Bels dBFV Deci-Bels above one micro Volt dBFV/m Deci-Bels above one micro Volt per meter DC Direct Current DCF Distance Correction Factor E Electric Field EUT Equipment Under Test f Frequency FCC Federal Communications Commission H Magnetic Field GHz Giga Hertz Hz Hertz ICES Interference-Causing Equipment Standard kHz kilohertz kPa kilopascal kV kilo Volt LISN Line Impedance Stabilization Network MHz MegaHertz FH micro Henry FF micro Farad Fs micro seconds RF Radio Frequency RMS Root-Mean-Square Nomadio digital telemetry Table of Contents Modular Transceiver Model AM03 CFR Title 47, Part 15, Subpart B and Subpart C MET Report: EMC18442-FCC247 © 2005, MET Laboratories, Inc. Page iv of vi DOC-EMC702 2/26/2004 Table of Contents 1 Introduction ...................................................................................................................................................................... 1 1.1 Overview ...................................................................................................................................................................... 1 1.2 Test Site........................................................................................................................................................................ 1 1.3 Testing Summary ......................................................................................................................................................... 2 2 Equipment Configuration................................................................................................................................................ 3 2.1 Description of EUT ...................................................................................................................................................... 3 2.2 Equipment Configuration......................................…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Alexander Gizis(CEO)

[email protected]215-854-8432Fax: 215-854-8450

Test Firm

EUROFINS ELECTRICAL AND ELECTRONIC TESTING NA, INCGreg Kovolenko

[email protected]4108444071Fax: 4103543313

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	65.77 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval. Output Power listed is conducted. This device is approved for use in R/C vehicles. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
