TT2CODAWHEELSmartphone remote Controller

CODAWheel Manual CODAWheel is a remote control designed for smartphones, based on Bluetooth Low Energy (BLE) technology. Its primary purpose is to facilitate the use of voice command services such as Siri® or Google Now® in Bluetooth hands-free mode in your car. Further, you can also edit its settings to perform various tasks using the configuration app, CODAWheel. Minimum Requirements - iOS® ver 7.0 and up with Siri or Android® Kitkat with Google Now and support for BLE. - Factory-builtor 3rd party in-car Bluetooth hands-free system/device recommended for voice command inside a vehicle. 1. Activating CODAWheel Turn power on by sliding the button on the back of CODAWheel. Through Bluetooth Low Energy (BLE) technology, CODAWheel’s stand-by time is expected to last several years and therefore, turning off power is virtually not necessary under normal conditions. You may attach double sided tapes or Velcro® sticky fastener to the back of the CODAWheel for mounting purposes. 2. Pairing CodaWheel Before pairing, make sure that CODAWheel is not connected to any smartphone. If connected, it will not enter the pairing mode. To disconnect CODAWheel, turn Bluetooth off on the smartphone. Press the button on CODAWheel for 15 seconds until green and red LEDs flash alternately. CODAWheel is now ready for pairing. From your smartphone, go to Bluetooth settings and initiate pairing. For step-by-step instructions, please refer to your smartphone manual. 3. Configuration Application CODAWheel is pre-configured to emulate smartphone’sHome button.Using the configuration application, you can change its settings to perform tasks such as: - Voice command:Click to start Siri or Google Now. - Voice command with music control:Emulate headphone in-line remote button. - Camera shutter release:With a camera application running, click to take photos. - Compatible applications:Use CODAWheel as a remote button for 3 rd party applications. Refer to the application manual for details. The name of the configuration application is CODAWheel. It can be downloaded and installed from Apple App Store® or Google Play Store® on your smartphone. 4. Sleep Mode To conserve battery power, CODAWheel enters sleep mode after a period of inactivity. Click CODAWheel to leave sleep mode. Red LED will start to blink and the connection between your phone and CODAWheel will resume. Once CODAWheel becomes active, it does not require any other setup. 5. Mounting CODAWheel can easily be placed anywhere in your car. You can attach it on the steering wheel, dashboard, or next to gear shift. Included in the box are double sided tape and Velcro sticky fastener for mounting purposes. One-Year Limited Warranty. Enustech warrants the said product to be free from defects in materials and workmanship for 1 year. If the said product is found to be defective, Enustech will repair or replace it. If you have any questions, comments or concerns about the said product, please contact : Email: Phone: www.bcoda.com Technical Support www.bCoda.com/support (C) 2014 Enustech Inc. All rights reserved. bCoda (tm) and CODAWheel (tm) are registered trademarks of Enustech, Inc. Korea. iPhone®, iOS®, Siri®App Store® are registered trademarks of Apple Inc. Android® and Play Store® are registered trademarks of Google Inc. Velcro® is a registered trade mark of Velcro Industries B.V. Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICA TIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIA NCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Manuel de CODAWheel CODAWheel estunetélécommande conçuepour les smartphones, basée sur la technologie de Bluetooth Low Energy(BLE). Son principal objectifest de faciliterl'utilisation des servicesde commande vocalecommeSiri®ouGoogleNow®dans lemode Bluetoothmains-libresdans votre voiture. En outre,vous pouvez également modifierles paramètrespour effectuer diverses tâchesen utilisant l'applicationde configuratio…

Text truncated - open the document above for the full version.

ENUSTECH Dui Bldg, 5FL, 1196-2 Gaepo-4dong, Gangnam-gu, Seoul, South Korea 135-240 Date: June 24, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; ENUSTECH Dui Bldg, 5FL, 1196-2 Gaepo-4dong, Gangnam-gu, Seoul, South Korea 135-240 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Seung Min An / General Manager ENUSTECH REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Declaration of Equivalence For declaration of equality between a product variant to be certified with reference to an original product. To be issued and signed by the company responsible for the product variant. We, ENUSTECH. declare on our sole responsibility that the product - Original Design Information Product Information Model Name: Variant model name: CODAWheel CODAClick are in all relevant parts identical to the product - Variant Design Information Product Information Model Name CODAWheel CODAClick Outer Enclosure (Color) Black & Silve r green - The only difference between (original design) and (variant design) is : Hardware Hardware version is same. Software Software Version is same. - All parts and hardware are same We, the undersigned, hereby declare that the Second Manufacturer Design is identical in both design and implementation. Signed by Company Name : ENUSTECH Name : Seung Min An Tel : +82-70-7547-7562 E-Mail : [email protected] Seung Min An / 24 June, 2014 (Place, date of issue) (Signature / stamp)

ENUSTECH Dui Bldg, 5FL, 1196-2 Gaepo-4dong, Gangnam-gu, Seoul, South Korea 135-240 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TT2CODAWHEEL To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Seung Min An / General Manager ENUSTECH

External photos of EUT Basic model : CODAWheel Front view of EUT Rear view of EUT Side view of EUT Side view of EUT Side view of EUT Side view of EUT External photos of EUT Variant model : CODAClick Front view of EUT Rear view of EUT Side view of EUT Side view of EUT Side view of EUT Side view of EUT Antenna (Basic / Variant)

T = 0.3mm Coda Button Product Back Label CODAClick CODAWheel Black matt Coating 31.5 x 31.5 mm Pantone 424 C 31.5 x 31.5 mm Red Line = Cutting KCC-CRS-ENS-CODAWheel FCC ID: TT2CODAWHEEL IC: 6329A-CODAWHEEL KCC-CRS-ENS-CODAClick FCC ID: TT2CODAWHEEL IC: 6329A-CODAWHEEL

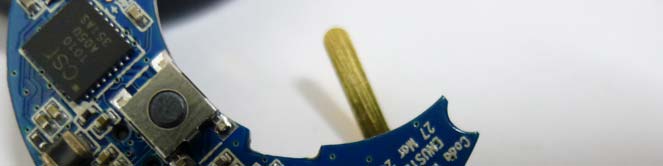

Internal photos of EUT Main board(Front) Main board (Rear) Internal photo

MOVON CORPORATION Report Number: MOV-14-RF-I022 Page : (1) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart C §15.247 RSS-210 ISSUE No. :8 Test Report Equipment Under Test Smartphone remote controller Model Name CODAWheel Variant Model Name CODAClick Applicant ENUSTECH FCC ID TT2CODAWHEEL IC 6329A-CODAWHEEL Manufacturer e-tech Date of Test(s) 2014. 06. 09 ~ 2014. 06. 23 Date of Issue 2014. 06. 23 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by ENUSTECH Dui Bldg, 5FL, 1196-2 Gaepo-4dong, Gangnam-gu, Seoul, South Korea 135-240 Tel.: +82-2-7547-7562 Fax: +82-2-3452-3603 MOVON CORPORATION 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 MOVON CORPORATION Report Number: MOV-14-RF-I022 Page : (2) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- June 23, 2014 Initial -- MOVON CORPORATION Report Number: MOV-14-RF-I022 Page : (3) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. GENERAL INFORMATION ............................................................................................. 4 2. EUT DESCRIPTION ........................................................................................................ 5 3. MEASUREMENT EQUIPMENT ...................................................................................... 6 4. TRANSMITTER RADIATED SPURIOUS EMISSIONS AND CONDUCTED SPURIOUS EMISSIONS .................................................................................................................. 7 5. RECEIVER RADIATED SPURIOUS EMISSIONS ........................................................ 20 6. 6 ㏈ BANDWIDTH & 99 % BANDWIDTH MEASUREMENT....................................... 25 7. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................... 29 8. POWER SPECTRAL DENSITY MEASUREMENT ....................................................... 32 9. ANTENNA REQUIREMENT ......................................................................................... 35 10. RF EXPOSURE EVALUATION .................................................................................. 36 11. TEST SETUP PHOTO OF EUT .................................................................................. 38 MOVON CORPORATION Report Number: MOV-14-RF-I022 Page : (5) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 2. EUT Description Kind of product Smart phone remote controller FCC ID TT2CODAWHEEL Model Name CODAWheel Varient model name CODAClick Serial Number N/A Power supply DC 3.0V by coin battery Frequency range 2402 ㎒ ~ 2480㎒ Modulation technique GFSK (1Mbps) Number of channels 40 Antenna gain 2.3㏈i (Max.) Test Site Registration Number FCC(670686) , IC(6432B-1) 2.1. Declarations by the manufacturer None 2.2. Details of modification None MOVON CORPORATION Report Number: MOV-14-RF-I022 Page : (6) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 3. Measurement equipment Equipment Manufacturer Model Serial number Calibration Interval Calibration due. EMI Test Receiver R&S ESIB26 100196/026 1 year 2014-12-14 Signal Generator R&S SMR27 100089 1 year 2014-12-13 Spectrum Analyzer R&S FSV-40 100832 1 year 2014-10-04 Power Meter Agilent E4416A GB41290645 1 year 2014-10-04 Power Sensor Agilent 9327A US40441490 1 year 2014-10-04 Double Redge Horn Antenna R&S HF906 100236 2 year 2015-02-28 Ultra Broadband Antenna R&S HL562 100170 1 year 2014-12-13 Power Amplifier MITEQ AM-1431 1497315 1 year 2014-10-04 Power Amplifier MITEQ AFS43-010026001374382 1 year 2014-10-04 High Pass Filter Wainwright WHK3.0/18G-10SS508 1 year 2014-10-04 DC Power Supply HP 6674A 3637A01351 1 year 2014-10-04 Controller INNCO CO2000 co200/064/6961003/LN/A N/A Antenna Master INNCO MA4000 MA4000/038/6961003/LN/A N/A Loop Antenna ETS LINDGREN 6502 00118166 2 year 2015-09-27 ※ Remark; Support equipment Description Manufacturer Model Serial number Notebook computer DELL Lattitude D510 - MOVON CORPORATION Report Number: MOV-14-RF-I022 Page : (7) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 4. Transmitter radiated spurious emissions and conducted spurious emissions 4.1. Test setup 4.1.1. Transmitter radiated spurious emissions The diagram below shows the test setup that is utilized to make the measurements for emission from 9kHz to 30MHz Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ emissions. MOVON CORPORATION Report Number: MOV-14-RF-I022 Page : (8) of (39) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. The diagram below shows the test setup that is utilized to make the measurements for emission from 1 ㎓ to 40 ㎓ emissions. 4.2. Limit According to §15.247(d), in any 100 ㎑ bandwidth outside the frequency ban…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT Photo of radiated spurious emission at below 30 ㎒ Photo of radiated spurious emission at 30 ㎒ ~ 1 000 ㎒ Photo of radiated spurious emission at above 1 000 ㎒
