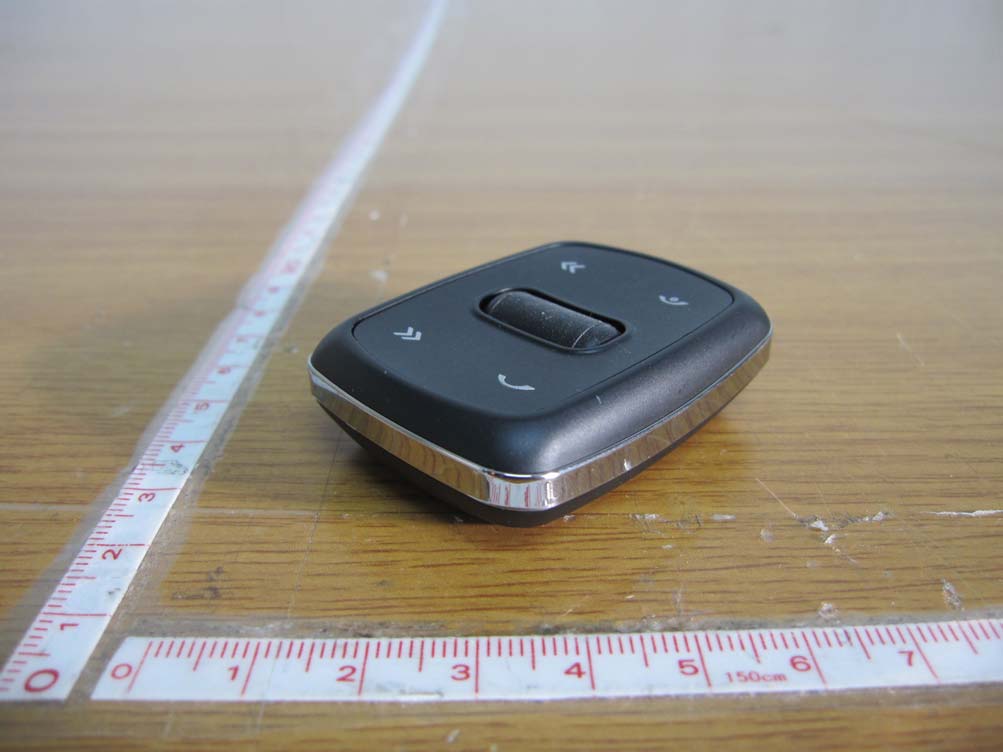

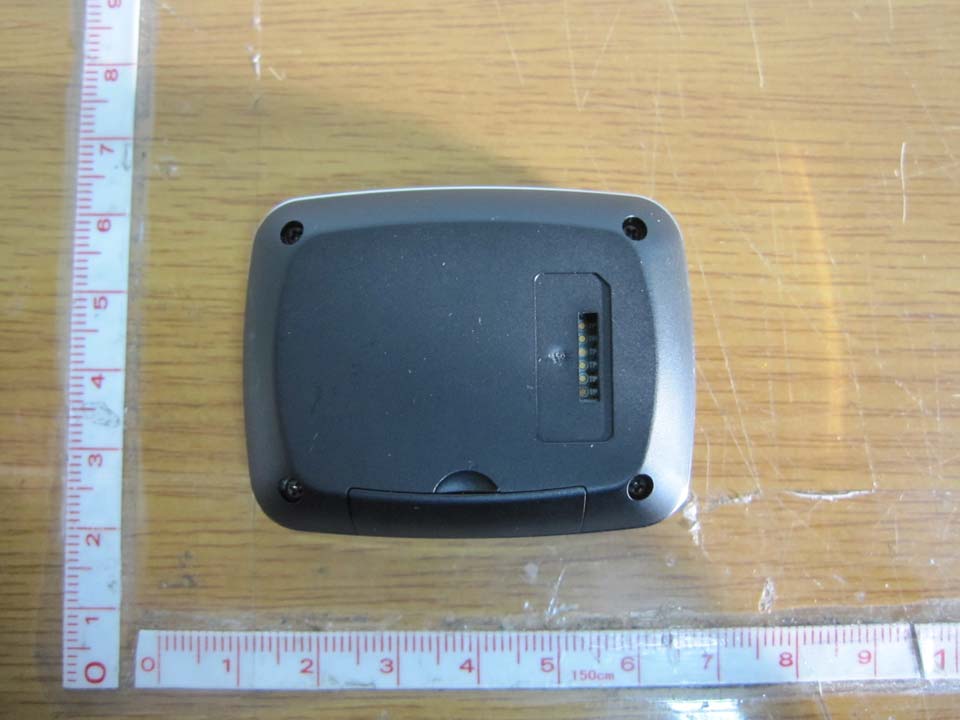

TT2KLAT8-RCWIRELESS REMOTE CONTROLLER

User ’s Guide KlaT 8 1 of 25 Confidential Proprietary User’s Guide [KlaT 8] Mar 24 th , 2011 User ’s Guide KlaT 8 2 of 25 Confidential Proprietary REVISION HISTORY Version Date Name Revision History 00.10 29 th Mar, 2011 OJ Sim Initial release User ’s Guide KlaT 8 3 of 25 Confidential Proprietary CONTENTS 1 GETTING STARTED..................................................................................... 4 1.1 PACKAGE LAYOUT..................................................................................... 4 1.2 INSTALLATION........................................................................................... 4 1.3 CONNECTING THE REMOTE CONTROLLER TO THE BRAIN BOX...................... 10 1.4 PAIRING INSTRUCTION............................................................................. 10 1.5 VOICE COMMAND.................................................................................... 11 2 USING YOUR PRODUCT........................................................................... 12 2.1 OPERATION............................................................................................ 12 2.2 SETTING................................................................................................. 14 2.3 OTHERS................................................................................................. 15 3 PRODUCT SPECIFICATION...................................................................... 17 4 FOR MORE HELP...................................................................................... 18 4.1 CUSTOMER CARE....................................................................................... 18 4.2 SPECIAL FEATURES TO ACCESS SERVICES IN USA / CANADA......................... 18 5 SAFETY AND GENERAL INFORMATION................................................. 20 6 CERTIFICATION AND SAFETY APPROVALS.......................................... 22 7 WARRANTY................................................................................................ 23 User ’s Guide KlaT 8 4 of 25 Confidential Proprietary 1 Getting started 1.1 Package layout ① Brain box ② Remote controller ③ Remote controller accessories ④ Microphone w/ cable ⑤ Microphone accessories ⑥ Installation cable ⑦ USB download cable ⑧ User’s guide & Voucher card (Optional) ⑨ Gift box 1.2 Installation Brain box You can place the Brain box inside the vehicle dashboard. Before installing the Brain box, you should uncover your vehicle dashboard and remove the car stereo from your vehicle first, refer to your car stereo user’s guide or contact your car dealer for appropriate installation. User ’s Guide KlaT 8 5 of 25 Confidential Proprietary Installation cable The Installation cable connects the vehicle’s power and ignition to your product and provides car audio connections. Make sure installation cable is securely connected with the Brain box. ! Note If you have an amplified or aftermarket audio system, we would recommend you find professional assistance such as dealer or installation cable supplier to integrate your product into your vehicle. In some cases, you need specific adaptor cables which bypass the amplified system. a. Basic configuration - Connect 24pin ISO connector to the Brain box. - Connect two male connectors of the installation cable to the car stereo. - Join the vehicle’s audio and power supply cables to the female connectors of the installation cable. - Connect the mute wire (yellow) to the corresponding audio system’s mute- input if available. - Connect the microphone cable to the Brain box. User ’s Guide KlaT 8 6 of 25 Confidential Proprietary b. Auxiliary Configuration  With General car stereo User ’s Guide KlaT 8 7 of 25 Confidential Proprietary  With External AMP - Connect 24pin ISO connector to the Brain box. - Join the RCA jacks of the installation cable (red & white jack) to your car stereo’s AUX IN connectors. - Connect the mute wire (yellow) to the corresponding audio system’s mute- input if available. - Connect the microphone cable to the Brain box. ! Note To deactivate or activate auxiliary configuration, press and hold the MFB until you hear ‘Auxiliary interface is activated’ or ‘Auxiliary interface is de-activated’ when your product is in idle mode. User ’s Guide KlaT 8 8 of 25 Confidential Proprietary c. Sub-woofer - This connection is same with ‘a. Basic Configuration’. - If the vehicle has sub woofer system which is with an appropriate connection to the installation cable, join the RCA jacks of the installation cable (red & white jack) to your sub woofer system. User ’s Guide KlaT 8 9 of 25 Confidential Proprietary Remote controller The remote controller can be mounted in several ways to provide a safe and comfortable environment for use. A holder, double sided tapes and coin battery are come with the remote controller. This only works with a 3V CR2032 battery. Dual microphone The microphone is placed best near the rear view mirror and aimed directly toward the user. The microphone cable can be mounted in several ways to provide a safe and comfortable environment for use. ! Note Once you have stuck the double sided tape, wait for approximately 2 hours to make sure the adhesive tape adheres well. User ’s Guide KlaT 8 10 of 25 Confidential Proprietary 1.3 Connecting the remote controller to the brain box If the remote controller doesn’t seem to be associated to the brain box while using your product for the first time, press and hold the MFB and the END button together until the ‘Connected’ message is said. This has to be done during 30 seconds period once the ignition is turned on. If the connection is not established continuously, change the current battery as new one. 1.4 Pairing instruction KlaT8 preparation: 1. First pairing 1) When your product turns on, you will hear ‘Pair mode’. 2) Your product is now ready. When it is paired with your phone, ‘KlaT8’ will display on the screen. 2. Subsequent pairing 1) Turn on the Bluetooth feature on your phone. 2) Press and …
