TTC-BT-HARMANBTBluetooth headset

Premium Wireless Over-ear HeadPHOnes Casques CirCum-auriCulaires Premium sans Fil OWner’s manual 1 2 3 4 567 8 9 EN1)Microphone 2)+ button 3) • button 4)– button 5)BT button/BT LED 6)Charging connector 7)Charging LED 8)Charging cable 9)Bypass cable FR1)Microphone 2)Bouton + 3)Bouton • 4)Bouton – 5)Bouton/témoin BT 6)Connecteur de charge 7)Témoin de charge 8)Câble de charge 9)Câble de dérivation Es1)Micrófono 2)Botón + 3)Botón • 4)Botón – 5)Botón BT/LED BT 6)Conector de carga 7)LED de carga 8)Cable de carga 9)Cable de derivación PT1)Microfone 2)Botão + 3)Botão • 4)Botão – 5)Botão BT/LED BT 6)Conector de carregamento 7)LED de carregamento 8)Cabo de carregamento 9)Cabo de passagem dE1)Mikrofon 2)Taste „+“ 3)Taste „ •“ 4)Taste „–“ 5)Taste BT/BT-LED 6)Ladeanschluss 7)Lade-LED 8)Ladekabel 9)Verbindungskabel iT1)Microfono 2)Pulsante + 3)Pulsante • 4)Pulsante - 5)Pulsante BT/BT LED 6)Connettore di carica 7)LED di ricarica 8)Cavo di ricarica 9)Cavo di bypass jP1) マイクロホン 2)+ ボタン 3)• ボタン 4)– ボタン 5)BT ボタン/BT LED 6) 充電コネクタ 7)充電 LED 8) 充電用ケーブル 9) バイパスケーブル ko1) 마이크 2) + 버튼 3) • 버튼 4) – 버튼 5) BT 버튼/BT LED 6) 충전 커넥터 7) 충전 LED 8) 충전 케이블 9) 바이패스 케이블 sc1) 话筒 2) “+”按钮 3) “ •”按钮 4) “–”按钮 5) “BT”按钮/BT LED 指示灯 6) 充电接口 7) 充电 LED 指示灯 8) 充电线缆 9) 旁路线缆 Tc1) 麥克風 2)+ 按鈕 3) • 按鈕 4)– 按鈕 5)BT 按鈕/BT LED 6) 充電連接器 7)充電 LED 8) 充電電纜 9) 跳接電纜 Nl1)Microfoon 2)Toets + 3)Toets • 4)Toets – 5)BT-toets/BT-LED 6)Oplaadaansluiting 7)Laadlampje (LED) 8)Oplaadkabel 9)Bypasskabel No1)Mikrofon 2)+ knapp 3) •-knapp 4)– knapp 5)BT-knapp/BT-lampe 6)Ladekontakt 7)Ladelampe 8)Ladekabel 9)Omkoblingsledning Fi1)Mikrofoni 2)+-painike 3) •-painike 4)–-painike 5)BT-painike/BT LED 6)Latausliitin 7)Lataus-LED 8)Latauskaapeli 9)Ohituskaapeli Ru1) Микрофон 2) Кнопка «+» 3) Кнопка « •» 4) Кнопка «–» 5) Кнопка/светодиод «BT» 6) Зарядный разъем 7) Зарядный светодиод 8) Зарядный кабель 9) Соединительный кабель sE1)Mikrofon 2)Knappen + 3)Knappen • 4)Knappen – 5)Knappen BT/lysdioden BT 6)Laddningskontakt 7)Laddningslysdiod 8)Laddningskabel 9)Förbigångskabel dk1)Mikrofon 2)Knappen + 3)Knappen • 4)Knappen – 5)BT-knap/BT LED 6)Opladningsstik 7)Opladnings-LED 8)Opladningskabel 9)Bypasskabel NOTE: If the headphones with the factory-installed metal bow do not fit comfortably on your head, you can install the supplied larger metal bow to achieve a more comfortable fit. Refer to the accompanying sheet for instructions on changing the bow. chaRgiNg YouR hEadPhoNEs 1. Connect the supplied charging cable to the charging connector and to another device’s standard USB port. The charging LED will illuminate red. Note: You cannot use the head- phones while they are charging. 2. Charging time is approximately 2 hours. (Charging from mobile devices such as laptop computers may take longer.) When the headphones are fully charged the charging LED will turn off. During normal operation, when the battery is low the BT LED will flash red slowly. TuRNiNg YouR hEadPhoNEs oN aNd oFF Press the BT button for approximately two seconds to turn the headphones on and off. The BT LED illuminates blue for two seconds to indicate that the headphones are on, then turns off. The BT LED illuminates red for approximately two seconds to indicate that the headphones are off, then turns off. PaiRiNg YouR hEadPhoNEs wiTh a BluETooTh-caPaBlE dEvicE 1. Turn the headphones off. 2. Press and hold the BT button for six seconds. The BT LED will flash blue rapidly. 3. Perform a new device search on your Bluetooth-capable device. 4. Select “harman BT.” If your device requests a passcode, use 0000. 5. When the headphones are paired with the device, the BT LED will flash blue twice and turn off for five seconds; it will continue in this pattern while the headphones are paired and in standby. If your harman/kardon BT headphones were paired with your device the last time you used them, it is likely all you will have to do to re-establish the connection is turn your the head- phones on. • The Bluetooth operating range (depending on your device) is approximately 26 feet (8m). oPERaTioN: Music Depending on your Bluetooth-capable device’s software version, some of the functions men- tioned in this owner’s manual may not be supported. Play/Pause:Press the • button Skip ahead to the next track:Press the • button quickly two times Skip ahead to the last track:Press the • button quickly three times Raise and lower the volume:Press the + and – buttons If the harman/kardon BT headphones battery is empty or you do not need Bluetooth functional- ity you can use the supplied bypass cable to connect the headphones to a device that has a standard 3.5mm stereo headphone connector. (Turn the headphones off before connecting the cable.) Note: The headphone controls do not function in this mode. Use the controls on the device. oPERaTioN: PhoNE To place or end a call:Press the • button To reject an incoming call:Press and hold the • button Raise and lower the volume:Press the + and – buttons During a call, pressing the • button will transfer the call between the HK BT headphones and the transmitting phone. REsETTiNg ThE coNNEcTioNs 1. Turn the headphones off. 2. Press and hold the BT button and the – button simultaneously for more than eight seconds. lEd iNdicaTioNs ■ = blue ■ = red = off BT lEd acTiviTYsTaTE ■■■■■ Power On ■■■■■ Power off ■ ■ ■ ■ ■ ■ ■ ■ Bluetooth pairing mode/incoming call/ outgoing call ■ ■ ■ ■ ■ ■ ■ ■ Standby (paired with Bluetooth device)/ Active call ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Standby/AAC mode play – pause ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Standby/apt-X mode play – pause ■ ■ ■ ■ ■ ■ ■ ■ Standby (not paired with Bluetooth device) ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Low battery ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Connections reset chaRgiNg lEd acTiviTYiNdicaTioN ● Charging ● Charged sPEciFicaTioNs Frequency range: 2.4GHz – 2.4835GHz Transmitter power: <3.0mW Modulation:GFSK/ π /4-DQPSK/8-DPSK Charger voltage:5V Nominal voltage:3.7V DC Operating temperature:+41°F – +95°F (+5°C – +35°C) Supports Bluetooth 2.1+EDR, A2DP v1.2, AVRCP v1.0, HSP …

Text truncated - open the document above for the full version.

Date (10/04/2012) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Fujikon Industrial Co. Ltd. 16/F Grand Central Plaza, 138 Shatin Rural Committee Rd. Shatin NT HONG KONG hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Ken Li Phone: +86-755-88286998-3287 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C 862 because of conviction for possession or distribution of controlled substance. This authorization is application to product: Type of equipment: Bluetooth Headphone Model name: harman/kardon BT FCC ID: TTC-BT-HARMANBT This authorization expires one year from the current date. Sincerely, Company Officer: Dennis Chan Telephone Number: +852 9067 5029 Email: [email protected] Fax: +852 2694 1338

Date (10/04/2012) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: TTC-BT-HARMANBT Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Charter Media (Dongguan) Co., Ltd. on behalf of Icon Health & Fitness hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics PCB Layout Parts List Block Diagrams Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Dennis Chan Telephone Number: +852 9067 5029 Email: [email protected]

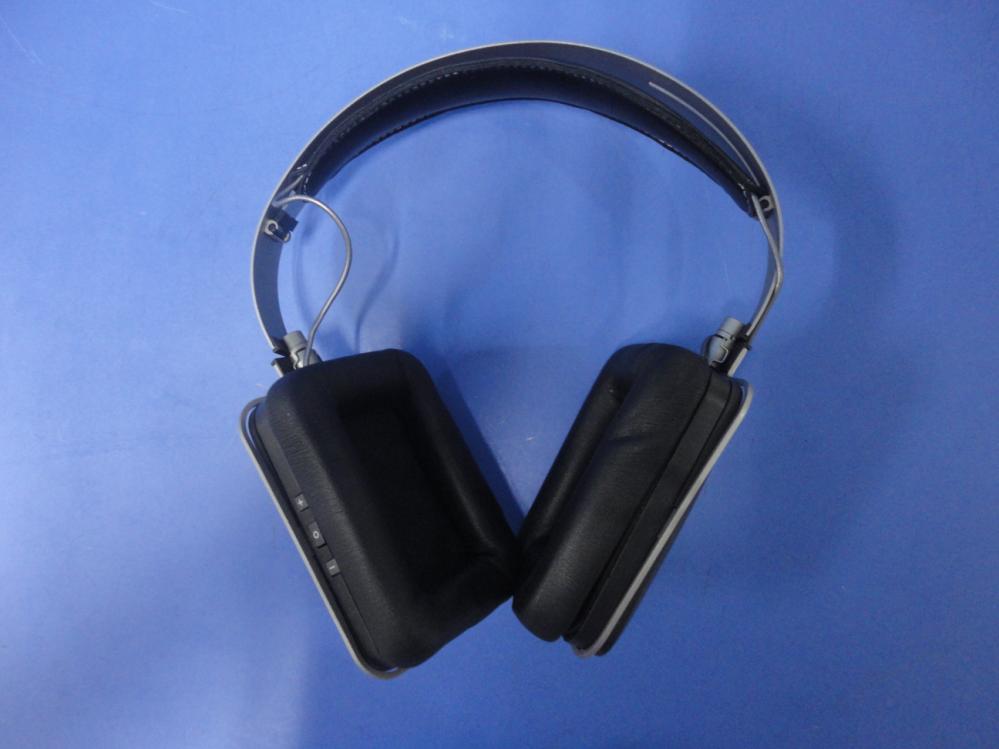

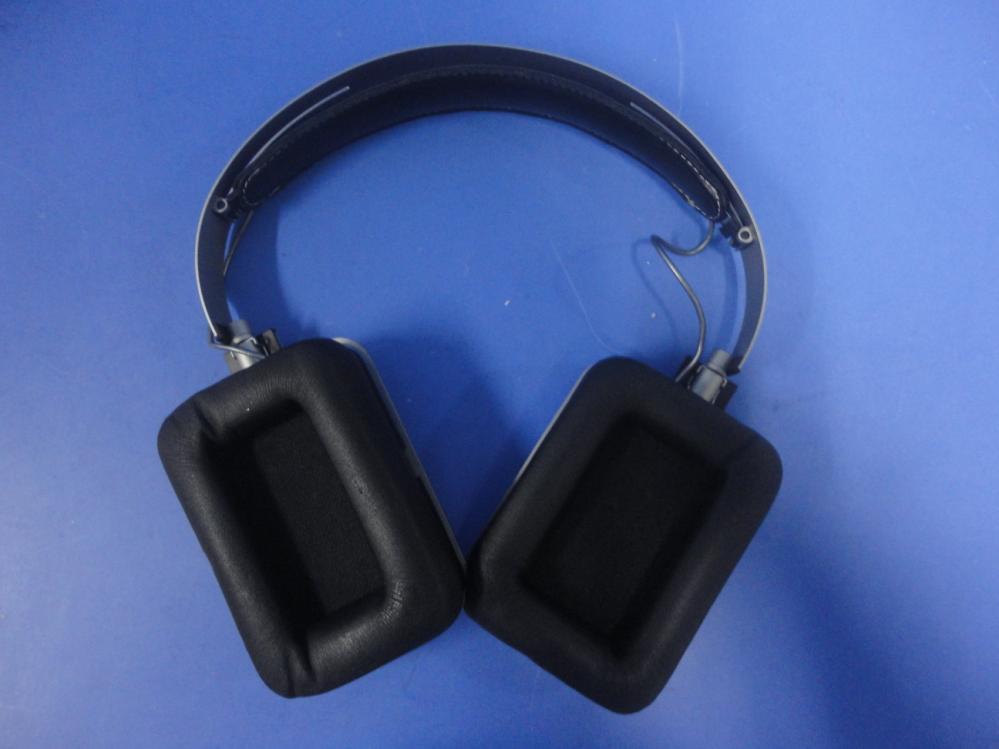

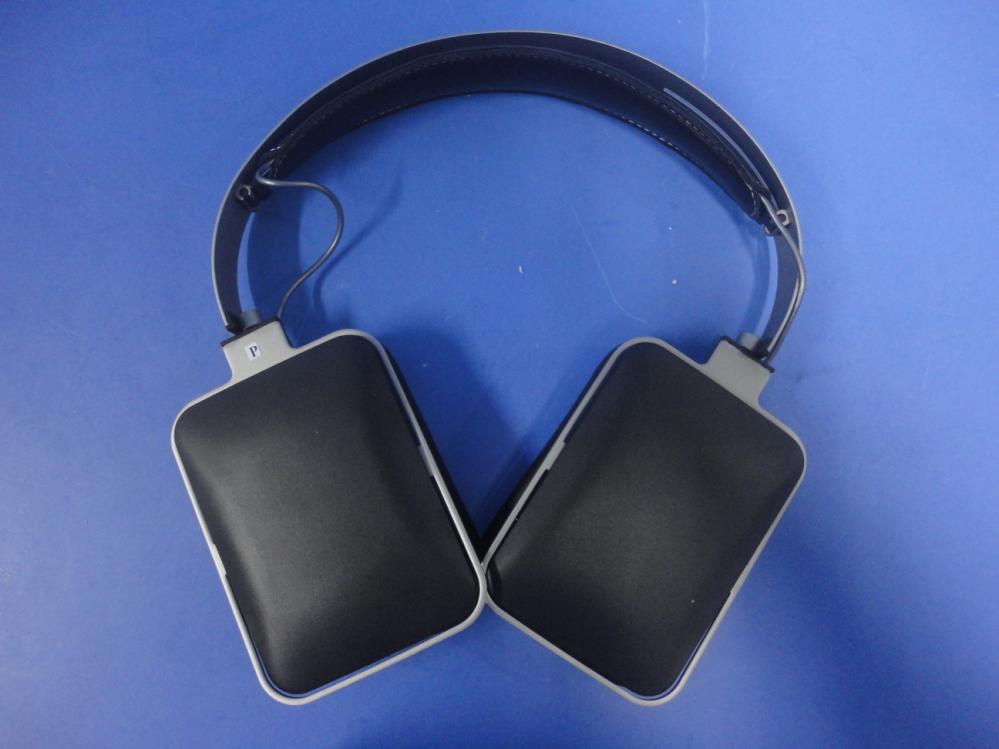

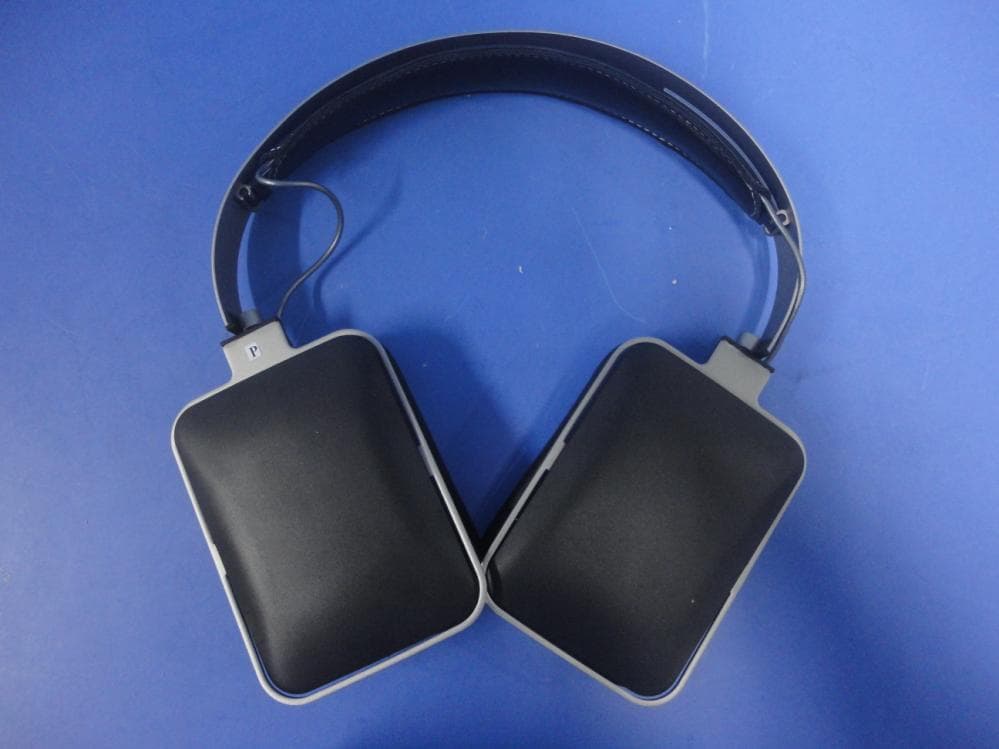

External Photos of harman/kardon BT Antenna location

4.4 mm 1 6 . 5 m m 30.4 mm

Label location Label location

Internal Photos of harman/kardon BT Antenna location 3.7V/580mAh Li-ion Polymer Battery Antenna Alternative battery: 3.7V/430mAh Li-ion Polymer Battery

Report Number: 68.920.12.012.01 Page 1 of 1 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Maximum Permissible Exposure(MPE) Estimation for harman/kardon BT 1. Introduction harman/kardon BT is a Bluetooth headset, which contain Bluetooth function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v03r03, no SAR required if power is lower than the flowing threshold: When routine evaluation is required for SAR and the output power is ≤ 60/f(GHz) mW, the test reduction and test exclusion procedures given herein, or in KDB 616217 or KDB 648474, are applicable. A device may be used in portable exposure conditions with no restrictions on host platforms when either the source-based time-averaged output power is ≤ 60/f(GHz) mW or all measured 1-g SAR are < 0.4 W/kg.10 When SAR evaluation is required, the most conservative exposure conditions for all expected operating configurations must be tested. 3. Calculation method Max Peak output power: GFSK mode 2402 MHz: 4.50dBm=2.82mW 60/ fGHz = 60/2.402 = 24.98mW Max Peak output power<60/ fGHz This is a portable device and the Max Peak outpur power of EUT is less than 24.98 mW, so SAR evaluation is not necessary. Jiangsu TUV Product Service Ltd. Shenzhen Branch Reviewed by: Prepared By: Ken Li/EMC Project Manager Cookies Bu/ EMC Project Engineer Date: 2012-04-24 Date: 2012-04-24

Report Number: 68.920.12.012.01 Page 1 of 69 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 FCC- TEST REPORT Report Number : 68.920.12.012.01 Date of Issue: 24 April 2012 Model : harman/kardon BT Product Type : Bluetooth headset Applicant : Fujikon Industrial Co., Ltd. Address : 16/F., Tower 1, Grand Central Plaza, 138 Shatin Rural Committee Rd. Shatin, N.T. Hong Kong Production Facility : Charter Media (Dongguan) Co., Ltd. Address : Daibandi Industrial Zone, Daning District, Humen Town, 523930 Dongguan City, Guangdong Province, P. R. China Test Result :  Positive  Negative Total pages including Appendices : 69 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Jiangsu TÜV Product Service Ltd. – Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.920.12.012.01 Page 2 of 69 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 1 Table of Contents 1 Table of Contents............................................................................................ 2 2 Details about the Test Laboratory..................................................................... 3 3 Description of the Equipment Under Test............................................................ 4 4 Summary of Test Standards............................................................................. 5 5 Summary of Test Results................................................................................ 6 6 General Remarks.......................................................................................... 7 7 Technical Requirements................................................................................. 8 7.1 Conducted Emission AC Power Port......................................................... 8 7.2 Conducted Peak Power......................................................................... 12 7.3 Band edge compliance of RF emission...................................................... 14 7.4 Spurious RF Conducted emission............................................................ 28 7.5 Spurious radiated emissions................................................................... 39 7.6 20dB Bandwidth................................................................................... 43 7.7 Carrier Frequency Separation................................................................. 51 7.8 Number of Hopping Frequencies ............................................................. 55 7.9 Dwell Time.......................................................................................... 58 8 System Measurement Uncertainty................................................................... 69 Report Number: 68.920.12.012.01 Page 3 of 69 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 2 Details about the Test Laboratory Details about the Test Laboratory Test site1: Company name: Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6th Floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District 518048, Shenzhen,P.R.C. Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Test site2: Company name: Audix Technology (shenzhen) Co.,Ltd Block Shenzhen, Science & Industry Park, Nantou, Shenzhen, Guangdong, China Telephone: 86 755 2663 9496 Fax: 86 755 2663 2877 Report Number: 68.920.12.012.01 Page 4 of 69 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 3 Description of the Equipment Under Test Description of the Equipment Under Test Product: Bluetooth headset Model no.: harman/kardon BT Brand Name: AKG Options and accessories: NIL Rating: 3.7VDC (supplied by 3.7V/580mAh Li-ion Polymer Battery ) (or supplied by USB port of PC via USB cable) RF Transmission Frequency: 2402-2480MHz Antenna Gain: 0dBi Description of the EUT: NIL Auxiliary Equipment Used during Test: DESCRIPTION MANUFACTURER MODEL NO.(SHIELD) S/N(LENGTH) --- --- --- --- Report Number: 68.920.12.012.01 Page 5 of 69 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 4 Summary of Test Standards Test Standards FCC Part 15 Subpart C, 10-1-2010 Edition PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Report Number: 68.920.12.012.01 Page 6 of 69 Jiangsu TÜV Product S…

Text truncated - open the document above for the full version.

Page 1 of 3 Test setup photo of harman/kardon BT 1. Conducted Emission Test setup Charged by PC via a USB cable mode Page 2 of 3 2. Radiated Emission Test (Blow 1GHz) Transmitting mode Charged by PC via a USB cable mode Page 3 of 3 Connect to i-touch via a talk cable playing 1 KHz/0dB audio signal mode: 3. Radiated Emission Test (Above 1GHz) Transmitting mode
