TWS-HL-11N802.11n WLAN Mini-PCI Module

1 HL-11N 802.11n WLAN Mini-PCI Module User’s Manual 2 FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. † Consult the dealer or an experienced radio/TV technician for help. Service Center in U.S.A Company Name : ZyXEL Communications, INC. USA Company Address: 1650 E. Miraloma Ave. Placentia, CA 92870 Tel: (714)632-0858 3 CAUTION: 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users. For laptop installations, the antenna must be installed to ensure that the proper spacing is maintained in the event the users places the device in their lap during use (i.e. positioning of antennas must be placed in the upper portion of the LCD panel only to ensure 20 cm will be maintained if the user places the device in their lap for use) and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ASDL modems, certain laptop configurations, and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: TWS-HL-1 1N". RF Exposure Manual Information That Must be Included The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the device. - 4 - Introduction The HL-11N Wireless module This module is the wireless networking device based on 802.11g /n technology and compatible for interoperability with existing 802.11b devices. This device provides 300Mbps transfer rate in wireless network. HL-11 N is designed for Printer Server series, IP Camera series and Internet Video Server gives you wireless access the web and network resource without the wire. HL-11 N provides high-speed access to network resources and has built-in 64-bit and 128 bit of WEP (Wired Equivalent Privacy) data encryption. With Direct Spread Spectrum Signaling (DSSS), domain access control, WEP encryption and group security, the modules will safeguard all your wireless data transmissions from your nosy neighbors. HL-11 N allows you to take full advantage of your devices mobility with access to real-time information and online services anytime and anywhere. 1. Feature ♦ Design for IP Camera series. ♦ Compatible with IEEE 802.11 b/g/n Standard for 2.4GHz Wireless . ♦ Works with All Existing Network Infrastructure. ♦ Compatible with WiFi Wireless Products and Services. ♦ Capable of up to 128-Bit WEP Encryption. ♦ Freedom to Roam While staying Connected ♦ Up to 300 Mbps High-Speed Transfer Rate. ♦ Two I-PEX Connectors for External Antenna ♦ Support Antenna diversity for Better Sensitivity. ♦ Lower Power Consumption. - 3 - 2.2. Safety Recommendations The safety guidelines are as follows: λ Keep the board area clear and dust-free before, during, and after installation. λ Keep tools away from walk areas where you and others could fall over them. λ Do not wea…

Text truncated - open the document above for the full version.

Handlink Technologies Inc. Confidentiality Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: Handlink Technologies Inc. FCC ID: TWS-HL-11N To whom it may concern, Request is hereby submitted by Handlink Technologies Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics , Bill of Material (BOM) • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Handlink Technologies Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Title: Hardware Engineer Company name: Handlink Technologies Inc. Date: 2010/1/20

FCC ID: TWS-HL-11N Date: Feb. 2, 2010 Modular Approval Request Letter Dear Sir, There’s an 802.11n WLAN Mini-PCI Module that would like to have your authorization as a modular approval. The specific product as below, 802.11n WLAN Mini-PCI Module, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 by cross-reference list below. Company: Handlink Technologies Inc. Product Name: 802.11n WLAN Mini-PCI Module Model Number HL-11N FCC ID: TWS-HL-11N Requirement of Part 15.212 Reference to HL-11N 1. The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The module has its own RF shielding. Please see external photo.pdf The location of physical crystal and tuning capacitors. Please view internal photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is integrated in chip RT2880/RT2820. Please see diagram.pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the HL-11N. Please see circuit.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The HL-11N meets the FCC antenna requirements. It has a unique connector. Please see external photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The HL-11N was tested in a stand-alone configuration via a PCMCIA extender. Please see conducted set-up photo.pdf and spurious set-up photo.pdf 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. The label position of HL-11N is clearly indicated. Please see the label.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The HL-11N is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see Installation guide.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The HL-11N comply with applicable RF exposure requirements. Please see RF safety evaluation. pdf Yours sincerely, Leon Cheng Engineer Intertek Testing Service Taiwan Ltd .

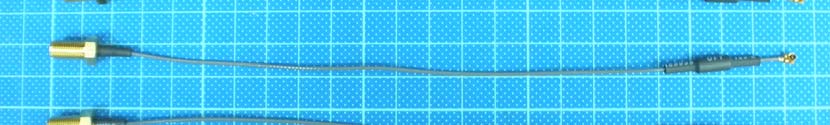

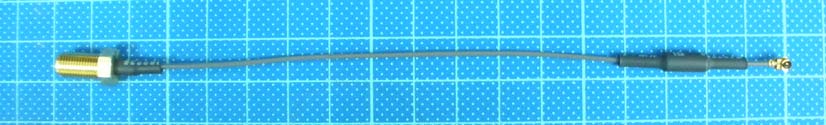

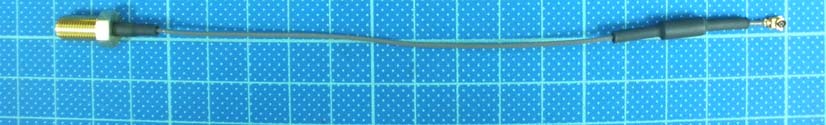

Photo 1: External photo of EUT Photo 2: External photo of EUT Chain1 Chain2 Chain0 Photo 3: Antenna photo of EUT IWX-144RSXXX-257 Photo 4: Antenna photo of EUT IWX-144RSXXX-257 Photo 5: Antenna photo of EUT IWX-1511RSXX-999 Photo 6: Antenna photo of EUT IWX-1511RSXX-999 Photo 7: Antenna photo of EUT IWF-144XIPAX-257 Photo 8: Antenna photo of EUT IWF-144XIPAX-257 Photo 9: Antenna photo of EUT C612-510008-A Photo 10: Antenna photo of EUT C612-510008-A Photo 11: Antenna cable photo of EUT Cable Assy MI-113 L=160MM SMA For I-PEX Photo 12: Antenna cable photo of EUT Cable Assy MI-113 L=160MM SMA For I-PEX Photo 13: Antenna cable photo of EUT Cable Assy MI-113 L=160MM SMA For I-PEX Photo 14: Antenna cable photo of EUT Cable Assy MI-113 L=215MM SMA For I-PEX Photo 15: Antenna cable photo of EUT Cable Assy MI-113 L=215MM SMA For I-PEX Photo 16: Antenna cable photo of EUT Cable Assy MI-113 L=215MM SMA For I-PEX

HL-11N Wireless module label 99/02/05_R01 P/N: 6510604-0020G 25.0 1 9 . 0 單位:MM 公差:+-0.5 材質:50#反銀龍+亮膜 顏色:黑

Photo 1: Internal photo of EUT

FCC ID.: TWS-HL-11N Report No.: TS09120112-EME Page 1 of 8 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : TS09120112-EME Model No. : HL-11N Issued Date: Jan. 29, 2010 Applicant: Handlink Technologies Inc. 4F, No. 3, Prosperity Rd. 1, SBIP, Hsinchu, Taiwan Test Method/ Standard: FCC 1.1310 and Safety Code 6 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Shirla Hsiao / Officer These measurements were taken by: Sign on File Rex Liao/ Engineer The test report was reviewed by: Name Leon Cheng Title Engineer FCC ID.: TWS-HL-11N Report No.: TS09120112-EME Page 2 of 8 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4. Description of EUT ...................................................................................................... 6 5. Test results .................................................................................................................... 8 FCC ID.: TWS-HL-11N Report No.: TS09120112-EME Page 3 of 8 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997, IEEE C95.1-2005 and IC Safety Code 6 802.11n WLAN Mini-PCI Module - Model: HL-11N FCC ID: TWS-HL-11N Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 and IC Safety Code 6 Complies FCC ID.: TWS-HL-11N Report No.: TS09120112-EME Page 4 of 8 1. Introduction The EUT operates in the 2.4 GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20 cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 and Safety Code 6 are followed. According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. RF Exposure Limit For FCC: According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID.: TWS-HL-11N Report No.: TS09120112-EME Page 5 of 8 For IC: Exposure Limits for Persons Not Classed As RF and Microwave Exposed Workers (Including the General Public) Frequency Range (MHz) Electric Field Strength; rms (V/m) Magnetic Field Strength; rms (A/m) Power Density (W/m 2 ) Average Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/f 2.19/f - 6 10-30 28 2.19/f - 6 30-300 28 0.073 2 * 30 300-1500 1.585 f 0.5 0.0042 f 0.5 F/150 30 1500-15000 61.4 0.163 10 30 15000-150000 61.4 0.163 10 616000/f 1.2 150000-300000 0.158 f 0.5 4.21 × 10 -4 f 0.5 6.67 × 10 -5 f 616000/f 1.2 * Power density limit is applicable at frequencies greater than 100 MHz. Notes: 1. Frequency, f, is in MHz. 2. A power density of 10 W/m 2 is equivalent to 1 mW/cm 2 . 3. A magnetic field strength of 1 A/m corresponds to 1.257 microtesla (μT) or 12.57 milligauss (mG). 3. RF Exposure calculations From §FCC 1.1310 table 1 and §Safety Code 6 table 5, the maximum permissible RF exposure for an uncontrolled environment is 1 mW/(cm 2 ) (or 10 W/m 2 )* * 10 W/m 2 = 1 mW/ (cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) (or = 0.0995 W/m 2 ) FCC ID.: TWS-HL-11N Report No.: TS09120112-EME Page 6 of 8 4. Description of EUT The EUT is a 802.11n WLAN Mini-PCI Module. It supports two transmitted and three received MIMO functions. It can transmit sorely at 802.11b/g mode and transmit independently and simultaneously at 802.11n mode. For more detail features, please refer to User's manual as file name “Installation guide.pdf” 4.1 Antenna description The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Ant. Model number Antenna Type Connector Type Gain (dBi) 1 IWX-144RSXXX-257 Dipole Antenna SMA Reverse 2 2 IWX-1511RSXX-999 Dipole Antenna SMA Reverse 5 3 IWF-144XIPAX-257 Dipole Antenna attached with antenna cable IPEX 2 4 C612-510008-A Dipole Antenna SMA Reverse 2 Antenna Cable des…

Text truncated - open the document above for the full version.

FCC ID.: TWS-HL-11N Report No.: TS09120111-EME Page 1 of 105 EMC TEST REPORT Report No.: TS09120111-EME Model No.: HL-11N Issued Date: Jan. 29, 2010 Applicant: Handlink Technologies Inc. 4F, No. 3, Prosperity Rd. 1, SBIP, Hsinchu, Taiwan Test Method/ Standard: 47 CFR FCC Part 15.247 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Shirla Hsiao / Officer These measurements were taken by: Sign on File Rex Liao / Engineer The test report was reviewed by: Name Leon Cheng Title Engineer FCC ID.: TWS-HL-11N Report No.: TS09120111-EME Page 2 of 105 Table of Contents 1. Summary of Test Data................................................................................................. 3 2. General Information .................................................................................................... 4 3. Maximum 6 dB Bandwidth .......................................................................................... 8 4. Maximum Output Power............................................................................................ 19 5. Power Spectral Density ............................................................................................. 22 6. RF Antenna conducted Spurious............................................................................... 33 7. Radiated Spurious Emission ..................................................................................... 61 8. Emission on Band Edge............................................................................................ 80 9. AC power line conducted emission......................................................................... 101 Appendix A: Test Equipment List................................................................................. 105 FCC ID.: TWS-HL-11N Report No.: TS09120111-EME Page 3 of 105 1. Summary of Test Data Test/Requirement Description Applicable Rule Result Minimum 6dB Bandwidth 15.247(a)(2) Pass Maximum Output Power 15.247(b) Pass Power Spectral Density 15.247(e) Pass RF Antenna Conducted Spurious 15.247(d) Pass Radiated Spurious Emission 15.247(d), 15.205, 15.209 Pass Emission on the Band Edge 15.247(d) Pass AC Power Line Conducted Emission 15.207 Pass FCC ID.: TWS-HL-11N Report No.: TS09120111-EME Page 4 of 105 2. General Information Identification of the EUT Product: 802.11n WLAN Mini-PCI Module Model No.: HL-11N FCC ID.: TWS-HL-11N Frequency Range: 2412 MHz to 2462 MHz for 802.11b/g/n HT20 2422 MHz to 2452 MHz for 802.11n HT40 Channel Number: 11 channels for 802.11b/g/n HT20 7 channels for 802.11n HT40 Rated Power: DC 3.3V from Notebook PC Power Cord: N/A Sample Received: Dec. 28, 2009 Test Date(s): Jan. 06, 2010 ~ Jan. 26, 2010 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID.: TWS-HL-11N Report No.: TS09120111-EME Page 5 of 105 Description of EUT The EUT is a 802.11n WLAN Mini-PCI Module. It supports two transmitted and three received MIMO functions. It can transmit sorely at 802.11b/g mode and transmit independently and simultaneously at 802.11n mode. Both chain 0 and chain 1 would be tested separately when the modular operated at 802.11b/g mode. The worst case is found by chain 0 of 802.11b/g mode. And, only the worst data is shown on the test report. For more detail features, please refer to User's manual as file name “Installation guide.pdf” Antenna description The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Ant. Model number Antenna Type Connector Type Gain (dBi) 1 IWX-144RSXXX-257 Dipole Antenna SMA Reverse 2 2 IWX-1511RSXX-999 Dipole Antenna SMA Reverse 5 3 IWF-144XIPAX-257 Dipole Antenna attached with antenna cable IPEX 2 4 C612-510008-A Dipole Antenna SMA Reverse 2 Antenna Cable description Ant. Cable Product Name Connector Type Cable Length (mm) 1 Cable Assy MI-113 L=160MM SMA For I-PEX SMA Reverse to IPEX 160mm 2 Cable Assy MI-113 L=215MM SMA For I-PEX SMA Reverse to IPEX 215mm FCC ID.: TWS-HL-11N Report No.: TS09120111-EME Page 6 of 105 Operation mode The EUT was supplied with DC 3.3V from Notebook PC (test voltage: 120 Vac, 60 Hz) and it was running in operating mode controlled by “QAtest” program. The EUT was transmitted continuously during the test. The following test mode(s) were pre-tested: Test Mode Mode Antenna Antenna cable 1 IWX-144RSXXX-257 1 2 IWX-1511RSXX-999 1 3 IWF-144XIPAX-257 - 4 C612-510008-A 1 5 IWX-144RSXXX-257 2 6 IWX-1511RSXX-999 2 7 C612-510008-A 2 After pretest, the final tests were executed under test modes with highest emission and recorded in this report …

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up photo Photo 2: Conducted Emission Test Set-up photo

Photo 1: Radiated Emission Test set-up photo: Test mode 1 Photo 2: Radiated Emission Test set-up photo: Test mode 1 Photo 3: Radiated Emission Test set-up photo: Test mode 2 Photo 4: Radiated Emission Test set-up photo: Test mode 2
