TWYXARRAYxArray IPJ-REV-R680 UHF RFID reader system

Release 4.11 13-June-2014 Proprietary and Confidential www.impinj.com Copyright ©2014 Impinj, Inc. Impinj, Octane, and Speedway are either registered trademarks or trademarks of Impinj, Inc. For more information, contact [email protected] UHF Gen 2 RFID Speedway ® Revolution Installation and Operations Guide ii . Revision 4.11 Copyright ©2014, Impinj, Inc. Products Covered by this Guide This guide pertains to readers with the following part numbers: Table i: Speedway Revolution Reader Part Numbers Reader Communication Code Part Number Speedway R220 FCC IPJ-REV-R220-USA1M1 Speedway R420 FCC IPJ-REV-R420-USA1M1 Speedway R220 ETSI IPJ-REV-R220-EU11M1 Speedway R420 ETSI IPJ-REV-R420-EU11M1 Speedway R220 Various IPJ-REV-R220-GX11M1 Speedway R420 Various IPJ-REV-R420-GX11M1 Speedway R220 Various IPJ-REV-R220-GX21M1 Speedway R420 Various IPJ-REV-R420-GX21M1 Speedway R420 Japan IPJ-REV-R420-JP21M1 Speedway R640 FCC IPJ-REV-R640-FCC1M1 Speedway R640 ETSI IPJ-REV-R640-EU11M1 Speedway R640 Various IPJ-REV-R640-GX11M1 Speedway xArray R680 FCC IPJ-REV-R680 Federal Communications Commission (FCC) Compliance This equipment was tested and complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, the equipment may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation and cause harmful interference to radio or television reception. To determine if this equipment causes harmful interference to radio or television reception, turn the equipment off and on. You are encouraged to try to correct the interference by one or more of the following: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult the dealer or a qualified radio/TV technician for assistance. Speedway Revolution Installation and Operations Guide Octane 4.11 Revision 4.11 Copyright ©2014, Impinj, Inc. iii Caution: Changes to this product or modifications not expressly approved by the party responsible for compliance could void your authority to operate per FCC Part 15. Attention: Les modifications apportées à ce produit ou modifications pas expressément approuvés par la partie responsable de la conformité peuvent annuler votre droit à utiliser par FCC Part 15. Industry Canada (IC) Compliance Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. This device has been designed to operate with the antenna(s) listed on page 36 that have a maximum gain of 6 dB. Antennas not included in this list or having a gain greater than 6 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be chosen so that the equivalent isotropically radiated power (EIRP) is not more than that permitted for successful communication. The term ―IC‖ before the radio certification number only signifies that Industry of Canada technical specifications were met. Industrie Canada (IC) Conformité Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne doit pas provoquer d'interférences. 2. Cet appareil doit accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil. Cet appareil a été conçu pour fonctionner avec l'antenne (s) énumérées à la page 35 qui ont un gain maximum de 6 dB. Antennes pas inclus dans cette liste ou présentant un gain supérieur à 6 dB sont strictement interdits pour utilisation avec cet appareil. L'impédance d'antenne requise est de 50 ohms. Afin de réduire le risque d'interférence avec d'autres utilisateurs, le type d'antenne et son gain doivent être choisis de telle sorte que la puissance isotrope rayonnée équivalente (PIRE) ne soit pas supérieure à celle permise pour une communication réussie. L‘expression "IC" avant le numéro de certification radio signifie seulement que l'industrie des spécifications techniques Canada ont été respectées. CE Marking and European Economic Area (EEA) RFID devices designed for use throughout the EEA must have a maximum radiated transmit power of 2W ERP in the frequency range of 865.6–867.6 MHz. For other EEA restrictions on RFID device use, please refer to the Impinj Declaration of Conformity (DoC) located at support.impinj.com. Environmental Air Handling Space (EAHS) Applications This device is suitable for use in Environmental Air Handling Space (EAHS) in accordance with Section 300-22(c) of the National Electric Code. Speedway Revolution Installation and Operations Guide Octane 4.11 iv Copyright © 2014, Impinj, Inc Cables, antennas, power adaptors, PoE (Power Injectors), or other devices shall not be installed in the Environmental Air Handling Space unless they are suitable for use in the EAHS per UL 2043. Before You Begin Warning: Please read this document in its entirety before operating the Speedway Revolution Reader, as serious personal injury or equipment damage may result from improper use. Unauthorized opening of the Speedway Revolution Reader enclosure voids the warranty. To safeguard personnel, be sure to position all antenna(s) according to the specified requirements for your regulatory region. For details, see Appendix A: Information Specific to Regions of Operation on page 35. Avertissement: S'il vous plaît lire ce document dans son intégralité avant d'utiliser le Speedway Revolution Reader, comme des blessures graves ou des dommages matériels peuvent résulter d'une mauvaise utilization. Ouverture non autorisée du lecteur Sp…

Text truncated - open the document above for the full version.

Impinj, Inc. 701 N. 34 th Street, Suite 300 Seattle, WA 98103 Tel (206) 517-5300 Fax (206) 517-5262 www.impinj.com 23 March 2009 To Whom It May Concern: This is your letter of authorization to accept our appointment of CKC Certification Services, LLC as Agent for Impinj, Inc., with principal offices at 701 N. 34 th Street, Suite 300, Seattle, WA 98103 to sign applications before the FCC or IC agencies on our behalf, and to receive and exchange data between our company and the agencies in connection with regulatory certifications. Sincerely, William Ashley VP Reader Engineering Impinj, Inc.

Impinj, Inc. 701 N. 34 th Street, Suite 300 Seattle, WA 98103 Tel (206) 517-5300 Fax (206) 517-5262 www.impinj.com 17 July 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and Section 0.459 pertaining to confidential material. Impinj, Inc. would like the following category of documents regarding this submission for FCC ID: TWYXARRAY to be kept confidential. 1. Block Diagrams 2. Schematics 3. Parts list 4. Operational Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, William Ashley VP Engineering Impinj, Inc.

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Assembled in Malaysia SPEEDWAY xArray UHF RFID READER (IPJ-REV-R680) Impinj, Inc. 8783.XXX.XXX FCC ID: TWYXARRAY

1 2 63.45 2.50 .37 9.30 12.70 .50 A DETAIL A SCALE 1 : 1.5 NOTES: XARRAY FCC LABEL - 2.25 IN x 2.5 IN (xArray_common_product_label_v1.pdf) XARRAY SERIAL LABEL - 3 IN x 2.5 IN 3. ALL DIMENSIONS OFF OF BACKPLANE EDGE 1 2 REVISIONS ZONE REV.DESCRIPTIONDATEAPPROVED MATERIAL WWW.IMPINJ.COM OR AS A WHOLE WITHOUT THE WRITTEN SCALE: 1:4 DRAWING IS THE SOLE PROPERTY OF PERMISSION OF IMPINJ, INC. IS PROHIBITED. DO NOT SCALE DRAWING MATERIALS TO BE ROHS ALL COMPONENTS AND TITLE: SEE NOTES NAME LabelLocation SHEET 1 OF 1 DATE xArray Label Loc A00+ COMMENTS: COMPILANT 1.0 Q.A. IMPINJ, INC. ANY REPRODUCTION IN PART PROPRIETARY AND CONFIDENTIAL MFG APPR. WEIGHT: 23.19 ENG APPR. REV DWG. NO. CHECKED B DRAWN SIZE THE INFORMATION CONTAINED IN THIS FINISH DIMENSIONS: IN [MM] TOLERANCES UNLESS OTHERWISE SPECIFIED: X = 0.04" X.X = 0.02" X.XX = 0.01" X.XXX = 0.005" HOLE = 0.003" ANGULAR: MACH 0.5 BEND 701 N. 34th Street Suite 300 Seattle, WA 98103 206-517-5300 SEE NOTES

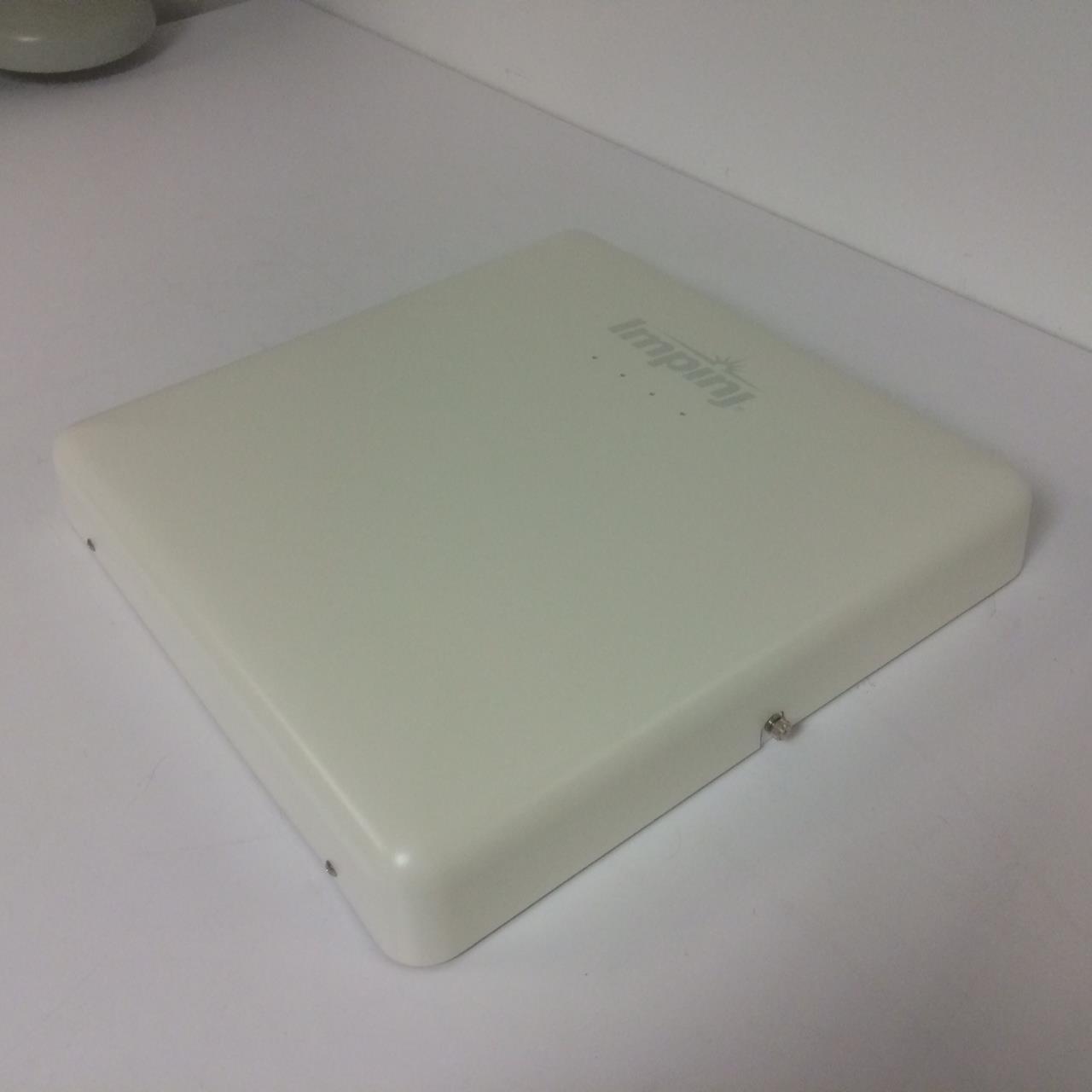

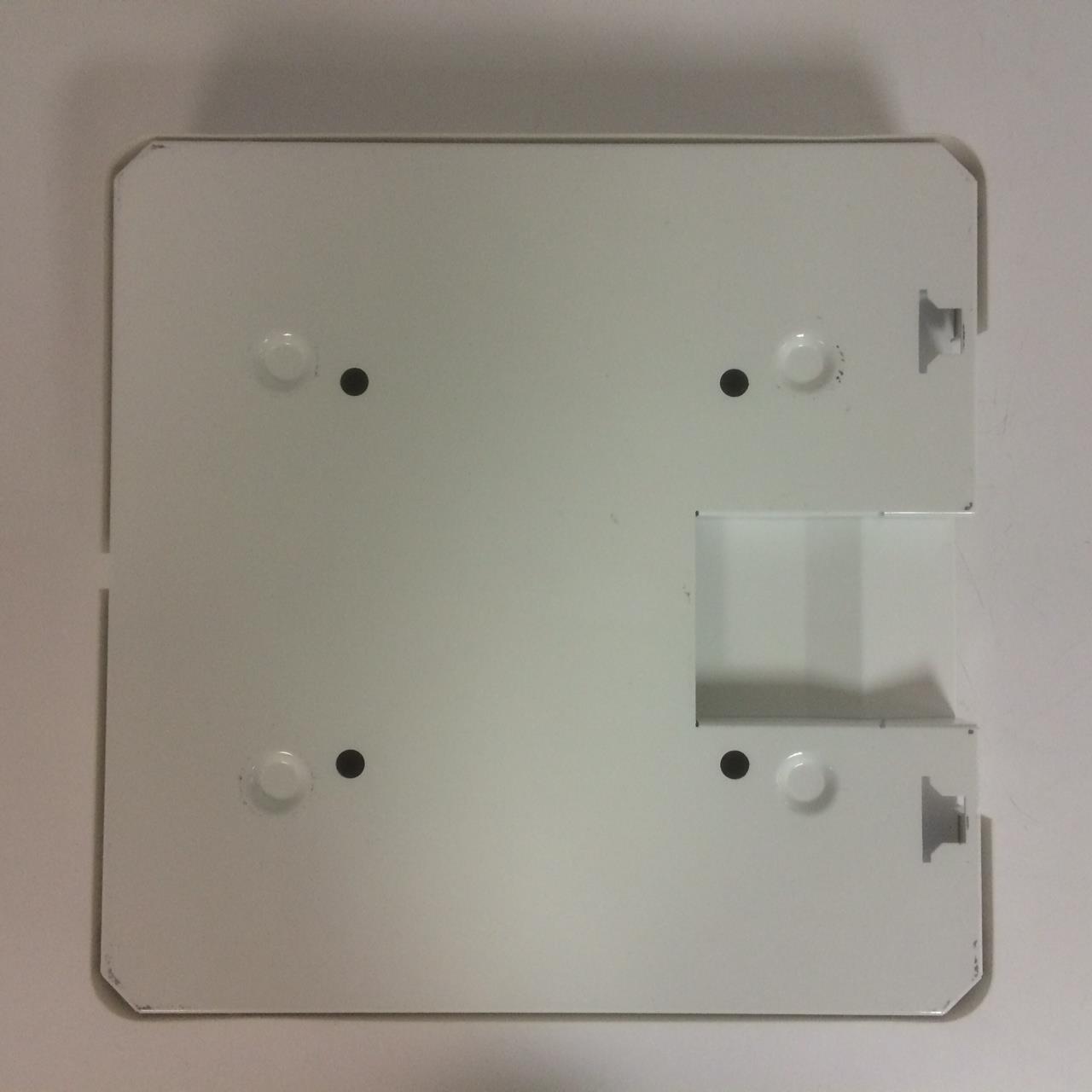

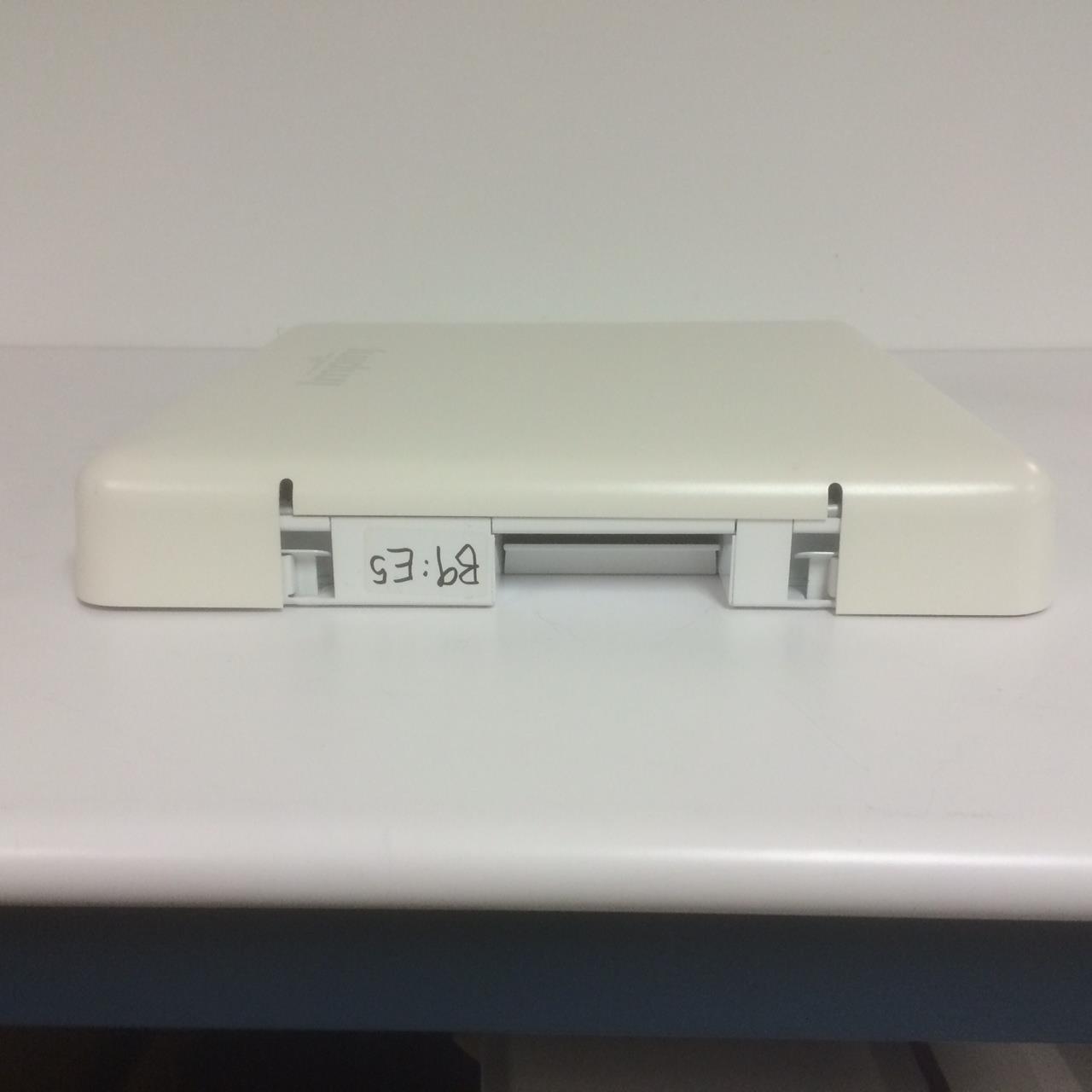

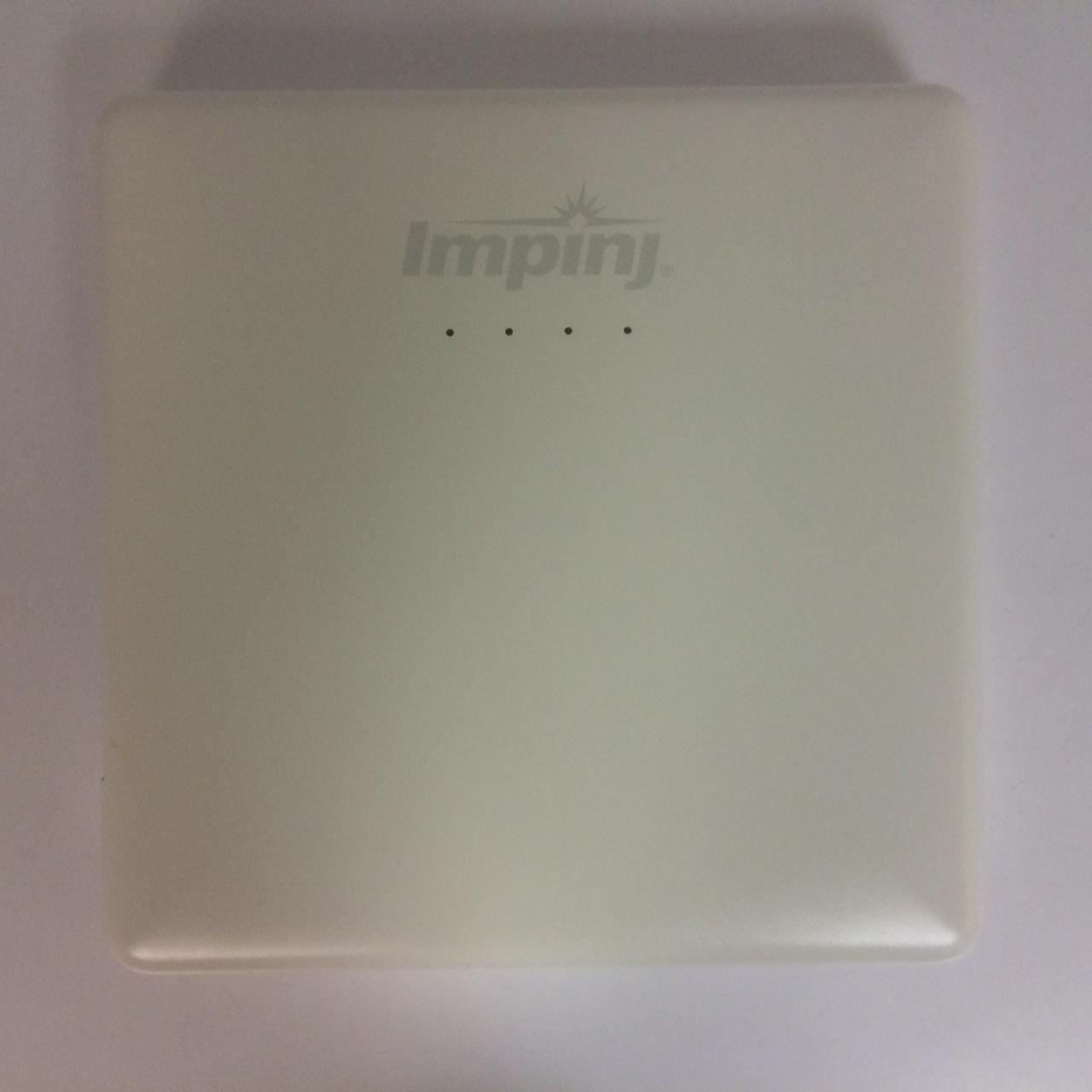

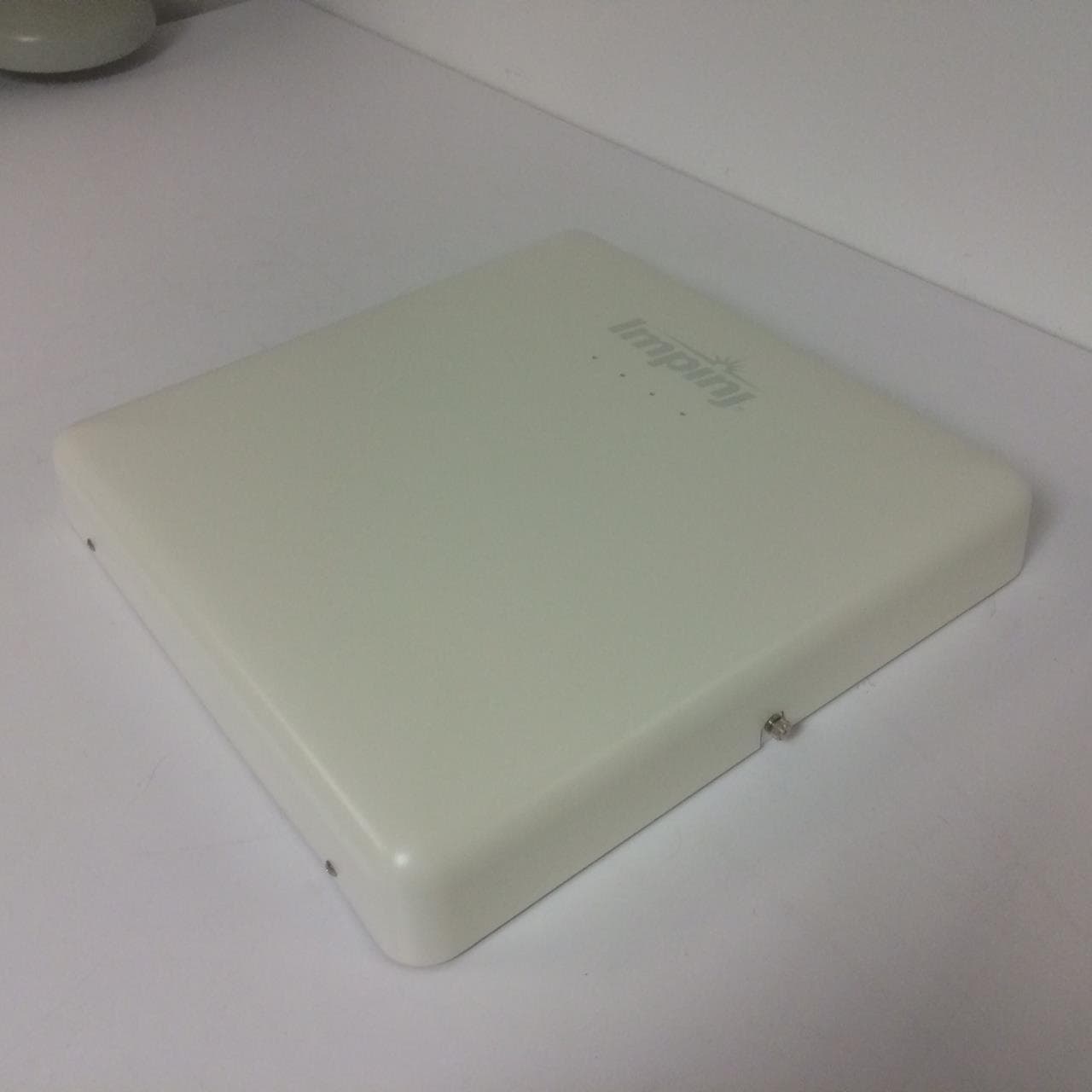

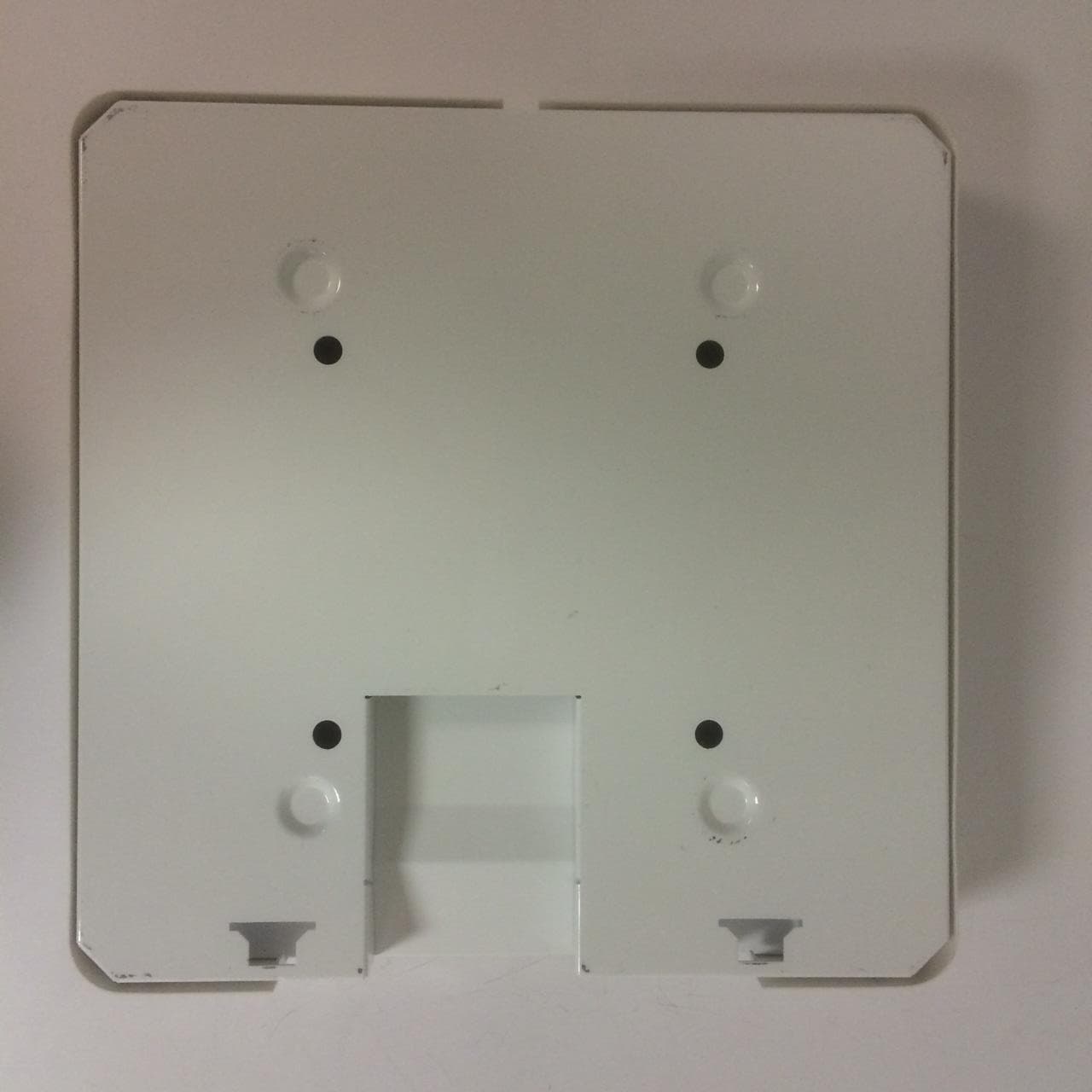

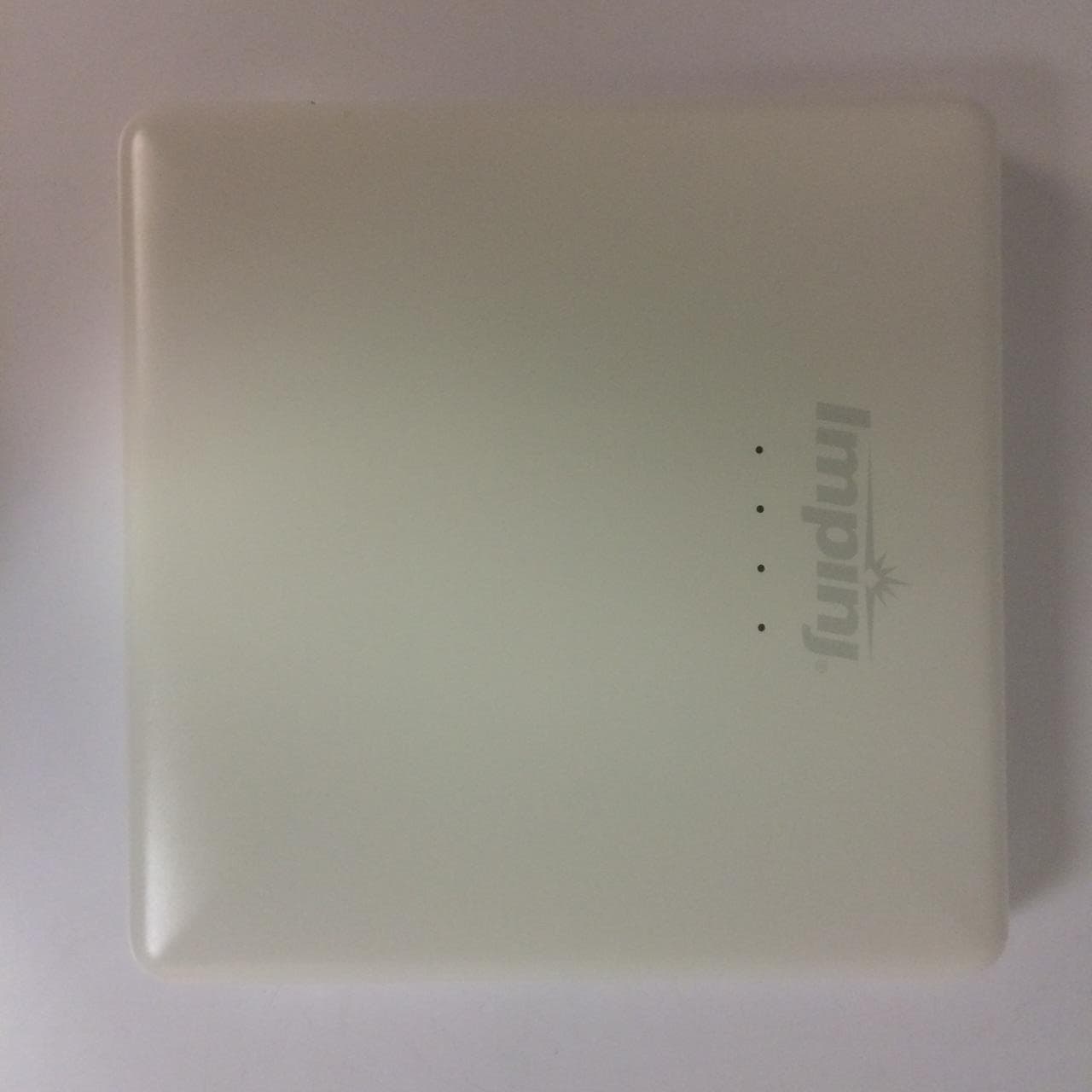

Impinj IPJ‐REV External Photos Rear View Front View Top View Bo;om View

Impinj IPJ‐REV Internal Photos PCB Top PCB Bo9om

Page 1 of 8 Report No: 95794-9 RADIO FREQUENCY EXPOSURE REPORT FOR THE Device: xArray Model: IPJ-REV-R680-USA Report No.: 95794-9 Date of issue: July 16, 2014 PREPARED FOR: Impinj Inc. 701 N. 34th Street Seattle, WA 98103 PREPARED BY: Steven Pittsford CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 2 of 8 Report No: 95794-9 Purpose: To demonstrate compliance with United States, Canada and/or European Union RF Exposure requirements for Portable equipment (devices used ≤20cm from the body) or Mobile equipment (devices used >20cm from the body) with power output below exemption levels and Mobile equipment, where Maximum Permissible Exposure (MPE) Calculations apply. United States Compliance Requirements (1.1310): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f 2 ) 6 30-300 61.4 0.163 1 6 300-1500 --- --- f/300 6 1500-100,000 --- --- 5.0 6 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f/1500 30 1500-100,000 --- --- 1.0 30 * Plane wave equivalent power density Limit is calculated based on the mid-band frequency used in the operating frequency range. Exemption Level: Power output <60/f GHz (mW) Page 3 of 8 Report No: 95794-9 Canadian Compliance Requirements (RSS-102): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-1.0 600 4.9 --- 6 1.0-10 600/f 4.9/f --- 6 10-30 60 4.9/f --- 6 30-300 60 0.163 10 6 300-1500 3.54 f 0.5 0.0094*f 0.5 f/3 6 1500-15,000 137 0.364 50 6 15,000-150,000 137 0.364 50 616000/f 1.2 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-1.0 280 2.19 --- 6 1.0-10 280/f 2.19/f --- 6 10-30 28 2.19/f --- 6 30-300 28 0.073 2 6 300-1500 1.585 * f 0.5 0.0042 * f 0.5 f/150 6 1500-15,000 61.4 0.163 10 6 15,000-150,000 61.4 0.163 10 616000/f 1.2 *Power density limit applicable >100MHz Exemption Level: Frequency Range (MHz) Maximum Output Power (Conducted or EIRP) 0.003-1000 ≤ 200 mW 1000-2200 ≤ 100 mW 2200-3000 ≤ 20 mW 3000-6000 ≤ 10 mW Page 4 of 8 Report No: 95794-9 European Union Compliance Requirements (ICNIRP): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.00082-0.065 610 24.4 --- 6 0.065-1.0 610 1.6/f --- 1.0-10 610/f 1.6/f --- 6 10-400 61 0.16 10 6 400-2000 3.0 * f 0.5 0.008 * f 0.5 f/40 6 2000-300,000 137 0.36 50 6 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-0.150 87 5.0 --- 6 0.150-1.0 87 0.73/f -- 6 1.0-10 87/f 0.5 0.73/f --- 6 10-400 28 0.073 2 6 400-2000 1.375 f 0.5 0.0037*f 0.5 f/200 6 2000-300,000 61 0.16 10 6 *Power density limit applicable >100MHz Exemption Level: Power output < 20mW 1 1 May vary by product type Page 5 of 8 Report No: 95794-9 Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. The customer declares that the system has output power and gain variances in it such that it maintains EIRP at or below 36dBm. The max main beam gain is 9.5dBi, but the system decreases RF output power to the limit. This is true for both vertical and horizontal polarities of the EUT antenna. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in OET Guide 65 & ANSI C95.1 for the US and Health Canada Safety Code 6 & RSS 102 for Canada. Other Considerations: None Page 6 of 8 Report No: 95794-9 MPE Calculations Applicability: Limit Used X General Population / Uncontrolled Exposure Occupational / Controlled Exposure RF Exposure Exemption No United States No Canada Equipment operational details: Config # Operating Frequency (MHz) Measured Output Power (dBm) Antenna Gain (dBi) Antenna Type / Configuration EIRP (dBm) 1 902.75-927.25 29.36 6.64dBi Integrated phased array 36.0 Measurements based from EMC Test Report(s): 95754-4A MPE Calculation: 2 4d EIRP DensityPower   Given: EIRP in mW or W and d in cm or m Config # Distance (cm) US (1.1310) Canada (RSS-102) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Power Density (W/m 2 ) Limit (W/m 2 ) 1 23 0.6 0.6 6.0 6 Page 7 of 8 Report No: 95794-9 Summary Exemptions: In the case the equipment meets compliance requirements by exemption the product is approved for use under mobile or portable conditions without further testing under the condition that any additional collocation or simultaneous transmission requirements (including necessary separation distances) have been met. MPE Calculation Results: In the case the equipment meets compliance by MPE Calculations the product is appr…

Text truncated - open the document above for the full version.

This report contains a total of 54 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Impinj Inc. ADDENDUM TO TEST REPORT 95794-4 xArray Model: IPJ-REV-R680-USA Tested To The Following Standards: FCC Part 15 Subpart C Section(s) 15.207 & 15.247 Report No.: 95794-4A Date of issue: July 9, 2014 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 54 Report No.: 95794-4A TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Revision History ......................................................................................................................................................... 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 15 Subpart C ................................................................................................................................... 7 15.207 AC Conducted Emissions ................................................................................................................................ 7 15.247(a)(1)(i) -20dB Occupied Bandwidth ............................................................................................................. 20 15.247(a)(1)(i) Average Time of Occupancy ............................................................................................................ 26 15.247(b)(2) RF Power Output ................................................................................................................................ 35 15.247(d) Conducted Spurious Emissions and Band edge ....................................................................................... 38 15.247(d) Radiated Spurious Emissions and Band edge .......................................................................................... 44 Supplemental Information .......................................................................................................................... 53 Measurement Uncertainty ...................................................................................................................................... 53 Emissions Test Details .............................................................................................................................................. 53 Page 3 of 54 Report No.: 95794-4A ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Impinj Inc. 701 N. 34th Street, Suite 300 Seattle, WA 98103 Morgan Tramontin CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: John Moran Project Number: 95794 Customer Reference Number: 116099-1 DATE OF EQUIPMENT RECEIPT: May 9, 2014 DATE(S) OF TESTING: May 9- June 17, 2014 Revision History Original: Testing of the xArray, IPJ-REV-R680-USA to 15.207 & 15.247. Addendum A: To add a Conducted Hopping Band Edge plot to section 15.247(d) and to correct the Average Time of Occupancy statement that’s under the Figure 5 plot in section 15.247(a)(1)(i). Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 54 Report No.: 95794-4A Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 22116 23rd Drive S.E., Suite A Bothell, WA 98021-4413 S…
