TX2-RTL8191SE802.11b/g/n RTL8191SE miniCard

SINGLE-CHIP IEEE 802.11b/g/n WLAN CONTROLLER with PCI EXPRESS TM INTERFACE DATASHEET Rev. 0.4 26 th Nov 2008 Track ID: JATR Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com.tw RTL8191SE-GR RTL8191SE-GR Datasheet Wireless LAN Network Interface Controller ii Rev.0.4 COPYRIGHT ©2008 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp. DISCLAIMER Realtek provides this document “as is”, without warranty of any kind, neither expressed nor implied, including, but not limited to, the particular purpose. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. TRADEMARKS Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. USING THIS DOCUMENT This document is intended for the software engineer’s reference and provides detailed programming information. Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. In that event, please contact your Realtek representative for additional information that may help in the development process. REVISION HISTORY Revision Release Date Summary 0.4 2008/11/26 Preliminary release. RTL8191SE-GR Datasheet Wireless LAN Network Interface Controller iii Rev.0.4 Table of Contents 1. GENERAL DESCRIPTION................................................................................................................................................4 2. GENERAL FEATURES ......................................................................................................................................................5 3. APPLICATION DIAGRAM ...............................................................................................................................................7 3.1. SINGLE BAND 11N APPLICATION......................................................................................................................................7 4. PIN ASSIGNMENTS ...........................................................................................................................................................8 5. PIN DESCRIPTIONS ..........................................................................................................................................................9 5.1. PCIE TRANSCEIVER INTERFACE......................................................................................................................................9 5.2. EEPROM INTERFACE.....................................................................................................................................................9 5.3. POWER PINS..................................................................................................................................................................10 5.4. RF INTERFACE...............................................................................................................................................................10 5.5. LED INTERFACE............................................................................................................................................................10 5.6. CLOCK AND OTHER PINS...............................................................................................................................................11 6. ELECTRICAL AND THERMAL CHARACTERISTICS ............................................................................................. 11 6.1. TEMPERATURE LIMIT RATINGS......................................................................................................................................11 6.2. DC CHARACTERISTICS..................................................................................................................................................11 7. MECHANICAL DIMENSIONS .......................................................................................................................................13 8. ORDERING INFORMATION..........................................................................................................................................14 List of Tables TABLE 1. PCIE TRANSCEIVER INTERFACE.....................................................................................................................................9 TABLE 2. EEPROM INTERFACE....................................................................................................................................................9 TABLE 3. POWER PINS.................................................................................................................................................................10 TABLE 4. LED INTERFACE...........................................................................................................................................................10 List of Figures FIGURE 1. SINGLE BAND 11N APPLICATION DIAGRAM.................................................................................................................7 FIGURE 2. PIN ASSIGNMENTS.........................................................................................................................................................8 RTL8191E-GR Datasheet Wireless LAN Network Interface Controller 4 Rev.0.4 1. General Description The Realtek RTL8191SE is a highly integrated single-chip MIMO wireless LAN (WLAN) solution for the wireless high throughput 802.11n dra…

Text truncated - open the document above for the full version.

Page No. : 3 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel: +886-3-5780211 Fax: +886-3-5776598 Ad Hoc Mode Function Declaration Date: 2009/1/22 FCC ID：TX2-RTL8191SE To Whom it may concern, We, the undersigned, declare that the EUT (Model Name: RTL8191SE) doesn’t have Ad Hoc function on “non-US/Canada frequencies”. Regards, FCC Grantee contact person information. Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Signature : _____________________________ Job Title and Dept. : Kay Chang / Assistant Project Manager E-Mail : [email protected] Tel. : +886-3-5780211

Page No. : 2 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel: +886-3-5780211 Fax: +886-3-5776598 Confidential Letter Date: 2009/1/22 Federal Communications Commission Authorization and Evaluation Division FCC ID：TX2-RTL8191SE Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Signature : _____________________________ Job Title and Dept. : Kay Chang / Assistant Project Manager E-Mail : [email protected] Tel. : +886-3-5780211

Page No. : 4 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel: +886-3-5780211 Fax: +886-3-5776598 DoC Attestation Letter Date: 2009/1/22 We Realtek Semiconductor Corp., as the grantee of this project FCC ID: TX2-RTL8191SE, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Signature : _____________________________ Job Title and Dept. : Kay Chang / Assistant Project Manager E-Mail : [email protected] Tel. : +886-3-5780211

Page No. : 15 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2009/1/22 FCC ID: TX2-RTL8191SE Dear Reviewer, We, Sporton International Inc., are authorized by Realtek Semiconductor Corp. to have their state-of-the-art 802.11b/g/n RTL8191SE miniCard approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RTL8191SE. 3. The requirement of power supply regulation: No power regulator can provide stability power source. But specific of hosts have 3.3Vdc regulator to provide stability power via mini-PCI interface to EUT. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Page No. : 1 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel: +886-3-5780211 Fax: +886-3-5776598 Power of Attorney Date: 2009/1/22 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Realtek / RTL8191SE FCC ID: TX2-RTL8191SE Product name: 802.11b/g/n RTL8191SE miniCard FCC Grantee contact person information. Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Signature : _____________________________ Job Title and Dept. : Kay Chang / Assistant Project Manager E-Mail : [email protected] Tel. : +886-3-5780211

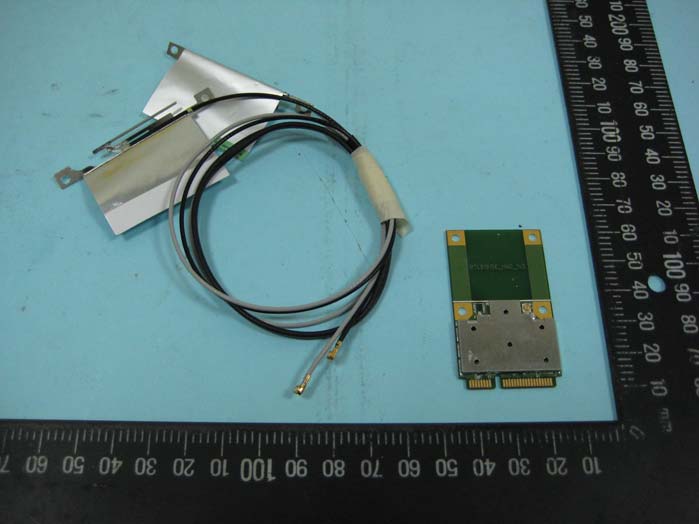

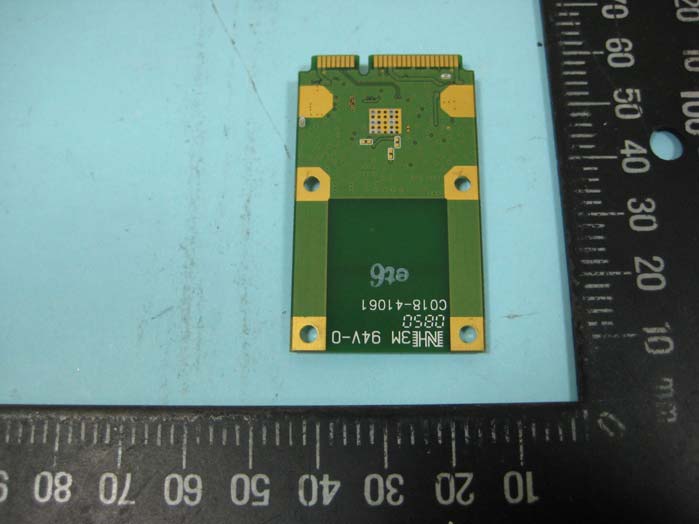

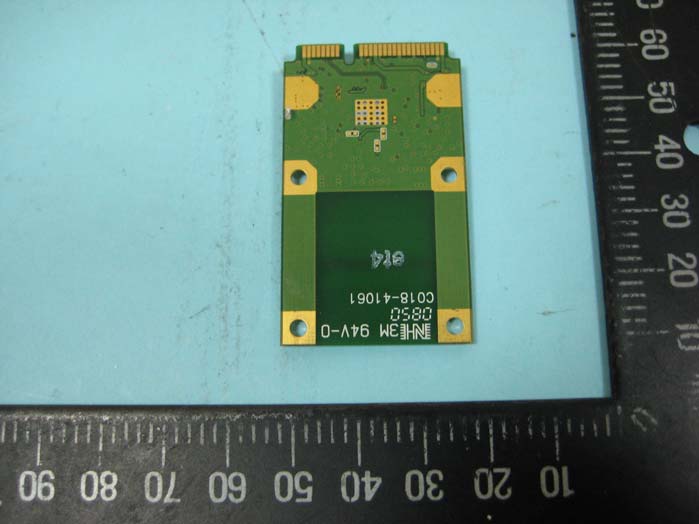

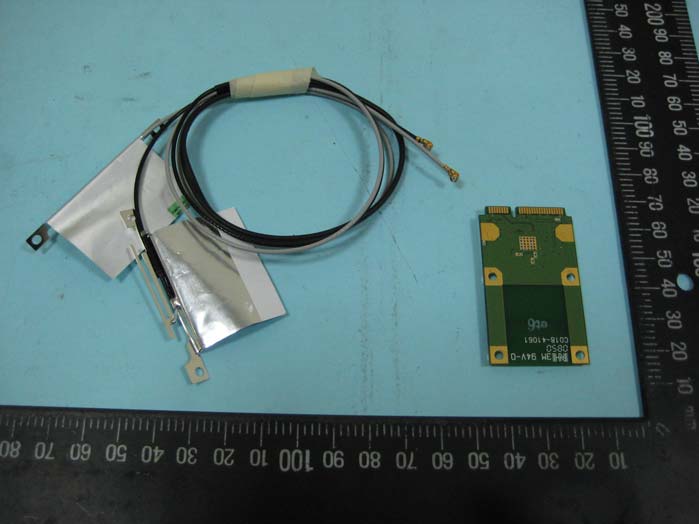

SPORTON International Inc. PAGE NUMBER : A1 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT EUT 1: Full Size Module with one Antenna Connector SPORTON International Inc. PAGE NUMBER : A2 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 EUT 2: Full Size Module with two Antenna Connectors SPORTON International Inc. PAGE NUMBER : A4 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 EUT 3: Half Size Module with one Antenna Connector SPORTON International Inc. PAGE NUMBER : A6 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 EUT 4: Half Size Module with two Antenna Connectors SPORTON International Inc. PAGE NUMBER : A8 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255

Realtek RTL8191SE Label description z Label Location Full Size PCB Half Size PCB z Label sample Product Name: 802.11b/g/n RTL8191SE miniCard Model Name: RTL8191SE DC Input Voltage Range: 3.3V YYYYYYYYYYY XXXXXXXXXXX XXXXXXXXXXX MADE IN TAIWAN 13mm 25mm FCC ID: TX2-RTL8191SE IC: 6317A-RTL8191SE CCXXxxYYyyyZzW LABEL HERE LABEL HERE

SPORTON International Inc. PAGE NUMBER : A1 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT EUT 1: Full Size Module with one Antenna Connector SPORTON International Inc. PAGE NUMBER : A2 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 EUT 2: Full Size Module with two Antenna Connectors SPORTON International Inc. PAGE NUMBER : A4 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 EUT 3: Half Size Module with one Antenna Connector SPORTON International Inc. PAGE NUMBER : A6 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 EUT 4: Half Size Module with two Antenna Connectors SPORTON International Inc. PAGE NUMBER : A9 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 16, 2009 FAX : 886-2-2696-2255

Report No.: FR8D2518 FCC ID: TX2-RTL8191SE Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR8D2518 FCC ID: TX2-RTL8191SE Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR8D2518 FCC ID: TX2-RTL8191SE Page No. : C3 of C3 1.3. Calculated Result and Limit For 2.4GHz Band: 802.11b/g Antenna Type : PIFA Antenna Max Conducted Power for IEEE 11b/g Ant.A : 18.24 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.95 2.4831 18.2400 66.6807 0.032957 1 Complies

Report No.: 8D2518 Page No. : D1 of D5 Appendix D. Antenna List Report No.: 8D2518 Page No. : D2 of D5 1. Table for Filed Antenna Ant. Type PIFA PK Gain(dBi) Main: 3.95 Aux.: 3.90 1 Brand name: WNC Connector IPEX Model No. DQ661500301 Ant. Type PIFA PK Gain(dBi) Main: 2.11 Aux.: 0.64 2 Brand name: WNC Connector IPEX Model No. DQ661500115 Ant. Type PIFA PK Gain(dBi) Main(L): 2.17 Aux.(R): 2.39 3 Brand name: wgt Connector IPEX Model No. AR830WIPI02A Ant. Type PIFA PK Gain(dBi) Main (L): 0.86 Aux. (R): 2.11 4 Brand name: Wgt Connector IPEX Model No. Main: AR320WIPI01B Aux.: AR320WIP102B Ant. Type PIFA PK Gain(dBi) Main (L): 2.48 Aux. (R): 1.63 5 Brand name: wgt Connector IPEX Model No. Main: ARW62WIP101G Aux.: ARW62WIP102G Ant. Type PIFA PK Gain(dBi) Main (L): 2.41 Aux. (R): 2.07 6 Brand name: wgt Connector IPEX Model No. Main: ARUMPWIPI02+C Aux.: ARUMPWIPI01+D Ant. Type PIFA PK Gain(dBi) Main: -0.25 Aux.: 3.64 7 Brand name: Gateway Connector IPEX Model No. Main: 021020168NC3587 Aux.: 021020168NC3587-1 Ant. Type PIFA PK Gain(dBi) Main: -0.04 Aux.: 3.25 8 Brand name: Gateway Connector IPEX Model No. Main: 021020168NC3586 Aux.: 021020168NC3586-1 Ant. Type PIFA PK Gain(dBi) Main: 2.86 Aux.: 1.52 09 Brand name: High-Tek Connector IPEX Model No. Main: AAFQ5050001LK0 Aux.: AAFQ5050001RK0 Ant. Type PIFA PK Gain(dBi) Main: 0.48 Aux.: 0.64 10 Brand name: Hitachi Connector IPEX Model No. Main: HFT40-IV17 Aux.: HMG03-IV17 Ant. Type PIFA PK Gain(dBi) Main: 0.34 Aux.: 0.79 11 Brand name: WNC Connector IPEX Model No. Main: 81.EE215.016. Ant. Type PIFA PK Gain(dBi) Left: 1.34 Right: 1.25 12 Brand name: WNC Connector IPEX Model No. ASAW001 Report No.: 8D2518 Page No. : D3 of D5 Ant. Type PIFA PK Gain(dBi) Main: 0.03 Aux.: 0.63 13 Brand name: Well Green Connector IPEX Model No. Main: B1425050G0003 Aux.: B1425050G0002 Ant. Type PIFA PK Gain(dBi) Right: 0.16 Left: 0.61 14 Brand name: tyco Connector IPEX Model No. ASAT001 Ant. Type PIFA PK Gain(dBi) Left: 1.56 Right: 1.36 15 Brand name: ACON Connector IPEX Model No. ASAA001 Ant. Type PIFA PK Gain(dBi) Main: 0.58 Aux.: 1.12 16 Brand name: Hitachi Connector IPEX Model No. HFT40-IV19W Ant. Type PIFA PK Gain(dBi) Main: -1.65 Aux.: -0.92 17 Brand name: Hitachi Connector IPEX Model No. HFT60-QT05W Ant. Type PIFA PK Gain(dBi) Main: 2.24 Aux.: 1.84 18 Brand name: Hitachi Connector IPEX Model No. HTL008-CP29NN Ant. Type PIFA PK Gain(dBi) Main: 2.82 Aux.: 2.94 19 Brand name: Hitachi Connector IPEX Model No. HTL017-QT03NN Ant. Type PIFA PK Gain(dBi) Main: -1.10 Aux.: 1.76 20 Brand name: WNC Connector IPEX Model No. Main: 81.EE215.002 Aux.: 81.EE215.001 Ant. Type PIFA PK Gain(dBi) Main: 1.18 Aux. 1.75 21 Brand name: WNC Connector IPEX Model No. WNC002 (81.EG645.001) Ant. Type PIFA PK Gain(dBi) Main: 0.57 Aux.: 0.87 22 Brand name: tyco Connector IPEX Model No. TIAN01 (1747862-1) Ant. Type PIFA PK Gain(dBi) Main: 3.45 Aux: 2.41 23 Brand name: Tyco Connector IPEX Model No. TBN001 (1909890-1) Ant. Type PIFA PK Gain(dBi) Main: -1.11 Aux.: -1.11 24 Brand name: Tyco Connector IPEX Model No. TBN003 (1909881-1) Ant. Type PIFA PK Gain(dBi) TX 1 (Main): 2.95 TX 2 (Aux.): 1.90 25 Brand name: Tyco Connector IPEX Model No. TX 1 (Main): 2023935-1 TX 2 (Aux.): 2023936-1 Report No.: 8D2518 Page No. : D4 of D5 Ant. Type PIFA PK Gain(dBi) TX 1 (Main): 1.60 TX 2 (Aux.): 0.05 26 Brand Name: Tyco Connector IPEX Model No. 2023937-1 Ant. Type PIFA PK Gain(dBi) TX 1 (Main): 1.41 TX 2 (Aux.): 1.24 27 Brand Name: Tyco Connector IPEX Model No. TX 1 (Main): 2023938-1 TX 2 (Aux.): 2023939-1 Ant. Type PIFA PK Gain(dBi) TX 1 (Main): 1.68 TX 2 (Aux.): 0.92 28 Brand Name: Tyco Connector IPEX Model No. TX 1 (Main): 2023954-1 TX 2 (Aux.): 2023955-1 Ant. Type PIFA PK Gain(dBi) TX 1: 2.19 TX 2: -0.33 29 Brand Name: Hitachi Connector IPEX Model No. HBY07 Ant. Type PIFA PK Gain(dBi) TX 1: 2.91 TX 2: 2.82 30 Brand Name: Hitachi Connector IPEX Model No. HBY051 Ant. Type PIFA PK Gain(dBi) TX 1: 0.27 TX 2: 0.02 31 Brand Name: Hitachi Connector IPEX Model No. HBY052 Ant. Type PIFA PK Gain(dBi) TX 1: 1.30 TX 2: 2.42 32 Brand Name: Hitachi Connector IPEX Model No. HBY061 Ant. Type PIFA PK Gain(dBi) TX 1: -1.04 TX 2: -1.19 33 Brand Name: Hitachi Connector IPEX Model No. HBY062 Ant. Type PIFA PK Gain(dBi) TX 1: -1.74 TX 2: 1.16 34 Brand Name: Hitachi Connector IPEX Model No. HFT65 Ant. Type PIFA PK Gain(dBi) Main: 0.87 Aux.: 1.94 35 Brand Name: Hitachi Connector IPEX Model No. HCT01 Ant. Type PIFA PK Gain(dBi) -1.11 36 Brand Name: Tyco Connector IPEX Model No. TBN005(2040170) & TBN006(2040171) Ant. Type PIFA PK Gain(dBi) TX 1: -0.43 TX 2: -0.7 37 Brand Name: FOXCONN Connector IPEX Model No. WDAN-TQ Ant. Type PIFA PK Gain(dBi) Main: -1.42 Aux.: -1.76 38 Brand name: Auden Connector IPEX Model No. ZM1 Ant. Type PIFA PK Gain(dBi) Main: -1.86 Aux.: -1.49 39 Brand name: FOXCONN Connector IPEX Model No. ZM1 Report No.: 8D2518 Page No. : D5 of D5 Ant. Type PIFA PK Gain(dBi) Main: -1.18 Aux.: -0.93 40 Brand name: ACON Connector IPEX Model No. ZM1 Ant. Type PIFA PK Gain(dBi) Main: -0.99 Aux.: -1.34 41 Brand name: Yageo Connector IPEX Model No. ZM1 Ant. Type PIFA PK Gain(dBi) Main: 1.31 Aux.: 0.09 42 Brand name: Quanta Connector IPEX Model No. DQ652016100 Ant. Type PIFA PK Gain(dBi) TX 1: -1.4 TX 2: -2.2 43 Brand name: Quanta Connector IPEX Model No. TX 1: AN-090-B TX 2: AN-090-A Ant. Type PIFA PK Gain(dBi) TX 1 (Main): 1.13 TX 2 (Aux.): 0.74 44 Brand name: Quanta Connector IPEX Model No. DQ652015800 Ant. Type PIFA PK Gain(dBi) TX 1: 1.8 TX 2: 0.1 45 Brand name: Quanta Connector IPEX Model No. ON1 Ant. Type PIFA PK Gain(dBi) 2.05 46 Brand name: Wanshih Connector IPEX Model No. 1415-00JL000 Ant. Type PIFA PK Gain(dBi) 2.40 47 Brand name: Wanshih Connector IPEX Model No. 1415-00JK000 Ant. Type PIFA PK Gain(dBi) Main: 2.31 Aux.: 1.50 48 Brand name: WNC Connector IPEX Model No. WNC004 Ant. Type PIFA PK Gain(dBi) Main: 0.52 Aux.: 1.07 49 Brand name: WNC Connector IPEX Model No. WNC003 Ant. Type PIFA PK Gain(dBi) Main: 1.19 Aux.: 0.28 5…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Realtek Semiconductor Corp. Applicant Address No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan FCC ID TX2-RTL8191SE Manufacturer’s company Realtek Semiconductor Corp. Manufacturer Address No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Product Name 802.11b/g/n RTL8191SE miniCard Brand Name Realtek Model Name RTL8191SE Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Dec. 25, 2008 Final Test Date Jan. 15, 2009 Submission Type Original Equipment Statement Test result included in this report is for the Draft n and 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR8D2518 Report Format Version: 01 Page No. : iof ii FCC ID: TX2-RTL8191SE Issued Date : Jan. 16, 2009 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. Test Configurations .............................................................................................................................................................................9 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................17 4.3. Power Spectral Density Measurement ..............................................................................................................................................26 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................35 4.5. Radiated Emissions Measurement ....................................................................................................................................................44 4.6. Band Edge Emissions Measurement .................................................................................................................................................76 4.7. Antenna Requirements .....................................................................................................................................................................85 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 86 6. TEST LOCATION.............................................................................................................................................. 88 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 89 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A19 APPENDIX B. TEST PHOTOS........................................................................................................................ B1 ~ B12 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE..................................…
