TX2-RTL8192CE802.11b/g/n RTL8192CE miniCard

RTL8192CE PCI-Express miniCard User’s Manual Rev. 1.0 11 Feb 2010 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com.tw RTL8192CE User’s Manual COPYRIGHT ©2010 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp. DISCLAIMER Realtek provides this document “as is”, without warranty of any kind, neither expressed nor implied, including, but not limited to, the particular purpose. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. TRADEMARKS Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. USING THIS DOCUMENT This document is intended for the software engineer’s reference and provides detailed programming information. Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. In that event, please contact your Realtek representative for additional information that may help in the development process. ii Rev.1.0 RTL8192CE User’s Manual Table of Contents 1. GENERAL DESCRIPTION................................................................................................................................................4 2. GENERAL FEATURES......................................................................................................................................................5 3. PRODUCT SPECIFICATIONS..........................................................................................................................................7 3.1. MINI PCI EXPRESS PIN ASSIGNMENT..............................................................................................................................7 3.2. MECHANICAL..................................................................................................................................................................8 3.3. ENVIRONMENTAL............................................................................................................................................................8 3.3.1. Operating...............................................................................................................................................................8 3.3.2. Storage....................................................................................................................................................................8 3.4. FUNCTIONAL SPECIFICATIONS.........................................................................................................................................8 3.5. WARNING........................................................................................................................................................................9 4.5.1 Federal Communication Commission Interference Statement......................................................................................9 4.5.2 INDUSTRY CANADA STATEMENT................................................................................ 11 4.5.3 NCC警語...........................................................................................................................................................12 List of Tables TABLE 1. MINI PCI EXPRESS PIN ASSIGNMENT............................................................................................................................7 TABLE 2. FUNCTIONAL SPECIFICATIONS.......................................................................................................................................8 List of Figures FIGURE 2. RTL8192CE MINICARD MECHANICAL SPECIFICATION................................................................................................8 iii Rev.1.0 RTL8192CE User’s Manual 1. General Description The Realtek RTL8192CE miniCard is a highly integrated MIMO wireless LAN (WLAN) used for high speed wireless local network access. The card is built with a MAC and 2T2R capable RF/baseband single chip RTL8192CE. The RTL8192CE miniCard implements multiple input, multiple output (MIMO) orthogonal frequency division multiplexing (OFDM) with 2 transmit and 2 receive paths and is compatible with 802.11n Draft specification 2.0. Other features include two spatial streams transmission, Long guard interval (GI) of 800ns, spatial spreading, and transmission over 20 MHz and 40 MHz bandwidth. Moreover, RTL8192CE provides one spatial stream space-time block code (STBC) to extend the range of transmission. At the receiver, extended range and good minimum sensitivity is achieved by having receiver diversity up to 2 antennas. As the recipient, the RTL8192CE miniCard also supports explicit sounding packet feedback that helps senders with beamforming capability. For legacy compatibility, direct sequence spread spectrum (DSSS), complementary code keying (CCK) and OFDM baseband processing are included to support all 802.11b, and 802.11g data rates. Differential phase shift keying modulation schemes, DBPSK and DQPSK with data scrambling capability, are available along with complementary code keying to provide the data rates of 1, 2, 5.5 and 11Mbps with long or short preamble. The high speed FFT/IFFT paths, combined with BPSK, QPSK, 16QAM, and 64QAM modulation of the individual subcarriers and rate compatible punctured convolutional coding with coding rate of 1/2, 2/3, 3/4, and 5/6, provides the maximum data rate of 54 Mbps and 300 Mbps for IEEE 802.11g and 802.11n MIMO OFDM respectively. …

Text truncated - open the document above for the full version.

Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel: 886-3-5780211 Fax: 886-3-5776598 Date: 2010/5/31 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：TX2-RTL8192CE Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent Realtek Semiconductor Corp. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Note: The registered grantee contact is not available, Judy Hsu is signing for grantee contact. He can be reached at email : [email protected]. Sincerely, Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Signature : Signed for Kay Chang Job Title and Dept. : Kay Chang / Assistant Project Manager Page No. : 1 Page No. : 2 E-Mail : [email protected] Tel. : 886-3-5780211

Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel: 886-3-5780211 Fax: 886-3-5776598 DoC Attestation Letter Date: 2010/5/31 We Realtek Semiconductor Corp., as the grantee of this project FCC ID: TX2-RTL8192CE, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Note: The registered grantee contact is not available, Judy Hsu is signing for grantee contact. He can be reached at email : [email protected]. FCC Grantee contact person information. Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Signature : Signed for Kay Chang Job Title and Dept. : Kay Chang / Assistant Project Manager E-Mail : [email protected] Tel. : 886-3-5780211 Page No. : 1

Page No. : 17 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2010/6/27 FCC ID: TX2-RTL8192CE Dear Reviewer, We, Sporton International Inc., are authorized by Realtek Semiconductor Corp. to have their state-of-the-art 802.11b/g/n RTL8192CE miniCard approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RTL8192CE. 3. The requirement of power supply regulation: No power regulator can provide stability power source. But specific of hosts have 3.3Vdc regulator to provide stability power via mini-PCI interface to EUT. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel: 886-3-5780211 Fax: 886-3-5776598 Power of Attorney Date: 2010/5/31 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Realtek / RTL8192CE FCC ID: TX2-RTL8192CE Product name: 802.11b/g/n RTL8192CE miniCard Note: The registered grantee contact is not available, Judy Hsu is signing for grantee contact. He can be reached at email : [email protected] FCC Grantee contact person information. Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Signature : Signed for Kay Chang Job Title and Dept. : Kay Chang / Assistant Project Manager E-Mail : [email protected] Tel. : 886-3-5780211 Page No. : 1

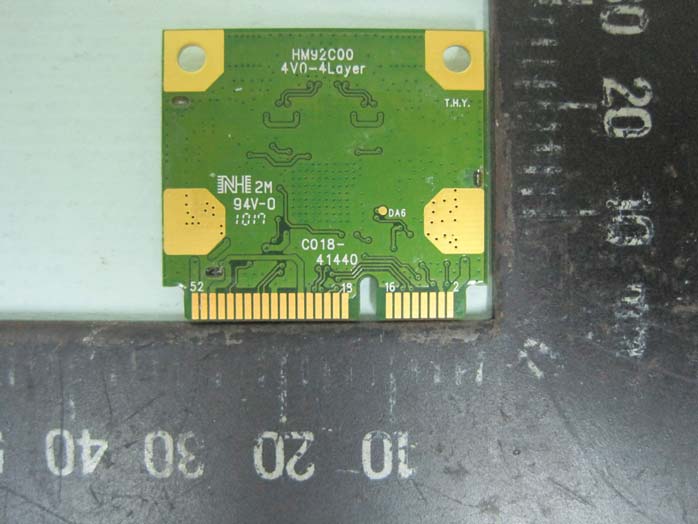

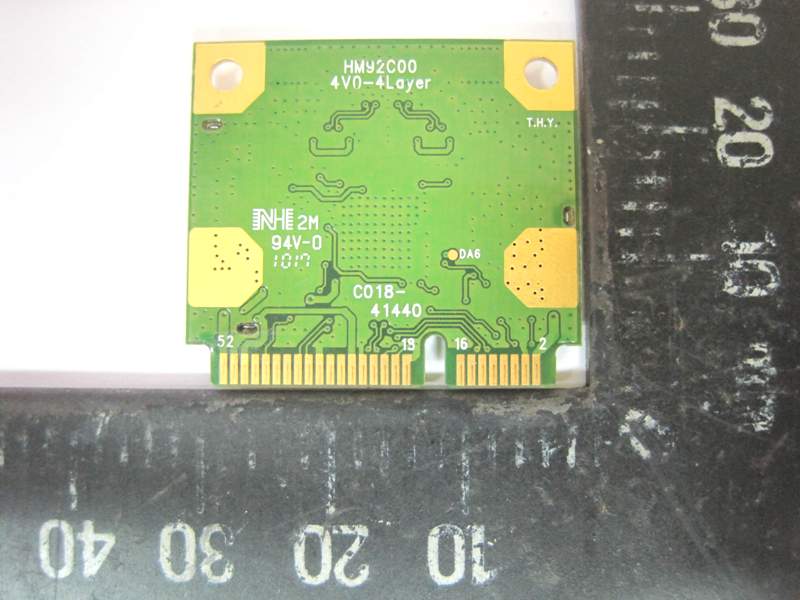

SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 EUT 1 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 EUT 2 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 EUT 3 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 EUT 4 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255

Realtek RTL8192CE Label description Label location Label sample FCC/IC/NCC Equality Ratio: 300% Equality Ratio: 100% CE/Japan Equality Ratio: 300% Equality Ratio: 100% 802.11b/g/n RTL8192CE miniCard RTL8192CE FCC ID: TX2-RTL8192CE IC: 6317A-RTL8192CE Made in Taiwan 27mm 15mm Input: DC 3.3V 802.11b/g/n RTL8192CE miniCard RTL8192CE Made in Taiwan 27mm 15mm Input: DC 3.3V LABEL HERE

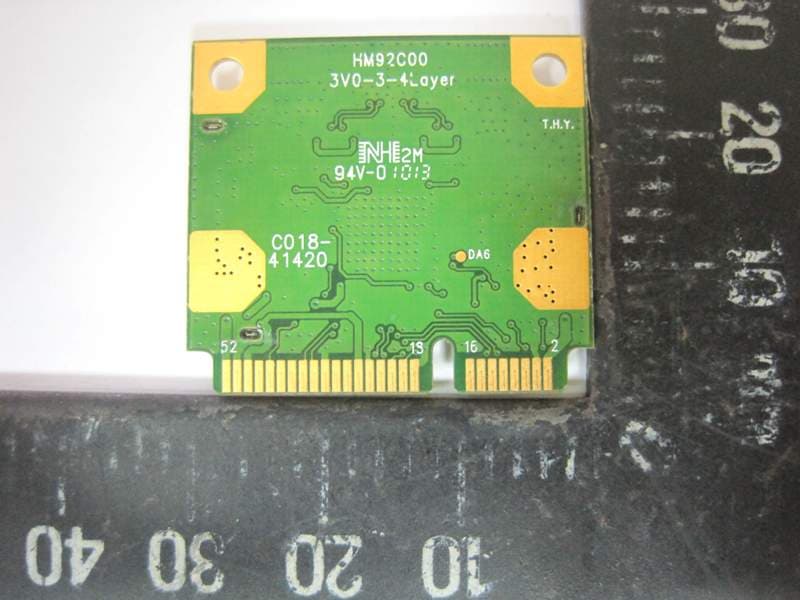

SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT EUT 1 SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 EUT 2 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 EUT 3 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 EUT 4 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2010 FAX : 886-2-2696-2255

Report No.: FR050718 FCC ID: TX2-RTL8192CE Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR050718 FCC ID: TX2-RTL8192CE Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR050718 FCC ID: TX2-RTL8192CE Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n MCS8 20MHz Ant. A-1 + Ant. A-2 : 19.99 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.95 2.4831 19.9906 99.7835 0.049318 1 Complies

Report No.: 050718 Page No. : D1 of D7 Appendix D. Antenna List Report No.: 050718 Page No. : D2 of D7 1. Table for Filed Antenna No. Brand Ant. Type Con. Type Peak Gain (dBi) Model No. 1 WNC PIFA IPEX Main: 3.95 Aux.: 3.90 DQ661500301 2 WNC PIFA IPEX Main: -2.50 Aux.: -1.12 Main: 25.90970.021 Aux.: 25.90970.031 3 Smart Approach PIFA IPEX Main: 0.90 Aux.: 2.75 Main: SE-042C0-ECL30 Aux.: SE-042D0-ECL30 4 ACON PIFA IPEX Left: 1.89 Right: -2.13 Left: 25.90915.041 Right: 25.90915.051 5 WHAYU PIFA IPEX Main: -2.12 Aux.: -2.49 MSA-00005A 6 Quanta PIFA IPEX TX 1: 1.8 TX 2: -0.3 37LX6AATP00 7 Quanta PIFA IPEX TX 1: 0.3 TX 2: 1.7 37LX7AATP00 8 Quanta PIFA IPEX TX: 1.0 RX: 0.2 3ASP8AATP20 9 NISSEI PIFA IPEX TX: 1.80 RX: 0.54 TX: 3172509 RX: 3172467 10 Amphenol PIFA IPEX TX: 1.68 RX: 1.47 TX: LX0968-11-000-R RX: LX0970-11-000-R 11 FOXCONN PIFA IPEX TX: 1.10 RX: -0.40 TX: WDAN-L1ML3002-DF RX: WDAN-L1ML3001-DF 12 NISSEI PIFA IPEX TX: -0.61 RX: -0.83 TX: 3176674 RX: 3176658 13 FOXCONN PIFA IPEX TX: -0.88 RX: 1.16 TX: 024-01F0-2243 RX: 024-01F0-2242 14 NISSEI PIFA IPEX TX: 1.99 RX: 1.35 TX: 3172566 RX: 3172525 15 Amphenol PIFA IPEX TX: 1.57 RX: 1.61 TX: LX0983-11-000-R RX: LX0980-11-000-R 16 Hitachi PIFA IPEX TX: 1.54 RX: 1.82 TX: HMT14-AUX RX: HMT14-MAIN 17 FOXCONN PIFA IPEX TX: 1.43 RX: 1.71 TX: WDAN-L1WK1002-DF RX: WDAN-L1WK1001-DF 18 NISSEI PIFA IPEX TX: 1.26 RX: 1.88 TX: 3210002 RX: 3209970 Report No.: 050718 Page No. : D3 of D7 No. Brand Ant. Type Con. Type Peak Gain (dBi) Model No. 19 ACON PIFA IPEX TX: -0.86 RX: -0.96 TX: APM6P-700034 RX: APM6P-700033 20 Amphenol PIFA IPEX TX: -1.60 RX: -1.85 TX: 14G152168131LV RX: 14G152168231LV 21 ACON PIFA IPEX TX: -0.23 RX: -1.32 TX: APM6P-700029 RX: APM6P-700027 22 TYCO PIFA IPEX TX: 1.52 RX: -2.39 TX: 2023944-1 RX: 2023940-1 23 ACON PIFA IPEX TX: -0.74 RX: -1.16 TX: APM6P-700030 RX: APM6P-700028 24 TYCO PIFA IPEX TX: -0.11 RX: -0.58 TX: 2023950-1 RX: 2023946-1 25 ACON PIFA IPEX TX: 1.27 RX: -1.21 TX: 25.90702.001 RX: 25.90700.001 26 ACON PIFA IPEX TX: 1.21 RX: 1.37 TX: 25.90802.001 RX: 25.90800.001 27 ACON PIFA IPEX TX: 1.04 RX: 1.17 TX: 25.90597.001 RX: 25.90598.001 28 Wistron NW PIFA IPEX TX: 0.59 RX: 1.94 TX: 25.90586.001 RX: 25.90587.001 29 ACON PIFA IPEX TX: -0.13 RX: -0.42 TX: 25.90654.001 RX: 25.90653.001 30 Wistron NW PIFA IPEX TX: 0.31 RX: -0.52 TX: 25.90650.001 RX: 25.90649.001 31 ACON PIFA IPEX TX: 0.64 RX: -0.39 TX: 25.90676.001 RX: 25.90675.001 32 Wistron NW PIFA IPEX TX: 1.32 RX: -1.53 TX: 25.90670.001 RX: 25.90669.001 33 Quanta PIFA IPEX TX: -0.40 RX: 0.10 TX: DQ6GC200200 RX: DQ6GC200100 34 Quanta PIFA IPEX TX: 0.7 RX: -1.3 TX: DQ6GC300200 RX: DQ6GC300100 35 ACON PIFA IPEX TX: 1.16 RX: -0.04 TX: 25.90930.001 RX: 25.90929.001 36 Ethertronics PIFA IPEX TX: -0.59 RX: 0.60 TX: 25.90935.001 RX: 25.90934.001 37 Wistron NW PIFA IPEX TX: -0.93 RX: 0.87 TX: 25.90920.001 RX: 25.90919.001 Report No.: 050718 Page No. : D4 of D7 No. Brand Ant. Type Con. Type Peak Gain (dBi) Model No. 38 ACON PIFA IPEX TX: -2.64 RX: -0.37 TX: C-1335-11-000-26 RX: C-1334-11-000-26 39 Wistron NW PIFA IPEX TX: 0.74 RX: 0.77 TX: 25.90980.001 RX: 25.90979.001 40 Quanta PIFA IPEX TX: -0.10 RX: -0.10 TX: QADCFL3_WLA RX: QADCFL3_WL_M 41 QUANTA PIFA IPEX TX: -1.40 RX.: -0.50 TX: QADCPS1_WL_A RX.: QADCPS1_WL_M 42 Hitachi PIFA IPEX Main: 0.58 Aux.: 1.12 HFT40 43 Hitachi PIFA IPEX Main: -1.65 Aux.: -0.92 HFT60 44 WNC PIFA IPEX Main: -1.10 Aux.: 1.76 Main: 81.EE215.002 Aux.: 81.EE215.001 45 WNC PIFA IPEX Main: 1.18 Aux. 1.75 WNC002 46 Tyco PIFA IPEX Main: 3.45 Aux: 2.41 MIMO: 1.04 TBN001 47 Tyco PIFA IPEX Main: -1.11 Aux.: -1.11 MIMO: -0.95 TBN003 48 Hitachi PIFA IPEX TX 1: 2.19 TX 2: -0.33 HBY07 49 Hitachi PIFA IPEX TX 1: 2.91 TX 2: 2.82 HBY051 50 Hitachi PIFA IPEX TX 1: 0.27 TX 2: 0.02 HBY052 51 Hitachi PIFA IPEX TX 1: 1.30 TX 2: 2.42 HBY061 52 Hitachi PIFA IPEX TX 1: -1.04 TX 2: -1.19 HBY062 53 Hitachi PIFA IPEX TX 1: -1.74 TX 2: 1.16 HFT65 54 Hitachi PIFA IPEX Main: 0.87 Aux.: 1.94 HCT01 55 FOXCONN PIFA IPEX TX 1: -0.43 TX 2: -0.7 WDAN-TQ Report No.: 050718 Page No. : D5 of D7 No. Brand Ant. Type Con. Type Peak Gain (dBi) Model No. 56 Tyco PIFA IPEX -1.11 TBN005 & TBN006 57 WNC PIFA IPEX Main: 2.40 Aux.: 1.50 WNC004 58 WNC PIFA IPEX Main: 1.19 Aux.: 0.28 WNC001 59 WNC PIFA IPEX Main: 0.52 Aux.: 1.07 WNC003 60 WNC PIFA IPEX Main: -2.76 Aux.: -3.64 WNC005 61 WNC PIFA IPEX Main: 0.42 Aux.: 0.79 MIMO: 0.14 81.EJZ 62 WNC PIFA IPEX Main: 0.86 Aux.: -0.08 81.EJT 63 Tyco (20-D1130002D) PIFA IPEX TX1: -0.10 TX2: -0.92 TX 3: 0.56 TBN008 64 Tyco (20-D1130002D) PIFA IPEX TX: -0.10 RX: -0.92 TBN008 65 Tyco PIFA IPEX Main: 0.28 Aux.: -0.83 TBN004 66 TYCO PIFA IPEX TX 1: 1.98 TX 2: 1.97 TX 3: -0.88 TBN007 67 Hitachi PIFA IPEX -0.80 HFS23 68 Hitachi PIFA IPEX 0.64 HFS40 69 TYCO (20238740-1) PIFA IPEX TX 1: 0.47 TX 2: 0.06 TX 3: 1.65 TBN008 70 TYCO (2023750-1) PIFA IPEX TX 1: 0.47 TX 2: 0.06 TBN008 71 TYCO (2023772-1) PIFA IPEX TX 1: -2.60 TX 2: -0.26 TX 3: -0.91 TBN008 72 TYCO (2023770-1) PIFA IPEX TX 1: -2.60 TX 2: -0.26 TBN008 73 Smart Approach PIFA IPEX TX 1: 2.37 TX 2: 1.59 03-FR021-016 Report No.: 050718 Page No. : D6 of D7 No. Brand Ant. Type Con. Type Peak Gain (dBi) Model No. 74 WNC PIFA IPEX Main: 2.71 Aux.: 1.75 MIMO: 2.57 Main: 81.EEO15.001 Aux.: 81.EEO15.002 MIMO: 81.EEO15.003 75 WNC PIFA IPEX Main: 2.23 Aux.: 1.18 Main: 81.EHD15.003 Aux.: 81.EHD15.002 76 WNC PIFA IPEX TX1: 2.37 TX2.: -0.77 TX1: 81.EHD15.004 TX2.: 81.EHD15.005 77 WNC PIFA IPEX Main: -1.51 Aux.: -0.49 Main: 81.EHD15.004 Aux.: 81.EHD15.006 78 WNC PIFA IPEX Main: -1.51 Aux.: -1.10 Main: 81.EHD15.004 Aux.: 81.EHD15.007 79 WNC PIFA IPEX TX1: 1.86 TX2: 1.19 TX1: 81.EHD15.G09 TX2: 81.EHD15.G10 80 Foxconn PIFA IPEX Main: -0.28 Aux.: -1.24 Main: WDAN-M1WC1001-DF Aux.: WDAN-M1MM1001-DF 81 Amphenol KAE PIFA IPEX Main: 2.49 Aux.: 0.58 MIMO: 0.65 Main: SS-03-03-099 Aux.: SS-03-03-100 MIMO: SS-03-03-101 82 Foxconn PIFA IPEX Main: -0.28 Aux.: -0.14 Main: WDAN-M1WC1001-DF Aux.: WDAN-M1BN1001-DF 83 Foxconn PIFA IPEX 0.68 WDAN-M1NY100…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Realtek Semiconductor Corp. Applicant Address No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan FCC ID TX2-RTL8192CE Manufacturer’s company Realtek Semiconductor Corp. Manufacturer Address No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Product Name 802.11b/g/n RTL8192CE miniCard Brand Name Realtek Model Name RTL8192CE Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date May 02, 2010 Final Test Date May 25, 2010 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR050718 Report Format Version: 01 Page No. : iof ii FCC ID: TX2-RTL8192CE Issued Date : May 27, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Location .................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.9. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................21 4.3. Power Spectral Density Measurement ..............................................................................................................................................35 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................46 4.5. Radiated Emissions Measurement ....................................................................................................................................................57 4.6. Band Edge Emissions Measurement .................................................................................................................................................89 4.7. Antenna Requirements ...................................................................................................................................................................106 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 107 6. TEST LOCATION............................................................................................................................................ 109 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 110 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A15 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B6 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE.................................…

Text truncated - open the document above for the full version.

Report No.: FR050718 FCC ID: TX2-RTL8192CE Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR050718 FCC ID: TX2-RTL8192CE Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration <For EUT 1& EUT 3>: FRONT VIEW REAR VIEW Report No.: FR050718 FCC ID: TX2-RTL8192CE Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR050718 FCC ID: TX2-RTL8192CE Page No. : 4 of 6 Test Configuration: 30MHz~1GHz <For EUT 1& EUT 3>: FRONT VIEW REAR VIEW Report No.: FR050718 FCC ID: TX2-RTL8192CE Page No. : 5 of 6 Test Configuration: Above 1GHz <For EUT 1& EUT 3>: FRONT VIEW REAR VIEW Report No.: FR050718 FCC ID: TX2-RTL8192CE Page No. : 6 of 6 SIDE VIEW
