TX2-RTL8192DE802.11a/b/g/n RTL8192DE miniCard

RTL8192DE 802.11a/b/g/n RTL8192DE miniCard User’s Manual Rev. 1.0 08 Apr 2011 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com.tw RTL8192DE Half Mini-Card User Manual COPYRIGHT ©2011 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp. DISCLAIMER Realtek provides this document “as is”, without warranty of any kind, neither expressed nor implied, including, but not limited to, the particular purpose. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. TRADEMARKS Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. USING THIS DOCUMENT This document is intended for the software engineer’s reference and provides detailed programming information. Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. In that event, please contact your Realtek representative for additional information that may help in the development process. ii Rev.1.0 RTL8192DE Half Mini-Card User Manual Table of Contents 1. GENERAL DESCRIPTION................................................................................................................................................1 2. FEATURES...........................................................................................................................................................................2 3. PRODUCT SPECIFICATIONS..........................................................................................................................................4 3.1. MINI PCI EXPRESS PIN ASSIGNMENT..............................................................................................................................4 3.2. MECHANICAL..................................................................................................................................................................5 3.3. ENVIRONMENTAL............................................................................................................................................................5 3.3.1. Operating...............................................................................................................................................................5 3.3.2. Storage....................................................................................................................................................................5 3.4. FUNCTIONAL SPECIFICATIONS.........................................................................................................................................5 3.5. WARNING........................................................................................................................................................................7 3.5.1 Federal Communication Commission Interference Statement......................................................................................7 3.5.2 Industry Canada Statement..........................................................................................................................................8 3.5.3 NCC....................................................................................................................................................................12 List of Tables TABLE 1. MINI PCI EXPRESS PIN ASSIGNMENT.............................................................................................................................4 TABLE 2. FUNCTIONAL SPECIFICATIONS........................................................................................................................................5 List of Figures FIGURE 1. RTL8192DE HALF MINI-CARD MECHANICAL SPECIFICATION.....................................................................................5 iii Rev.1.0 RTL8192DE Half Mini-Card User Manual 1 Rev.1.0 1. General Description The Realtek RTL8192DE is a highly integrated single-chip MIMO (Multiple In, Multiple Out) Wireless LAN (WLAN) PCI Express network interface controller complying with the wireless high throughput IEEE 802.11n specification. It combines a configurable dual MAC, 2T2R capable baseband and 2.4GHz/5GHz band RF in a single chip. The RTL8192DE provides a complete solution for a high-performance wireless client. The RTL8192DE implements dual MAC by PCI Express multi-function capability. The dual MAC feature enables RTL8192DE to access two different wireless networks and to act as an WiFi station and an AP concurrently. The RTL8192DE also supports WiFi Direct feature that can easily build a WiFi P2P PAN network. The RTL8192DE baseband implements Multiple Input, Multiple Output (MIMO) Orthogonal Frequency Division Multiplexing (OFDM) with two transmit and two receive paths (2T2R). Features include two spatial stream transmissions, short Guard Interval (GI) of 400ns, spatial spreading, and support for both 20MHz and 40MHz channel bandwidth. Moreover, RTL8192DE provides one spatial stream space-time block code (STBC) to extend the range of transmission. At the receiver, extended range and good minimum sensitivity is achieved by having receiver diversity up to 2 antennas. As the recipient, the RTL8192DE also supports explicit sounding packet feedback that helps senders with beamforming capability. With 2 independent RF blocks, the RTL8192DE can perform fast roaming without link interruption. For legacy compatibility, Direct Sequence Spread Spectrum (…

Text truncated - open the document above for the full version.

Realtek Semiconductor Corp No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Date: 2011-07-13 General Declaration FCC ID: TX2-RTL8192DE We, Realtek Semiconductor Corp. declares that the device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the following product. Our software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Also, this model is client device without Radar detection. If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------- Ricky Lee/ Assistant Project Manager Realtek Semiconductor Corp. Tel: +886-3-578-0211*5614 Fax: +886-3-577-6598 E-Mail: [email protected]

Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Date：2011/7/13 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: TX2-RTL8192DE Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------- Ricky Lee/ Assistant Project Manager Realtek Semiconductor Corp. Tel: +886-3-578-0211*5614 Fax: +886-3-577-6598 E-Mail: [email protected]

FCC ID: TX2-RTL8192DE Report No.: RF110513E02 Modular Approval Request Letter July 19, 2011 Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Dear Application Examiner, Realtek Semiconductor Corp., It’s an 802.11a/b/g/n RTL8192DE miniCard. FCC ID: TX2-RTL8192DE would like to have your authorization as a modular approval specific to the mobile device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RTL8192DE. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is RTL8192DE. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TX2-RTL8192DE Report No.: RF110513E02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Power of Attorney Date：2011/7/13 To whom it may concern: We, the undersigned Realtek Semiconductor Corp. hereby authorize Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C+E approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. This authorization is limited to the following products： FCC ID : TX2-RTL8192DE If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, --------------------------------------------------- Ricky Lee/ Assistant Project Manager Realtek Semiconductor Corp. Tel: +886-3-578-0211*5614 Fax: +886-3-577-6598 E-Mail: [email protected]

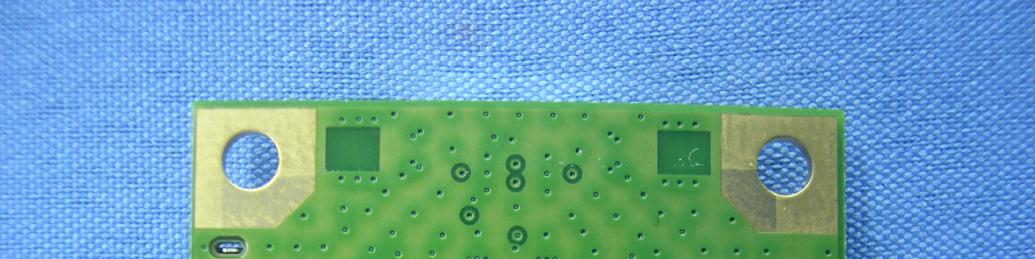

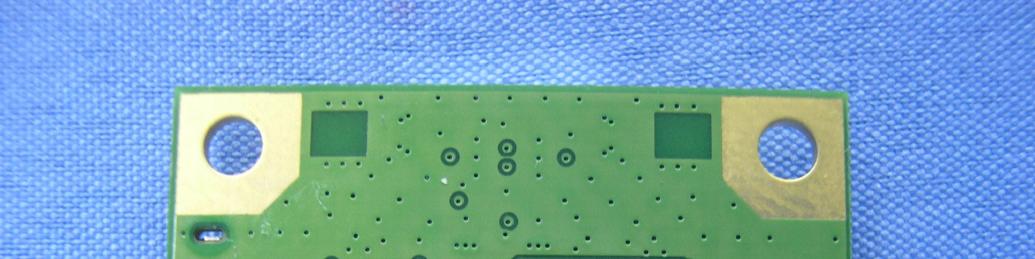

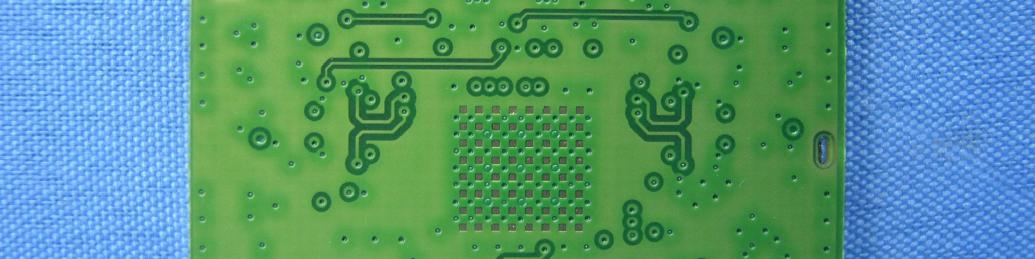

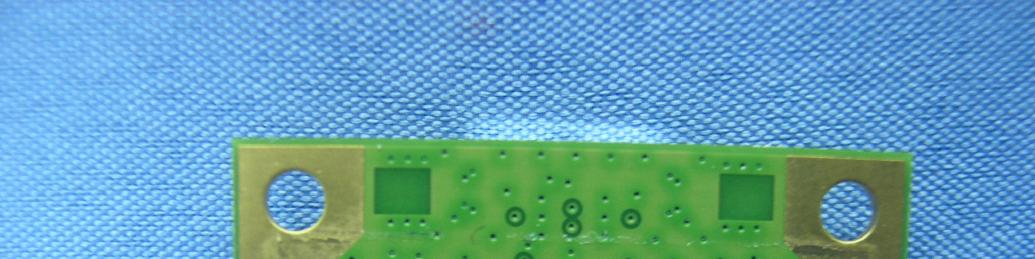

Page 1 CONSTRUCTION PHOTOS OF EUT PCIe Interface (miniCard) < Main Source > Page 3 PCIe Interface (miniCard) < Second Source > Page 5 USB Interface (miniCard) < Main Source> Page 7 USB Interface (miniCard) < Second Source > Page 9 Dipole antenna Page 10 PIFA antenna

FCC ID : TX2-RTL8192DE Realtek RTL8192DE Label Description n Label Location *PCIE Interface *USB interface n Lable Sample 15 mm Product Name: 802.11a/b/g/n RTL8192DE miniCard Model Name : RTL8192DE DC Input Voltage Range : 3.3V660mA FCC ID : TX2-RTL8192DE IC : 6317A-RTL8192DE 26 mm Label Here Label Here MADE IN TAIWAN

Page 2 PCIe Interface (miniCard) < Main Source > Page 4 PCIe Interface (miniCard) < Second Source > Page 6 USB Interface (miniCard) < Main Source> Page 8 USB Interface (miniCard) < Second Source >

Report No.: SA110513E02 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110513E02 MODEL NO.: RTL8192DE FCC ID: TX2-RTL8192DE APPLICANT: Realtek Semiconductor Corp. ADDRESS: No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement. The test results in the report only apply to the tested sample. Report No.: SA110513E02 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................6 Report No.: SA110513E02 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA110513E02 Original release July 18, 2011 Report No.: SA110513E02 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: 802.11a/b/g/n RTL8192DE miniCard BRAND NAME: Realtek MODEL NO.: RTL8192DE TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Realtek Semiconductor Corp. STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: RTL8192DE) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: July 18, 2011 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: July 18, 2011 ( May Chen, Deputy Manager ) Report No.: SA110513E02 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110513E02 Report Format Version 4.0.0 6 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 670.0 3.2 20 0.278 1.00 For 15.247(5GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745-5825 427.7 5 20 0.269 1.00 For 15.407(5GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240, 5260-5320, 5500-5700 126.2 5 20 0.079 1.00 CONCLUSION: Both of the 2.4GHz and 5GHz can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.278 / 1 + 0.269 / 1= 0.54, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF110513E02 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF110513E02 MODEL NO.: RTL8192DE FCC ID: TX2-RTL8192DE RECEIVED: May 13, 2011 TESTED: June 23 to July 06, 2011 ISSUED: July 18, 2011 APPLICANT: Realtek Semiconductor Corp. ADDRESS: No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 219 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110513E02 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................5 1. CERTIFICATION....................................................................................................6 2. SUMMARY OF TEST RESULTS............................................................................7 2.1 MEASUREMENT UNCERTAINTY..........................................................................9 3. GENERAL INFORMATION...................................................................................10 3.1 GENERAL DESCRIPTION OF EUT.....................................................................10 3.2 DESCRIPTION OF TEST MODES.......................................................................14 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................15 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................20 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................21 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................21 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band)...............22 4.1 CONDUCTED EMISSION MEASUREMENT........................................................22 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................22 4.1.2 TEST INSTRUMENTS..........................................................................................22 4.1.3 TEST PROCEDURES..........................................................................................23 4.1.4 DEVIATION FROM TEST STANDARD.................................................................23 4.1.5 TEST SETUP.......................................................................................................24 4.1.6 EUT OPERATING CONDITIONS.........................................................................24 4.1.7 TEST RESULTS...................................................................................................25 4.2 RADIATED EMISSION MEASUREMENT.............................................................27 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................27 4.2.2 TEST INSTRUMENTS..........................................................................................28 4.2.3 TEST PROCEDURES..........................................................................................29 4.2.4 DEVIATION FROM TEST STANDARD.................................................................29 4.2.5 TEST SETUP.......................................................................................................30 4.2.6 EUT OPERATING CONDITIONS.........................................................................30 4.2.7 TEST RESULTS (With pifa antenna)....................................................................31 4.2.8 TEST RESULTS (With Dipole antenna)................................................................74 4.3 6dB BANDWIDTH MEASUREMENT..................................................................117 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT................................................117 4.3.2 TEST INSTRUMENTS........................................................................................117 4.3.3 TEST PROCEDURE...........................................................................................117 4.3.4 DEVIATION FROM TEST STANDARD...............................................................117 4.3.5 TEST SETUP.....................................................................................................117 4.3.6 EUT OPERATING CONDITIONS.......................................................................117 4.3.7 TEST RESULTS.................................................................................................118 4.4 MAXIMUM PEAK OUTPUT POWER..................................................................124 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................124 4.4.2 INSTRUMENTS..................................................................................................124 Report No.: RF110513E02 3 Report Format Version 4.0.0 4.4.3 TEST PROCEDURES........................................................................................124 4.4.4 DEVIATION FROM TEST STANDARD...............................................................124 4.4.5 TEST SETUP.....................................................................................................124 4.4.6 EUT OPERATING CONDITIONS.......................................................................124 4.4.7 TEST RESULTS.............................................................…

Text truncated - open the document above for the full version.

Report No.: RF110513E02-1 1 Report Format Version 4.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF110513E02-1 MODEL NO.: RTL8192DE FCC ID: TX2-RTL8192DE RECEIVED: May 13, 2011 TESTED: June 23 to July 06, 2011 ISSUED: July 18, 2011 APPLICANT: Realtek Semiconductor Corp. ADDRESS: No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 258 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110513E02-1 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................4 1. CERTIFICATION...........................................................................................5 2. SUMMARY OF TEST RESULTS...................................................................6 2.1 MEASUREMENT UNCERTAINTY................................................................7 3. GENERAL INFORMATION...........................................................................8 3.1 GENERAL DESCRIPTION OF EUT..............................................................8 3.2 DESCRIPTION OF TEST MODES..............................................................12 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................18 3.4 DESCRIPTION OF SUPPORT UNITS........................................................19 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................19 4. TEST TYPES AND RESULTS.....................................................................20 4.1 CONDUCTED EMISSION MEASUREMENT..............................................20 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................20 4.1.2 TEST INSTRUMENTS................................................................................20 4.1.3 TEST PROCEDURES.................................................................................21 4.1.4 DEVIATION FROM TEST STANDARD.......................................................21 4.1.5 TEST SETUP..............................................................................................22 4.1.6 EUT OPERATING CONDITIONS................................................................22 4.1.7 TEST RESULTS..........................................................................................23 4.2 RADIATED EMISSION MEASUREMENT...................................................25 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................25 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS26 4.2.3 TEST INSTRUMENTS................................................................................27 4.2.4 TEST PROCEDURES.................................................................................28 4.2.5 DEVIATION FROM TEST STANDARD.......................................................28 4.2.6 TEST SETUP..............................................................................................29 4.2.7 EUT OPERATING CONDITION..................................................................29 4.2.8 TEST RESULTS (WITH PIFA ANTENNA)...................................................30 4.2.9 TEST RESULTS (WITH DIPOLE ANTENNA)...........................................102 4.3 OUTPUT TRANSMIT POWER MEASUREMENT.....................................174 4.3.1 LIMITS OF OUTPUT TRANSMIT POWER MEASUREMENT...................174 4.3.2 TEST INSTRUMENTS..............................................................................174 4.3.3 TEST PROCEDURE.................................................................................174 4.3.4 DEVIATION FROM TEST STANDARD.....................................................174 4.3.5 TEST SETUP............................................................................................175 4.3.6 EUT OPERATING CONDITIONS..............................................................175 4.3.7 TEST RESULTS........................................................................................176 4.4 PEAK POWER EXCURSION MEASUREMENT.......................................201 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT.....................201 4.4.2 TEST INSTRUMENTS..............................................................................201 4.4.3 TEST PROCEDURE.................................................................................201 4.4.4 DEVIATION FROM TEST STANDARD.....................................................201 4.4.5 TEST SETUP............................................................................................202 4.4.6 EUT OPERATING CONDITIONS..............................................................202 4.4.7 TEST RESULTS........................................................................................203 Report No.: RF110513E02-1 3 Report Format Version 4.0.0 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT.........................213 4.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT.......213 4.5.2 TEST INSTRUMENTS..............................................................................213 4.5.3 TEST PROCEDURES..........................................................................…

Text truncated - open the document above for the full version.

Report No.: RF110513E02-2 1 Report Format Version 4.0.0 DFS TEST REPORT REPORT NO.: RF110513E02-2 MODEL NO.: RTL8192DE FCC ID: TX2-RTL8192DE RECEIVED: May 13, 2011 TESTED: July 12, 2011 ISSUED: July 18, 2011 APPLICANT : Realtek Semiconductor Corp. ADDRESS : No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C This test report consists of 25 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110513E02-2 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION...........................................................................................4 2. EUT INFORMATION.....................................................................................5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT...........................5 2.2 EUT SOFTWARE AND FIR…
