TX2-RTL8821AE802.11 a/b/g/n/ac RTL8821AE Combo module

Realtek Semiconductor Corp.

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Jul 09, 2013
Application Purpose: Original Equipment
Date of Application: Jul 08, 2013
Equipment Note: 802.11 a/b/g/n/ac RTL8821AE Combo module
Frequency Range: 5500.00000000 - 5700.00000000
Company: Realtek Semiconductor Corp.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Combo module User’s Manual Rev.0.1 28 Jan 2013 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com.tw RTL8821AE RTL8821AE Combo module User Manual Single-Chip 802.11b/g/n/ac 1T1R WLAN Controller ii Track ID: JATR-3375-16 Rev. 0.1 COPYRIGHT ©2012 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp. DISCLAIMER Realtek provides this document ‘as is’, without warranty of any kind. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. TRADEMARKS Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. USING THIS DOCUMENT This document is intended for the software engineer’s reference and provides detailed programming information. Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. REVISION HISTORY Revision Release Date Summary 0.1 2013/1/28 Preliminary release. RTL8821AE Combo module User Manual Single-Chip 802.11b/g/n/ac 1T1R WLAN Controller iii Track ID: JATR-3375-16 Rev. 0.1 Table of Contents 1. GENERAL DESCRIPTION................................................................................................................................................1 2. PRODUCT SPECIFICATIONS..........................................................................................................................................3 2.1. ENVIRONMENTAL............................................................................................................................................................3 2.1.1. Operating ...............................................................................................................................................................3 2.1.2. Storage....................................................................................................................................................................3 2.2. FUNCTIONAL SPECIFICATIONS.........................................................................................................................................3 2.3. WARNING........................................................................................................................................................................5 3.5.1 Federal Communication Commission Interference Statement ......................................................................................5 3.5.2 Industry Canada Statement ..........................................................................................................................................6 3.5.3 NCC警語...................................................................................................................................................................10 List of Tables TABLE 2. FUNCTIONAL SPECIFICATIONS.......................................................................................................................................3 RTL8821AE Combo module User Manual Single-Chip 802.11b/g/n/ac 1T1R WLAN Controller 1 Track ID: JATR-3375-16 Rev. 0.1 1. General Description The Realtek RTL8821AE is a highly integrated single-chip 802.11b/g/n/ac 1T1R WLAN PCI Express network interface controller with integrated Bluetooth 2.1/3/0/4.0 USB interface controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, BT Protocol Stack (LM, LL, and LE), BT Baseband, modem, and WLAN/BT RF in a single chip. The RTL8821AE provides a complete solution for a high throughput performance integrated wireless LAN and Bluetooth device. The RTL8821AE WLAN baseband implements Orthogonal Frequency Division Multiplexing (OFDM) with 1 transmit and 1 receive path and is compatible with the 802.11ac specification. Features include one spatial stream transmission, short guard interval (GI) of 400ns, spatial spreading, and transmission over 20MHz , 40MHz and 80MHz channel bandwidth. For legacy compatibility, Direct Sequence Spread Spectrum (DSSS), Complementary Code Keying (CCK) and OFDM baseband processing are included to support all 802.11b and 802.11g data rates. Differential phase shift keying modulation schemes, DBPSK and DQPSK with data scrambling capability, are available, and CCK provides support for legacy data rates, with long or short preamble. The high-speed FFT/IFFT paths, combined with BPSK, QPSK, 16QAM, 64QAM and 256-QAM modulation of the individual subcarriers and rate compatible punctured convolutional coding with coding rate of 1/2, 2/3, 3/4, and 5/6, provide up to 433.3Mbps for 802.11ac OFDM. A RTL8821AE built-in enhanced signal detector, adaptive frequency domain equalizer, and a soft-decision Viterbi decoder help to alleviate multi-path effects and mutual interference in the reception of multiple streams. Robust interference detection and suppression are provided to protect against Bluetooth, cordless phone, and microwave oven interference. Efficient IQ-imbalance, DC offset, phase noise, frequency offset, and timing offset compensations are provided for the radio frequency front-end. Selectable digital transmit and receive FIR filters are provided to meet transmit spectrum mask requirements and to reject adjacent channel interference, respectively. The RTL8821AE WLAN Controller supports fast receiver Automatic Gain Control (AGC) with synchronous and asynchronous control loops among antennas, antenna diversity functions, and adaptive transmit power control function to obtain better performanc…

Text truncated - open the document above for the full version.

Cover Letter(s)

Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C1 of C13 Appendix C. Co-location Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C2 of C13 1. Results of Radiated Emissions for Co-located Temperature 23°C Humidity 62% Test Engineer Kenneth Huang Configurations CTX Test Mode Mode 1. NGFF + PCI-E + Diversity + SLOT antenna (I-PEX MHF4 connector) / 2.4GHz WLAN + Bluetooth Horizontal Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C3 of C13 Vertial Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C4 of C13 Temperature 23°C Humidity 62% Test Engineer Kenneth Huang Configurations CTX Test Mode Mode 2. NGFF + PCI-E + Diversity + SLOT antenna (I-PEX MHF4 connector) / 5GHz WLAN + Bluetooth Horizontal Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C5 of C13 Vertial Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C6 of C13 Temperature 23°C Humidity 62% Test Engineer Kenneth Huang Configurations CTX Test Mode Mode 3. NGFF + PCI-E + Diversity + PIFA antenna (I-PEX MHF4 connector) / 2.4GHz WLAN + Bluetooth Horizontal Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C7 of C13 Vertial Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C8 of C13 Temperature 23°C Humidity 62% Test Engineer Kenneth Huang Configurations CTX Test Mode Mode 4. NGFF + PCI-E + Diversity + PIFA antenna (I-PEX MHF4 connector) / 5GHz WLAN + Bluetooth Horizontal Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C9 of C13 Vertial Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C10 of C13 Temperature 23°C Humidity 62% Test Engineer Kenneth Huang Configurations CTX Test Mode Mode 5. HMC + PCI-E + Diversity + Dipole antenna (I-PEX connector) / 2.4GHz WLAN + Bluetooth Horizontal Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C11 of C13 Vertial Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C12 of C13 Temperature 23°C Humidity 62% Test Engineer Kenneth Huang Configurations CTX Test Mode Mode 6. HMC + PCI-E + Diversity + Dipole antenna (I-PEX connector) / 5GHz WLAN + Bluetooth Horizontal Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : C13 of C13 Vertial

Cover Letter(s)

Realtek Semiconductor Corp. No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Tel: 03-5780211#3835 / Fax: 03-5776598 Ad Hoc Mode Function Declaration Date: 2013/6/17 FCC ID：TX2-RTL8821AE To whom it may concern: We, Realtek Semiconductor Corp., declare that the EUT (Model Name: RTL8821AE) doesn’t have Ad Hoc function on “non-US/ Canada frequencies” and/or “on DFS frequencies”. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Sincerely, Note: The registered grantee contact is not available, Judy Hsu is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Signature : _____________________________ Signed for Ricky Lee Job Title and Dept. : Ricky Lee / Assistant Project Manager E-Mail : [email protected] Tel. : 03-5780211#3835

Cover Letter(s)

Report No.: FR342603 Page No.: D1 of D4 Appendix D. Antenna List Report No.: FR342603 Page No.: D2 of D4 Ta bl e for Filed Antenna Peak Gain (dBi) No. Brand Ant. Type Con. Type 2.4GHz 5GHz Model No. 01 LYNwave PIFA IPEX MHF4 TX1: 3.5 5 TX1: ALA110-222050-300011 02 LYNwave PIFA IPEX TX1: 3.5 5 TX1: ALA110-222050-300010 03 JOYMAX DIPOLE IPEX TX1: 3.0 5 TX1: TWF-614XMPXX-500 04 Realtek SLOT IPEX TX1:3.33 4.52 TX1: PANT001 05 Realtek SLOT IPEX MHF4 TX1:3.33 4.52 TX1: PANT002 06 Well Green PIFA IPEX TX1: 0.85 TX2: 0.44 0.75 1.24 TX1: SKW10WMPB01+A TX2: SKW10WMPB02+A 07 Well Green PIFA IPEX TX1: 0.42 TX2: -0.13 0.11 1.27 TX1: SK65EWMPB01+A TX2: SK650WMPB02+A 08 JESS-LINK PIFA IPEX TX1: 2.72 TX2: 0.07 1.52 0.91 TX1: DC33001AD00 TX2: DC33001AD00 09 HIGH-TEK PIFA IPEX TX1: -0.93 TX2: 0.87 1.48 0.96 TX1: DC33001AC00 TX2: DC33001AC00 10 Luxshared PIFA IPEX TX1: 2.08 TX2: 0.14 3.62 -1.91 TX1: L01RF019-DT-R (31-502717) TX2: L01RF021-DT-R (31-502716) 11 Well Green PIFA IPEX TX1: 0.55 TX2: 1.36 1.26 3.74 TX1: SKAEUWMPB01+B TX2: SKAEUWMPB01+B 12 Well Green PIFA IPEX TX1: 0.82 TX2: -2.23 0.94 2.18 TX1: SKA91WMPB02+A TX2: SKA91WMPB01+A 13 Wgt PIFA IPEX TX1: 2.14 TX2: 1.92 1.72 2.65 TX1: W550EU WM-1 TX2: W550EU WM-2 14 Acon PIFA IPEX TX1: -0.63 TX2: -3.39 -0.71 0.12 TX1: APP6P-700781 TX2: APP6P-700782 15 Acon PIFA IPEX TX1: -0.13 TX2: -0.23 1.34 -0.63 TX1: ATM6P-70100 TX2: ATM6P-70200 16 WNC PIFA IPEX TX1: -0.58 TX2: -1.48 -0.67 -0.47 TX1: DQ6G15G5800 TX2: DQ6G15G5700 17 Zhan Yun PIFA IPEX TX1: -0.70 TX2: -1.20 -0.13 0.80 TX1: DQ60QTLI200 TX2: DQ60QTLI201 18 WNC PIFA IPEX TX1: 1.15 TX2: 0.59 -0.51 -0.04 TX1: 81.EKG15.G30 TX2: 81.EKG15.G29 19 YAGEO PIFA IPEX TX1: 0.59 TX2: 0.90 0.35 0.95 TX1: CAN4313LC0613WLA3 TX2: CAN4313LC0613WLA4 20 WNC PIFA IPEX TX1: 0.18 TX2: 0.60 1.92 1.50 TX1: 81.EKG15.G38 TX2: 81.EKG15.G37 Report No.: FR342603 Page No.: D3 of D4 21 JESS-LINK PIFA IPEX TX1: 1.89 TX2: 1.56 -0.07 -0.09 TX1: PANT11A00008-1 TX2: PANT11A00009-1 22 Foxconn PIFA IPEX TX1: 0.21 TX2: 0.60 1.23 -0.36 TX1: WDAN-T1RH1 TX2: WDAN-T1RH2 23 Well Green PIFA IPEX TX1: 0.21 TX2: -0.75 1.65 1.15 TX1: SKX71WMPB01+B TX2: SK370WMPB01+B 24 Luxshared PIFA IPEX TX1: -0.6 TX2: -0.29 0.74 0.98 TX1: L01RF008-R TX2: L01RF009-R 25 Well Green PIFA IPEX TX1: 0.72 TX2: 0.49 -0.72 -0.71 TX1: SKW25WMPB01+A TX2: SKW25WMPB01+A 26 Well Green PIFA IPEX TX1: -0.17 TX2: -2.24 -0.13 0.03 TX1: SK549WMPB01+A TX2: SK549WMPB02+A 27 Wgt PIFA IPEX TX1: 1.7 TX2: 2.53 2.2 2.78 TX1: W350ETQ WM-1 TX2: W350ETQ WM-2 28 Well Green PIFA IPEX TX1: -1.93 TX2: -1.28 -1.13 1.08 TX1: SKW54WMPB01+C TX2: SKW34WMPB02+A 29 Joinsoon PIFA IPEX TX1: 2.6 TX2: 0.53 2.61 2.60 TX1: IA-120266 TX2: IA-120267 30 WNC PIFA IPEX TX1: 0.24 TX2: -0.58 2.85 -0.16 TX1: 25.90AH8.001 TX2: 25.90AH7.001 31 Wieson PIFA IPEX TX1: 1.28 TX2: 0.34 3.84 2.60 TX1: 25.90AH8.011 TX2: 25.90AH7.011 32 Yageo PIFA IPEX TX1: -0.27 TX2: -0.88 1.42 0.33 TX1: 25.90AH8.021 TX2: 25.90AH7.021 33 Yageo PIFA IPEX TX1: -0.11 TX2: -0.68 0.42 0.34 TX1: 25.90AJB.001 TX2: 25.90AJC.001 34 Yageo PIFA IPEX TX1: -1.32 TX2: -1.14 2.94 1.89 TX1: 25.90AJB.001 TX2: 25.90AJC.001 35 Yageo PIFA IPEX TX1: 2.74 TX2: 0.63 0.07 0.46 TX1: 25.90ALR.001 TX2: 25.90ALQ.001 36 WNC PIFA IPEX TX1: -0.61 TX2: 1.91 2.23 -0.40 TX1: 25.90AAL.001 TX2: 25.90AAK.001 37 TE Connectivity PIFA IPEX TX1: 1.29 TX2: 0.04 1.25 1.08 TX1: 25.90AAL.011 TX2: 25.90AAK.011 38 HIGH-TEK PIFA IPEX TX1: -2.20 TX2: -2.20 0.1 0.7 TX1: 25.90ALR.011 TX2: 25.90ALQ.011 39 HIGH-TEK PIFA IPEX TX1: -0.70 TX2: -0.60 0.55 0.14 TX1: 25.90AJB.011 TX2: 25.90AJC.011 Report No.: FR342603 Page No.: D4 of D4 40 HIGH-TEK PIFA IPEX TX1: -0.42 TX2: 1.59 2.27 -0.05 TX1: 25.90AJB.011 TX2: 25.90AJC.011 41 ACON PIFA IPEX TX1: 0.96 TX2: 1.33 1.27 1.61 TX1: ATP6P -700000 TX2: ATP6P -700001 42 INPAQ Technology Dipole IPEX TX1: -1.1 TX2: 0.45 1.59 -0.02 TX1: DAM-14-H-DB-800-10-17 TX2: DAM-14-H-DB-800-10-17 43 Well Green PIFA IPEX TX1: 1.05 TX2: -0.41 1.08 2.32 TX1: SK110WMPB01+A TX2: SK110WMPB02+A 44 Well Green PIFA IPEX TX1: -1.61 TX2: -2.84 -0.14 -0.96 TX1: SKW23WMPB01+A TX2: SKW23WMPB02+A 45 Well Green PIFA IPEX TX1: -0.93 TX2: 0.20 0.96 0.86 TX1: SK740WMPB01+A TX2: SK740WMPB02+A

Cover Letter(s)

Realtek Semiconductor Corp. No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Tel: 03-5780211#3835 / Fax: 03-5776598 DoC Attestation Letter Date: 2013/6/17 We Realtek Semiconductor Corp., as the grantee of this project (FCC ID: TX2-RTL8821AE / Brand Name: REALTEK / Model No.: RTL8821AE), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD342603, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, Note: The registered grantee contact is not available, Judy Hsu is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Signature : _____________________________ Signed for Ricky Lee Job Title and Dept. : Ricky Lee / Assistant Project Manager E-Mail : [email protected] Tel. : 03-5780211#3835

Cover Letter(s)

Realtek Semiconductor Corp. No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Tel: 03-5780211#3835 / Fax: 03-5776598 Date: 2013/6/17 Confidential Letter Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：TX2-RTL8821AE Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent Realtek Semiconductor Corp. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Note: The registered grantee contact is not available, Judy Hsu is signing for grantee contact. He/She can be reached at email: [email protected]. Sincerely, Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Signature : _____________________________ Signed for Ricky Lee Job Title and Dept. : Ricky Lee / Assistant Project Manager E-Mail : [email protected] Tel. : 03-5780211#3835

Cover Letter(s)

Page No. : 19 Module Approval Request Letter Subject: Module Approval Date: 2013/7/2 FCC ID: TX2-RTL8821AE Dear Reviewer, We, Sporton International Inc., are authorized by Realtek Semiconductor Corp. to have their state-of-the-art 802.11a/b/g/n/ac RTL8821AE Combo module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RTL8821AE. 3. The requirement of power supply regulation: The power regulator has been intergrated in chip RTL8821AE. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Cover Letter(s)

Realtek Semiconductor Corp. No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Tel: 03-5780211#3835 / Fax: 03-5776598 Power of Attorney Date: 2013/6/17 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: REALTEK / RTL8821AE FCC ID: TX2-RTL8821AE Product name: 802.11a/b/g/n/ac RTL8821AE Combo module Note: The registered grantee contact is not available, Judy Hsu is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Signature : _____________________________ Signed for Ricky Lee Job Title and Dept. : Ricky Lee / Assistant Project Manager E-Mail : [email protected] Tel. : 03-5780211#3835

Cover Letter(s)

Realtek Semiconductor Corp. No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Tel: 03-5780211#3835 / Fax: 03-5776598 TPC Declaration Letter Date: 2013/6/17 FCC ID：TX2-RTL8821AE To Whom it may concern, We, Realtek Semiconductor Corp., declare that the EUT (Model Name: RTL8821AE) is slave device and channel used is defined by master device. The requirement of Uniform Spreading is not applicable for equipment. Currently, the software and associated drivers to support TPC are built into the device firmware. Regards, Note: The registered grantee contact is not available, Judy Hsu is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Signature : _____________________________ Signed for Ricky Lee Job Title and Dept. : Ricky Lee / Assistant Project Manager E-Mail : [email protected] Tel. : 03-5780211#3835

External Photos

Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 1 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 2 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 1. HMC / PCI-E / Diversity Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 3 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 2. HMC / PCI-E / Fixed Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 4 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 3. NGFF / PCI-E / Diversity Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 5 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 4. NGFF / PCI-E / Fixed Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 6 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 5. NGFF / SDIO / Diversity Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 7 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 6. NGFF / SDIO / Fixed Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 8 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Ant. 1 (For NGFF type use) PIFA antenna with I-PEX MHF4 connector Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 9 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 10 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Ant. 2 (For HMC type use) PIFA antenna with I-PEX connector Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 11 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 12 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Ant. 3 (For HMC type use) Dipole antenna with I-PEX connector Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 13 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 14 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Ant. 4 (For HMC type use) Slot antenna with I-PEX connector Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 15 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 16 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Ant. 5 (For NGFF type use) Slot antenna with I-PEX MHF4 connector Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 17 OF 17 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255

ID Label/Location Info

802.11a/b/g/n/ac RTL8821AE Combo module Label location Label sample FCC/CE Equality Ratio: 300% Equality Ratio: 100% IC –(NGFF) Equality Ratio: 300% Equality Ratio: 100% 802.11a/b/g/n/ac RTL8821AE Combo module Model: RTL8821AENF IC: 6317A-RTL8821AE In put：DC3.3V500mA 23mm 15mm 802.11a/b/g/n/ac RTL8821AE Combo module Model: RTL8821AE FCC ID: TX2-RTL8821AE Input：DC3.3V 500mA 23mm 15mm LABEL HERE IC –(HMC) Equality Ratio: 300% Equality Ratio: 100% 802.11a/b/g/n/ac RTL8821AE Combo module Model: RTL8821AE IC: 6317A-RTL8821AE In put：DC3.3V500mA 23mm 15mm

Internal Photos

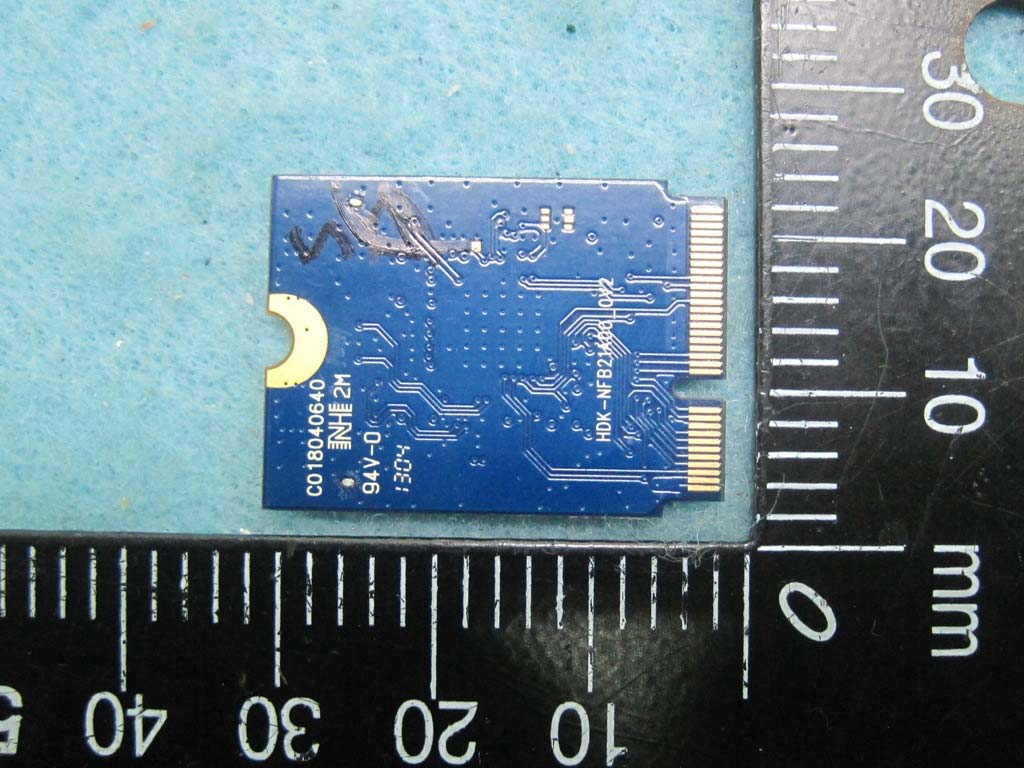

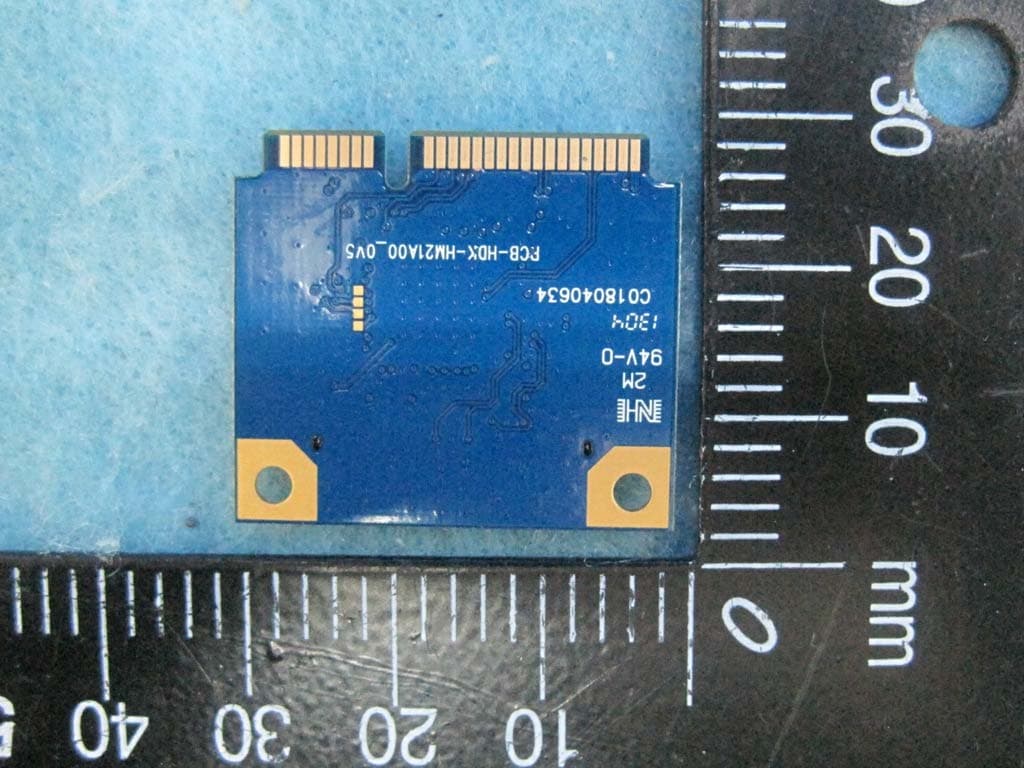

Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 1 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Photographs of EUT Configuration 1. HMC / PCI-E / Diversity Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 2 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 3 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 2. HMC / PCI-E / Fixed Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 4 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 5 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 3. NGFF / PCI-E / Diversity Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 6 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 7 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 4. NGFF / PCI-E / Fixed Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 8 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 9 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 5. NGFF / SDIO / Diversity Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 10 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 11 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255 Configuration 6. NGFF / SDIO / Fixed Report No.: 342603 SPORTON International Inc. PAGE NUMBER : 12 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 24, 2013 FAX : 886-2-2696-2255

RF Exposure Info

Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : B1 of B4 Appendix B. Maximum Permissible Exposure Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : B2 of B4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : B3 of B4 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a : 16.48dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.00 3.1623 16.4800 44.4631 0.027987 1 Complies For 5GHz ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a: 16.44dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.00 3.1623 16.4400 44.0555 0.027730 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11b: 18.45dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.50 2.2387 18.4500 69.9842 0.031185 1 Complies For Bluetooth: Antenna Type : PIFA Antenna Max Conducted Power for Bluetooth 1.0 : 7.89 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.50 2.2387 7.8900 6.1518 0.002741 1 Complies For Bluetooth: Antenna Type : PIFA Antenna Max Conducted Power for Bluetooth 4.0 : 8.09 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.50 2.2387 8.0900 6.4417 0.002870 1 Complies Report No.: FR342603 FCC ID: TX2-RTL8821AE Page No. : B4 of B4 CONCULSION: Both of the WLAN function and Bluetooth function can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.031185 / 1 + 0.002870 / 1 = 0.034055, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Test Report

SPORTON International Inc. N…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Dana Liaw(Project Manager)

[email protected]886-3-5780211Fax: 886-3-5776598

Technical Contact

Sporton International Inc.Sharon Jiang

[email protected]886-3-656-9065

No.8 Lane 724, Bo-ai St. · Taiwan

Non-Technical Contact

Sporton International Inc.Sharon Jiang

[email protected]886-3-656-9065

Test Firm

Sporton International Inc.Alex Chen

[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
3	15E	5.50 GHz - 5.70 GHz	45.00 mW

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. The antennas used for this transmitter must be used to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Operations in 5150-5250 MHz band is for indoor use only. This device has 20/40/80 MHz bandwidth modes. DFS operation is slave without radar detection.
