TX27305BG13HMCV4UWB half mini Card

Realtek UWB BG13 HMC User Guide_revC.doc 1 All Rights Reserved by Realtek Corp. Realtek UWB BG13 HMC User Guide Revision C Author : Marco Chuang Date : 2009/02/10 Realtek UWB BG13 HMC User Guide_revC.doc 2 All Rights Reserved by Realtek Corp. Table of Contents 1. Introduction.................................................................................................................... 3 2. System Description ........................................................................................................ 4 2.1. UWB PHY............................................................................................... 5 2.2. UWB MAC.............................................................................................. 5 2.3. SPI Flash................................................................................................... 5 3. Hardware Interfaces ....................................................................................................... 6 3.1. PCIe half mini card Interface .............................................................................. 6 4. Document History .......................................................................................................... 7 5. Radiation Exposure Statement ....................................................................................... 7 6. Interference Statement ................................................................................................... 7 7. Coordination Requirements ........................................................................................... 8 Realtek UWB BG13 HMC User Guide_revC.doc 3 All Rights Reserved by Realtek Corp. 1. Introduction This document describes the system, operations, and interfaces of the UWB BG1/3 HMC (half mini card) module. Two main applications are supported by this module. One is wireless USB application and the other one is WiNet mode. For WUSB application, the HMC is used as the host controller, and connect to wired USB device with a wireless DWA hub. WiNet mode is an IP-based network communication, and link up the networks by UWB module. WUSB Application WiNet Application Realtek UWB BG13 HMC User Guide_revC.doc 4 All Rights Reserved by Realtek Corp. 2. System Description The UWB BG1 HMC module supports the following functions: „ Certified WUSB mode „ WiNet mode „ Support 53.3M, 80M, 106.7M, 160M, 200M, 320M, 400M, 480Mbps. „ Support BG1, BG3 and TFC1~TFC10 The module system mainly consists of two main chips – (i) UWB PHY(RTU7012), (ii) UWB MAC(RTU7305). A serial flash memory (2Mb) is required to store proper data/commands for the PHY chip and MAC chip. To make the system work properly, the Flash should be loaded with proper content by using the Flash utility provided by Realtek. The RF performance can also be tested using the test utility provided by RealTek. Two basic clock frequencies are used in the system – 12MHz for MAC and 66MHz for PHY. Some more details of the components are shown in the following sections. Product Specification Frequency Band BG1 3168MHz ~ 4752MHz BG3 6336MHZ ~ 7920MHz Network Standard WiMedia PHY 1.2 & MAC 1.0 Modulation Mode Multiband OFDM with QPSK, DCM FEC Coding Rate 1/3, 1/2, 5/8, 3/4 Convolutional Coding, Reed Solomon Coding Support Data Rate 8 data rates from 53.3Mbps to 480 Mbps Interface PCIe half mini card interface Support Applications Certified WUSB, WiNet Realtek UWB BG13 HMC User Guide_revC.doc 5 All Rights Reserved by Realtek Corp. 2.1. UWB PHY This chip integrates the RF and baseband functions of a UWB PHY defined by the standard. This version of PHY chip is packaged in 48-pin QFN form factor. The analog/RF section requires 1.5V and 3.3V to operate. The digital core operates with 1.2V and the I/O voltage can support a range of 3V~3.6V. 2.2. UWB MAC This MAC chip is also from RealTek which has a standard MPI interface to communicate with a standard UWB PHY, as well as a high speed USB interface to connect directly to a PC. This chip requires voltages of 1.2V and 3.3V. 2.3. SPI Flash This chip is a serial flash memory from Macronix with a capacity of 2Mb. It is used by the MAC to store the initialization data and command sequence required by the MAC and PHY on start up. This chip requires 3.3V only. Realtek UWB BG13 HMC User Guide_revC.doc 6 All Rights Reserved by Realtek Corp. 3. Hardware Interfaces 3.1. PCIe half mini card Interface Table 1 half mini card connector termination assignment Realtek UWB BG13 HMC User Guide_revC.doc 7 All Rights Reserved by Realtek Corp. 4. Document History Date Revision Description Author 2008/11/13 A Initial Release Marco Chuang 2009/02/10 C Modify Marco Chuang 5. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. 6. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Con…

Text truncated - open the document above for the full version.

Page No. : 16 Module Approval Request Letter Subject: Single Module Approval Date: 2009/8/12 FCC ID: TX27305BG13HMCV4 Dear Reviewer, We, Sporton International Inc., are authorized by Realtek Semiconductor Corp. to have their state-of-the-art UWB half mini Card approved under single module approval authorization. The application of this module is specified to portable host and mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RTU7305. 3. The requirement of power supply regulation: The part number of the power regulator is G5240C1T1U. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE and SAR RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

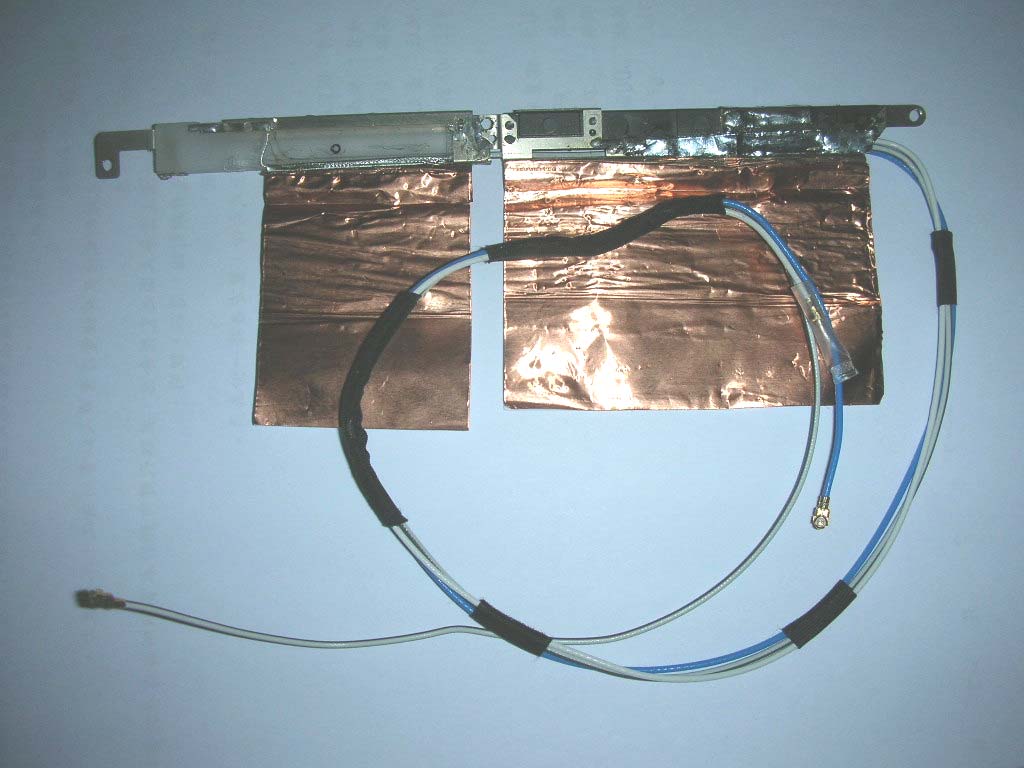

SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 05, 2009 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 05, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 05, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 05, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 05, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 05, 2009 FAX : 886-2-2696-2255

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Realtek Semiconductor Corp. Applicant Address No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan FCC ID TX27305BG13HMCV4 Manufacturer’s company Realtek Semiconductor Corp. Manufacturer Address No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Product Name UWB half mini Card Brand Name Realtek Model Name RTU7305-BG13-HMC-V2C Test Rule Part(s) 47 CFR FCC Part 15 Subpart F § 15.519 Test Freq. Range 3100 ~ 10600MHz Received Date Jul. 22, 2009 Final Test Date Jul. 30, 2009 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart F. The test equipment used to perform the test is calibrated and traceable to NML/ROC. ILAC MRA Report No.: FR911422-03 Report Format Version: 01 Page No. : i of ii FCC ID: TX27305BG13HMCV4 Issued Date : Aug. 05, 2009 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 3 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 4 3. GENERAL INFORMATION .................................................................................................................................. 5 3.1. Product Details....................................................................................................................................................................................5 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Carrier Frequencies .............................................................................................................................................................6 3.4. Table for Test Modes ...........................................................................................................................................................................6 3.5. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Operational Limitations.....................................................................................................................................................................15 4.3. UWB Bandwidth Measurement ..........................................................................................................................................................16 4.4. Radiated Emissions Measurement ....................................................................................................................................................21 4.5. Radiated Emissions in GPS Bands Measurement ..............................................................................................................................80 4.6. Peak Emissions within a 50 MHz Bandwidth Measurement ...............................................................................................................92 4.7. Labeling and Instruction Manual Requirements .............................................................................................................................122 4.8. Antenna Requirements ...................................................................................................................................................................123 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 124 6. TEST LOCATION............................................................................................................................................ 126 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 127 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A9 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B8 Report No.: FR911422-03 Report Format Version: 01 Page No. : ii of ii FCC ID: TX27305BG13HMCV4 Issued Date : Aug. 05, 2009 History of This Test Repo…
