TX2RTL8812AEBT802.11a/b/g/n/ac RTL8812AE Combo module

Realtek Semiconductor Corp.
802.11a/b/g/n/ac RTL8812AE Combo module - FCC ID TX2RTL8812AEBT - Realtek Semiconductor Corp.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Feb 17, 2014
Application Purpose
Original Equipment
Date of Application
Feb 17, 2014
Equipment Note
802.11a/b/g/n/ac RTL8812AE Combo module
Frequency Range
2402.00000000 - 2480.00000000
Company
Realtek Semiconductor Corp.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Combo module User’s Manual Rev.0.1 24 Oct 2013 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com.tw RTL8812AEBT RTL8812AEBTCombo module User Manual COPYRIGHT ©2012 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp. DISCLAIMER Realtek provides this document ‘as is’, without warranty of any kind. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. TRADEMARKS Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. USING THIS DOCUMENT This document is intended for the software engineer’s reference and provides detailed programming information. Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. REVISION HISTORY Revision Release Date Summary 0.1 2013/10/24 Preliminary release. RTL8812AEBTCombo module User Manual Table of Contents 1. GENERAL DESCRIPTION ......................................................................................................................................... 1 2. PRODUCT SPECIFICATIONS ................................................................................................................................... 3 2.1. ENVIRONMENTAL ..................................................................................................................................................... 3 2.1.1. Operating ........................................................................................................................................................ 3 2.1.2. Storage ............................................................................................................................................................ 3 2.2. FUNCTIONAL SPECIFICATIONS ................................................................................................................................... 3 2.3. WARNING ................................................................................................................................................................ 5 3.5.1 Federal Communication Commission Interference Statement ................................................................................. 5 3.5.2 Industry Canada Statement ................................................................................................................................... 6 3.5.3 NCC 警語 ........................................................................................................................................................... 10 List of Tables TABLE 2. FUNCTIONAL SPECIFICATIONS .................................................................................................................................. 3 RTL8812AEBT Combo module User Manual 1 1. General Description The Realtek RTL8812AE is a highly integrated single-chip 802.11b/g/n/ac 2T2R WLAN PCI Express network interface controller, and RTL8761AU is a integrated Bluetooth 2.1/3/0/4.0 USB interface controller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, BT Protocol Stack (LM, LL, and LE), BT Baseband, modem, and WLAN/BT RF in a single module. The RTL8812AE with RTL8761AU provide a complete solution for a high throughput performance integrated wireless LAN and Bluetooth device. The RTL8812AE WLAN baseband implements Orthogonal Frequency Division Multiplexing (OFDM) with 1 transmit and 1 receive path and is compatible with the 802.11ac specification. Features include one spatial stream transmission, short guard interval (GI) of 400ns, spatial spreading, and transmission over 20MHz , 40MHz and 80MHz channel bandwidth. For legacy compatibility, Direct Sequence Spread Spectrum (DSSS), Complementary Code Keying (CCK) and OFDM baseband processing are included to support all 802.11b and 802.11g data rates. Differential phase shift keying modulation schemes, DBPSK and DQPSK with data scrambling capability, are available, and CCK provides support for legacy data rates, with long or short preamble. The high-speed FFT/IFFT paths, combined with BPSK, QPSK, 16QAM, 64QAM and 256-QAM modulation of the individual subcarriers and rate compatible punctured convolutional coding with coding rate of 1/2, 2/3, 3/4, and 5/6, provide up to 866.6Mbps for 802.11ac OFDM. A RTL8812AE built-in enhanced signal detector, adaptive frequency domain equalizer, and a soft-decision Viterbi decoder help to alleviate multi-path effects and mutual interference in the reception of multiple streams. Robust interference detection and suppression are provided to protect against Bluetooth, cordless phone, and microwave oven interference. Efficient IQ-imbalance, DC offset, phase noise, frequency offset, and timing offset compensations are provided for the radio frequency front-end. Selectable digital transmit and receive FIR filters are provided to meet transmit spectrum mask requirements and to reject adjacent channel interference, respectively. The RTL8812AE WLAN Controller supports fast receiver Automatic Gain Control (AGC) with synchronous and asynchronous control loops among antennas, antenna diversity functions, and adaptive transmit power control function to obtain better performance in the analog portions of the transceiver. The RTL8812AE WLAN MAC supports 802.11e for multimedia applications, 802.11i for security, and 802.11n/802.11ac Draft 2.0 for enhanced MAC protocol efficiency. Using packet aggregation techniques such as A-MPDU with BA …

Text truncated - open the document above for the full version.

Attestation Statements

Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Declaration Letter W e, Realtek Semiconductor Corp. declare that the device does not support channel 12 and 13 in 2.4G band for all the operational mode(s) for the following product. FCC ID: TX2RTL8812AEBT If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Dana Liaw Realtek Semiconductor Corp. Tel: +886-3-578-0211*3164 Fax: +886-3-577-6598 E-Mail: [email protected]

Attestation Statements

Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan DFS client device channel plan and software operational declaration Date: 2014-02-10 We, Realtek Semiconductor Corp., declare that the device, FCC ID: TX2RTL8812AEBT Model Name: RTL8812AEBT, does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies. Also, the client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad-hoc peer-to-peer modes. Below is the channel / frequency plan for the device Also, on DFS channels, the WLAN driver in the device operates under the control of an AP at all times, except when in ad-hoc mode, on US non-DFS channels. The device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is protected by special signature and CRC checksum. Signature and CRC checksum will be calculated and verified before firmware upgrade. Unauthorized modification to firmware will lead the failure of verification thus firmware upgrade is not allowed. Sincerely yours, ------------------------------------------------------- Dana Liaw Realtek Semiconductor Corp. Tel: +886-3-578-0211*3164 Fax: +886-3-577-6598 E-Mail: [email protected] CH 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 Scan Type Active Active Active Active Active Active Active Active Active Active Active CH 36 38 40 42 44 48 52 54 56 58 60 Frequency (MHz) 5180 5190 5200 5210 5220 5240 5260 5270 5280 5290 5300 Scan Type Active Active Active Active Active Active Passive Passive Passive Passive Passive CH 62 64 Frequency (MHz) 5310 5320 Scan Type Passive Passive CH 100 102 104 106 108 110 112 116 132 134 136 Frequency (MHz) 5500 5510 5520 5530 5540 5550 5560 5580 5660 5670 5680 Scan Type Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive CH 140 Frequency (MHz) 5700 Scan Type Passive CH 149 151 153 155 157 159 161 165 Frequency (MHz) 5745 5755 5765 5775 5785 5795 5805 5825 Scan Type Active Active Active Active Active Active Active Active

Cover Letter(s)

Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: 2014/02/10 Subject: Request for Confidentiality FCC ID: TX2RTL8812AEBT To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2014/04/30. External Photos Internal Photos Test setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely yours, ------------------------------------------------------- Dana Liaw Realtek Semiconductor Corp. Tel: +886-3-578-0211*3164 Fax: +886-3-577-6598 E-Mail: [email protected]

Cover Letter(s)

Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Power of Attorney Date:2014/2/10 To whom it may concern: We, the undersigned Realtek Semiconductor Corp. hereby authorize Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C+E approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. This authorization is limited to the following products: FCC ID: TX2RTL8812AEBT If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------- Dana Liaw Realtek Semiconductor Corp. Tel: +886-3-578-0211*3164 Fax: +886-3-577-6598 E-Mail: [email protected]

Cover Letter(s)

FCC ID: TX2RTL8812AEBT Report No.: RF131205E01 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch February 11, 2014 Dear Application Examiner, Realtek Semiconductor Corp., It’s a 802.11a/b/g/n/ac RTL8812AE Combo module, FCC ID: TX2RTL8812AEBT would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RTL8812AE. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is RTL8812AE. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

External Photos

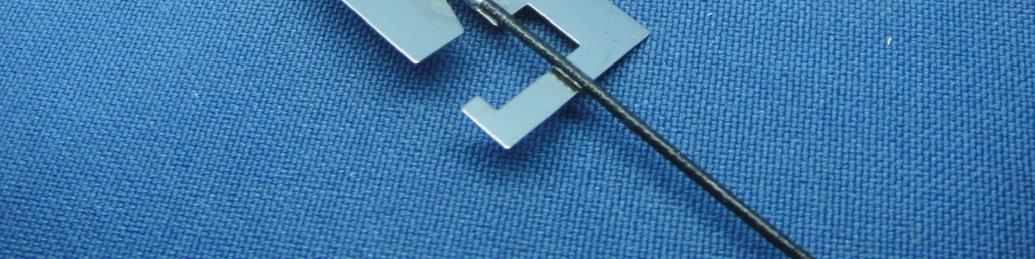

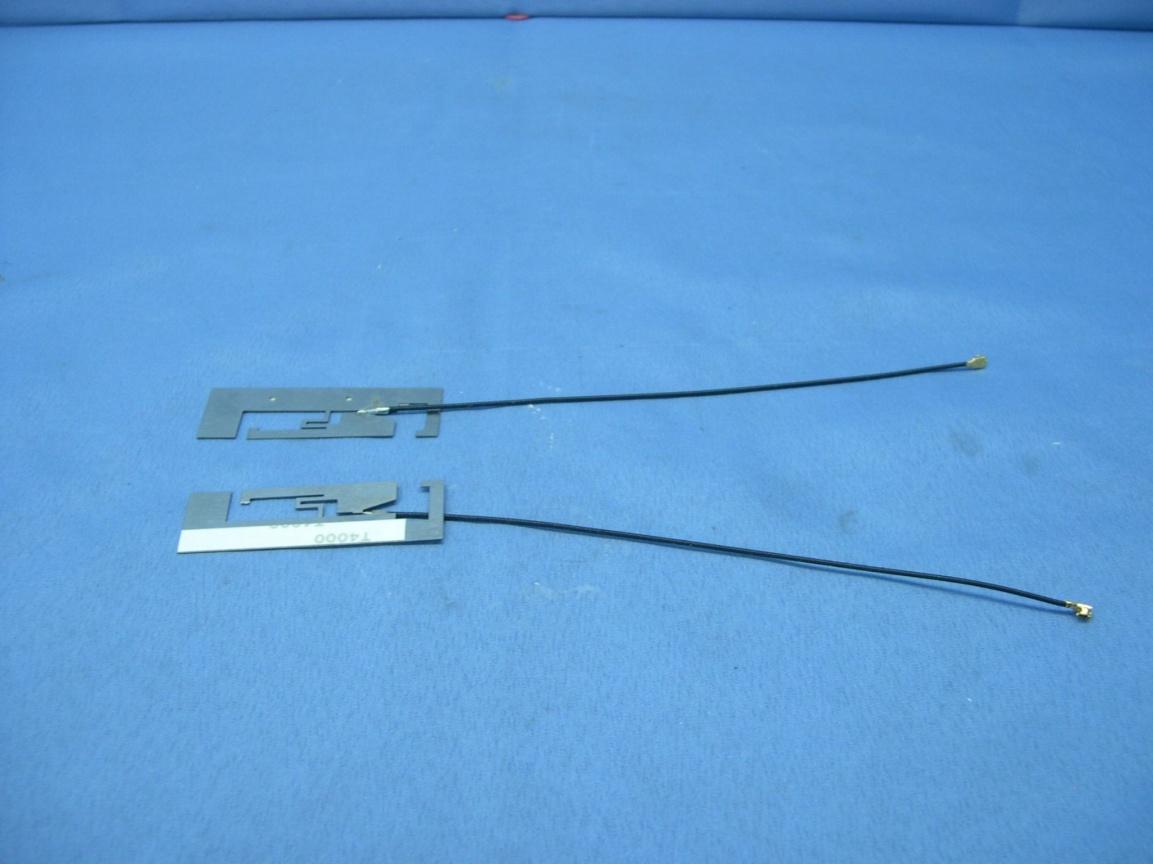

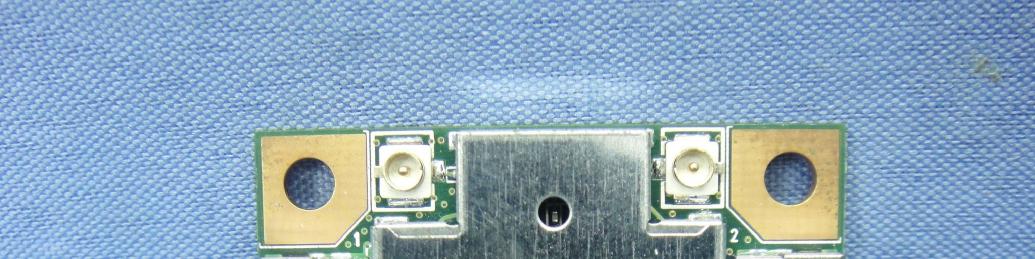

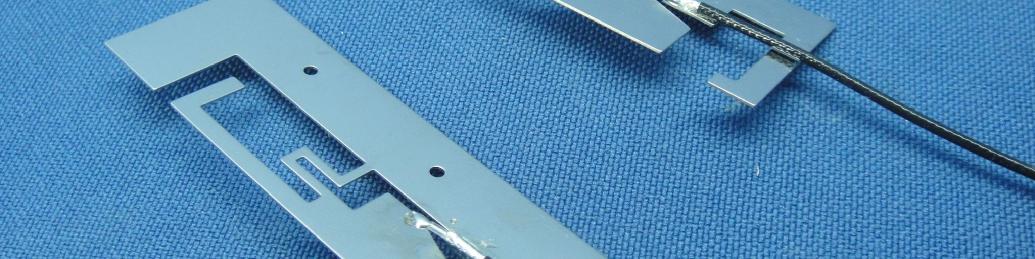

Report No.: 131205E01 Page 1 CONSTRUCTION PHOTOS OF EUT EUT + PIFA antenna Report No.: 131205E01 Page 2 EUT + Dipole antenna Report No.: 131205E01 Page 3 EUT Report No.: 131205E01 Page 4 Antenna 1: Brand: LYNwave Model: ALA110-222050-300010 (Main) & ALA110-222050-300010 (Aux) Report No.: 131205E01 Page 5 Report No.: 131205E01 Page 6 Antenna 2: Brand: JOYMAX / Model: TWF-614XMPXX-500 (Main) & TWF-614XMPXX-500 (Aux) Report No.: 131205E01 Page 7 Report No.: 131205E01 Page 8 Antenna 3: Brand: WGT / Model: SKA91WMPB02+A (Tx1) & SKA91WMPB01+A (Tx2) Antenna 4: Brand: JEM / Model: 1510-0122-0027 (Tx1) & 1510-0122-0027 (Tx2) Report No.: 131205E01 Page 9 Antenna 5: Brand: FVC / Model: K05007014501(6-23-7W25H-010) (Tx1) & K05007014501(6-23-7W25H-010) (Tx2) Antenna 6: Brand: JEM / Model: 1510-0122-0022(IA-120073) (Tx1) &1510-0122-0022(IA-120073) (Tx2) Report No.: 131205E01 Page 10 Antenna 7: Brand: WGT / Model: SK81WMPB01+A (Tx1) & SK81WMPB02+A (Tx2) Antenna 8: Brand: WGT / Model: SKW2UWMPB01+A (Tx1) & SKW2UWMPB01+A (Tx2) Report No.: 131205E01 Page 11 Antenna 9: Brand: WGT / Model: SKW25WMPB01+A (Tx1) & SKW25WMPB01+A (Tx2) Antenna 10: Brand: WGT / Model: SK549WMPB01+A (Tx1) & SK549WMPB02+A (Tx2) Report No.: 131205E01 Page 12 Antenna 11: Brand: WGT / Model: SK110WMPB01+A (Tx1) & SK110WMPB02+A (Tx2) Antenna 12: Brand: WGT / Model: SKW31WMPB01+A (Tx1) & SKW31WMPB01+A (Tx2) Report No.: 131205E01 Page 13 Antenna 13: Brand: / Model: 6-23-7B51M-031 (Tx1) & 6-23-7B51M-031 (Tx2) Antenna 14: Brand: FVC / Model: 6-23-7E51Q-011 (Tx1) & 6-23-7E51Q-011 (Tx2) Report No.: 131205E01 Page 14 Antenna 15: Brand: FVC / Model: 6-23-7B710-022 (WM1) & 6-23-7B710-022 (WM2) Antenna 16: Brand: WGT / Model: SKM11WMPB03+A (Tx1) & SKM11WMPB02+D (Tx2) Report No.: 131205E01 Page 15 Antenna 17: Brand: WGT / Model: SKW23WMPB01+A (Tx1) & SKW23WMPB02+A (Tx2) Antenna 18: Brand: WGT / Model: SKW24WMPB01+B (WM1) & SKW24WMPB01+B (WM2) Report No.: 131205E01 Page 16 Antenna 19: Brand: FVC / Model: K05007015501(6-23-7W244-020-1) (Tx1) & K05007015501(6-23-7W244-020-1) (Tx2) Antenna 20: Brand: FVC / Model: K05007014201(6-23-7W25P-020) (Tx1) & K05007014201(6-23-7W25P-020) (Tx2) Report No.: 131205E01 Page 17 Antenna 21: Brand: WGT / Model: SKW10WMPB01+A (Tx1) & SKW10WMPB02+A (Tx2) Antenna 22: Brand: WGT / Model: SKCZTWMPB01+A (Tx1) & SKCZTWMPB02+A (Tx2) Report No.: 131205E01 Page 18 Antenna 23: Brand: JEM / Model: IA-120266 (Tx1) & IA-120267 (Tx2) Antenna 24: Brand: WGT / Model: SK547WMPB01+A (Tx1) & SK549WMPB02+A (Tx2) Report No.: 131205E01 Page 19 Antenna 25: Brand: WGT / Model: SK555WMPB01+B (Tx1) & SK555WMPB02+B (Tx2) Antenna 26: Brand: WGT / Model: SK65EWMPB01+A (Tx1) & SK650WMPB02+A (Tx2) Report No.: 131205E01 Page 20 Antenna 27: Brand: WGT / Model: SK670WMPB01+A (Tx1) & SK670WMPB02+A (Tx2) Antenna 28: Brand: WGT / Model: SK740WMPB01+A (Tx1) & SK740WMPB02+A (Tx2) Report No.: 131205E01 Page 21 Antenna 29: Brand: WGT / Model: SK840WMPB01+B_SN (Tx1) & SK840WMPB01+B_SN (Tx2) Antenna 30: Brand: WGT / Model: SK94SWMPB01+B (TX1) 7 SK94SWMPB01+B (TX2) Report No.: 131205E01 Page 22 Antenna 31: Brand: WGT / Model: SK94TWMPB01+B (TX1) &SK94TWMPB01+B (TX2) Antenna 32: Brand: WGT / Model: SK50SWMPB01+A (TX1) & SK50SWMPB02+A (TX2) Report No.: 131205E01 Page 23 Antenna 33: Brand: WGT / Model: SK94TWMPB01+D (TX1) & SK94TWMPB01+D (TX2) Antenna 34: Brand: WGT / Model: SKC45WMPB03+B (WM1) & SKC45WMPB03+B (WM2) Report No.: 131205E01 Page 24 Antenna 35: Brand: FVC / Model: K05007015801 (WM1) & K05007015901 (WM2) Antenna 36: Brand: WGT / Model: SK345WMPB01+A (WM1) & SK345WMPB02+A (WM2) Report No.: 131205E01 Page 25 Antenna 37: Brand: FVC / Model: K05007014901 (WM1) & K05007015001 (WM2) Antenna 38: Brand: WGT / Model: SKX51WMPB01+C (WM1) & SKX51WMPB02+C (WM2) Report No.: 131205E01 Page 26 Antenna 39: Brand: INPAQ / Model: WA-P-LB-02-122 (Main) & WA-P-LB-01-072 (Aux) Antenna 40: Brand: Smart Approach / Model: SE-ECZ50-001 (Tx1) & SE-ECZ50-002 (Tx2) Report No.: 131205E01 Page 27 Antenna 41: Brand: INPAQ / Model: WA-P-LB-02-121 (Main) & WA-P-LB-01-071 (Aux) Antenna 42: Brand: Smart Approach / Model: SE-ECZ70-001 (Tx1) & SE-ECZ70-002 (Tx2)

ID Label/Location Info

FCC ID: TX2RTL8812AEBT n Label Sample 23mm MADE IN TAIWAN 13mm 802.11a/b/g/n/ac RTL8812AE Combo module Model : RTL8812AEBT DC Input Voltage Range : 3.3V1000mA FCC ID : TX2RTL8812AEBT IC: 6317A-RTL8812AEBT n Label Location LABEL HERE
