TXJMT410-GClass 2 Category 1 406MHz PLB

P A G E  i n s t r u c t i o n mA n uA l 4 0 6 m H Z Pl B POCKET SERIES 406 MHZ PLB E M E R G E N C Y PERSONAL LOCATOR BEACON MT410 & MT410G I N S T R U C T I O N M A N U A L P A G E  i n s t r u c t i o n mA n uA l 4 0 6 m H Z Pl B WArninG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FEAturEs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  introDuction . . . . . . . . . . . . . . . . . . . . . . . . . .  General . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ABout tHE cosPAs-sArsAt systEm . . . . . . . . . . 3 ABout 406 mH z BEAcons . . . . . . . . . . . . . . . . .3 rEGistrAtion & trAnsFEr oF oWnErsHiP . . . . 3 registration contacts . . . . . . . . . . . . . . . . . . . 3 PrEvEntinG AcciDEntAl ActivAtion . . . . . . . . 4 contacts for reporting Activations . . . . . . . . . 4 BAttEriEs & mAintEnAncE . . . . . . . . . . . . . . . . 4 tEstinG tHE PlB . . . . . . . . . . . . . . . . . . . . . . . . . 5 GPs sAtEllitE Acquisition tEst . . . . . . . . . . . . . 5 sAFEty sEAl . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 trAnsPortAtion . . . . . . . . . . . . . . . . . . . . . . . . 5 ActivAtion in An EmErGEncy . . . . . . . . . . . . . . 5 location for deployment . . . . . . . . . . . . . . . . . 5 ActivAtinG tHE mt40/40G . . . . . . . . . . . . . . . 6 DEActivAtinG tHE mt40/40G . . . . . . . . . . . . . 6 DisPosAl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 sPEciFicAtions . . . . . . . . . . . . . . . . . . . . . . . . . . 7 WArrAnty . . . . . . . . . . . . . . . . . . . . . . back page nAtionAl AutHority inFormAtion . . back page CONTE NTS fE aTurES • suitable for marine, aviation and land applications . • GPs model available - Accusat Pocket Pro+ (mt40G) . • 7 year Battery life, 7 year Warranty . • typical accuracy - mt40G: <45 m mt40: <5 km . • High visibility strobe light . • unique patented technology - no warm up period . • Featherweight, compact and robust construction . • Digital 406 mHz, 5 Watt transmission plus  .5 mHz homing signal . • cosPAs-sArsAt worldwide operation . • national and international Approvals . • Buoyant and waterproof design (exceeds iP67) . • simple -step activation . • complete with retention strap and protective carry pouch . iNTrOduC TiON congratulations on purchasing your new Accusat Pocket series Personal locator Beacon (PlB) . the GmE Accusat Pocket mt40 and GPs equipped Accusat Pocket Pro+ mt40G are the most advanced 406 mHz digital satellite beacons available today . using new digital frequency generation technology, GmE have developed and approved world wide, a new family of affordable high performance 406 mHz Personal locator Beacons general the GmE mt40 and mt40G PlBs are designed for use when the safety of life is endangered and you have no other means of communication . the PlB can save your life and the lives of others by leading an air, land or sea rescue to your precise location . PlBs are an excellent choice to provide added safety while participating in just about any outdoor or remote area activity . the mt40/40G beacons are fully sealed units and will not sink if dropped into water, making them equally suitable for use on board a boat, or in many other diverse water sport adventures . note: PlBs are not a satisfactory substitute for situations which require the specifically designed GmE marine EPirBs . An EPirB is designed to float unassisted with the antenna above the water surface to meet maritime Authority requirements . warNiNg emergency Beacons should only Be used in situations of grave and imminent danger. it is important that you read this manual thoroughly. compliance statement and application certificates: please visit: www .gme .net .au/epirb P A G E 3 i n s t r u c t i o n mA n uA l 4 0 6 m H Z Pl B in the past, using the analogue system, (which will become obsolete in February 009) extensive and lengthy searches have been carried out for missing persons, sometimes to no avail . your GmE PlB is a self contained 406 mHz digital radio transmitter that emits an internationally-recognized distress signal on a frequency monitored by the cosPAs- sArsAt satellite system . the mt40 and mt40G contain a unique identity code which can be cross referenced to a database of registered 406 mHz beacons, allowing the beacon’s owner to be immediately identified in the event of an emergency . Both PlB models include a high performance solid state strobe and  .5 mHz vHF homing signal to assist in leading rescuers to your precise location . the mt40G also features an integrated 6 channel GPs receiver which when activated, will automatically acquire a position and relay the latitude and longitude of the beacon along with the personal identifier and emergency signal . abOuT ThE COSPaS -SarSaT SySTEm the cosPAs-sArsAt system is a complete global search and rescue service using geostationary and polar orbiting satellites . many countries provide ground facilities known as local user terminals (luts) . Polar orbiting satellites provide complete, although non-continuous, coverage of the earth (due to fact that these satellites can only view a portion of the earth at any given time) and can accurately resolve an active beacons’ location . Additionally, geostationary satellites can give an immediate alerting function in many regions of the world . the basic cosPAs-sArsAt concept is illustrated in the following diagram abOuT 4 0 6 mhz bEaCONS 406 mHz beacons provide more accurate and reliable alert data to search and rescue agencies than the older  .5/43 mHz systems presently being phased out . the older  .5 mHz analogue system required that the satellite be within view of both the beacon and the lut before it could transmit the beacons’ position . this limited the coverage to an area immediately surrounding the lut . However, the digital nature of the 406 mHz system means that the satellites are able to store the beacons’ position and digital mes…

Text truncated - open the document above for the full version.

Craig Duncan From: Andryey Zhitenev [[email protected]] Sent: Thursday, 31 May 2007 6:38 AM To: Craig Duncan Cc: Lance May; Adsetts, Kevan; Daniel Levesque; Dany St-Pierre Subject: 30 May 2007: Type Approval granted to Standard Communications' PLB Models 'MT410' and 'MT410G, TAC-176 Page 1 of 1 21/06/2007 Dear Craig, I have pleasure of informing you that Cospas-Sarsat has approved PLB models ‘MT410’ and ‘MT410G’, effective 30 May 2007. We will issue the Type Approval Certificate TAC-176 shortly. Could you please review the attached files which contain information to be presented on the Cospas-Sarsat website and let me know if it is OK with you. Best Regards, Andryey Zhitenev Technical Officer Cospas-Sarsat Secretariat 700, De la Gauchetière West, Suite 2450 Montréal (Québec) H3B 5M2 Canada phone: +1 514 954-6694 fax: +1 514 954-6750 email: [email protected] ______________________________________________________________________ This email has been scanned by the MessageLabs Email Security System. For more information please visit http://www.messagelabs.com/email ______________________________________________________________________

1 st August, 2007 Federal Communications Commission Office of Engineering and Technology Your Ref: Form 731 Confirmation Number: EA477823 FCC ID: TXJMT410/410G Our Ref: ED070801-01 Dear Sir Madam RE: Notification of Information Provided as Commercial-in-Confidence The following pertains to our application for FCC approval of a 406MHz PLB provided in either basic (MT410) or GPS equipped (MT410G) configuration. As requested within the on-line application process we are writing to advise that the following documents have been provided to the FCC solely on the understanding that they are to be treated as Commercial-in-Confidence: (filename) (exhibit type) ! 42436-4fcc.pdf Schematics ! 44043-1.pdf Operational Description ! 44042-1.pdf Block Diagram The equipment to which this application applies is the result of substantial R&D investment by the applicant. The new and novel approaches employed within the equipment are the subject of various patent applications outside of the USA. The technology and implementation adopted within the design give it a significant commercial advantage over its competitors [FCC 0.459(3)]. Access to the documentation identified above is likely to assist competitors analyse, reverse engineer; or gain a better understanding of the product so as to circumvent patent protection. Such an outcome would erode or remove the current commercial advantage that these products possess and thereby reduce the market share that they would otherwise command resulting in loss of potential revenue for the applicant [FCC 0.459(5)]. The information contained within these submissions is privileged and is not available to the public or its competitors [FCC 0.459(7)]. It is Standard Communications intention to continue to produce the equipment models of this application whilst they maintain either or both a commercial or technical/performance advantage over their competitors. It is important therefore that access to the identified information be restricted over the commercial life of these models [FCC 0.459(8)]. Your co-operation in taking all necessary actions to maintain the confidentiality of the identified documents provided is appreciated. On behalf of Standard Communications Pty Ltd, yours faithfully Craig Duncan Project Engineering Manager

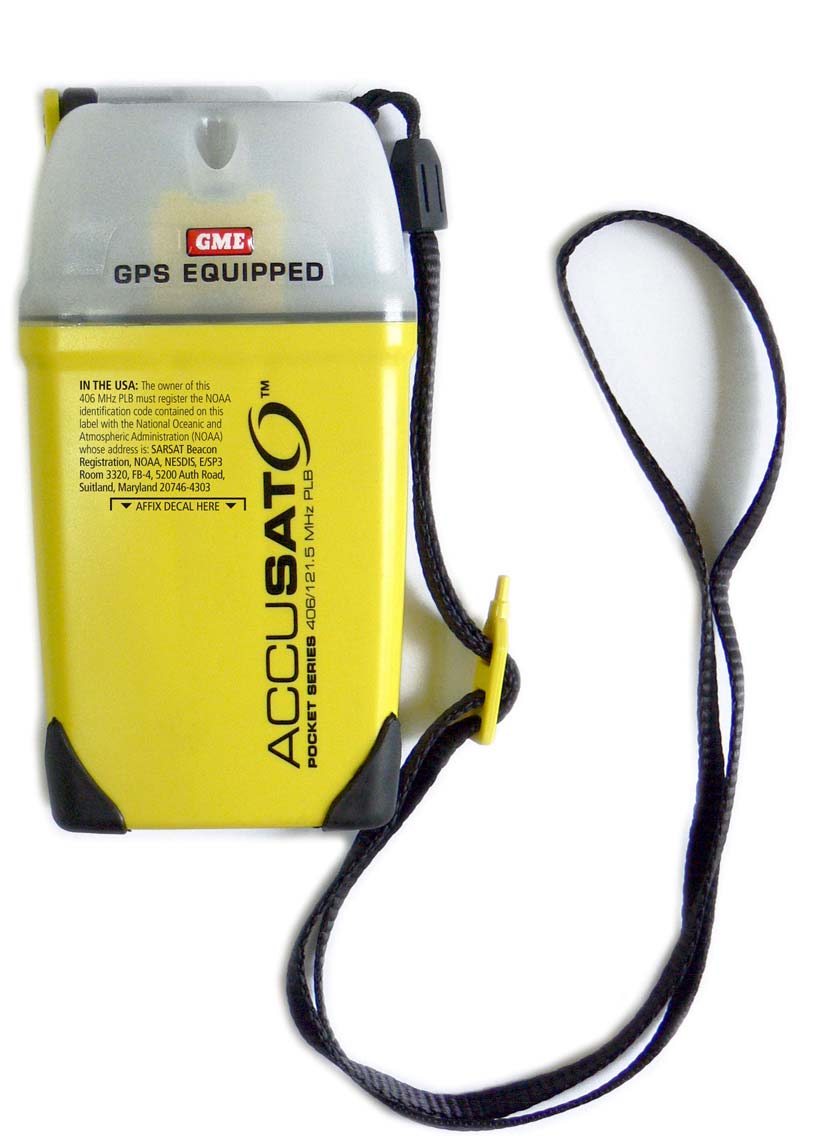

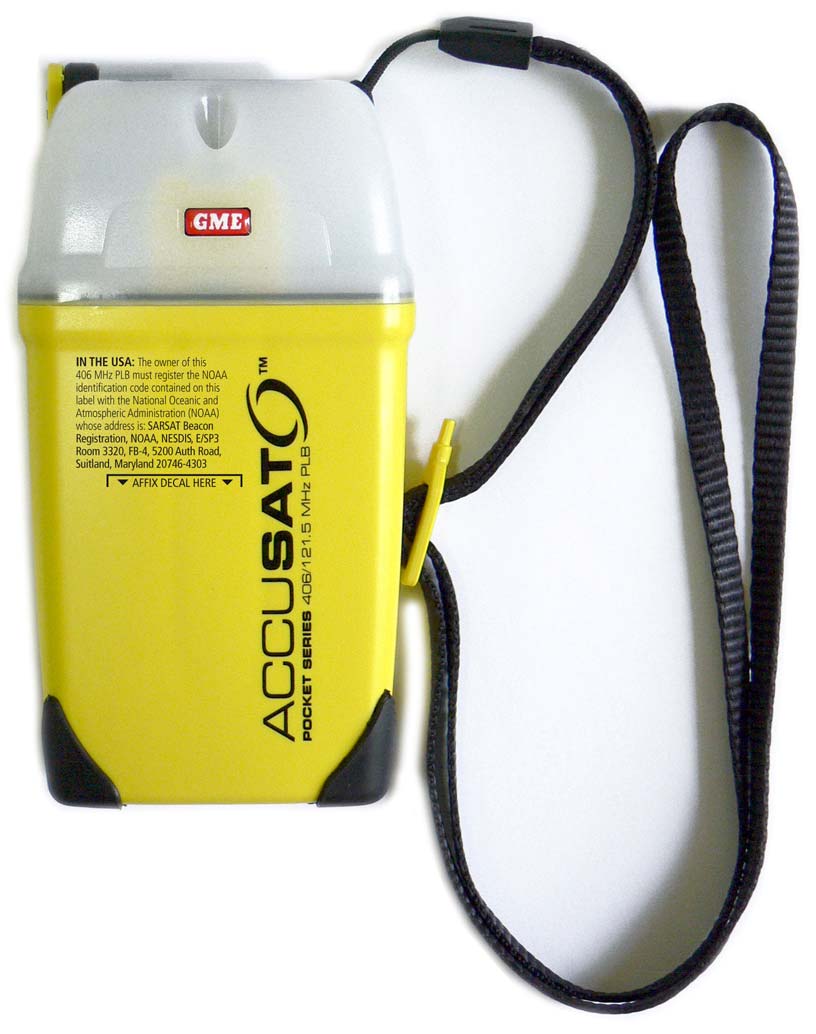

FCC Type Approval - External Photos Page 1 of 10 MT410G - GPS Equipped, 406MHz Class 2, Category 1 PLB. MT410G - Front view FCC Type Approval - External Photos Page 2 of 10 MT410G - GPS Equipped, 406MHz Class 2, Category 1 PLB. MT410G - Left side view FCC Type Approval - External Photos Page 3 of 10 MT410G - GPS Equipped, 406MHz Class 2, Category 1 PLB. MT410G - Right side view FCC Type Approval - External Photos Page 4 of 10 MT410G - GPS Equipped, 406MHz Class 2, Category 1 PLB. MT410G - Rear view FCC Type Approval - External Photos Page 5 of 10 MT410G - GPS Equipped, 406MHz Class 2, Category 1 PLB. MT410G - Top view MT410G - Bottom view FCC Type Approval - External Photos Page 6 of 10 MT410 - 406MHz Class 2, Category 1 PLB. MT410 - Front view FCC Type Approval - External Photos Page 7 of 10 MT410 - 406MHz Class 2, Category 1 PLB. MT410 - Left side view FCC Type Approval - External Photos Page 8 of 10 MT410 - 406MHz Class 2, Category 1 PLB. MT410 - Left side view FCC Type Approval - External Photos Page 9 of 10 MT410 - 406MHz Class 2, Category 1 PLB. MT410 - Rear view FCC Type Approval - External Photos Page 10 of 10 MT410 - 406MHz Class 2, Category 1 PLB. MT410 - Top view MT410 - Bottom view

FCC ID on Equipment - MT410 and MT410G PLB (and amendment thereof) ATTENTION: We have become aware that pursuant to Section 2.926(d), the slash mark (/) is not allowed for use within the FCC Identifier, and “that the equipment product code assigned by the grantee shall consist of a series of Arabic numerals, capital letters or a combination thereof, and may include the dash or hyphen (-) only.” We respectively request that our previously entered ID being: TXJMT410/410G be amended to: TXJMT410-G so as to comply with Section 2.926(d) In anticipation of this amendment being agreeable to the FCC, we have provided images of the corrected FCC ID on our equipment. Note the location of this ID is identical for both the MT410 and GPS equipped variant MT410G. Placement of “FCC ID: TXJMT410-G”

Page 1 of 2 FCC Type Approval - Internal Photos MT410G - GPS Equipped, 406MHz Class 2, Category 1 PLB. MT410G - CCA Top view MT410G - CCA Bottom view Page 2 of 2 MT410 - 406MHz Class 2, Category 1 PLB. MT410 - CCA Top view MT410 - CCA Bottom view

Page 1 of 2 FCC Type Approval - Exploded view Photos Exploded assembly views are provided. Although the model MT410G is depicted, the detail equally applies to the MT410 non-GPS equipped version (when the respective CCA is substituted for the one shown). MT410G - View 1 Page 2 of 2 MT410G - View 2

MT410 and MT410G -Tune Up Information The MT410 and MT410G PLB are fixed frequency narrow band transmitters at both VHF (121.5 MHz) and UHF (406.028MHz) frequencies. There is no tune-up procedure involved in the operation of this equipment. The unit is preconfigured prior to sale according to the RTCM 76-2002/SC110-STD document and using a NOAA issued manufacturer number. Further information on the operation of this equipment can be found in the following documents which also form part of this PLB submission: 1. 44043 ‘Technical Description 406MHz COSPAS-SARSAT PLB MT410 Family’ 2. 42436-4fcc, Schematic diagram, which also forms part of the MT410 and MT410G equipment submission. 3. 44042 Block Diagram

REPORT ON Testing of the Standard Communications Pty Ltd MT410/MT410G in accordance with RTCM Paper 76 – 2002 / SC110-STD COMMERCIAL-IN-CONFIDENCE Report No RM615377/03 Issue 2 June 2007 Choose certainty. Add value. TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk ; www.babt.com Report Number RM615377/03 Issue 2 Page 1 of 74 COMMERCIAL-IN-CONFIDENCE REPORT ON Testing of the Standard Communications Pty Ltd MT410/MT410G in accordance with RTCM Paper 76 – 2002 / SC110-STD Report No RM615377/03 Issue 2 June 2007 PREPARED FOR Standard Communications 6 Frank Street Gladesville NSW Australia PREPARED BY R Henley Principle Engineer APPROVED BY M Jenkins Authorised Signatory DATED 18 th June 2007 COMMERCIAL-IN-CONFIDENCE Report Number RM615377/03 Issue 2 Page 2 of 74 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY 1.1 Status.................................................................................................................................. 4 1.2 Brief Summary of Results................................................................................................... 5 1.3 Application Form................................................................................................................. 6 1.4 Modifications....................................................................................................................... 16 1.5 Deviations from the Standard ............................................................................................. 16 1.6 Report Modification Record ................................................................................................ 16 2 TEST DETAILS Table of Test Results.......................................................................................................... 18 2.1 Initial Aliveness Test ........................................................................................................... 22 2.2 Vibration Test ..................................................................................................................... 23 2.3 Ruggedness Test (Bumps)................................................................................................. 30 2.4 Salt Fog Test ...................................................................................................................... 33 2.5 Drop Test (onto hard surface) ............................................................................................ 37 2.6 Leakage and Immersion Test............................................................................................. 38 2.7 Spurious Emissions Test .................................................................................................... 39 2.8 Cospas-Sarsat Type Approval ........................................................................................... 45 2.9 Operational Life and Strobe Light....................................................................................... 46 2.10 Self Test.............................................................................................................................. 56 2.11 Buoyancy Test .................................................................................................................... 59 2.12 Auxiliary Radio-locating device Transmitter ....................................................................... 60 3 TEST EQUIPMENT 3.1 Test Equipment .................................................................................................................. 68 4 DISCLAIMERS AND COPYRIGHT 4.1 Disclaimers and Copyright ................................................................................................. 74 COMMERCIAL-IN-CONFIDENCE Report Number RM615377/03 Issue 2 Page 3 of 74 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY Testing of the Standard Communications Pty Ltd MT410/MT410G In accordance with RTCM Paper 76 – 2002 / SC110-STD COMMERCIAL-IN-CONFIDENCE Report Number RM615377/03 Issue 2 Page 4 of 74 COMMERCIAL-IN-CONFIDENCE 1.1 STATUS Name and Address of Client Standard Communications Pty Ltd 6 Frank Street Gladesville NSW Australia Model Number MT410/MT410G Serial Number TUV Ref OS615377_01 Test Specification/Issue/Date RTCM Paper 76 – 2002 / SC110-STD Number of Items Tested One Security Classification of EUT Unclassified Incoming Release Application Form Date 28 th August 2006 Order Number 84638 Date 21 st June 2006 Start of Test 30 th August 2006 Finish of Test 3 rd May 2007 COMMERCIAL-IN-CONFIDENCE Report Number RM615377/03 Issue 2 Page 5 of 74 COMMERCIAL-IN-CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS A brief summary of the tests carried out to RTCM Paper 76 is shown below. Section RTCM Clause Details Result 2.1 - Initial Aliveness Test Pass 2.2 A3.0 Vibration Test Pass 2.3 A4.0 Ruggedness Test (Bumps) Pass 2.4 A5.0 Salt Fog Test Pass 2.5 A6.0 Drop Test (onto hard surface) Pass 2.6 A7.0 Leakage and Immersion Tests Pass 2.7 A8.0 Spurious Emissions Test Pass 2.8 A9.0 Cospas-Sarsat Type Approval to T.007 See C/S Test Report 2.9 A10.1 Operational Life and Strobe Light Pass 2.10 A10.2 Self Test Pass 2.11 A11.0 Buoyancy (Category 1 only) Pass 2.12 A12.0 Auxiliary Radio-Locating Device Transmitter Test Pass COMMERCIAL-IN-CONFIDENCE Report Number RM615377/03 Issue 2 Page 6 of 74 COMMERCIAL-IN-CONFIDENCE 1.3 APPLICATION FORM – MT410 1.3.1 Beacon Manufacturer and Beacon Model Beacon Manufacturer Standard Communications Pty Ltd Beacon Model MT410 1.3.2 Beacon Type and Operational Configurations Beacon Type Beacon used while: Tick where appropriate EPIRB Floating in water or on deck or in a safety raft PLB On ground and above ground On ground and above ground and floating in water ELT Survival On ground and above ground On ground and above ground and floating in water ELT Auto Fixed Fixed ELT with aircraft external antenna ELT Auto Portable In air…
