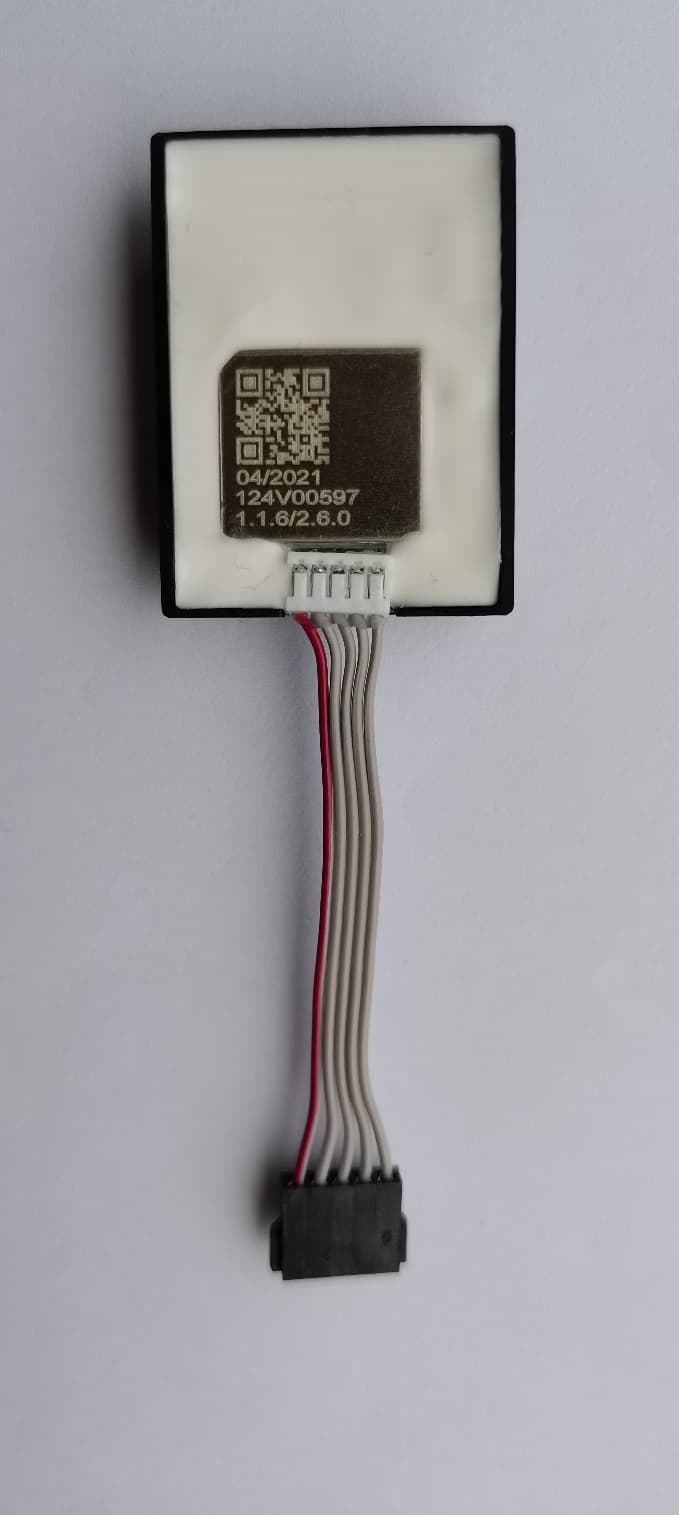

TXTGCY300-42Connectivity Module

Power Tools GCY 300-42 Assembly Integration Manual Page 1 of 7 Document version 1.0 Date (yyyy-mm-dd) 2021-07-29 Original language: EN Document language: EN Originator: PT-BE/PXS Table of Contents 1 Purpose .............................................................................................................................. 2 2 Application for the module ................................................................................................... 2 3 Description of the module ................................................................................................... 2 4 Physical integration into the host product ............................................................................ 3 5 Packaging ........................................................................................................................... 5 6 Regulatory information ........................................................................................................ 6 7 Revision history................................................................................................................... 7 Power Tools GCY 300-42 Assembly Integration Manual Page 2 of 7 Document version 1.0 Date (yyyy-mm-dd) 2021-07-29 Original language: EN Document language: EN Originator: PT-BE/PXS 1 Purpose The purpose of the document to describe the integration of GCY 300-42 into a host product. 2 Application for the module For integration in products of Robert Bosch Power Tools GmbH. 3 Description of the module 3.1 General information Bluetooth ® Low Energy Module GCY 300-42 Article number 1619P15930 Operating temperature -20 °C to +50 °C Storage temperature -20 °C to +70 °C Dimensions 37 x 28 x 10.5 mm Weight according to EPTA-Procedure 01:2014 0.02kg Data Transmission Bluetooth ® Bluetooth ® 4.2 (Low Energy) A) Signal range Max. 30m B) Frequency range used 2400–2483.5 MHz Output power < 1 mW Internal Power Supply Battery Coin cell (3V lithium battery, CR2450) Battery life approx. 5 years External Power Supply Vcc from Tool Electronics 5V Tool Requirements Tool Battery Pack Voltage Max. 42V Connector VCC 5V GND GND BUS 115.2Kbps Baud STB communication VSYS Max. 42V Power Tools GCY 300-42 Assembly Integration Manual Page 3 of 7 Document version 1.0 Date (yyyy-mm-dd) 2021-07-29 Original language: EN Document language: EN Originator: PT-BE/PXS 3.2 Physical dimension Refer to drawing no. 1619P15930 3.3 Performed tests / conditions of use Refer to test plan “Test Plan_GCY 300-42 V1.4_20210323”. 4 Physical integration into the host product 4.1 Installation description A) Connect GCY 300-42 with other electronics cable-to-cable Picture 1: Connection of GCY 300-42 with host product electronic B) Assemble GCY 300-42 in host product housing half where it is fixed by ribs C) When everything is assembled close with the other housing half D) Fix the two housing halves together with screws. Picture 2: Assembly in host product housing WUP 10ms-500ms impulse APP Requirements APP Bosch ToolBox Mobile device (tablet, smartphone) Android 5.1 (and newer) iOS 10 (and newer) HW Version 01.01.06 SW Version 02.06.00 B C GCY 300-42 Cable-to-cable connection Other electronics A Power Tools GCY 300-42 Assembly Integration Manual Page 4 of 7 Document version 1.0 Date (yyyy-mm-dd) 2021-07-29 Original language: EN Document language: EN Originator: PT-BE/PXS 4.2 Installation notes There is no radio connection between GCY 300-42 and another electronic in the host product. The GCY 300-42 will communicated with the host product via the internal BUS line. Concerning the RF performance of GCY 300-42, placing is significant important, please respect following suggestion. A) There should not be any ground directly below the GCY 300-42 or near the antenna part of GCY 300-42. B) Allow no metal in the antenna near field of GCY 300-42, since GCY 300-42 antenna is an omnidirectional antenna, metal part could affect the radiation direction and performance. C) The GCY 300-42 should not be covered completely by a metallic enclosure, if the products has a metallic casing or shield, the casing should not cover the antenna part. D) Please ensure the plastic enclosure (e.g. Power tool housing) is nonmetallic near the antenna. E) Please place GCY 300-42 as far as possible from the motor, since the magnetic field of motor will affect the RF performance and it may cause electromagnetic field blocking. F) The orientation of antenna should be in line with the final product orientation so that radiation is maximized in the desired direction. The polarization and position of the receiving antenna should be taken into account to orient the module in a way that maximum radiation occurs, regarding to the antenna radiation direction, please refer to GCY 300-42 antenna pattern. G) The GCY 300-42 team highly recommend to do the antenna pattern measurement before decide the final placing position. The antenna pattern for whole product will help you to visualize if the chosen direction has maximum RF performance or not. H) Keep any components that may radiated noise or signal within the 2.4GHz to 2.5Ghz frequency band far away from the GCY 300-42. Any noise radiated from e.g. the tool PCBA in this frequency band will degrade the sensitivity of the GCY 300-42. Power Tools GCY 300-42 Assembly Integration Manual Page 5 of 7 Document version 1.0 Date (yyyy-mm-dd) 2021-07-29 Original language: EN Document language: EN Originator: PT-BE/PXS 5 Packaging The module will be delivered in master box, and inner packaging is with ESD protection. Inner Packaging Out Packaging Inner PackagingInner Packaging Picture 0**0 280**18 10^5-10^9 Mode of PackagingOne-way Type of Packagingtray Packmaterial Number1 PET Qty of Parts per Package24 0 380 Gross Weight (kg)0.49 yesRange: Max. Outer Dimensions (mm) (L * W * H) ESD Protection? Material Type Outer PackagingOuter Packaging Picture ** 400**280 Mode of PackagingOne-way Type of Packaging--- Bitte auswählen --- Packmaterial Number T…

Text truncated - open the document above for the full version.

are Trademarks of Robert Bosch GmbH, Germany Robert Bosch Tool Corporation 1800 W. Central Rd. Mount Prospect, IL 60056 www.bosch.us Gerard Pasciak, PT/ESS2-NA Tel +1 224 232-2382, Fax +1 224 232-2984 [email protected] Confidentiality Request FCC ID: TXTGCY300-42 To Whom It May Concern, Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Robert Bosch Tool Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation Robert Bosch Tool Corporation also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of period of 180 days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 June 14, 2021 June 14, 2021 Page 2 of 2 The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely Gerard Pasciak Approvals Engineer Attachment

are Trademarks of Robert Bosch GmbH, Germany Robert Bosch Tool Corporation 1800 W. Central Rd. Mount Prospect, IL 60056 www.bosch.us Gerard Pasciak, PT/ESS2-NA Tel +1 224 232-2382, Fax +1 224 232-2984 [email protected] Agent Authorization Dear Sir or Madam, We, Robert Bosch Tool Corporation, hereby authorize Thomas Ring and Stefan Breu of TÜV SÜD Product Service GmbH, Äußere Frühlingstraße 45, 94315 Straubing, Germany to act as our agent in all matters relating to FCC and IC applications for equipment authorization, including the signing of all documents relating to these matters. Yours sincerely Gerard Pasciak Approvals Engineer TUV SUD America Inc. 10 Centennial Drive Peabody, MA 01960, USA June 02, 2021

are Trademarks of Robert Bosch GmbH, Germany Robert Bosch Tool Corporation 1800 W. Central Rd. Mount Prospect, IL 60056 www.bosch.us Gerard Pasciak, PT/ESS2-NA Tel +1 224 232-2382, Fax +1 224 232-2984 [email protected] Modular Approval Request FCC ID: TXTGCY300-42 To Whom It May Concern, The following attestation addresses the requirements to support modular approval: Modular approval requirement Yes (provide brief statement) No* (a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly YES, shielding case visible from the outside (b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal YES, there is a μCU and related circuit play as a buffer to comply with the requirements (c) The module must contain power supply regulation on the module YES, there is a LDO voltage regulator on the module (d) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be YES, product with PCB antenna Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 June 21, 2021 June 21, 2021 Page 2 of 2 marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) (e) The module must demonstrate compliance in a stand-alone configuration YES, for certification a sample of the module is operating stand-alone via PC configuration (f) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) YES, the FCC ID -is laser printed at shielding -visible on the outside of the module (g) The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements YES, such compliance information will be in the integration manual (h) The module must comply with RF exposure requirements YES, tested/assessed based on these requirements. * Please provide a detailed explanation if the answer is “No.” Yours sincerely Gerard Pasciak Approvals Engineer
