20420 Century Boulevard Germantown, MD 20874 (301) 944-2700 (phone) (301) 944-2701 (fax) Test Report Attestation According to testing performed by CURRENT Technologies, LLC, the CT S4e Meter Module (#220- 0152) is in compliance with the electromagnetic compatibility requirements defined in FCC Rules, Part 15, Subpart G. Details are shown in the accompanying test report. Date: June 1, 2007

20420 Century Boulevard Germantown, MD 20874 (301) 944-2700 (phone) (301) 944-2701 (fax) June 1, 2007 FEDERAL COMMUNICATIONS COMMISSION Office of Engineering & Technology 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality for FCC ID: TY7210-0152 To Whom It May Concern: Pursuant to 47 CFR Sections 0.457 and 0.459, CURRENT Technologies, LLC (“CURRENT”) hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # TY7210-0152. a. Block Diagram b. Internal Photos c. Operational Description d. Installation Instructions e. Notching Instructions The above materials contain trade secrets and proprietary, technical information that CURRENT would customarily guard from competitors. See 47 C.F.R. § 0.457(d)(2). Disclosure or publication of any portion of this confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. The information in these exhibits is not available to the general public. This information, including that in the internal photos, is not disclosed to third parties except under protection of a confidentiality agreement that prohibits further disclosure. Therefore recipients of this information are constrained by contract from showing the equipment or discussing its operation to anyone not approved by CURRENT. Although the underlying equipment is installed outdoors, all installations (as well as equipment removal and in-situ maintenance) are performed only by certified utility company linemen or contractors, and once installed the equipment resides in the “power space” of utility poles where electric distribution lines are hung. Access to this space is very dangerous and under the National Electric Safety Code is strictly limited to qualified utility workers certified to work within such “power space.” Finally, the underlying equipment is serviceable only by CURRENT or a CURRENT- authorized third party. As a result, the design details of the equipment, including internal photos, are hidden from competitors and protected against public disclosure. The equipment design, as shown in the internal photos, was developed by CURRENT at great expense. Disclosure of this information via the FCC website would convey an unfair and unearned competitive advantage to other companies in this market. CURRENT is entitled to have the information protected pursuant to Worthington Compressors v. Costle, 662 F.2d 45, 51 (D.C. Cir. 1981). Sincerely, Jay Birnbaum Vice President & General Counsel (301) 944-2702 (phone) (301) 944-2701 (fax) [email protected]

20420 Century Blvd. Germantown, MD, 20874 Phone 301 944-2700 Fax 301 944-2701 June 1, 2007 CURRENT Technologies, LLC is applying for Part 15 Limited Modular Approval (LMA) from the Federal Communications Commission (FCC) for its CT S4e Meter board. The CT S4e Meter board is part of an Access BPL system. It combines traditional power meter functions with BPL signaling capability over the low voltage wires. Pursuant to FCC document DA 00-1407, CURRENT Technologies is submitting the supporting documentation listed below for Part 15 Unlicensed Modular Transmitter Approval. The numbered requirements of DA 00-1407 are satisfied as shown below: 1) The S4e Meter module requires no additional RF shielding. It simply consists of a circuit board that is added to the L+G S4e electricity meter. 2) The S4e Meter module includes buffered data outputs to ensure no deviations from Part 15 limits can be caused from elements outside the module. 3) The S4e Meter module contains its own power supply, and also supplies regulated power to the electricity meter itself. 4) As the requested approval is for an Access BPL device, the S4e Meter module uses no antenna and the antenna requirements are not applicable. 5) The S4e Meter module is contained wholly within an L+G S4e model electricity meter. Given the in-situ nature of required emissions testing for Access BPL devices, the S4e Meter module was contained within an L+G S4e electricity meter for all testing. LMA approval is requested for the S4e Meter module contained only within this meter. For all testing, the meter was installed as per standard instructions with no ferrites or other special devices intended to limit emissions. 6) The outside of the meter itself is labeled as per the labeling instructions, document number 300-0000-0073, included as part of this certification application. 7) The S4e Meter module complies with all applicable rules when properly installed per meter manufacturer instructions. 8) The S4e Meter module only emits energy as an unintentional emitter and meets the emissions limits for unintentional emitters. These limits are well below all applicable RF exposure guidelines. Enclosing the S4e Meter module within an electricity meter, allows normal electric utility metering operation practices to be used to ensure proper installation of the meter at all times. Electricity meters are always professionally installed and include tamper indicators to ensure that consumers may not remove or otherwise modify the installation. The detailed installation practice is shown in the meter installation procedure included as part of this certification application. Respectively Submitted, Steve Seymour CURRENT Technologies

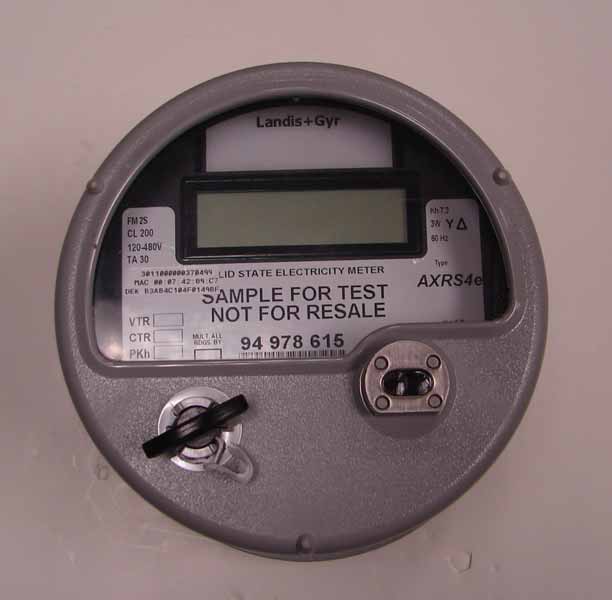

CURRENT Technologies, LLC CT S4e Meter External Photos June 1, 2007 1 Photograph EP-1: External Photo of CT S4e Meter – View of Top Side CURRENT Technologies, LLC CT S4e Meter External Photos June 1, 2007 2 Photograph EP-2: External Photo of CT AMR Meter – View of Bottom Side

Document: 300-0000-0073 ™ Revision: A Date: 6/1/07 Page: 1 of 4 Product Labeling Instruction for CT S4e Meter Document: 300-0000-0073 ™ Revision: A Date: 6/1/07 Page: 2 of 4 1.0 GENERAL 1.1 Location Each label shall be applied to the unit where it is easily visible. Label should be applied so that all vertical and/or horizontal markings can be read in the same direction as other labels on the unit. Figure 1 - Product Label Placement 1.2 Markings All human readable markings must be clear and legible when viewed with normal vision at a distance of twelve inches from eye contact. Document: 300-0000-0073 ™ Revision: A Date: 6/1/07 Page: 3 of 4 2.0 CONTENTS OF THE LABEL The Product Barcode Label shall contain the following information. • SERIAL NUMBER – The serial number (S/N) printed on the Product Label has a length of 16 characters and is to be printed in both barcode and human readable form. • PRODUCT PART NUMBER (ID) – Part Number of the Bill of Material (BOM). • PRODUCT NAME – The name of the product. • MAC ADDRESS - The MAC address. • COUNTRY OF ORIGIN – The country of origin is printed in human readable form only (the country of origin is the location where the final assembly of the IRD is completed). • FCC IDENTIFIER –The FCC identifier is located on the Product Label • FCC INFORMATION – Is located in the installation manual. 3.0 LABEL LAYOUT 3.1 FCC LABEL Since the FCC Label is unable to fit on the unit, then the language shown below is written in the related instruction manual, and just the FCC identifier or unique identifier will be printed on the label, per Part 15 of the FCC Rules which states “When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or. Alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device.” FCC Label information located in the installation manual is as follows: “This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID: TY7210-0152” Document: 300-0000-0073 ™ Revision: A Date: 6/1/07 Page: 4 of 4 3.2 PRODUCT LABEL Figure 4 Sample Product Labels The Product Label (top label) will contain the serial number and bar code, along with the Product ID as shown above. The second label will contain the Product Name, Country of Origin, and the FCC Identifier.

CURRENT Technologies, LLC CT S4e Meter Report of Measurements June 8, 2007 1 CURRENT Technologies, LLC Report of Measurements CT S4e Meter Table of Contents 1. General Information........................................................................................................................ 2 2. Applicable Documents...................................................................................................................... 3 3. Detailed Applicable EMC Requirements and Limits........................................................................ 4 3.1. Conducted Limits...................................................................................................................... 4 3.2. Radiated Limits......................................................................................................................... 4 4. Procedures for Measuring RF Emissions......................................................................................... 5 4.1. AC Power Line Conducted Emissions Measurements.............................................................. 5 4.2. Radiated Emissions Measurements......................................................................................... 6 4.2.1. Radiated Emissions Measurement – 1.705 MHz to 30 MHz................................................ 6 4.2.2. Radiated Emissions Measurement – 30 MHz to 1000 MHz................................................. 7 4.2.2.1. Radiated Emissions Measurement – 30 MHz to 1000 MHz – Stage One............................ 7 4.2.2.2. Radiated Emissions Measurement – 30 MHz to 1000 MHz – Stage Two............................ 8 5. System Test Configuration............................................................................................................... 9 6. Equipment Modifications............................................................................................................... 10 7. Description of the Test Sites.......................................................................................................... 11 8. List of Test Equipment Used.......................................................................................................... 15 9. EMI Test Results............................................................................................................................ 16 9.1. Conducted Emission Data...................................................................................................... 16 9.2. Radiated Emission Data......................................................................................................... 16 CURRENT Technologies, LLC CT S4e Meter Report of Measurements June 8, 2007 2 1. General Information Applicant: CURRENT Technologies, LLC Applicant Address: 20420 Century Boulevard Germantown, MD 20874 301-944-2700 Equipment: CT S4e Meter Equipment Description: The CT S4e Meter is part of an Access BPL system. It combines traditional power meter functions with BPL signaling capability over the low-voltage wires. Test Operator: Steve Seymour Dates of Testing: April 5, 2007 to May 23, 2007 Test Locations: ƒ Washington Laboratories Laboratory (Gaithersburg, Maryland), ƒ Washington Laboratories Open Area Test Site (Gaithersburg, Maryland), ƒ 12109 Sheets Farm Road (North Potomac, Maryland) ƒ 17907 Coachmans Road (Germantown, Maryland) ƒ 12028 Coldstream Drive (Potomac, Maryland) Modes of Operation: ƒ Active: transmitting high-density OFDM signal on Low-Voltage power line (4.4 MHz to 20.8 MHz); Applicable EMC Specification: FCC Part 15 Class of Service: ƒ Class B CURRENT Technologies, LLC CT S4e Meter Report of Measurements June 8, 2007 3 2. Applicable Documents Testing of emissions was performed in accordance with FCC requirements. 2.1. Federal Communication Commission (FCC), code of Federal Regulations 47, FCC docket 89-103, Part 15: Radio Frequency Devices, Subpart G, October 2005. 2.2. Federal Communication Commission (FCC), code of Federal Regulations 47, FCC docket 89-103, Part 15: Radio Frequency Devices, Section 15.109(b) and 15.209, October 2001. 2.3. FCC/OET, “FCC Procedure for Measuring Electromagnetic Emissions for Digital Devices”, TP-5, March 1989. 2.4. Federal Communication Commission (FCC), Report and Order, FCC-04-245, Appendix C, Measurement Guidelines for Broadband Over Power Line (BPL) Devices or Carrier Current Systems (CCS) and Certification Requirements for Access BPL Devices, October 2004. 2.5. International Special committee on Radio Interference (CISPR) Publication 16, First Edition 1977, “CISPR Specification for Radio Interference Measuring, Apparatus and Measurement Methods”. 2.6. American National Standard, “Interim Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz”, ANSI C63.4, 2000. CURRENT Technologies, LLC CT S4e Meter Report of Measurements June 8, 2007 4 3. Detailed Applicable EMC Requirements and Limits The equipment was evaluated to Federal Communications Commission (FCC) requirements. 3.1. Conducted Limits Conducted emissions limits apply to the low-voltage power connector on the CT S4e Meter. Conducted Limit (dBuV) Equipment Operating Mode Applicable Specification Reference Frequency Range (MHz) Quasi-Peak Average Idle FCC 15.107(a) 0.15 to 0.50 0.5 to 5.0 5 to 30 66 to 56 (note 2) 56 60 56 to 46 (note 2) 46 50 Active FCC 15.107(c)(2) 0.535 to 1.705 60 - Notes: 1. Measurements are made across a 50 Ω/μH Line Impedance Stabilization Network (LISN) 2. Decreases with the logarithm of the frequency 3.2. Radiated Limits The following radiated emissions limits apply: Limit of Radiated Emissions Applicable Specification Reference Frequency Range (MHz) Class (μV/m) (dBμV/m) Measurement Distance (m) FCC 15.107(c)(3), 15.109(c), 15.209 1.705 to 30 - 30 29.5 30 30 to 88 B 100 40.0 3 88 to 216 B 150 43.5 3 216 to 960 B 200 46.0 3 FCC 15.109 960 and Above B 500 54.0 3 Notes: 1. The tig…

Text truncated - open the document above for the full version.

CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix A June 1, 2007 A-1 Appendix A – Radiated and Conducted Emissions Measurement Data A.1 Conducted Emissions Data Date: April 5, 2007 EUT: CT S4e Meter (S/N: 3011000000368190) Location: Washington Laboratories Laboratory Mode: Active (transmitting LV-signal, 4.4 MHz to 20.8 MHz), Idle (non-transmitting) Line: Neutral Corrected Amplitude (dBμV) Limit (dBμV) Margin (dB) Equipment Operating Mode Frequency (MHz) QP Ave QP Ave QP Ave 0.871 36.9 26.3 60.0 -- -23.1 -- 1.190 33.9 14.8 60.0 -- -26.1 -- Active 1.389 33.8 4.9 60.0 -- -26.2 -- 0.265 47.0 37.0 61.3 51.3 -14.3 -14.3 0.400 36.2 24.8 57.9 47.9 -21.7 -23.1 19.974 27.8 26.3 60.0 50.0 -32.2 -23.7 Idle 26.000 17.8 6.6 60.0 50.0 -42.2 -43.4 Line: Phase Corrected Amplitude (dBμV) Limit (dBμV) Margin (dB) Equipment Operating Mode Frequency (MHz) QP Ave QP Ave QP Ave 0.874 36.8 27.3 60.0 -- -23.2 -- 1.193 33.9 14.5 60.0 -- -26.1 -- Active 1.382 34.3 4.4 60.0 -- -25.7 -- 0.266 46.0 36.4 61.3 51.3 -15.3 -14.9 0.402 35.8 23.8 57.8 47.8 -22.0 -24.0 19.979 29.6 27.4 60.0 50.0 -30.4 -22.6 Idle 26.610 13.2 4.6 60.0 50.0 -46.8 -45.4 CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix A June 1, 2007 A-2 A.2 Radiated Emissions Data A.2.1 1.705 MHz to 30 MHz Date: May 17, 2007 EUT: CT S4e Meter (S/N: 3011000000370499) Location: 12109 Sheets Farm Road Mode: Active (transmitting LV-signal, 4.4 MHz to 20.8 MHz, using nuttcp command) Frequency (MHz) Antenna Location Antenna Height (m) QP Level Measured on Analyzer (dBμV/m) Measurement Distance (m) Distance Correction Factor to 30m (dB) QP Level Corrected to 30m (dBμV/m) 30m Limit (dBμV/m) Margin (dB) 4.49 FR-A 1.0m 39.8 10.0m -19.08 20.72 29.54 -8.8 6.25 FC 1.0m 37.0 10.0m -19.08 17.92 29.54 -11.6 4.88 FR-B 1.0m 36.7 10.0m -19.08 17.62 29.54 -11.9 15.04 FR-B 1.0m 36.2 10.0m -19.08 17.12 29.54 -12.4 9.18 BC 1.0m 36.0 10.0m -19.08 16.92 29.54 -12.6 5.08 BC 1.0m 35.9 10.0m -19.08 16.82 29.54 -12.7 Date: May 22, 2007 EUT: CT S4e Meter (S/N: 3011000000370499) Location: 12028 Coldstream Drive Mode: Active (transmitting LV-signal, 4.4 MHz to 20.8 MHz, using nuttcp command) Frequency (MHz) Antenna Location Antenna Height (m) QP Level Measured on Analyzer (dBμV/m) Measurement Distance (m) Distance Correction Factor to 30m (dB) QP Level Corrected to 30m (dBμV/m) 30m Limit (dBμV/m) Margin (dB) 6.64 BL 1.0m 48.2 7.0m -25.28 22.92 29.54 -6.6 4.69 FR 1.0m 48.1 7.0m -25.28 22.82 29.54 -6.7 4.49 FR 1.0m 47.4 7.0m -25.28 22.12 29.54 -7.4 4.88 OH1 1.0m 48.5 6.2m -27.39 21.11 29.54 -8.4 6.45 BC 1.0m 46.1 7.0m -25.28 20.82 29.54 -8.7 5.08 FR 1.0m 45.4 7.0m -25.28 20.12 29.54 -9.4 15.82 FL 1.0m 45.2 7.0m -25.28 19.92 29.54 -9.6 Date: May 23, 2007 EUT: CT S4e Meter (S/N: 3011000000370499) Location: 17907 Coachmans Road Mode: Active (transmitting LV-signal, 4.4 MHz to 20.8 MHz, using nuttcp command) Frequency (MHz) Antenna Location Antenna Height (m) QP Level Measured on Analyzer (dBμV/m) Measurement Distance (m) Distance Correction Factor to 30m (dB) QP Level Corrected to 30m (dBμV/m) 30m Limit (dBμV/m) Margin (dB) 13.67 BR 1.0m 48.9 5.0m -31.13 17.77 29.54 -11.8 5.08 FL 1.0m 48.8 5.0m -31.13 17.67 29.54 -11.9 13.48 BR 1.0m 48.8 5.0m -31.13 17.67 29.54 -11.9 5.66 FL 1.0m 47.9 5.0m -31.13 16.77 29.54 -12.8 18.36 FC 1.0m 47.5 5.0m -31.13 16.37 29.54 -13.2 5.86 FC 1.0m 47.4 5.0m -31.13 16.27 29.54 -13.3 6.84 FRK 1.0m 46.3 5.0m -31.13 15.17 29.54 -14.4 7.81 FRK 1.0m 46.1 5.0m -31.13 14.97 29.54 -14.6 6.64 FRK 1.0m 46.0 5.0m -31.13 14.87 29.54 -14.7 17.38 FR 1.0m 46.0 5.0m -31.13 14.87 29.54 -14.7 4.69 FRK 1.0m 45.9 5.0m -31.13 14.77 29.54 -14.8 17.77 FC 1.0m 45.7 5.0m -31.13 14.57 29.54 -15.0 CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix A June 1, 2007 A-3 A.2.2 30 MHz to 1000 MHz Date: April 5, 2007 EUT: CT S4e Meter (S/N: 3011000000368190) Location: Washington Laboratories Open Area Test Site Mode: Active (transmitting LV-signal, 4.4 MHz to 20.8 MHz) Vertical Polarity Frequency (MHz) Antenna Azimuth (degrees) Antenna Height (m) QP Level Measured on Analyzer (dBμV/m) Measurement Distance (m) Distance Correction Factor to 3m (dB) QP Level Corrected to 3m (dBμV/m) 3m Limit (dBμV/m) Margin (dB) 61.268 215 1.0 21.2 3.0 0.0 21.2 40.0 -18.8 85.000 141 1.0 23.9 3.0 0.0 23.9 40.0 -16.1 109.910 90 1.0 26.0 3.0 0.0 26.0 43.5 -17.5 129.900 199 1.0 33.0 3.0 0.0 33.0 43.5 -10.5 189.800 342 1.0 22.8 3.0 0.0 22.8 43.5 -20.7 248.862 324 1.0 22.7 3.0 0.0 22.7 46.0 -23.3 269.742 178 1.0 22.4 3.0 0.0 22.4 46.0 -23.6 371.917 127 2.0 30.0 3.0 0.0 30.0 46.0 -16.0 400.000 62 1.3 35.8 3.0 0.0 35.8 46.0 -10.2 500.000 301 1.0 32.2 3.0 0.0 32.2 46.0 -13.8 800.000 15 1.5 33.5 3.0 0.0 33.5 46.0 -12.5 900.000 262 2.2 34.1 3.0 0.0 34.1 46.0 -11.9 1000.000 5 1.6 35.7 3.0 0.0 35.7 54.0 -18.3 Horizontal Polarity Frequency (MHz) Antenna Azimuth (degrees) Antenna Height (m) QP Level Measured on Analyzer (dBμV/m) Measurement Distance (m) Distance Correction Factor to 3m (dB) QP Level Corrected to 3m (dBμV/m) 3m Limit (dBμV/m) Margin (dB) 61.264 136 1.5 24.2 3.0 0.0 24.2 40.0 -15.8 83.280 318 2.8 26.7 3.0 0.0 26.7 40.0 -13.3 109.900 252 3.3 25.8 3.0 0.0 25.8 43.5 -17.7 129.896 222 2.5 33.8 3.0 0.0 33.8 43.5 -9.7 189.820 232 1.4 30.0 3.0 0.0 30.0 43.5 -13.5 249.760 330 1.0 24.7 3.0 0.0 24.7 46.0 -21.3 269.750 21 1.0 33.8 3.0 0.0 33.8 46.0 -12.2 289.720 40 1.0 34.1 3.0 0.0 34.1 46.0 -11.9 375.000 237 1.0 33.8 3.0 0.0 33.8 46.0 -12.2 400.000 224 1.0 35.1 3.0 0.0 35.1 46.0 -10.9 500.000 274 1.0 35.5 3.0 0.0 35.5 46.0 -10.5 800.000 248 1.0 32.8 3.0 0.0 32.8 46.0 -13.2 900.000 307 1.0 33.9 3.0 0.0 33.9 46.0 -12.1 1000.000 357 1.0 33.7 3.0 0.0 33.7 54.0 -20.3 CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix A June 1, 2007 A-4 Date: May 22, 2008 EUT: CT S4e Meter (S/N: 3011000000370499) Location: 12028 Coldstream Drive Mode: Active (transmitting LV-signal, 4.4 MHz to 20.8 MHz) Vertical Polarity Frequency (MHz) Antenna Azimuth (degrees) Ant…

Text truncated - open the document above for the full version.

CURRENT Technologies, LLC CT S4e Meter Interference Mitigation and Avoidance June 8, 2007 1 CURRENT Technologies, LLC Interference Mitigation and Avoidance CT S4e Meter 1. Notching Overview The charts below demonstrate compliance with paragraph 15.611 (c)(1)(i) of the FCC BPL Report and Order dated October 28, 2004. Interference mitigation is accomplished by removing specified OFDM carriers from the selected meter via a software download commanded remotely over the low voltage power line by CURRENT’s network management system. A simple user interface allows the system operator to specify which carriers will be removed by number according to the table shown in Section 1.4. 1.1 Baseline BPL Meter Output The following chart shows the transmit power spectrum of the AMR meter as-shipped from the factory. CT s4e Meter - Default Output Spectrum -110 -105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 -50 2.55.07.510.012.515.017.520.022.5 Frequency (MHz) Power (dB) CURRENT Technologies, LLC CT S4e Meter Interference Mitigation and Avoidance June 8, 2007 2 1.2 Notched BPL Meter Output The following chart shows the transmit power spectrum of the same device measured above following a remote software change which removed carriers 6 through 12. The notch shows the required 20 dB suppression. CT s4e Meter - Notched Tones 6-12 Output Spectrum -110 -105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 -50 2.55.07.510.012.515.017.520.022.5 Frequency (MHz) Power (dB) CURRENT Technologies, LLC CT S4e Meter Interference Mitigation and Avoidance June 8, 2007 3 1.3 Notched BPL Meter Output following a Power Cycle The following chart shows the transmit power spectrum of the same device measured in sections C.1.1 and C.1.2 of this document following a power cycle in order to demonstrate persistence through a power cycle as required by FCC Part 15.611 section C. CT s4e Meter - Notched Tones 6-12 Output Spectrum - After Power Cycle -110 -105 -100 -95 -90 -85 -80 -75 -70 -65 -60 -55 -50 2.55.07.510.012.515.017.520.022.5 Frequency (MHz) Power (dB)

CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix B June 1, 2007 B-1 Photograph B-1: Conducted Emissions Test and Radiated Emissions Test – Washington Laboratories – Front View CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix B June 1, 2007 B-2 Photograph B-2: Conducted Emissions Test and Radiated Emissions Test – Washington Laboratories – Rear View CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix B June 1, 2007 B-3 Photograph B-3: Radiated Emissions Te st – 12109 Sheets Farm Road – House View CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix B June 1, 2007 B-4 Photograph B-4: Radiated Emissions Te st – 12109 Sheets Farm Road – Meter View CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix B June 1, 2007 B-5 Photograph B-5: Radiated Emissions Te st – 12028 Coldstream Drive - House View CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix B June 1, 2007 B-6 Photograph B-6: Radiated Emissions Test – 12028 Coldstream Drive – Overhead Feeder Line View CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix B June 1, 2007 B-7 Photograph B-7: Radiated Emissions Te st – 12028 Coldstream Drive - Meter View CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix B June 1, 2007 B-8 Photograph B-8: Radiated Emissions Test – 17907 Coachmans Road – House View CURRENT Technologies, LLC CT S4e Meter Report of Measurements – Appendix B June 1, 2007 B-9 Photograph B-9: Radiated Emissions Test – 17907 Coachmans Road – Meter View
