TY76111BCURRENT Bridge URD 6111

20420 Century Boulevard Germantown, MD 20874 (301) 944-2700 (phone) (301) 944-2701 (fax) March 4, 2008 Test Report Attestation I attest that according to testing performed by CURRENT Group, LLC, the CURRENT Bridge URD 6111 is in compliance with the electromagnetic compatibility requirements defined in FCC Rules, Part 15, Subpart G. Details are shown in the accompanying test report. Sincerely, Robert Patrick Manager, Product Verification (301) 944-2994 (phone) (301) 944-2701 (fax) [email protected]

20420 Century Boulevard Germantown, MD 20874 (301) 944-2700 (phone) (301) 944-2701 (fax) March 4, 2008 FEDERAL COMMUNICATIONS COMMISSION Office of Engineering & Technology 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality for FCC ID: TY76111A To Whom It May Concern: Pursuant to 47 CFR Sections 0.457 and 0.459, CURRENT Group, LLC (“CURRENT”) hereby requests non- disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # TY76111A. a. Internal Photos – CURRENT Bridge URD 6111 b. Operational Description – CURRENT Bridge URD 6111 c. CURRENT Group URD 6000 Series Install Guide - FCC The above materials contain trade secrets and proprietary, technical information that CURRENT would customarily guard from competitors. See 47 C.F.R. § 0.457(d)(2). Disclosure or publication of any portion of this confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. The information in these exhibits is not available to the general public. This information, including that in the internal photos, is not disclosed to third parties except under protection of a confidentiality agreement that prohibits further disclosure. Therefore recipients of this information are constrained by contract from showing the equipment or discussing its operation to anyone not approved by CURRENT. Although the underlying equipment is installed outdoors, all installations (as well as equipment removal and in-situ maintenance) are performed only by certified utility company linemen or contractors, and once installed the equipment is protected by tamper indicators to discourage access or modification by consumers or other third parties. Finally, the underlying equipment is serviceable only by CURRENT or a CURRENT-authorized third party. As a result, the design details of the equipment, including internal photos, are hidden from competitors and protected against public disclosure. The equipment design, as shown in the internal photos, was developed by CURRENT at great expense. Disclosure of this information via the FCC website would convey an unfair and unearned competitive advantage to other companies in this market. CURRENT is entitled to have the information protected pursuant to Worthington Compressors v. Costle, 662 F.2d 45, 51 (D.C. Cir. 1981). Sincerely, Jay Birnbaum Vice President & General Counsel (301) 944-2702 (phone) (301) 944-2701 (fax) [email protected]

20420 Century Boulevard Germantown, MD 20874 (301) 944-2700 (phone) (301) 944-2701 (fax) March 6, 2008 FEDERAL COMMUNICATIONS COMMISSION Office of Engineering & Technology 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality for FCC ID: TY76111B To Whom It May Concern: Pursuant to 47 CFR Sections 0.457 and 0.459, CURRENT Group, LLC (“CURRENT”) hereby requests non- disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # TY76111B. a. Block Diagram – CURRENT Bridge URD 6111 b. Internal Photos – CURRENT Bridge URD 6111 c. Operational Description – CURRENT Bridge URD 6111 d. CURRENT Group URD 6000 Series Install Guide - FCC The above materials contain trade secrets and proprietary, technical information that CURRENT would customarily guard from competitors. See 47 C.F.R. § 0.457(d)(2). Disclosure or publication of any portion of this confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. The information in these exhibits is not available to the general public. This information, including that in the internal photos, is not disclosed to third parties except under protection of a confidentiality agreement that prohibits further disclosure. Therefore recipients of this information are constrained by contract from showing the equipment or discussing its operation to anyone not approved by CURRENT. Although the underlying equipment is installed outdoors, all installations (as well as equipment removal and in-situ maintenance) are performed only by certified utility company linemen or contractors, and once installed the equipment is protected by tamper indicators to discourage access or modification by consumers or other third parties. Finally, the underlying equipment is serviceable only by CURRENT or a CURRENT-authorized third party. As a result, the design details of the equipment, including internal photos, are hidden from competitors and protected against public disclosure. The equipment design, as shown in the internal photos, was developed by CURRENT at great expense. Disclosure of this information via the FCC website would convey an unfair and unearned competitive advantage to other companies in this market. CURRENT is entitled to have the information protected pursuant to Worthington Compressors v. Costle, 662 F.2d 45, 51 (D.C. Cir. 1981). Sincerely, Jay Birnbaum Vice President & General Counsel (301) 944-2702 (phone) (301) 944-2701 (fax) [email protected]

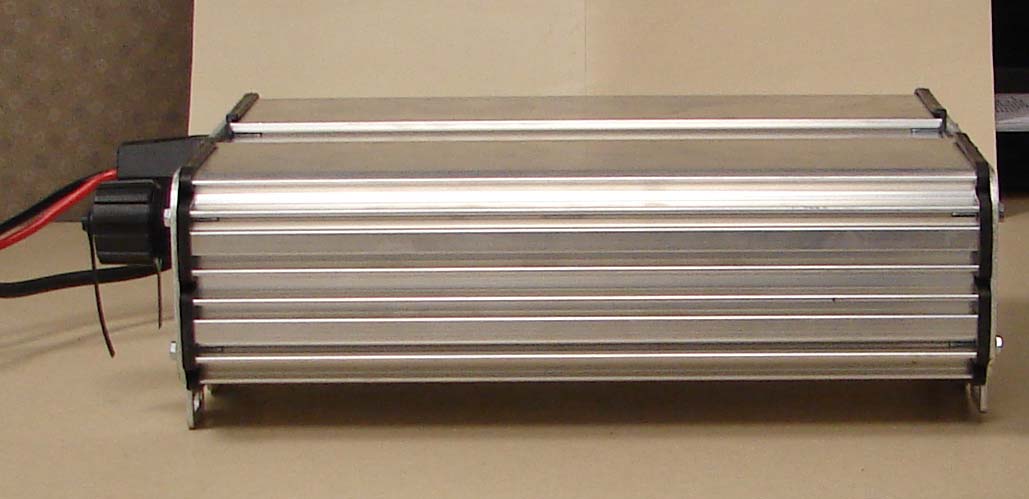

CURRENT Group, LLC CURRENT Bri dge URD 6111 External Photos March 3, 2008 1 Photograph EP-1: External Photo of CURRENT Bridge URD 6111 – View from front side of unit CURRENT Group, LLC CURRENT Bri dge URD 6111 External Photos March 3, 2008 2 Photograph EP-2: External Photo of CURRENT Bridge URD 6111 – View from top of unit CURRENT Group, LLC CURRENT Bri dge URD 6111 External Photos March 3, 2008 3 Photograph EP-3: External Photo of CURRENT Bridge URD 6111 – View from bottom of unit CURRENT Group, LLC CURRENT Bri dge URD 6111 External Photos March 3, 2008 4 Photograph EP-4: External Photo of CURRENT Bridge URD 6111 – View from side of unit CURRENT Group, LLC CURRENT Bri dge URD 6111 External Photos March 3, 2008 5 Photograph EP-5: External Photo of CURRENT Bridge URD 6111 – View from back side of unit

Document: 300-0000-0075 Revision: A Date: 2/25/2008 Page: 1 of 4 Product Labeling Instruction for URD Network Elements Document: 300-0000-0075 Revision: A Date: 2/25/2008 Page: 2 of 4 1.0 General 1.1 Location Each label shall be applied to the unit at the location indicated in Figures 1 and 2 below. The label should be applied so that all vertical and/or horizontal markings can be read in the same direction as other labels on the unit. Figure 1: Location of FCC Label FCC Label Document: 300-0000-0075 Revision: A Date: 2/25/2008 Page: 3 of 4 Figure 2: Location of Product Label 1.2 Markings All human readable markings must be clear and legible when viewed with normal vision at a distance of twelve inches from eye contact. 2.0 ENVIRONMENTAL 2.1 VERIFICATION TEST Verification testing shall consist of rubbing the printed area for a period not to exceed fifteen seconds, with pressure applied with finger, thumb, or common pencil eraser. A minimum thirty seconds cure time, after printing, is required before testing. After testing, the printed area (bars and adjacent spaces) shall be visually examined for clarity and/or distortion. 2.2 LABEL PRINTER The document provides the label specification for the printer with 8 dots/mm, 300 dpi (minimum) print-head resolution. 2.3 BARCODE DARKNESS The darkness (burn temperature) setting should be optimized using barcode verification equipment. 3.0 CONTENTS OF THE LABEL The Product Barcode Label shall contain the following information. • SERIAL NUMBER – The serial number (S/N) printed on the Product Label has a length of 16 characters and is to be printed in both barcode and human readable form. • PRODUCT PART NUMBER (ID) – Part Number of the Bill of Material (BOM). Product Label Document: 300-0000-0075 Revision: A Date: 2/25/2008 Page: 4 of 4 • REVISION LEVEL – The revision level of the BOM. • PRODUCT DESCRIPTION (Name) – The description should be the description on the BOM. • MAC ADDRESS - Where applicable the MAC addresses for North Bound, South Bound and Cable Modem shall be printed on the label. • COUNTRY OF ORIGIN – The country of origin is printed in human readable form only (the country of origin is the location where the final assembly of the IRD is completed). • FCC INFORMATION – Depending on the size of the product label the FCC information can be located on the Product Label or will be a separate label placed on the product. 4.0 LABEL LAYOUT 4.1 FCC LABEL THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: TY76111B 3.5 “ 1.0 “ Figure 3 Sample FCC Label 4.2 PRODUCT LABEL Figure 4: Sample Product Label Depending on what product you are building the information for the Product ID, description serial number, revision level, and MAC Addresses will change.

Network Element Notching Instructions CURRENT Group, LLC Network Element Notching Instructions February 29, 2008 2 1. Notching Overview In order to comply with FCC requirements on mitigation and avoidance measures it is necessary for the administrator to be able to track the notching on any CURRENT Group unit. Depending on the results, the administrator may need to modify the notching settings. Notching scripts reside on the NEC server in the CURRENT Group BPL system. The administrator is able to access and run these scripts by logging in to the NEC server. The administrator then enters the appropriate command to run the pertinent script. The scripts are described in further detail below. 1.1 Get Notching Settings The administrator logs into the NEC server and follows the steps listed below to obtain the notch settings for a particular CURRENT Group unit. The administrator will need the following parameters in order to run the script: -s <sn> = serial number of the unit. This is used to calculate the SNMP pass phrase. -i <ip> = IP address of the unit from which you want the current settings. 1. At the Unix command line enter: get_notching –s <sn> -I <ip> The executed script will return the notching values currently set on the selected unit. The output is displayed as a list of 84 characters, and whether or not the carrier is currently enabled, where 1 = enabled, and 0 = disabled. 1.2 Set Notching Settings The administrator logs into the NEC server and follows the steps listed below to set the notching settings for a particular CURRENT Group unit. The administrator will need the following parameters in order to run the script: -s <sn> = serial number of the unit. This is used to calculate the SNMP pass phrase. -i <ip> = IP address of the unit to be modified. -C <notchedcarriers> = comma separated list of carriers. Carriers are listed as 1 through 84. 1. At the Unix command line enter: set_notching –s <sn> -i <ip> -C <comma separated list of carriers to disable> The executed script will set all carriers to be enabled except for the HAM band and any other carriers specified. If this script is run without specifying any carriers, then the notching is set to the default setting with only the HAM band set to be disabled. CURRENT Group, LLC Network Element Notching Instructions February 29, 2008 3 1.3 Calculating The Carrier to Notch The correspondence between carrier number and carrier frequency is shown for the low voltage domain in the table below. Carrier Number Low Voltage Center Frequency (MHz) 1 4.4922 2 4.6875 3 4.8828 4 5.0781 5 5.2734 6 5.4688 7 5.6641 8 5.8594 9 6.0547 10 6.2500 11 6.4453 12 6.6406 13 6.8359 14 7.0313 15 7.2266 16 7.4219 17 7.6172 18 7.8125 19 8.0078 20 8.2031 21 8.3984 22 8.5938 23 8.7891 24 8.9844 25 9.1797 26 9.3750 27 9.5703 28 9.7656 29 9.9609 30 10.1563 31 10.3516 32 10.5469 33 10.7422 34 10.9375 35 11.1381 36 11.3281 37 11.5234 38 11.7188 39 11.9141 40 12.1094 41 12.3047 42 12.5000 Continued Æ CURRENT Group, LLC Network Element Notching Instructions February 29, 2008 4 Carrier Number Low Voltage Center Frequency (MHz) 43 12.6953 44 12.8906 45 13.0859 46 13.2813 47 13.4766 48 13.6719 49 13.8672 50 14.0625 51 14.2578 52 14.4531 53 14.6844 54 14.8438 55 15.0391 56 15.2344 57 15.4297 58 15.6250 59 15.8203 60 16.0156 61 16.2109 62 16.4063 63 16.6016 64 16.7969 65 16.9922 66 17.1875 67 17.3828 68 17.5781 69 17.7734 70 17.9688 71 18.1641 72 18.3594 73 18.5547 74 18.7500 75 18.9453 76 19.1406 77 19.3359 78 19.5313 79 19.7266 80 19.9219 81 20.1172 82 20.3125 83 20.5078 84 20.7031 CURRENT Group, LLC Network Element Notching Instructions February 29, 2008 5 1.4 Calculating Notching Depth To create the appropriate notching depth, it may be necessary to notch more than one carrier. To create a notch >10 dB deep, only a single carrier need be notched. To create a notch >20 dB deep, it is necessary to notch 6 additional carrier on either side of the center frequency of interest. Example: In order to create a notch of >20 dB at a frequency of 5.86 MHz, it is necessary to notch carriers 2-7 and 9-14 in addition to carrier 8. To achieve this, the following command would be entered at the NEC command line interface: set_notching –s <sn> -i <ip> -C 2,3,4,5,6,7,8,9,10,11,12,13,14

Document: 300-0000-0075 Revision: A Date: 2/25/2008 Page: 1 of 4 Product Labeling Instruction for URD Network Elements Document: 300-0000-0075 Revision: A Date: 2/25/2008 Page: 2 of 4 1.0 General 1.1 Location Each label shall be applied to the unit at the location indicated in Figures 1 and 2 below. The label should be applied so that all vertical and/or horizontal markings can be read in the same direction as other labels on the unit. Figure 1: Location of FCC Label FCC Label Document: 300-0000-0075 Revision: A Date: 2/25/2008 Page: 3 of 4 Figure 2: Location of Product Label 1.2 Markings All human readable markings must be clear and legible when viewed with normal vision at a distance of twelve inches from eye contact. 2.0 ENVIRONMENTAL 2.1 VERIFICATION TEST Verification testing shall consist of rubbing the printed area for a period not to exceed fifteen seconds, with pressure applied with finger, thumb, or common pencil eraser. A minimum thirty seconds cure time, after printing, is required before testing. After testing, the printed area (bars and adjacent spaces) shall be visually examined for clarity and/or distortion. 2.2 LABEL PRINTER The document provides the label specification for the printer with 8 dots/mm, 300 dpi (minimum) print-head resolution. 2.3 BARCODE DARKNESS The darkness (burn temperature) setting should be optimized using barcode verification equipment. 3.0 CONTENTS OF THE LABEL The Product Barcode Label shall contain the following information. • SERIAL NUMBER – The serial number (S/N) printed on the Product Label has a length of 16 characters and is to be printed in both barcode and human readable form. • PRODUCT PART NUMBER (ID) – Part Number of the Bill of Material (BOM). Product Label Document: 300-0000-0075 Revision: A Date: 2/25/2008 Page: 4 of 4 • REVISION LEVEL – The revision level of the BOM. • PRODUCT DESCRIPTION (Name) – The description should be the description on the BOM. • MAC ADDRESS - Where applicable the MAC addresses for North Bound, South Bound and Cable Modem shall be printed on the label. • COUNTRY OF ORIGIN – The country of origin is printed in human readable form only (the country of origin is the location where the final assembly of the IRD is completed). • FCC INFORMATION – Depending on the size of the product label the FCC information can be located on the Product Label or will be a separate label placed on the product. 4.0 LABEL LAYOUT 4.1 FCC LABEL THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: TY76111A 3.5 “ 1.0 “ Figure 3 Sample FCC Label 4.2 PRODUCT LABEL Figure 4: Sample Product Label Depending on what product you are building the information for the Product ID, description serial number, revision level, and MAC Addresses will change.

CURRENT Group, LLC CURRENT Bridge URD 6111 Report of Measurements March 4, 2008 1 CURRENT Group, LLC Report of Measurements CURRENT Bridge URD 6111 Table of Contents 1. General Information ............................................................................................................................... 2 2. Applicable Documents ............................................................................................................................ 3 3. Detailed Applicable EMC Requirements and Limits..................................................................................... 4 3.1 Conducted Limits ....................................................................................................................... 4 3.2 Radiated Limits .......................................................................................................................... 4 4. Procedures for Measuring RF Emissions ................................................................................................... 5 4.1 AC Power Line Conducted Emissions Measurements ...................................................................... 5 4.2 Radiated Emissions Measurements............................................................................................... 5 5. System Test Configuration ...................................................................................................................... 8 6. Equipment Modifications......................................................................................................................... 8 7. Description of the Test Sites ................................................................................................................... 9 8. List of Test Equipment Used ................................................................................................................. 16 9. EMI Test Results .................................................................................................................................. 17 9.1 Conducted Emission Data.......................................................................................................... 17 9.2 Radiated Emission Data ............................................................................................................ 17 CURRENT Group, LLC CURRENT Bridge URD 6111 Report of Measurements March 4, 2008 2 1. General Information Applicant: CURRENT Group, LLC Applicant Address: 20420 Century Boulevard Germantown, MD 20874 301-944-2700 Equipment: CURRENT Bridge URD 6111 Equipment Description: The CURRENT Bridge URD 6111 is part of an Access BPL system. It operates on underground public utility power lines over low-voltage and medium- voltage wires. The CURRENT Bridge URD 6111 is the device that routes and controls data traffic between the low- and medium-voltage lines. The CURRENT Bridge serves as a gateway to all customers powered from the same distribution transformer as itself. It communicates over the medium-voltage lines via the CURRENT Coupler Assembly URD 6300 and over the low-voltage system by a standard 240V two-wire connection. Test Operator: Robert Patrick Dates of Testing: February 7, 2008 to February 25, 2008 Test Locations: ƒ 8608 Aqueduct Road – C-7053 (Potomac, Maryland), ƒ 12141 McDonald Chapel – A-9204 (Gaithersburg, Maryland) ƒ 12157 McDonald Chapel – A-7042 (Gaithersburg, Maryland) ƒ Washington Laboratories Open Area Test Site (Gaithersburg, Maryland) Modes of Operation: ƒ LV: transmitting a high-density OFDM signal on the low volltage power line in the frequency range (4.4 MHz to 20.8 MHz) by galvanically connecting directly to it. ƒ MV: transmitting a high-density OFDM signal on the underground medium voltage cable in the same frequency range using the CURRENT Coupler Assembly URD 6300. Applicable EMC Specification: FCC Part 15, Subpart G Class of Service: ƒ Class A CURRENT Group, LLC CURRENT Bridge URD 6111 Report of Measurements March 4, 2008 3 2. Applicable Documents Testing of emissions was performed in accordance with FCC requirements. 2.1 Federal Communication Commission (FCC), code of Federal Regulations 47, FCC docket 89-103, Part 15: Radio Frequency Devices, Subpart G, October 2005. 2.2 Federal Communication Commission (FCC), code of Federal Regulations 47, FCC docket 89-103, Part 15: Radio Frequency Devices, Section 15.109(b) and 15.209, October 2001. 2.3 FCC/OET, “FCC Procedure for Measuring Electromagnetic Emissions for Digital Devices”, TP-5, March 1989. 2.4 Federal Communication Commission (FCC), Report and Order, FCC-04-245, Appendix C, Measurement Guidelines for Broadband Over Power Line (BPL) Devices or Carrier Current Systems (CCS) and Certification Requirements for Access BPL Devices, October 2004. 2.5 International Special committee on Radio Interference (CISPR) Publication 16, First Edition 1977, “CISPR Specification for Radio Interference Measuring, Apparatus and Measurement Methods”. 2.6 American National Standard, “Interim Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz”, ANSI C63.4, 2000. CURRENT Group, LLC CURRENT Bridge URD 6111 Report of Measurements March 4, 2008 4 3. Detailed Applicable EMC Requirements and Limits The equipment was evaluated to Federal Communications Commission (FCC) requirements. 3.1 Conducted Limits Conducted emissions limits do not apply to this Access BPL equipment. 3.2 Radiated Limits The following radiated emissions limits apply: Limit of Radiated Emissions Applicable Specification Reference Frequency Range (MHz) Class (μV/m) (dBμV/m) Measurement Distance (m) FCC 15.107(c)(3), 15.109(c), 15.209 1.705 to 30 - 30 29.5 30 30 to 88 A 90 39.1 10 88 to 216 A 150 43.5 10 216 to 960 A 210 46.4 10 FCC 15.109 960 and Above A 300 49.5 10 Notes: 1. The tighter limit shall apply at the edge between two frequency bands. 2. Distance refers to the distance in meters from measur…

Text truncated - open the document above for the full version.

CURRENT Group, LLC CURRENT Bridge URD 6111 Report of Measurements – Appendix A March 4, 2008 A-1 Appendix A – Radiated and Conducted Emissions Measurement Data A.1 Conducted Emissions Data Conducted emissions limits do not apply to this Access BPL equipment A.2 Radiated Emissions Data A.2.1 1.705 MHz to 30 MHz Date: February 7, 2008 EUT: CURRENT Bridge URD 6111 (S/N: 13018AD900433074) Location: CURRENT Potomac Test Area – C-7053 Mode: LV and MV Active (transmitting LV-signal, 4.4 MHz to 20.8 MHz) Frequency Antenna Location Antenna Height (m) QP Level Measured on Analyzer Measurement Distance Distance Correction Factor to 30m QP Level Corrected to 30m (dBμV/m) 30m Limit (dBμV/m) Margin (dB) (MHz) (dBμV/m)(m) (dB) 6.43 0° 1 64.33 3 -40.0 24.33 29.5 -5.17 6.63 0° 1 64.08 3 -40.0 24.08 29.5 -5.42 4.48 0° 1 59.22 3 -40.0 19.22 29.5 -10.28 6.23 0° 1 62.30 3 -40.0 22.30 29.5 -7.20 4.48 22.5° 1 61.52 3 -40.0 21.52 29.5 -7.98 6.63 22.5° 1 65.16 3 -40.0 25.16 29.5 -4.34 11.74 22.5° 1 59.12 3 -40.0 19.12 29.5 -10.38 11.30 22.5° 1 59.24 3 -40.0 19.24 29.5 -10.26 6.42 45° 1 64.16 3 -40.0 24.16 29.5 -5.34 4.48 45° 1 61.73 3 -40.0 21.73 29.5 -7.77 11.51 45° 1 60.59 3 -40.0 20.59 29.5 -8.91 11.90 45° 1 55.69 3 -40.0 15.69 29.5 -13.81 8.97 67.5° 1 63.79 3 -40.0 23.79 29.5 -5.71 4.67 67.5° 1 60.23 3 -40.0 20.23 29.5 -9.27 11.51 67.5° 1 62.81 3 -40.0 22.81 29.5 -6.69 11.90 67.5° 1 53.83 3 -40.0 13.83 29.5 -15.67 6.62 90° 1 65.61 3 -40.0 25.61 29.5 -3.89 6.26 90° 1 64.04 3 -40.0 24.04 29.5 -5.46 4.48 90° 1 60.69 3 -40.0 20.69 29.5 -8.81 9.36 90° 1 59.48 3 -40.0 19.48 29.5 -10.02 6.07 112.5° 1 54.91 3 -40.0 14.91 29.5 -14.59 6.46 112.5° 1 54.98 3 -40.0 14.98 29.5 -14.52 19.15 112.5° 1 51.60 3 -40.0 11.60 29.5 -17.90 19.53 112.5° 1 50.50 3 -40.0 10.50 29.5 -19.00 6.07 135° 1 60.23 3 -40.0 20.23 29.5 -9.27 5.65 135° 1 58.22 3 -40.0 18.22 29.5 -11.28 6.62 135° 1 59.24 3 -40.0 19.24 29.5 -10.26 4.50 135° 1 63.04 3 -40.0 23.04 29.5 -6.46 9.60 157.5° 1 57.68 3 -40.0 17.68 29.5 -11.82 10.53 157.5° 1 55.40 3 -40.0 15.40 29.5 -14.10 10.76 157.5° 1 55.49 3 -40.0 15.49 29.5 -14.01 16.60 157.5° 1 53.73 3 -40.0 13.73 29.5 -15.77 CURRENT Group, LLC CURRENT Bridge URD 6111 Report of Measurements – Appendix A March 4, 2008 A-2 Frequency Antenna Location Antenna Height (m) QP Level Measured on Analyzer Measurement Distance Distance Correction Factor to 30m QP Level Corrected to 30m (dBμV/m) 30m Limit (dBμV/m) Margin (dB) 9.80 180° 1 54.35 3 -40.0 14.35 29.5 -15.15 8.98 180° 1 55.22 3 -40.0 15.22 29.5 -14.28 16.40 180° 1 52.16 3 -40.0 12.16 29.5 -17.34 17.00 180° 1 53.37 3 -40.0 13.37 29.5 -16.13 9.38 202.5° 1 51.67 3 -40.0 11.67 29.5 -17.83 9.80 202.5° 1 52.45 3 -40.0 12.45 29.5 -17.05 16.80 202.5° 1 53.11 3 -40.0 13.11 29.5 -16.39 17.37 202.5° 1 50.58 3 -40.0 10.58 29.5 -18.92 9.81 225° 1 50.84 3 -40.0 10.84 29.5 -18.66 9.61 225° 1 51.66 3 -40.0 11.66 29.5 -17.84 18.96 225° 1 56.78 3 -40.0 16.78 29.5 -12.72 16.60 225° 1 54.63 3 -40.0 14.63 29.5 -14.87 9.38 247.5° 1 47.83 3 -40.0 7.83 29.5 -21.67 9.98 247.5° 1 46.63 3 -40.0 6.63 29.5 -22.87 8.81 247.5° 1 48.17 3 -40.0 8.17 29.5 -21.33 19.10 247.5° 1 55.86 3 -40.0 15.86 29.5 -13.64 9.38 270° 1 47.83 3 -40.0 7.83 29.5 -21.67 9.98 270° 1 46.63 3 -40.0 6.63 29.5 -22.87 8.81 270° 1 48.17 3 -40.0 8.17 29.5 -21.33 19.10 270° 1 55.86 3 -40.0 15.86 29.5 -13.64 9.38 292.5° 1 47.83 3 -40.0 7.83 29.5 -21.67 9.98 292.5° 1 46.63 3 -40.0 6.63 29.5 -22.87 8.81 292.5° 1 48.17 3 -40.0 8.17 29.5 -21.33 19.10 292.5° 1 55.86 3 -40.0 15.86 29.5 -13.64 9.38 315° 1 47.83 3 -40.0 7.83 29.5 -21.67 9.98 315° 1 46.63 3 -40.0 6.63 29.5 -22.87 8.81 315° 1 48.17 3 -40.0 8.17 29.5 -21.33 19.10 315° 1 55.86 3 -40.0 15.86 29.5 -13.64 9.38 337.5° 1 47.83 3 -40.0 7.83 29.5 -21.67 9.98 337.5° 1 46.63 3 -40.0 6.63 29.5 -22.87 8.81 337.5° 1 48.17 3 -40.0 8.17 29.5 -21.33 19.10 337.5° 1 55.86 3 -40.0 15.86 29.5 -13.64 CURRENT Group, LLC CURRENT Bridge URD 6111 Report of Measurements – Appendix A March 4, 2008 A-3 Date: February 21, 2008 EUT: CURRENT Bridge URD 6111 (S/N: 13018AD900433074) Location: CURRENT Gaithersburg Test Area – A-9204 Mode: LV Active (transmitting LV-signal, 4.4 MHz to 20.8 MHz) Frequency Antenna Location Antenna Height (m) QP Level Measured on Analyzer Measurement Distance Distance Correction Factor to 30m QP Level Corrected to 30m (dBμV/m) 30m Limit (dBμV/m) Margin (dB) (MHz) (dBμV/m)(m) (dB) 19.16 0° 1 58.39 3 -40.0 18.39 29.5 -11.11 20.70 0° 1 55.87 3 -40.0 15.87 29.5 -13.63 19.52 0° 1 56.61 3 -40.0 16.61 29.5 -12.89 11.57 0° 1 51.34 3 -40.0 11.34 29.5 -18.16 19.15 22.5° 1 56.67 3 -40.0 16.67 29.5 -12.83 19.30 22.5° 1 55.97 3 -40.0 15.97 29.5 -13.53 18.96 22.5° 1 55.99 3 -40.0 15.99 29.5 -13.51 11.77 22.5° 1 43.83 3 -40.0 3.83 29.5 -25.67 18.96 45° 1 55.37 3 -40.0 15.37 29.5 -14.13 19.15 45° 1 55.69 3 -40.0 15.69 29.5 -13.81 13.80 45° 1 43.77 3 -40.0 3.77 29.5 -25.73 11.77 45° 1 40.03 3 -40.0 0.03 29.5 -29.47 9.63 67.5° 1 47.99 3 -40.0 7.99 29.5 -21.51 8.20 67.5° 1 48.92 3 -40.0 8.92 29.5 -20.58 19.15 67.5° 1 55.31 3 -40.0 15.31 29.5 -14.19 13.63 67.5° 1 47.85 3 -40.0 7.85 29.5 -21.65 8.41 90° 1 44.19 3 -40.0 4.19 29.5 -25.31 9.80 90° 1 49.48 3 -40.0 9.48 29.5 -20.02 19.33 90° 1 54.58 3 -40.0 14.58 29.5 -14.92 19.52 90° 1 53.52 3 -40.0 13.52 29.5 -15.98 4.70 112.5° 1 47.02 3 -40.0 7.02 29.5 -22.48 6.63 112.5° 1 46.67 3 -40.0 6.67 29.5 -22.83 13.68 112.5° 1 46.78 3 -40.0 6.78 29.5 -22.72 19.33 112.5° 1 52.74 3 -40.0 12.74 29.5 -16.76 6.25 135° 1 46.78 3 -40.0 6.78 29.5 -22.72 6.63 135° 1 46.67 3 -40.0 6.67 29.5 -22.83 13.67 135° 1 47.49 3 -40.0 7.49 29.5 -22.01 17.01 135° 1 47.56 3 -40.0 7.56 29.5 -21.94 6.23 157.5° 1 47.01 3 -40.0 7.01 29.5 -22.49 4.90 157.5° 1 45.13 3 -40.0 5.13 29.5 -24.37 13.68 157.5° 1 47.56 3 -40.0 7.56 29.5 -21.94 16.98 157.5° 1 47.60 3 -40.0 7.60 29.5 -21.90 4.70 180° 1 50.30 3 -40.0 10.30 29.5 -19.20 11.77 180° 1 44.54 3 -40.0 4.54 29.5 -24.96 18.96 180° 1 51.90 3 -40.0 11.90 29.5 -17.60 18.56 180° 1 46.95 3 -40.0 6.95 29.5 -22.55 9.36 202.5° 1 51.09 3 -40.0 11.09 2…

Text truncated - open the document above for the full version.

CURRENT Group, LLC CURRENT Bridge URD 611 1 Report of Measurements – Appendix B March 4, 2008 B-1 Photograph B-1: Test Site Photo – CURRENT Group Potomac Test Area – C-7053 (external) CURRENT Group, LLC CURRENT Bridge URD 611 1 Report of Measurements – Appendix B March 4, 2008 B-2 Photograph B-2: Test Site Photo – Grou p Potomac Test Area – C-7053 (open case) CURRENT Group, LLC CURRENT Bridge URD 611 1 Report of Measurements – Appendix B March 4, 2008 B-3 Photograph B-3: Test Site Photo – CURRENT Gr oup Gaithersburg Test Area – A-9204 (external) CURRENT Group, LLC CURRENT Bridge URD 611 1 Report of Measurements – Appendix B March 4, 2008 B-4 Photograph B-4: Test Site Photo – CURRENT Gr oup Gaithersburg Test Area – A-9204 (open case) NOTE: This equipment was not utilized for the testing. CURRENT Group, LLC CURRENT Bridge URD 611 1 Report of Measurements – Appendix B March 4, 2008 B-5 Photograph B-5: Test Site Photo – CURRENT Gr oup Gaithersburg Test Area – A-7042 (external) CURRENT Group, LLC CURRENT Bridge URD 611 1 Report of Measurements – Appendix B March 4, 2008 B-6 Photograph B-6: Test Site Photo – CURRENT Gr oup Gaithersburg Test Area – A-7042 (open case)

CURRENT Group, LLC CURRENT Bridge URD 611 1 Report of Measurements – Appendix B March 4, 2008 B-1 Photograph B-1: Test Site Photo – CURRENT Group Potomac Test Area – C-7053 (external) CURRE…
