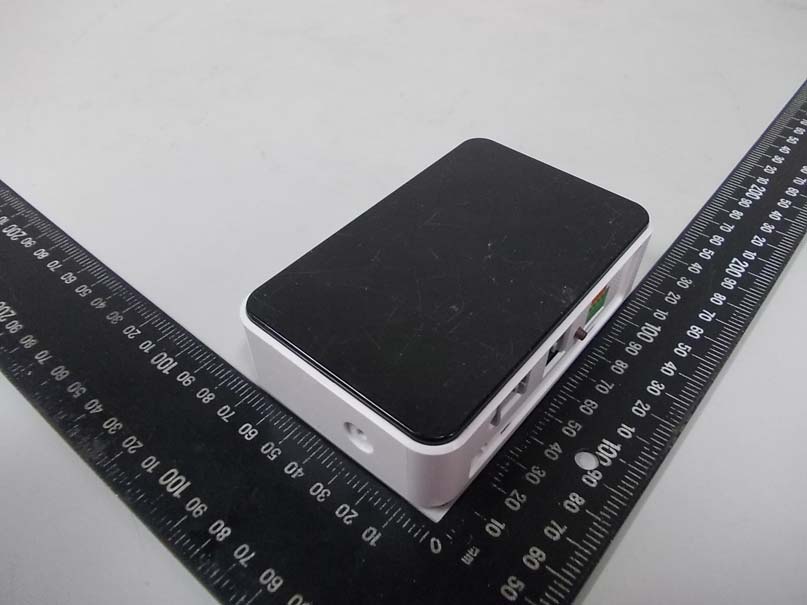

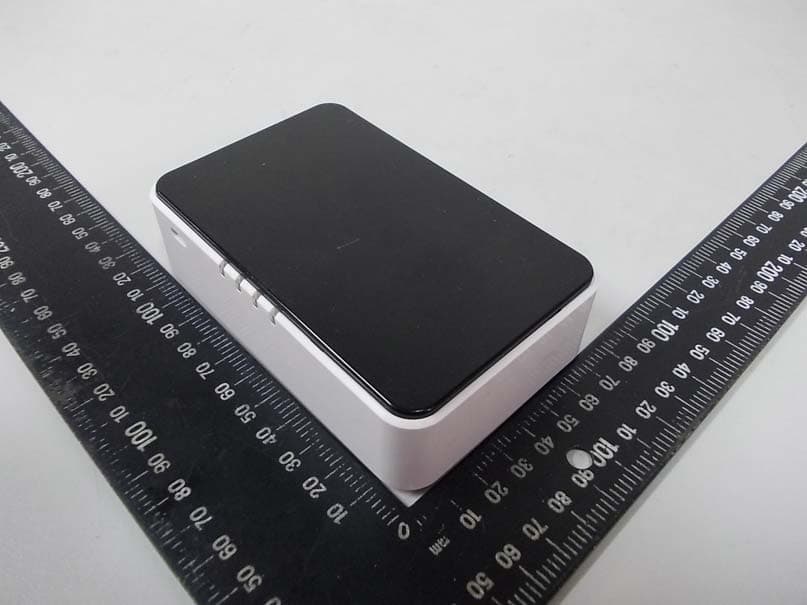

TYLLS10Home Management Gateway

L L S S - - 1 1 0 0 T T h h e e M M a a g g i i c c B B o o x x HOME MANAGEMENT GATEWAY OPERATION MANUAL V2.01 Table of Contents Page INTRODUCTION 1, BASE UNIT 1.1 Display 1.2 Rear Panel 1.3 Mounting Bracket 1.4 Beeps & LED indication 1.5 Device Numbering Plan 2, System Connection 2.1 I/O Terminals 2.2 Home Automation Control Interface 2.3 RJ-45 Ethernet Interface 2.4 Power Input 2.5 Micro USB Interface 3, Working Scenario: 3.1 Works with HyperSecureLink software through USB port for local access. 3.2 Access the LS-10 by HyperSecureLink software or Mobile App. from local Intranet. 3.3 Works with HyperSecureLink software or Mobile App. from Internet. 3.4 Connects to a Cloud Server to Get Full Home Management Service from the Provider. 3.5 Connects to a Central Monitor Station to Get Alarm Service from the Service Provider. 4, Installation 4.1 Device Enroll 4.2 Placement of the Base Unit and Sensors 5, OPERATION MODE 5.1 AWAY Mode 5.2 HOME Mode 5.3 DISARM/ MONITOR Mode 5.4 Automatically Operation scheduling set by HyperSecureLink software. 5.5 Reaction of LS-10 to Burglar Alarm 5.6 Reaction of LS-10 to Other Alarms except Burglar Alarm 6. SYSTEM CHECK 6.1 Event Log 6.2 Device Status 7. HOME AUTOMATION CONTROL 8. CONTROL AND PARAMETER SETTINGS 8.1Control 8.2 Settings for Timers 8.3 Setting for Beep & Siren 8.4 Device Status Settings 8.5 Special Settings for Environment Sensor 8.6 Wire Sensor Input Settings 8.7 Switch On When Triggered 8.8 Switch Settings 8.9 MISC. Settings 8.10 CMS Settings 8.11 Scheduling SPECIFICATIONS APPENDIX A. I/O Terminals B: Partial Zone Control C: How to Configure the Internet Parameters D: Switch Action Table for Door Mag. and PIR E: Load Factory Default of Internet Adaptor INTRODUCTION Thank you for purchasing the LS-10 Web Based Home Management Gateway. By adopting modern embedded system and Cloud Server technologies, the LS-10 is designed to provide all the most advanced features to meet your home management requirements through Internet. The LS-10 not only provides you a secure life but also a convenient living environment that allows you to control as many as 15 programmable switches through a cloud server, mobile App. or a PC by using HyperSecureLink software from all over the world. With different environmental sensors, the LS-10 also plays as an environmental monitor center to collect all the environmental data and control corresponding appliances to save your energy consumption automatically. As your requirements grow and you become more familiar with the system, you can expand and accessorize the LS-10 to meet your specific needs. Simply call your local dealer; trained professionals can answer any questions you have regarding additional accessories. Main Features:  Low cost high performance wireless Smart Home Management Gateway with security, environment monitoring, automation control and energy saving suitable for Web Based Service.  Setting, controlling and download/ upload system parameters and events through USB (optional) or Ethernet interface, all commands are compatible to LS-30.  Report any activity through Internet in real time with fast response and saving user’s communication expanses.  Built-in detailed 512-event log.  4 LED display for Away/ Home/ Disarm and Data transmission indication.  Can accommodate 288 sensors and control 15 programmable switches.  RF signal quality monitoring and jamming detection.  Robust multi-million RF coding and special transmission timing design to avoid interferences.  Responds to panic, burglary, fire, medical alarm and environmental hazards.  Burglar zones with supervised sensors, door and window open/ close detection.  Special Monitoring mode to record all the activities in the protected area without triggering the alarm.  Inactivity monitoring to take care of the elderly or physically challenged at home.  9 independent partial arm zones, one LS-10 can operate as 10 independent burglar alarm systems.  Scheduled switch operation for a whole week automatically.  8 switch and operation scenes controlled by Keypad.  External wire sensor input and alarm siren control output. 1. BASE UNIT 1.1 Display The Blue LED flashes when there is data sending out from the LS-10. Three LEDs in green, yellow and red colors represent the system operation mode and alarm/ warning status as listed in the following table. State LED Red Yellow Green DISARM OFF OFF Flash HOME OFF Flash OFF AWAY Flash OFF OFF DISARM with Warning Message OFF ON Flash DISARM with Alarm Message ON OFF Flash DISARM with Warning & Alarm Message ON ON Flash HOME with Warning Message OFF ON OFF HOME with Alarm Message ON Flash OFF HOME or AWAY with Warning & Alarm Message ON ON OFF AWAY with Warning Message Flash ON OFF AWAY with Alarm Message ON OFF OFF 1.2 Rear Panel: Clear/Enroll Button: Clear LED Status: Press the button for about 0.2 sec. to clear the alarm and warning LED status (with a long beep). The LED status also can be cleared from HyperSecureLink command. Device Enroll: Press the button for about 3 sec. the LS-10 enters into Enroll Device State for 30 seconds. (Buzzer beeps and Green, Yellow, Red LEDs blink) Please refer to Section 4.1. 1.3 Mounting Bracket: LS-10 Base Unit can sit on a stand vertically or put in a wall mounting bracket as below. Base Unit Stand Wall Mounting Bracket (option) 1.4 Beeps & LED indication Status Beep LED G Y R Remark PWR On (OK) Beeps on operation mode B Disarm 1L B Monitor 1L B Home 2S B Away 4S B Clear (OK) 1L Entry Delay M-M-M--( >10sec.) S-S-S--- (< 10sec.) Exit Delay M-M-M--( >10sec.) S-S-S--- (< 10sec.) Open Detect 5sec. continuous O Alarm delay M-M-M--- (30sec.) O Panic alarm (Siren On) L-L-L--- (as Alarm Action Time) O Burglar alarm (Siren On) L-L-L--- (as Alarm Action Time) O Fire alarm L-L-L--- (as Alarm Action Time) O Medical alarm L-L-L--- (as Alarm Action Time) O Environment sensor alarm L-L-L--- (as Alarm Action Time) O Device Enroll M-M-M--- (30sec. or till success) B B B Device Enrol…
