TYLLS30NAlarm Base Unit

L L i i f f e e S S O O S S THE ADVANCED SECURITY & AUTOMATION SYSTEM FOR YOUR HOME & BUSINESS Model LS-30 OPERATION MANUAL V5.23 Table of Contents Page INTRODUCTION & INSTALLATION --------------------------------------------------------- 1 BASE UNIT -------------------------------------------------------------------------------------- 3 STATUS INDICATORS ------------------------------------------------------------------------ 4 ELECTRICAL INSTALLATION ------------------------------------------------------------- 5 MECHANICAL INSTALLATION --------------------------------------------------------- 6 USER OPERATION -------------------------------------------------------------------------------- 7 START OPERATION -------------------------------------------------------------------------- 9 (2) System Check ------------------------------------------------------------------------------ 10 (2-1) Telephone Number Check ---------------------------------------------------------- 11 (2-2) Voice Check -------------------------------------------------------------------------- 12 (2-3) Device Check ------------------------------------------------------------------------ 12 (3) Master Mode -------------------------------------------------------------------------------- 13 OPERATION MODES OF LS-30 ----------------------------------------------------------- 15 REACTION OF LS-30 TO DIFFERENT ALARMS ------------------------------------- 16 ANSWERING THE CALL FROM LS-30 ------------------------------------------------- 17 DIAL-IN CONTROL ------------------------------------------------------------------------- 18 INSTALLER & CMS SETTINGS ----------------------------------------------------------------- 19 (4) Installer Mode ------------------------------------------------------------------------------ 20 (4-1) Set Timer --------------------------------------------------------------------------- 20 (4-2) Set Telephone ---------------------------------------------------------------------- 22 (4-2-1) Set Telephone Number -------------------------------------------------- 24 (4-3) Set Sound --------------------------------------------------------------------------- 26 (4-4) Set Device -------------------------------------------------------------------------- 28 (4-4-1) Change Device Setting ------------------------------------------------- 29 (4-5) Set Siren ---------------------------------------------------------------------------- 31 (4-6) Set Misc. --------------------------------------------------------------------------- 32 (5) CMS Mode --------------------------------------------------------------------------------- 33 SPECIFICATIONS--------------------------------------------------------------------------------- 34 APPENDIX ------------------------------------------------------------------------------------------- 35 A-1, In-coming Message Display. A-2, Connection Diagram for USB or RS-232 Computer Interface A-3, Connection Diagram for Ethernet Adaptor and Internet Remote Access A-4, Connection Diagram for X-10 Power Line Interface A-5, Terminal Board Connection A-6, Using the Same Telephone Line to Connect LS-30, Fax Machine and Telephone Answering Machine A-7, Partial Arm for Group Numbers “91” to “99” INTRODUCTION & INSTALLATION 1 Thank you for purchasing the LS-30 IP Based Wireless Security & Automation Control System. By adopting modern microprocessor control and communication technologies, the LS-30 is designed to provide all the most advanced features that you need to protect your home and business. Moreover, you can operate the system and read its status by using the proprietary GUI (Graphic User Interface) HyperSecureLink through the Internet, from all over the world. The LS-30 is not only a security system but also an automation controller that allows you to set as many as 15 programmable switches to execute daily commands throughout a whole week. With optional environmental sensors and auto-control switches, the LS-30 also operates as an environmental monitor/control center to record all the environmental data and save your energy consumption automatically. Although the LS-30 is a very powerful device, thanks to the interactive HMI (Human Machine Interface) programming technology, its operation is simple. Just follow the instructions shown on the LCD display by answering the questions with YES/NO buttons or pressing the correct keys, and the settings are done. You can also set up the system on your laptop or PC using the optional USB/RS-232 adapter and HyperSecureLink software. The set up is simple, switch on back up battery, connect the Base Unit to power, enroll sensors and accessories, connect the telephone line, set the telephone numbers and record the voice messages, and then the LS-30 is at your service. As your security requirements grow and you become more familiar with the system, you can expand and accessorize the LS-30 to meet your specific needs. Simply call your local dealer; trained professionals can answer any questions you have regarding additional accessories. Main Features:
Smart Home System with Security, Environment monitoring/ control and energy saving.
Computer and Internet interface to set, download and upload system parameters and events.
Interactive programming with 16 x 2 LCD display.
Detailed 512-event log with time tag.
288 sensors/ zones can be accommodated with15 programmable switches.
Receiving RF signal strength indication and jamming detection.
Robust multi-million RF coding and special transmission timing design, avoiding interferences.
Responds to panic, burglary, fire, medical alarm and environmental hazards.
Burglar zones with supervised sensors, door and window open/ close detection.
Special Monitoring mode to record all the activities in the protected area without triggering the alarm.
9 independent partial arm zones, one LS-30 can operate as 10 independent burglar alarm systems.
Automatic operation and switch control by schedule a…

Text truncated - open the document above for the full version.

V 25 FCC ID: TYLLS30N Device Name: Alarm Base Unit Model No.: LS-30 Date: 6/26/2013 Federal Communications Commission To whom it may concern: I, the undersigned, hereby authorize Mr . James Cheng / Application Examiner of ELECTRONICS TESTING CENTER, TAIWAN and hereafter referred to as ETC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. James Cheng of ETC on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product  compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, By: By: Kevin Wang (Signature) (Printed) Title : Marketing Manager Applicant : Scientech Electronics Co., Ltd. Address : 4F No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan Tel : 886-2-22183085 Fax: 886-2-22187380

V 25 FCC ID: TYLLS30N Device Name: Alarm Base Unit Model No.: LS-30 Date: 6/26/2013 Federal Communications Commission Dear Sir: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. By: By: Kevin Wang (Signature) (Printed) Title : Marketing Manager Applicant : Scientech Electronics Co., Ltd. Address : 4F No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan Tel : 886-2-22183085 Fax: 886-2-22187380

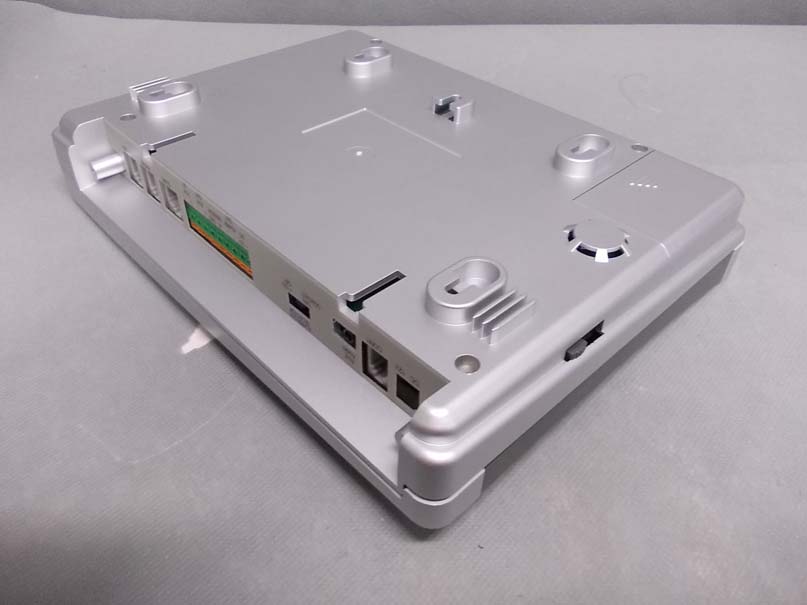

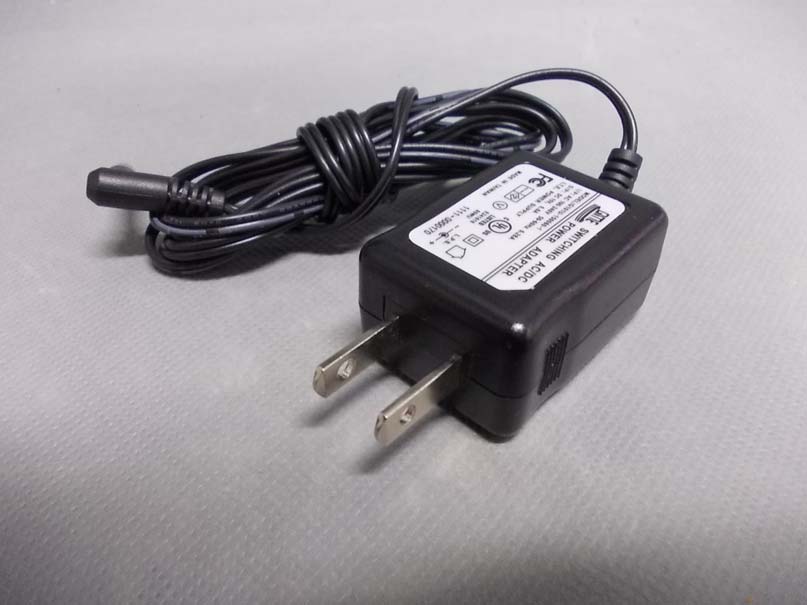

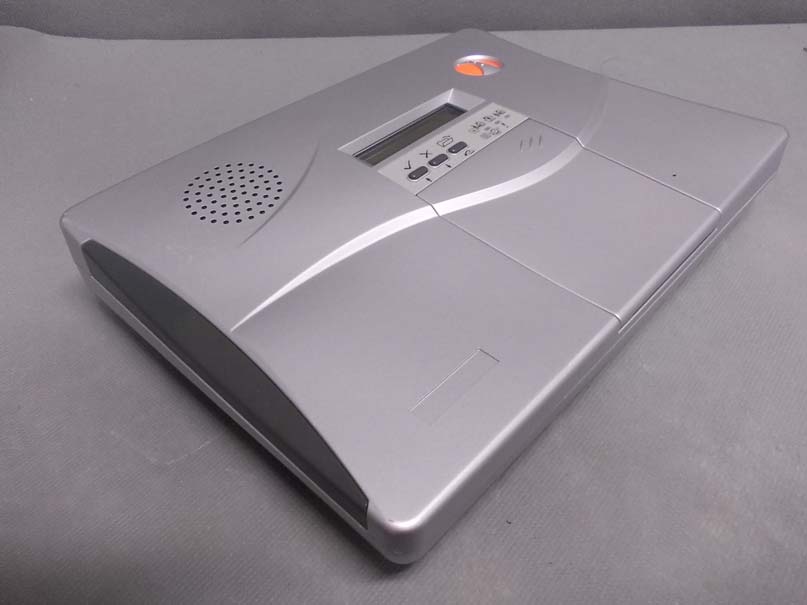

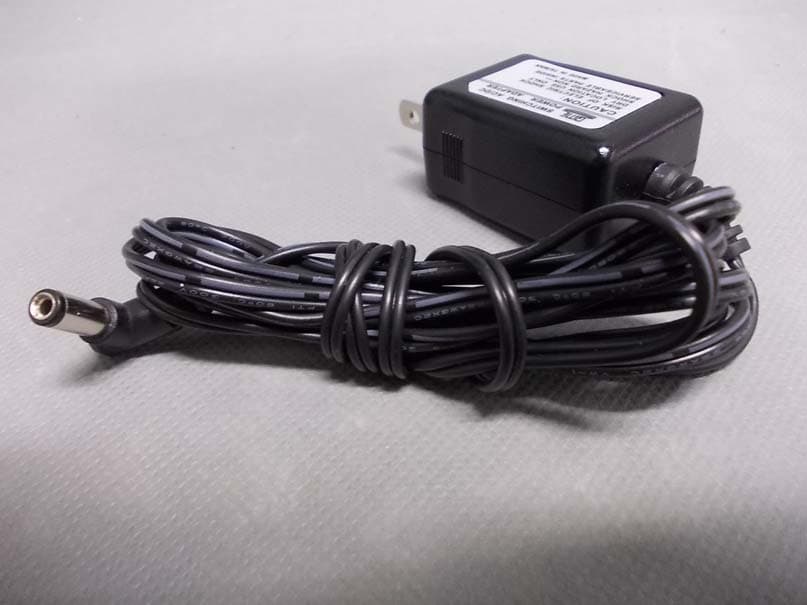

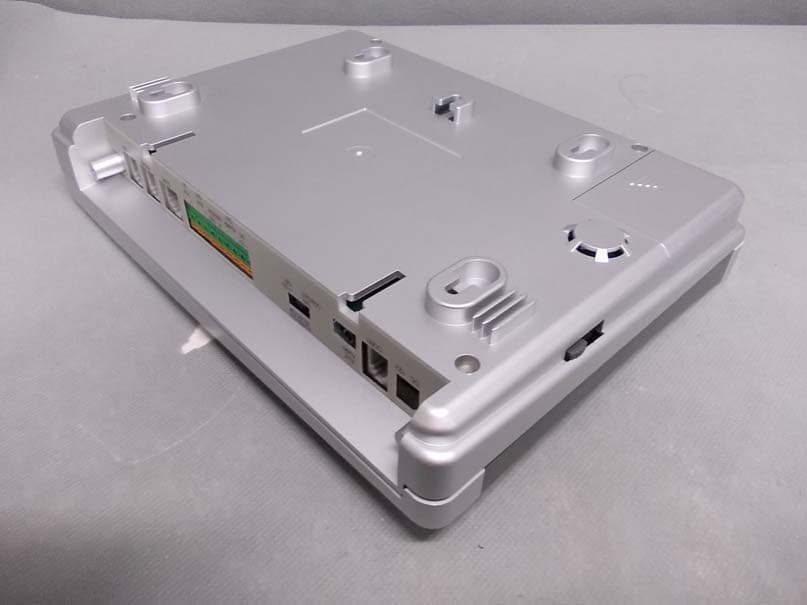

FCC ID.: TYLLS30N Page A1 of A3 ETC Report No.: 12-12-MAS-296-14 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT FCC ID.: TYLLS30N Page A2 of A3 ETC Report No.: 12-12-MAS-296-14 3. Adapter 4. Adapter FCC ID.: TYLLS30N Page A3 of A3 ETC Report No.: 12-12-MAS-296-14 5. Adapter

LS-30 LS-30 3 Brand: LifeSOS Model: LS-30 Base Unit FCC ID: TYLLS30N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan 36mm 59mm

FCC ID.: TYLLS30N Page B1 of B11 ETC Report No.: 12-12-MAS-296-14 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID.: TYLLS30N Page B2 of B11 ETC Report No.: 12-12-MAS-296-14 3. Inside View 3 of EUT 4. Inside View 4 of EUT FCC ID.: TYLLS30N Page B3 of B11 ETC Report No.: 12-12-MAS-296-14 5. Inside View 5 of EUT 6. Inside View 6 of EUT FCC ID.: TYLLS30N Page B4 of B11 ETC Report No.: 12-12-MAS-296-14 Antenna A 433MHz Receive r 7. Battery 8. Antenna 915MHz Receiver Antenna FCC ID.: TYLLS30N Page B5 of B11 ETC Report No.: 12-12-MAS-296-14 9. Antenna 10. Front view of PCB1 433MHz Transmitter Antenna FCC ID.: TYLLS30N Page B6 of B11 ETC Report No.: 12-12-MAS-296-14 11. Rear view of PCB1 12. Front view of PCB2 FCC ID.: TYLLS30N Page B7 of B11 ETC Report No.: 12-12-MAS-296-14 13. Rear view of PCB2 14. Front view of PCB3 FCC ID.: TYLLS30N Page B8 of B11 ETC Report No.: 12-12-MAS-296-14 15. Rear view of PCB3 16. Front view of PCB4 FCC ID.: TYLLS30N Page B9 of B11 ETC Report No.: 12-12-MAS-296-14 17. Rear view of PCB4 18. Module (915MHz RX) FCC ID.: TYLLS30N Page B10 of B11 ETC Report No.: 12-12-MAS-296-14 19. Module 20. Module (433MHz TX) FCC ID.: TYLLS30N Page B11 of B11 ETC Report No.: 12-12-MAS-296-14 21. Module (433MHz TX)

FCC ID: TYLLS30N Sheet 1 of 28 Sheets ETC Report No.: 12-12-MAS-296-14 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 12-12-MAS-296-14 Client: Scientech Electronics Co., Ltd. Product: Alarm Base Unit Model: LS-30 Manufacturer/supplier: Scientech Electronics Co., Ltd. Date test item received: 2012/12/28 Date test campaign completed: 2013/07/10 Date of issue: 2013/07/10 The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 28 pages Total number of pages of photos: External photos 3 pages Internal photos 11 pages Setup photos 3 pages Prepared By Technical Acceptance By Approved By Phillip Luo Perry Lin James Cheng ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID: TYLLS30N Sheet 2 of 28 Sheets ETC Report No.: 12-12-MAS-296-14 Rev. No 1.0 Client : Scientech Electronics Co., Ltd. Address : 4F, No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan Manufacturer : Scientech Electronics Co., Ltd. Address : 4F, No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan EUT : Alarm Base Unit Trade name : LifeSOS Model No. : LS-30 Power Source : Adapter: 101U-150080-1 I/P: 100-240VAC ， 50-60Hz ， 0.28A O/P: DC 15V，0.8A Regulations applied : FCC 47 CFR, Part 15 Subpart C The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following:  ISO9001: TüV Product Service  ISO/IEC 17025: BSMI, TAF, NCC, NVLAP, ILAC MRA, UL, Compliance  Filing: FCC, Industry Canada, VCCI  MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF  FCC Registration Number: 91095, 392735, 278818  Industry Canada Site Registration Number: IC 2949A-2 NVLAP Lab Code 200133-0 FCC ID: TYLLS30N Sheet 3 of 28 Sheets ETC Report No.: 12-12-MAS-296-14 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION.......................................................................................................................................... 4 1.2 CHARACTERISTICS OF DEVICE:....................................................................................................................................... 4 1.3 TEST METHODOLOGY..................................................................................................................................................... 4 1.4 TEST FACILITY............................................................................................................................................................... 4 1.5 TEST SUMMARY............................................................................................................................................................. 4 2. DEFINITION AND LIMITS ....................................................................................................................................... 5 2.1 DEFINITION.................................................................................................................................................................... 5 2.2 RESTRICTED BANDS OF OPERATION...............................................................................................................................5 2.3 LIMITATION.................................................................................................................................................................... 6 2.4 LABELING REQUIREMENT............................................................................................................................................... 8 2.5 USER INFORMATION....................................................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION .......................................................................................................................... 9 3.1 JUSTIFICATION............................................................................................................................................................... 9 3.2 DEVICES FOR TESTED SYSTEM....................................................................................................................................... 9 4. RADIATED EMISSION MEASUREMENT ........................................................................................................... 10 4.1 APPLICABLE STANDARD............................................................................................................................................... 10 4.2 MEASUREMENT PROCEDURE........................................................................................................................................ 10 4.3 TEST DATA....................…

Text truncated - open the document above for the full version.

FCC ID.: TYLLS30N Sheet 1 of 3 Sheets ETC Report No.: 12-12-MAS-296-14 Photos of Radiation Measuring Setup x-axis FCC ID.: TYLLS30N Sheet 2 of 3 Sheets ETC Report No.: 12-12-MAS-296-14 y-axis FCC ID.: TYLLS30N Sheet 3 of 3 Sheets ETC Report No.: 12-12-MAS-296-14 Photos of Conduction Measuring Setup
