TYLTX3NElectronic Sensor

MAGNETIC CONTACT TRANSMITTER INTRODUCTION The TX-3DS is a fully supervised magnetic contact transmitter. With a built-in reed switch it can be used to secure doors and windows. Fig.3 Fig.5 Hole to reach TEST button inside Transmission LED Magnet Location Mark Fig. 1 LED JP3 Test Button Tamper Switch Aux. Input Terminals Fig.2 Reed Sensor Wiring Inlet Fig. 4 JP3-DIS: No “CLOSE” signal is sent when the door/window is closed. EN: Sends “CLOSE” signal when the door/window is closed. INSTALLATION A. Enrolling Code 1. Loosen the screw of the TX-3DS, then open the upper case and insert two AAA alkaline batteries. Important Notice: In order to reset the microprocessor properly before changing the batteries, please press TEST button for 5 seconds to discharge the energy that remains in the capacitors of TX-3DS. Otherwise, it may not restart after changing batteries. 2. Select “Installer Mode” on the Base Unit, and enter Installer Password to gain access authority. Then select \Set Device\Enroll Device\Burglar Sensor\Enter Zone No. to enroll the ID of the TX-3DS by pressing its TEST button, or do an open/close action on the TX-3DS. You may change its various attributes under \Set Device\Change Device Setting\Burglar Sensor Change, to fulfill different requirements. B. Mounting 1. It is recommended to attach the transmitter to the fixed frame, and the magnet to movable part (namely door or window). Refer to Figure 5, and make sure the gap between the magnet and the mark side of the transmitter is kept within 1 cm. 2. Use the base of TX-3DS as a template, and mark the points on the mounting surface through two mounting holes. Then drill two holes and attach the transmitter base with the 2 screws supplied. 3. Close the upper cover on the transmitter and tighten the screw. 4. Mount magnet near transmitter’s mark side. Keep the gap between within 1 cm when door/window is closed. Note: - If the transmitter is mounted on a metal frame, the RF transmission range will shrink due to radio signal attenuation. To avoid this effect, you may connect an external reed sensor to the AUX. Input Terminals of transmitter PC Board (as shown in Fig.3) and place the transmitter away from the metal frame. After connecting the external reed sensor, please use a pair of pliers or cutter to break the plastic of the wiring inlet (refer to Fig. 4), and place the wire across the wiring inlet before closing the cover. . - For quick mounting, you may use the supplied double-stick tape and Velcro to attach magnet and transmitter. C. Testing 1. Momentarily open the door/window, and verify the transmission LED lights, showing that transmission is in progress. 2. If the TX-3DS has been enrolled in the LS-30 Base Unit, the Base Unit will respond accordingly when the door or window is opened. After testing, close the top cover of the transmitter and tighten it with the screw. SPECIFICATIONS Supervision: sends heartbeat signal at 60-minute interval. When Tamper or Low Battery condition is detected, it reports automatically. Power Source: two AAA alkaline batteries. Current Drain: 5uA @ standby, 20mA @ operation Estimated Battery Life: 3 years (@ actuated 10 times/day) Transmitter Size: 20 x 29 x 123.5 mm Transmitter Weight (w/o battery): about 34g Manual-BackCover.jpg (2544x3685x16M jpeg)

V 25 FCC ID: TYLTX3N Device Name: Door Sensor Model No.: TX-3DS Date: 6/26/2013 Federal Communications Commission To whom it may concern: I, the undersigned, hereby authorize Mr . James Cheng / Application Examiner of ELECTRONICS TESTING CENTER, TAIWAN and hereafter referred to as ETC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. James Cheng of ETC on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product  compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, By: By: Kevin Wang (Signature) (Printed) Title : Marketing Manager Applicant : Scientech Electronics Co., Ltd. Address : 4F No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan Tel : 886-2-22183085 Fax: 886-2-22187380

V 25 FCC ID: TYLTX3N Device Name: Door Sensor Model No.: TX-3DS Date: 6/26/2013 Federal Communications Commission Dear Sir: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. By: By: Kevin Wang (Signature) (Printed) Title : Marketing Manager Applicant : Scientech Electronics Co., Ltd. Address : 4F No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan Tel : 886-2-22183085 Fax: 886-2-22187380

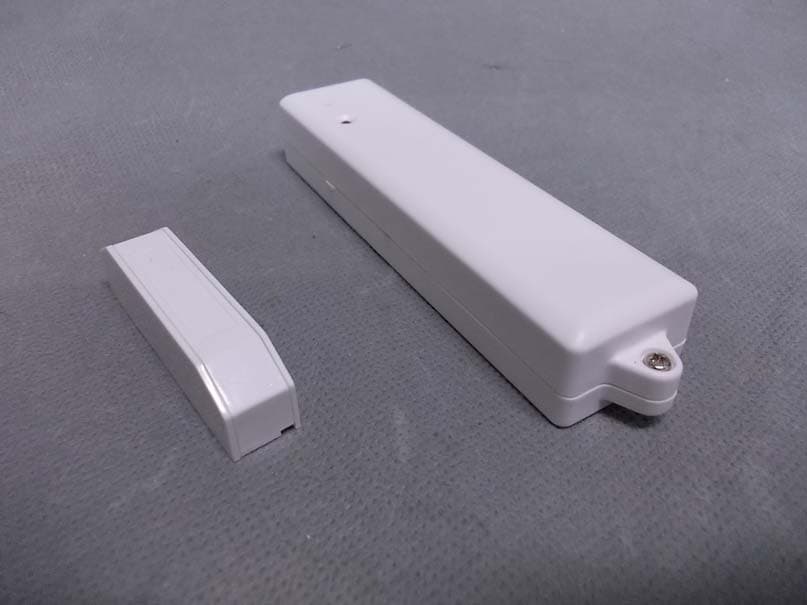

FCC ID.: TYLTX3N Page A1 of A1 ETC Report No.: 12-12-MAS-296-22 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

FCC ID.: TYLTX3N Page B1 of B2 ETC Report No.: 12-12-MAS-296-22 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID.: TYLTX3N Page B2 of B2 ETC Report No.: 12-12-MAS-296-22 3. Front view of PCB 4. Rear view of PCB

FCC ID.: TYLTX3N Sheet 1 of 18 Sheets ETC Report No. : 12-12-MAS-296-22 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 12-12-MAS-296-22 Client: Scientech Electronics Co., Ltd. Product: Door Sensor Model: TX-3DS Manufacturer/supplier: Scientech Electronics Co., Ltd. Date test item received: 2012/11/06 Date test campaign completed: 2013/05/30 Date of issue: 2013/05/30 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 18 pages Total number of pages of photos: External photos 1 pages Internal photos 2 pages Setup photos 2 pages Prepared By Technical Acceptance By Approved By Phillip Luo Perry Lin James Cheng ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID.: TYLTX3N Sheet 2 of 18 Sheets ETC Report No. : 12-12-MAS-296-22 Rev. No 1.0 Client : Scientech Electronics Co., Ltd. Address : 4F, No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan Manufacturer : Scientech Electronics Co., Ltd. Address : 4F, No. 501-17, Zhong Zheng Rd., Xin Dian Dist., New Taipei City 23148, Taiwan EUT : Door Sensor Trade name : ---- Model No. : TX-3DS Comment Issues : (1) The report also apply to model: TX 3GS,GB-A30,TX-3FS,TX3DS-VB, TX-3DS-CP (2) The multiple listing recognized without test basis is according to information supplied by manufacturer. A detail documentation of the above models must be verified by legal right organization for the EMC characteristic with relation to the subject model. Power Source : 3.0Vdc（Battery） Regulations applied : FCC 47 CFR, Part 15 Subpart C The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following:  ISO9001: TüV Product Service  ISO/IEC 17025: BSMI, TAF, NCC, NVLAP, ILAC MRA, UL, Compliance  Filing: FCC, Industry Canada, VCCI  MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF  FCC Registration Number: 91095, 392735, 278818  Industry Canada Site Regisitation number: IC 2949A-2 NVLAP Lab Code 200133-0 FCC ID.: TYLTX3N Sheet 3 of 18 Sheets ETC Report No. : 12-12-MAS-296-22 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION.................................................................................................................................................. 4 1.2 CHARACTERISTICS OF DEVICE:....................................................................................................................................... 4 1.3 TEST METHODOLOGY..................................................................................................................................................... 4 1.4 TEST FACILITY............................................................................................................................................................... 4 2. DEFINITION AND LIMITS ....................................................................................................................................... 5 2.1 DEFINITION.................................................................................................................................................................... 5 2.2 RESTRICTED BANDS OF OPERATION...............................................................................................................................6 2.3 LIMITATION.................................................................................................................................................................... 6 2.4 LABELING REQUIREMENT............................................................................................................................................... 8 2.5 USER INFORMATION....................................................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION .......................................................................................................................... 9 3.1 DEVICES FOR TESTED SYSTEM....................................................................................................................................... 9 4. RADIATED EMISSION MEASUREMENT ........................................................................................................... 10 4.1 APPLICABLE STANDARD............................................................................................................................................... 10 4.2 MEASUREMENT PROCEDURE........................................................................................................................................ 10 4.3 TEST DATA...............................................................................…

Text truncated - open the document above for the full version.

FCC ID.: TYLTX3N Sheet 1 of 2 Sheets ETC Report No.: 12-12-MAS-296-22 Photos of Radiation Measuring Setup x-axis FCC ID.: TYLTX3N Sheet 2 of 2 Sheets ETC Report No.: 12-12-MAS-296-22 y-axis z-axis
