TZVWFT07RADIO CONTROL SYSTEM

www.wflysz.com CHANNELS 7 INSTRUCTION MANUAL V1 WFT07 2.4GHZ MULTI-LANGUAGE REMOTE CONTROL DEVICE ▲ pls read the instruction before using the product ▲ Please keep this manual Attention WFT07 INSTRUCTION MANUAL WFT07 REMOTE CONTROL DEVICE Thank you for purchasing the WFLY product Features 1.The large dot matrix LCD display: multi-language, graphical display. simple design, easy operation. 2.Original 2.4G technology : use of data transfer, greatly improve the handling agility. fully express the fast Lightning : (Note: is WFLY exclusive technology). 3.Low-voltage design, lower battery consumption, a variety of battery available:such as 4S alkaline batteries , 4S NiMH(Nickel Metal Hydride),1S lithium-ion battery ,1S lithium polymer battery . Voltage range 3.7V-6V. 4.Super anti-interference: the high spread spectrum (DSSS) + frequency hopping, can boot the 60 sets at same time without interfere. 5.Optimization features into the design, operation . Service 1.The WFLY warranty the quality of science and technology within a year (WFLY technology to bear the postage, the user must provide a warranty card and proof of purchase,Indispensable). 2.Warranty card and proof of purchase effective by signed and sealed by the seller , and the information must be completed. 3.Artificially damaged and over one year after the warranty period, the WFLY provide life long science and technology service,only the users pay return postage, materials fees and maintenance costs. 4.This warranty is limited to China's remote control and accessories sales . 5.Seller does not give warranty card or do not fill out required from the seller to bear all the after-sales service. 1 1 2 3 4 5 6 7 8 9 9 10 11 13 13 13 14 14 15 15 15 16 16 17 17 18 18 19 19 19 20 20 21 21 22 23 23 I WFT07 Remote control device contents WFT07 Remote control device WFT07 RC device parts of the name(front) WFT07 RC device parts of the name( back) Instructions of the 2.4Ghz receiver WFT07 code match instructions Trainer function Special symbal instructions WFT07 RC device characteristics Express of input and buttons Adjustment of stick head Replacement throttle hand Helicopter Functions System Settings Input mode and Functions 1.Model parameters 2.Model Settings 3. 4.Control stick settings 5.Control stick Calibration 6. 7.Tone settings 8.Contrast settings 9.Power supply scheme 10.Version information Coaching / Simulation Restore factory settings Preferences 1.Monitor 2.Dual Rate 3.Servo Reverse 4.End point 5.Sub trim 6.Trim settings 7.Throttle curve settings 8.Pitch curve settings 9.Throttle cut settings 10.Throttle holding settings 11.Timer 12.Swashplate 13.Gyro sens mixing 14.Advanced settings CONTENTS INSTRUCTION MANUAL WFT07 REMOTE CONTROL DEVICE 26 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 28 28 28 29 29 29 29 29 29 30 30 30 31 31 II 24 24 25 CONTENTS Advanced settings 1.Speeder mixing 2.Fail safe 3.code match system settings Airplane Functions Input mode and functions 1.Model parameters 2.Model settings 3. 4.Control stick settings 5.Control stick calibration 6. 7.Tone settings 8.Contrast settings 9.Power supply scheme 10.Version information Coaching / Simulation Restore factory settings Preferences 1.Monitor 2.Dual Rate 3.Servo Reverse 4.End point 5.Sub trim 6.Trim settings 7.Flaperon mixing 8.Flap trim 9.Aileron diff control 10.Elev-flap 11.Throttle curve settings 12.Throttle cut settings 13.Throttle holding settings 14.Timer 15.Advanced settings Advanced Settings 1.Elevator mixing 2.Ele-Aileron mixing 3.V-tail 5.Ail-2 6.Fail safe 7.Code match INSTRUCTION MANUAL WFT07 REMOTE CONTROL DEVICE 1 1.WFT07 remote control device 2. WFR07S 2.4Ghz receive 3.Simulator switch cable 4.Transmitter 4cell battery case 5.Manual 6.WFLY neck strap 1.WFT07 remote control device 2.WFR0 7S 2.4Ghz receive 3.Simul ator switch cable Man ual 4.Transmitter 4cell battery case6.WFLY neck strap WFT07 Remote control device contents WFT07 remote control device diagram INSTRUCTION MANUAL WFT07 REMOTE CONTROL DEVICE www.wflysz.com CHANNELS 7 INSTRUCTION MANUAL V1 WFT07 2.4GHZ MULTI-LANGUAGE REMOTE CONTROL DEVICE ▲ pls r ead the in str uction b efo re using the pr oduct ▲ Ple ase keep t his m anu al Att entio n 5.Man ual/CD- ROM 1 set 1 Root 1 This/zhang 1 Only 1 A 1 Article K1K2K3 K4 V1 2 Antenna(rotatable) Power lightRF light Buzzer Elevator trim Rudder/ elevator stick Rudder trim Throttle trim Aileron/ throttle stick Power switch Neckstrap attachment Aileron trim Left Up Right Down Menu Exit Add Reduce LCD OK K1: 2 stalls. Throttle holding and throttle cut K2: 3 stalls. Timer , airplane 5channel and airplane Elev-flap mixing. K3: 2 stalls. Dual rate, Fight mode (normal,special IDLE) K4: Trainer. 7channels WFT07 RC device parts of name INSTRUCTION MANUAL WFT07 REMOTE CONTROL DEVICE WFT07 RC device Positive (Right hand throttle) 3 WFT07 RC device back WFT07 RC device parts of name Trainer/DSC Handle Battery cover INSTRUCTION MANUAL WFT07 REMOTE CONTROL DEVICE 4 Instruction of 2.4Ghz receiver Model:WFR07S Type: 7channel 2.4Ghz receiver,4096 resulotion(in the PCMS 4096 resolution) (Adaptation WFLY 2.4Ghz series),ORGANIC 2.4G Voltage :4.8V-6V Current:30mA Weight:9.6g Size: 40.42mm x27.27mm x11.88mm Frequency: 2.400GHz-2.483GHz 1．AIL：Aileron 2．ELE：Elevator 3．THR：Throttle 4．RUD：Rudder 5．GRY： Landing Gear/Gyro 6．PIT： Pitch 7．Auxiliary channel (Channel 1)---------- (Channel 2)---------- (Channel 3---------- (Channel 4)---------- (Channel 5)---------- (Channel 6)---------- (Channel 7)---------- WFLY PCMS receiver cam compatible with PCMS 4096, PCMS 1024 and PPM modulation (Adaptive), and have fail safe function.ORGANIC 2.4G (Note: Any channel can be used as power input) INSTRUCTION MANUAL WFT07 REMOTE CONTROL DEVICE 5 WFT07 instructions of the code match 1.Remote control device settings ● unction instruction: The remote control for the 2.4G spread spectrum, address identification code information, Before frequency hopping systems, have high anti-use the remote control,pls ma…

Text truncated - open the document above for the full version.

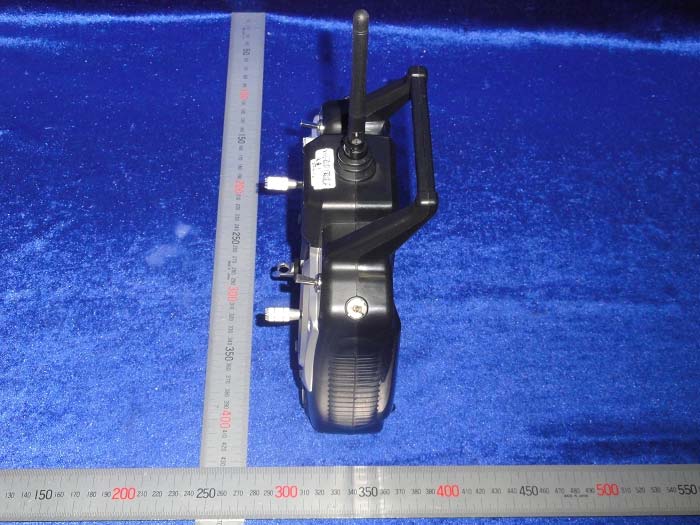

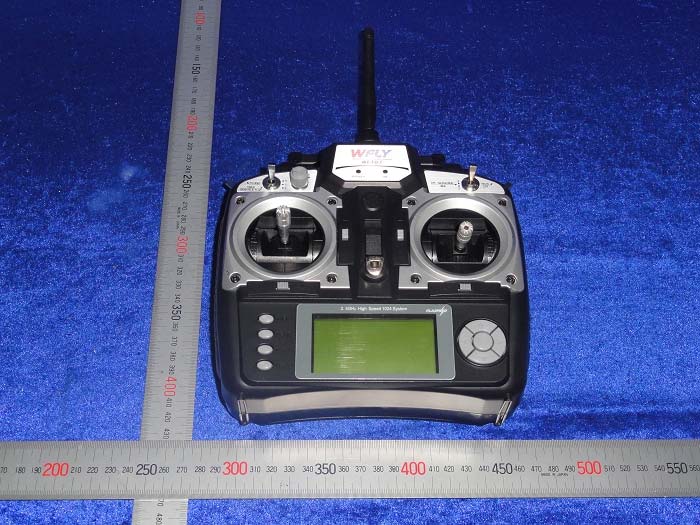

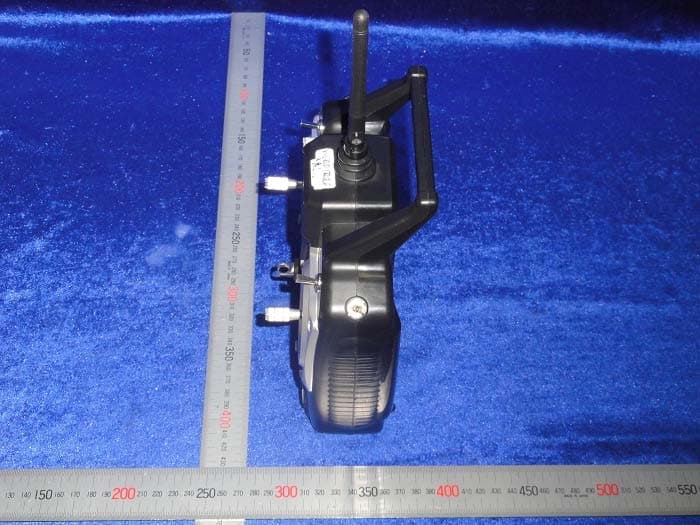

Outside view of the Tx

SHEN ZHEN WFLY TECHNOLOGY DEVELOPMENT CO., LTD. RADIO CONTROL SYSTEM MODEL: WFT07 FCC ID: TZVWFT07 Rating: DC 6V 200mA This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHIN A

Inside view of the Tx

ISO/IEC17025 Accredited Lab. Report No: FCC1007132 File reference No: 2010-09-07 Applicant: SHEN ZHEN WFLY TECHNOLOGY DEVEL0PMENT CO.,LTD. Product: RADIO CONTROL SYSTEM Model No: WFT07 Brand Name: WFLY Test Standards: FCC Part 15 Subpart C, Paragraph 15.249 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.249 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: September 07, 2010 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD East 5/Block 4, Anhua Industrial Zone, No.8,Tairan Rd. CheGongMiao, FuTian District, Shenzhen, CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1007132 Page 2 of 41 Date: 2010-09-07 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-01. Report No: 1007132 Page 3 of 41 Date: 2010-09-07 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Summary of Test Results..................................................................................... 6 3.2 Test Standards.................................................................................................. 6 4.0 EUT Modification............................................................................................. 6 5.0 Power Line Conducted Emission Test...................................................................... 7 5.1 Schematics of the Test........................................................................................ 7 5.2 Test Method and Test Procedure............................................................................ 7 5.3 Configuration of the EUT.................................................................................... 7 5.4 EUT Operating Condition..............…

Text truncated - open the document above for the full version.
