U28EBBTE01mini BTE-EB

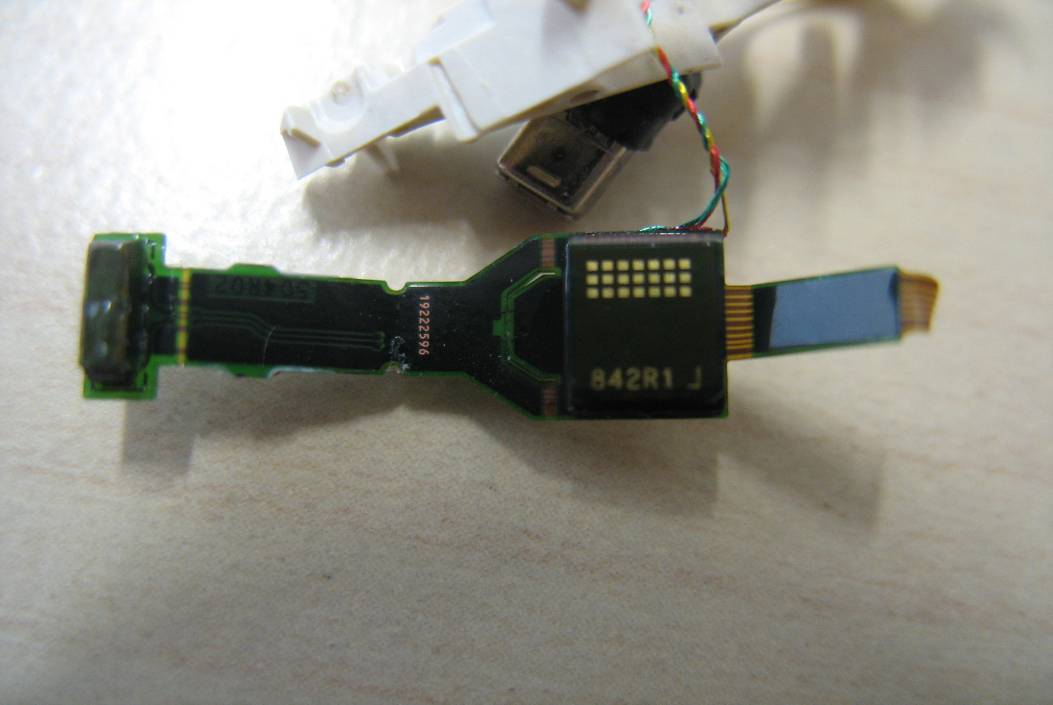

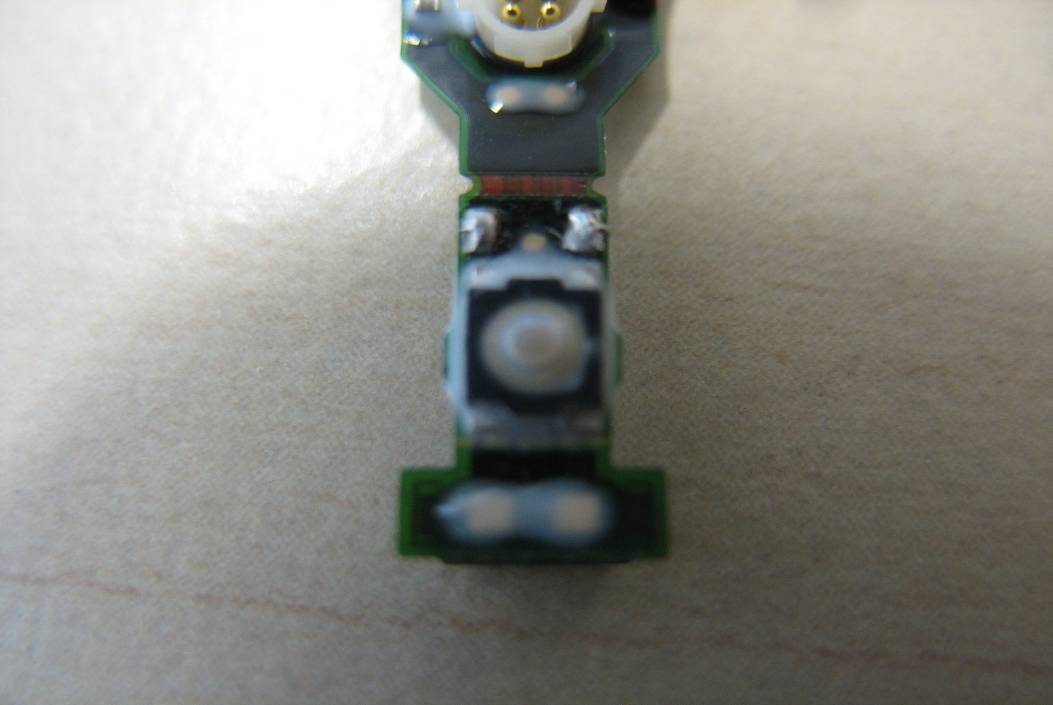

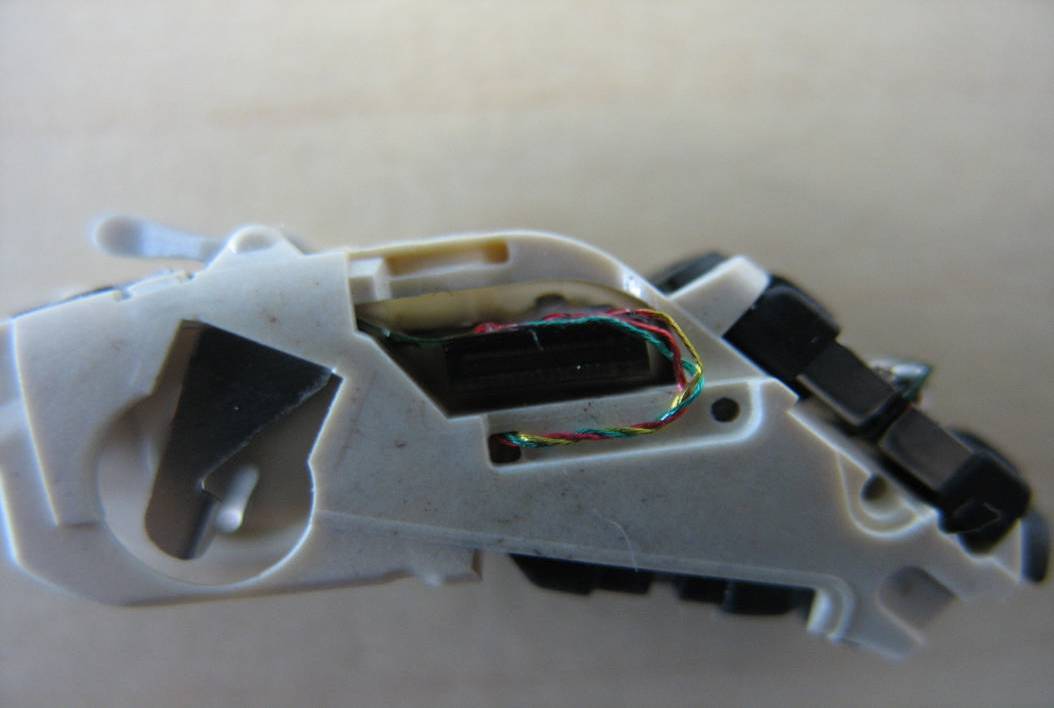

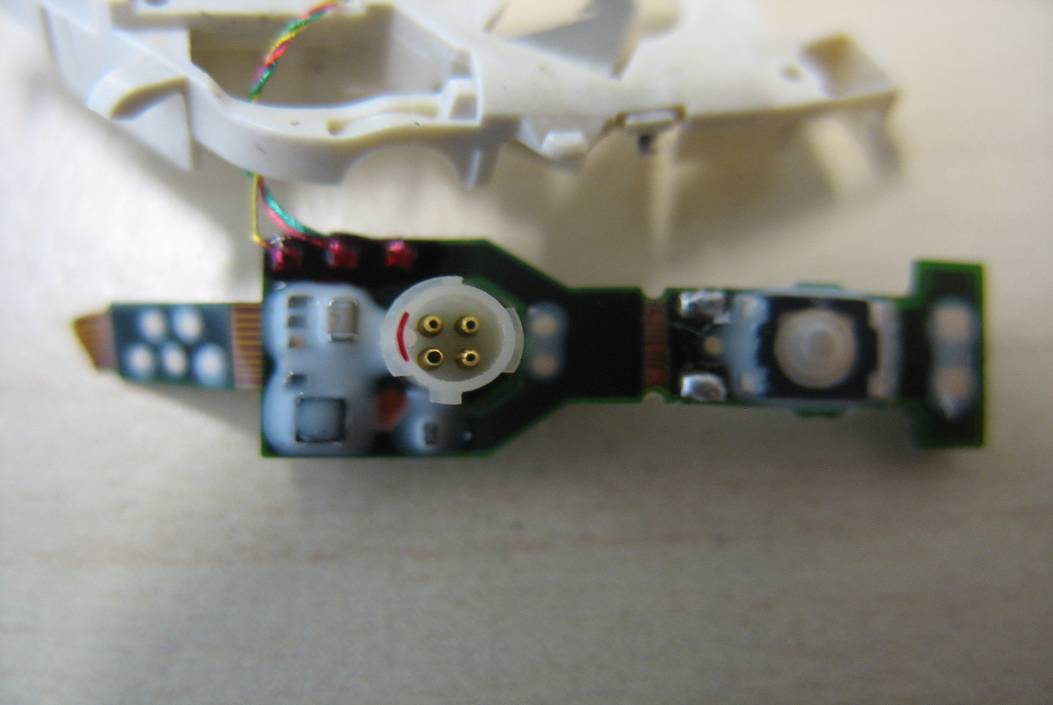

PEOPLE FIRST Oticon A/S Kongebakken 9 DK ‐ 2765 Smørum www.oticon.com Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR ‐ no. 42334219 1 Oticon Radio Model - Quick Installation Guide Radio Model Name: mini BTE-EB The mini BTE-EB radio model is a low power, inductive radio transcei ver working at 3.84 MHz consisting of an RF Engine Block (i ncl. DSP, radio & memory), antenna coil and a flex PCB motherboard (incl. small passive comp onents). It is intended to be installed as a module into Otico n wireless hearing aid devices only. The module also has all voltage regulators included inside the engine block and a phone detection switch & push button on the motherboard. The module requires a battery, one or two microphones and a speaker to be attached and must be mounted in an external plastic shell. It is only possible for authorized personnel to program the module through a programming I/O-connector. The module is depicted to the right: mini BTE-EB Radio Model (seen from the top side) mini BTE-EB Radio Model (seen from the bottom) PEOPLE FIRST Oticon A/S Kongebakken 9 DK ‐ 2765 Smørum www.oticon.com Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR ‐ no. 42334219 2 Oticon Radio Model - Quick Installation Guide Radio Model Name: mini BTE-EB Mini BTE-EB Radio Model (seen from the side) FCC ID: U28EBBTE01 IC: 1350B-EBBTE01 NOTICE: This device complies with Part 15 of the F CC Rules and with RSS- 210 of Industry Canada. Operation is subject to th e following two conditions: (1) This device may not cau se harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

PEOPLE FIRST CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 February 19 th , 2012. TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following products: FCC ID Model name U28EBBTE01 mini BTE-EB For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, Bill-Of-Material (BOM), and PCBs submitted as Equipment Authorization Electronic Filing attachment: “BOM”, "schematics” and “layouts”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “block diagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” and/or “product description”. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lars Bresler, QM-manager Oticon A/S Kongebakken 9 2765 Smorum DK-Denmark Phone: +45 3913 7100

PEOPLE FIRST SHORT-TERM CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 February 19 th , 2012. TO WHOM IT MAY CONCERN Pursuant to the recent upgrade to the Office of Engineering and Technology’s (OET) Equipment Authorization System on 6/15/04 (ref. DA 04 –1705), Oticon A/S requests temporarily confidentiality for the following product: FCC ID Number Product Title/Model U28EBBTE01 mini BTE-EB For the product stated above, we request that the following information be held confidential: 1. External and Internal Photographs 2. Test Setup Photos 3. User Manual We request this confidentiality on the basis of ensuring that business sensitive information remains confidential for 100 days. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lars Bresler, QM-manager Oticon A/S Kongebakken 9 2765 Smorum DK-Denmark Phone: +45 3913 7100

PEOPLE FIRST www.oticon.com Main +45 39 17 71 00 Fax +45 39 27 79 00 CVR‐no. 42334219 Oticon A/S Kongebakken 9 DK‐2765 Smørum Denmark Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 19 th February 2012 Oticon Fusion 2 based wireless mini BTE-EB module FCC ID:U28EBBTE01 Modular Approval Request We would like to approve the above product as a Limited Modular Approval in accordance to FCC Public Notice DA 00-1407, released June 26, 2000 titled Part 15 Unlicensed Modular Transmitter Approval and concerning low power 'transmitter modules' for operation under Part 15 of the Commission's Rules. The requirements of the Public Notice DA 00‐1407 are met as follows: 1. The radio module has no own RF shielding. Therefore we apply for a Limited Modular Approval. The product is constrained to be used by Oticon A/S or sold to Original Equipment Manufactures (OEM) only. The module is a fully integrated and inseparable part of an amplifier module for BTE style hearing aids. Therefore the radio module alone cannot be used by end users. The behaviour of the wireless module is locked by the design and can only be changed by Oticon A/S, so the compliance of the end product is always ensured. (See further descriptions in the radio model installation guide and/or user manual) 2. The amplifier module includes buffer stages for its external data/programming inputs. 3. The wireless part of the amplifier module shares the power supply with the digital signal processing (DSP) part of the amplifier module. Therefore we apply for a Limited Modular Approval with the same argumentation as in point 1. 4. The radio part of the amplifier module has only an internal antenna. 5. The amplifier module was tested in a stand‐alone configuration as can be seen in section 11 annex A of the CETECOM Test Report No. 1‐4229/11‐01‐02. The module fulfils Part 15 emission limits without any additional RF shielding. 6. The size of the whole amplifier module (radio and DSP) is less than 1/4 inch so the labelling information is located in the user manual and/or installation guide. 7. The amplifier module is compliant with all applicable FCC rules. Maintenance of compliance is always ensured as only Oticon A/S is able to alter the antenna or other wireless related behaviours. 8. The amplifier module is compliant with all applicable RF exposure requirements. Maintenance of compliance is always ensured as only Oticon A/S is able to alter the antenna or other wireless related behaviours. If you have any questions, please feel free to contact us at the address shown below Sincerely, Lars Bresler, QM-manager Oticon A/S Kongebakken 9 2765 Smorum - DK-Denmark Phone: +45 3913 7100

Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 16 of 22 Photo 7: Photo 8: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 17 of 22 Photo 9: Photo 10: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 18 of 22 Photo 11: Photo 12: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 19 of 22 Photo 13: Photo 14: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 20 of 22 Photo 15: Photo 16:

Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 16 of 22 Photo 7: Photo 8: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 17 of 22 Photo 9: Photo 10: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 18 of 22 Photo 11: Photo 12: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 19 of 22 Photo 13: Photo 14: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 20 of 22 Photo 15: Photo 16:

2012-03-05 Page 1 of 24 TEST REPORT Test report no.: 1-4229/11-01-02 Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Area of Testing: Radio/Satellite Communications Oticon A/S Kongebakken 9 2765 Smørum / DENMARK Phone: +45 39 17 71 00 Fax: -/- Contact: Jørgen Peter Hanuscheck e-mail: [email protected] Phone: +45 39 13 85 38 Manufacturer Oticon A/S Kongebakken 9 2765 Smørum / DENMARK Test standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio frequency devices RSS - 210 Issue 8 Spectrum Management and Telecommunications - Radio Standards Specification Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS - Gen Issue 3 General Requirements and Information for the Certification of Radiocommunication Equipment For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Hearing aid Model name: mini BTE-EB FCC ID: U28EBBTE01 IC: 1350B-EBBTE01 Frequency [MHz]: 3.8 MHz Technology tested: Magnetic coupling Antenna: Integrated coil antenna Power Supply: 1.40 V DC by zinc - air battery / power supply Temperature Range: 0°C to +35 °C This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorised: Test performed: Stefan Bös Marco Bertolino Senior Testing Manager Testing Manager Test report no.: 1-4229/11-01-02 2012-03-05 Page 2 of 24 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General information ....................................................................................................................................... 3 2.1 Notes and disclaimer .......................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 3 Test standard/s ............................................................................................................................................... 3 4 Test environment ............................................................................................................................................ 4 5 Test item .......................................................................................................................................................... 4 6 Test laboratories sub-contracted ................................................................................................................. 4 7 Summary of measurement results ............................................................................................................... 5 8 RF measurements .......................................................................................................................................... 6 8.1 Description of test setup .................................................................................................................... 6 8.1.1 Radiated measurements............................................................................................................. 6 8.1.2 Conducted measurements.......................................................................................................... 7 8.2 Additional comments .......................................................................................................................... 7 8.3 RSP100 test report cover sheet / performance test data ................................................................ 8 9 Measurement results ...................................................................................................................................... 9 9.1 Timing of the transmitter .................................................................................................................... 9 9.2 Bandwidth of the modulated carrier ................................................................................................ 10 9.3 Field strength of the fundamental ................................................................................................... 12 9.4 Field strength of the harmonics and spurious ............................................................................... 14 9.5 Receiver spurious emissions ........................................................................................................... 18 9.6 Conducted limits ............................................................................................................................... 22 10 Test equipment and ancillaries used for tests ................................................................................... 23 11 Observations ......................................................................................................................................... 24 Test report no.: 1-4229/11-01-02 2012-03-05 Page 3 of 24 2 General information 2.1 Notes and disclaimer The test results of this test report relate exclusively to the test item specified in this test report. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specim…

Text truncated - open the document above for the full version.

Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 3 of 22 Annex A Photographs of the test setup Photo documentation: Photo 1: Photo 2: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 4 of 22 Photo 3: Photo 4: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 5 of 22 Photo 5: Photo 6: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 6 of 22 Photo 7: Photo 8: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 7 of 22 Photo 9: Photo 10: Test report no.: 1-4229/11-01-02 Annex 2012-02-29 Page 8 of 22 Photo 11:
