U28FUBTE03Hearing Aid

PEOPLE FIRST Oticon A/S Kongebakken 9 DK ‐ 2765 Smørum www.oticon.com Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR ‐ no. 42334219 1 Oticon Radio Model - Quick Installation Guide Radio Model Name: BTE 3M84 The BTE 3M84 radio model is a low power, inductive radio trans ceiver working at 3.84 MHz consisting of a Digital-Signal-Process or (DSP), a radio Front-End (FE), memory, antenna coil and smaller components mounted on a flex ible Printed-Circuit-Board (PCB) and intended to be installe d as a module into Oticon wireless hearing aid devices only. The module also has all volta ge regulators included inside the DSP and FE. The module requir es a battery, one or two microphones and an audio receiver to be attached and must be mounted in an external plastic shell. The module is depicted below with its main components and connections: PEOPLE FIRST Oticon A/S Kongebakken 9 DK ‐ 2765 Smørum www.oticon.com Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR ‐ no. 42334219 2 Oticon Radio Model - Quick Installation Guide Radio Model Name: BTE 3M84 FCC ID: U28FUBTE03 IC: 1350B-FUBTE03 NOTICE: This device complies with Part 15 of the F CC Rules and with RSS- 210 of Industry Canada. Operation is subject to th e following two conditions: (1) This device may not cau se harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

PEOPLE FIRST www.oticon.com Main +45 39 17 71 00 Fax +45 39 27 79 00 CVR‐no. 42334219 Oticon A/S Kongebakken 9 DK‐2765 Smørum Denmark Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 25 th February 2010 Oticon Fusion based wireless BTE 3M84 module FCC ID:U28FUBTE03 Modular Approval Request We would like to approve the above product as a Limited Modular Approval in accordance to FCC Public Notice DA 00-1407, released June 26, 2000 titled Part 15 Unlicensed Modular Transmitter Approval and concerning low power 'transmitter modules' for operation under Part 15 of the Commission's Rules. The requirements of the Public Notice DA 00‐1407 are met as follows: 1. The radio module has no own RF shielding. Therefore we apply for a Limited Modular Approval. The product is constrained to be used by Oticon A/S or sold to Original Equipment Manufactures (OEM) only. The module is a fully integrated and inseparable part of an amplifier module for BTE style hearing aids. Therefore the radio module alone cannot be used by end users. The behaviour of the wireless module is locked by the design and can only be changed by Oticon A/S, so the compliance of the end product is always ensured. (See further descriptions in the radio model installation guide and/or user manual) 2. The amplifier module includes buffer stages for its external data/programming inputs. 3. The wireless part of the amplifier module shares the power supply with the digital signal processing (DSP) part of the amplifier module. Therefore we apply for a Limited Modular Approval with the same argumentation as in point 1. 4. The radio part of the amplifier module has only an internal antenna. 5. The amplifier module was tested in a stand‐alone configuration as can be seen in section 6 annex A of the CETECOM Test Report No. 1‐1732‐01‐12/09. The module fulfils Part 15 emission limits without any additional RF shielding. 6. The size of the whole amplifier module (radio and DSP) is less than 1/4 inch so the labelling information is located in the user manual and/or installation guide. 7. The amplifier module is compliant with all applicable FCC rules. Maintenance of compliance is always ensured as only Oticon A/S is able to alter the antenna or other wireless related behaviours. 8. The amplifier module is compliant with all applicable RF exposure requirements. Maintenance of compliance is always ensured as only Oticon A/S is able to alter the antenna or other wireless related behaviours. If you have any questions, please feel free to contact us at the address shown below Sincerely, Lars Bresler, QM-manager Oticon A/S Kongebakken 9 2765 Smorum - DK-Denmark Phone: +45 3913 7100

PEOPLE FIRST SHORT-TERM CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 February 25, 2010. TO WHOM IT MAY CONCERN Pursuant to the recent upgrade to the Office of Engineering and Technology’s (OET) Equipment Authorization System on 6/15/04 (ref. DA 04 –1705), Oticon A/S requests temporarily confidentiality for the following product: FCC ID Number Product Title/Model U28FUBTE03 BTE 3M84 For the product stated above, we request that the following information be held confidential: 1. External and Internal Photographs 2. Test Setup Photos 3. User Manual We request this confidentiality on the basis of ensuring that business sensitive information remains confidential for 90 days. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lars Bresler, QM-manager Oticon A/S Kongebakken 9 2765 Smorum DK-Denmark Phone: +45 3913 7100

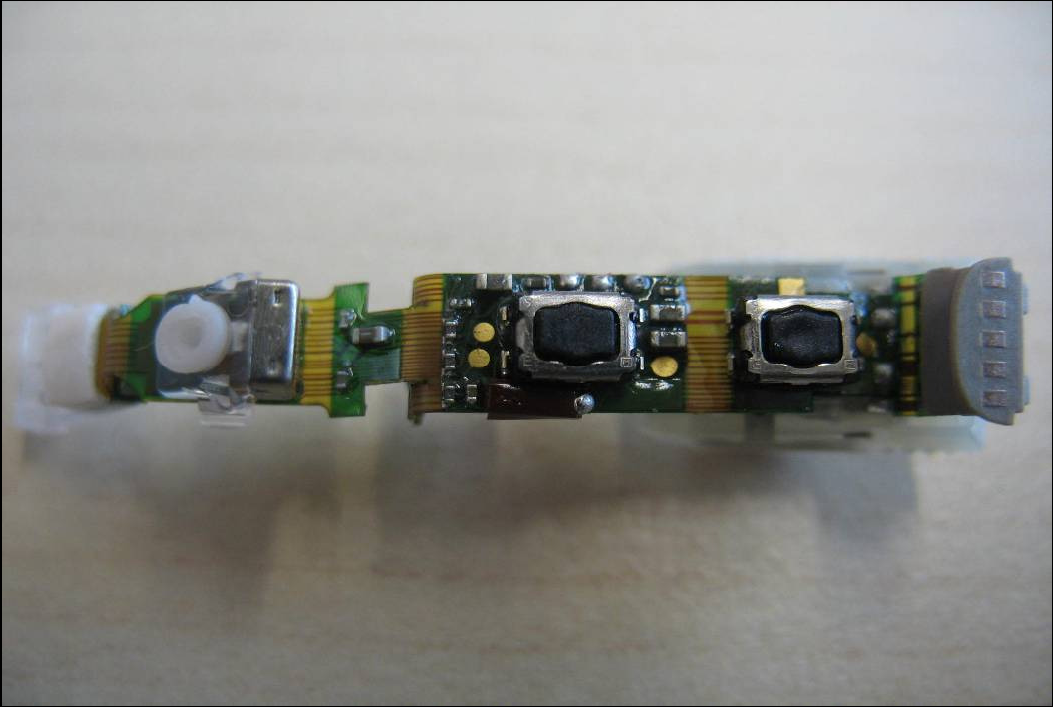

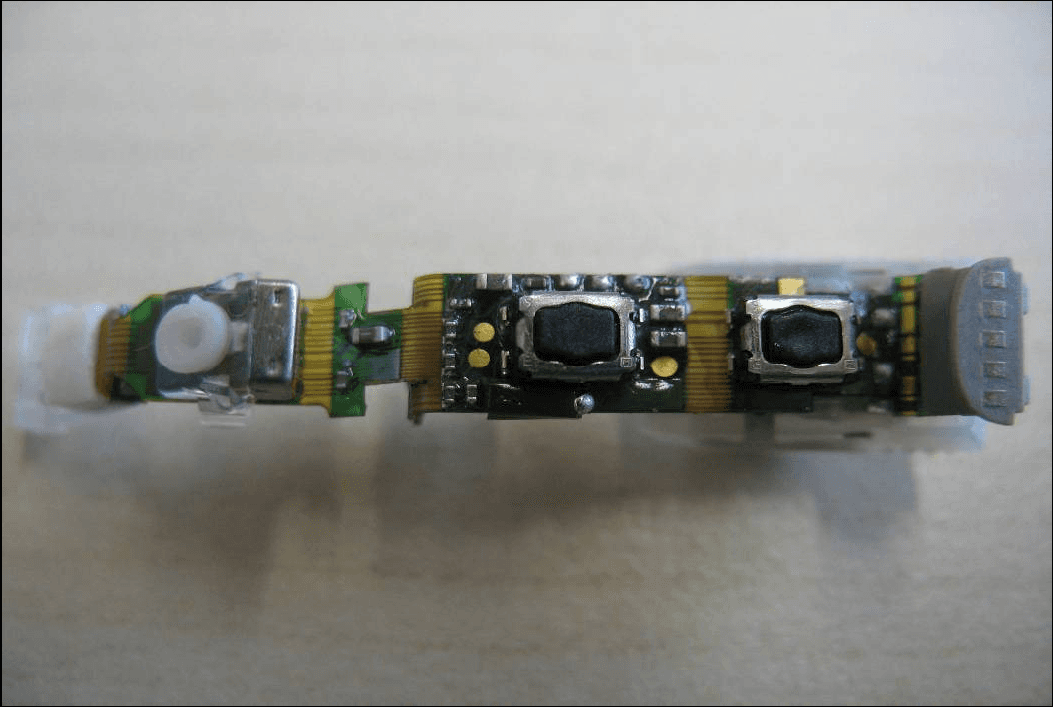

1 Test Sample Photos 2

PEOPLE FIRST Oticon A/S Kongebakken 9 DK ‐ 2765 Smørum www.oticon.com Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR ‐ no. 42334219 1 Oticon Radio Model - Label Info - Extract from Installation Guide Radio Model Name: BTE 3M84 FCC ID: U28FUBTE03 IC: 1350B-FUBTE03 NOTICE: This device complies with Part 15 of the F CC Rules and with RSS- 210 of Industry Canada. Operation is subject to th e following two conditions: (1) This device may not cau se harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

1 Test Sample Photos 2

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report no.: 1-1732-01-12A/09 Date: 2010-02-26 Page 1 of 31 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: IC 3462C-1 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DGA-PL-176/94-D1 Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 1-1732-01-12A/09 Applicant : Oticon A/S Type : BTE 3M84 Test Standard : 47 CFR Part15 RSS-210 Issue 7 FCC ID : U28FUBTE03 Certification No. IC : 1350B-FUBTE03 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report no.: 1-1732-01-12A/09 Date: 2010-02-26 Page 2 of 31 Table of contents 1. ADMINISTRATIVE DATA ......................................................................................................................................3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.1.2 Organizational items.....................................................................................................................................3 1.1.3 Applicant ́s details ........................................................................................................................................ 4 1.2 ADMINISTRATIVE DATA OF MANUFACTURER / MEMBER........................................................................................ 4 1.3 DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .......................................................................................... 5 1.3.1 EUT: Type, S/N etc. ......................................................................................................................................5 1.3.2 RF Technical Brief Cover Sheet acc. To RSS-102 ......................................................................................... 6 1.4 TEST SETUP........................................................................................................................................................... 7 1.5 TEST SPECIFICATIONS............................................................................................................................................ 7 1.6 ADDITIONAL COMMENTS....................................................................................................................................... 7 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 8 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 8 2.1.1 CFR 47 Part 15 Radio frequency devices ..................................................................................................... 8 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 9 4 FCC PART 15 SUBPART C....................................................................................................................................10 4.1 TIMING OF THE TRANSMITTER............................................................................................................................. 10 4.2 FIELD STRENGTH OF THE FUNDAMENTAL / BANDWIDTH § 15.209 (A) ................................................................ 11 4.3 MAXIMUM OUTPUT POWER (QUASI PEAK) – (RADIATED) ..................................................................................... 13 4.4 FIELD STRENGTH OF THE HARMONICS AND THE SPURIOUS................................................................................... 14 4.4.1 Plots of measurements ................................................................................................................................ 15 4.5 RECEIVER SPURIOUS EMISSION (RADIATED) ........................................................................................................ 18 4.5.1 Plots of measurements ................................................................................................................................ 19 4.6 CONDUCTED LIMITS............................................................................................................................................ 22 5 USED TEST EQUIPMENT ..................................................................................................................................... 23 6 ANNEX A: PHOTOGRAPHS OF TEST SITE ..................................................................................................... 25 7 ANNEX B: PHOTOGRAPHS OF THE EQUIPMENT........................................................................................ 27 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report no.: 1-1732-01-12A/09 Date: 2010-02-26 Page 3 of 31 1. Administrative data 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. DGA-PL-176/94-D1 Bluetooth Qualification Test Facility (BQTF) Responsible for testing laboratory: Dipl.-Ing. (FH) Stefan Bös Phone: +49 681 598 0 Fax: +49 681 598 9075 emai…

Text truncated - open the document above for the full version.

1 Test Setup Photos Radiated emissions - Test Setup: Test Sample: 2 Test Equipment for extra test at 1m distance: (Due to weak fields below the noise floor at standard 3m test distance)
