U28TVBOX02TV Adapter

INSTALLATION GUIDE ConnectLine TV Adapter Getting started 2 PUrPOSE Of ThIS GUIDE rEAD ThIS fIrST Before your hearing instruments can receive sound from the TV, the adapter must be connected to the TV and a power outlet. This is an easy step-by-step guide through the installation of the TV adapter. All needed parts for the installation are included in the package. The connection parts are packed in numbered boxes from 1 to 3. The numbers refer to each step in the installation. 3 4 TV ADAPTEr OVErVIEW TV connection BCA Power connection Back Mic. connection 5 Power indicator LightMeaning Solid GreenPower on OffPower off StatuS indicator LightMeaning Solid OrangeConnected to Streamer and streaming TV sound OffStand-by FlashingPairing front 6 CONNECTING TO POWEr STEP ONE Connecting Power Adaptor to TV adaptor. Use the Power adapter from box no. 1. – Plug the power adapter into the wall socket or another power source. – Plug the power cord into the power connection marked A. – Check that power is turned on. A solid green light will appear on the front of the TV adaptor when power is turned on. See illustration page 7 7 8 CONNECTING TV COrD TO AUDIO OUTPUT TErmINAL STEP TWO Connecting the TV adapter to the TV. Use the TV cord from box no. 2. – Connect the black plug on the TV cord to the port marked B. – Connect the red and white connectors to the “AUDIO OUT” terminals on the TV. – The audio output jack is usually marked “L – R” “AUDIO OUT” and found on the back of the TV. Note: With this installation sound passes through the TV speakers as well as the Bluetooth connection to the hearing aids. See illustration page 9. Continue to page 16 for PAIRING instructions. 9 B TV cord 11 ALTErNATIVE INSTALATION INfOrmATION If the TV does not have an AUDIO OUTPUT terminal, the jack adaptor found in box 3 should be used for connecting the TV cord. Note: This adaptor plugs into the hEADPhONE jack of the TV in which case only the person wearing the hearing aids will hear the sound. Proceed to page 12 for installation instructions. 12 OPTIONAL JACk ADAPTEr INSTALATION If connecting the TV box to the “AUDIO OUTPUT” jack is not possible for your TV, there are two alternative hook ups available. The JACK ADAPTOR and MICROPHONE are found in box 3. JACK ADAPTOR – Connect the TV cord to the port marked “B” on the TV adaptor. Plug the JACK ADAPTOR onto the TV cord. – Plug JACK ADAPTOR into the TV’s “HEADPHONE” output terminal. – The “HEADPHONE” output terminal is usually located on the side or front of the TV. See illustration page 13. Note: This adaptor plugs into the headphone jack of the TV in which case only the person wearing the hearing aids will hear the sound. The TV speakers are muted. If this is not desired see alternative installation pages 8 or 14. 13 OPTION 1: hEADPhONE CONNECTION TV cord Jack adapter 14 OPTIONAL mICrOPhONE INSTALLATION MICROPHONE INSTALLATION The TV cord is not used and must be removed from connector marked B. – Connect the microphone cord to the TV adaptor “marked C”. – Place the microphone on the TV speaker. Using the adhesive pad, attach the microphone where the richest sound is found. – The speaker outlet may also be found on the back or the side of the TV. See illustration page 15 15 OPTION 2: mICrOPhONE INSTALLATION C Microphone 16 PrEPArE STrEAmEr fOr TV LISTENING The very first time your Streamer is used with the TV adapter, the two devices must be paired together. PAIrING: 1. When pairing, the devices must be placed close together. Place the Streamer right next to the TV adapter. ( not more than 1 foot away) 2. Press and hold the Streamer “Connect Button” for 5 seconds until the blue light starts flashing rapidly. 3. The two devices establish a connection to each other. Wait one-two minutes. 4. After one-two minutes the TV adapter is connected to Streamer and pairing is complete. The orange STATUS indicator on the TV adapter lights up. Pairing is done only once and will normally not have to be repeated. STATUS CONNECT BUTTON 17 PAIrING Connect Button Press 5 sec Less than 30 cm/1 ft TV adapter Streamer Unlocked Turns on when ready! 18 USING ThE STrEAmEr AND SUPPOrT Place the TV adapter in a suitable spot close to the TV. (The adaptor can easily be attached to the top or side of the TV with velcro) For using the Streamer with the TV adapter, refer to the user guide. Do I have to turn off the TV adapter when I’m not watching the TV? The TV adapter uses very little power so it is not necessary to turn it off. What is the TV sound range with Streamer? TV adapter has a range of about 30 feet depending on furniture and placement. how often do I have to charge Streamer if I’m watching TV? The Streamer charge will last up to 5 hours with continuous Streaming. You can however watch TV with the Streamer plugged into its power cord. For further support or tips you can check the ConnectLine information on www.oticon.com/connectline INTErNATIONAL WArrANTY The TV adapter is covered by a limited warranty issued by the manufacturer for a period of 12 months from the day of the original purchase. Please notice that extended warranties may apply in your country. Please contact your local Hearing Care Professional for more information. What is covered by this warranty? Any electrical component, that because of workmanship, manufacturing or design defects fails to function properly under normal use during life of this warranty will be replaced or repaired at no charge for parts or labour when returned to the point of purchase. If it is determined that repair is not feasible, the entire unit may be replaced with an equivalent unit upon mutual agreement of the Hearing Care Professional and the customer. What is not covered by this warranty? Problems arising from improper handling or care, excessive use, accidents, repairs made by an unauthorized party, exposure to corrosive conditions or damage due to foreign objects entering the device are NOT covered by the limited warranty and may void it. The …

Text truncated - open the document above for the full version.

External photos

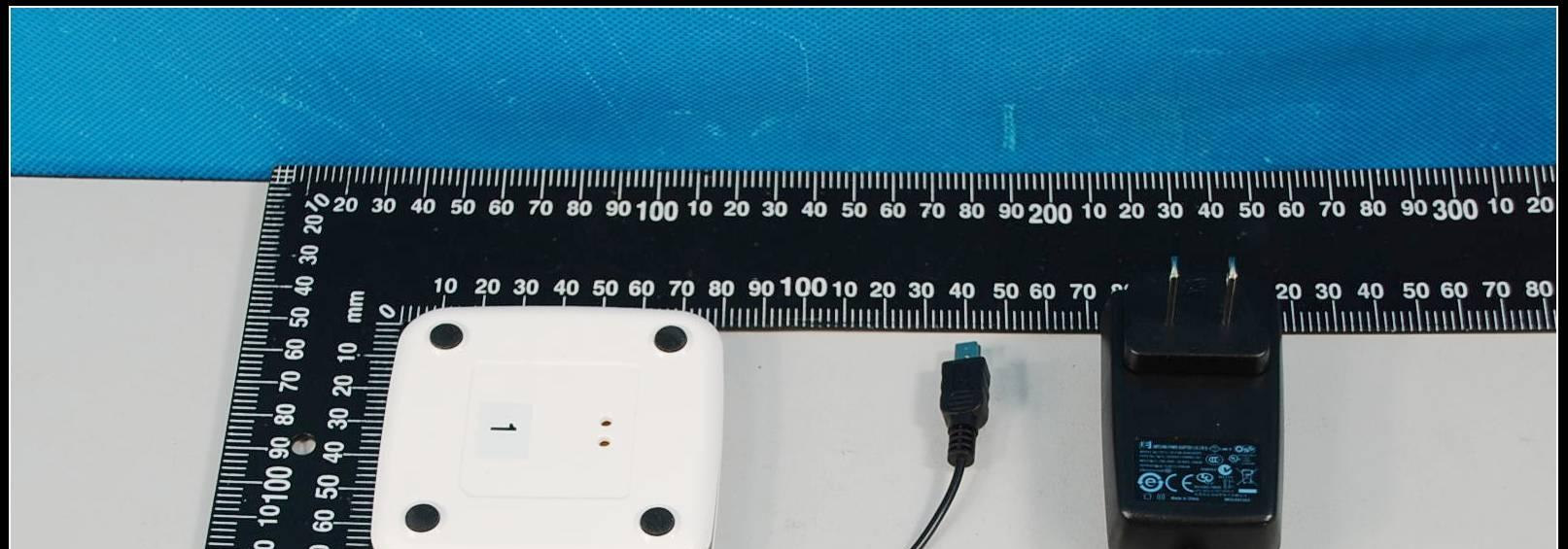

Label location

Internal photos

SGS-CSTC Standards Technical Services Co., Ltd. Application No.: GLEMO1004001149RF Page: 1 of 2 FCC ID: U28TVBOX02 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. RF Exposure Compliance Requirement 1. Standard requirement Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times
E
2
,H
2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times
E
2
,H
2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density SGS-CSTC Standards Technical Services Co., Ltd. Application No.: GLEMO1004001149RF Page: 2 of 2 FCC ID: U28TVBOX02 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2. MPE Calculation Method E (V/m)=(30*P*G) 0.5 /d Power Density: Pd(W/m 2 )=E 2 /377 E=Electric Field (V/m) P=Peak RF output Power (W) G=EUT Antenna numeric gain (numeric) d= Separation distance between radiator and human body (m) The formula can be changed to Pd= (30*P*G)/(377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Calculated Result and Limit Normal mode: Frequenc y (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.402 1.9 -0.02 0.995 0.00376 1 Complies 2.441 1.9 0.46 1.111 0.00420 1 Complies 2.480 1.9 0.22 1.052 0.00398 1 Complies EDR mode: Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.402 1.9 1.07 1.279 0.00483 1 Complies 2.441 1.9 1.51 1.416 0.00535 1 Complies 2.480 1.9 1.22 1.324 0.00500 1 Complies

Report No.: GLEMO100400115001 Page: 1 of 53 IC: 1350B-TVBOX02 Authorized Signature: Stephen Guo Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only SGS-CSTC Standards Technical Services Ltd. 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] 1 Cover Page TEST REPORT Application No.: GLEMO1004001150RF Applicant: Oticon A/S Equipment Under Test (EUT): EUT Name: TV adapter Item No.: TV75-02 Trade Marks: Oticon, Bernafon & PhonicEar IC: 1350B-TVBOX02 ♣ Please refer to section 3 of this report which indicates which item was actually tested and which were electrically identical. Radio Function: Bluetooth Standards: RSS-210 Issue 7: June 2007 RSS-Gen Issue 2: June 2007 Date of Receipt: 2010-04-30 Date of Test: 2010-05-05 to 2010-05-10 Date of Issue: 2010-05-10 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further detail. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GLEMO100400115001 Page: 2 of 53 IC: 1350B-TVBOX02 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2010-05-10 Original Authorized for issue by: 2010-05-05 to 2010-05-10 Tested By (David Liu) /Signature Date 2010-05-10 Prepared By (Angel Liu) /Signature Date 2010-05-10 Checked By (Jeffrey Chen) /Signature Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GLEMO100400115001 Page: 3 of 53 IC: 1350B-TVBOX02 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary TEST TEST REQUIREMENT STANDARD PARAGRAPH RESULT Antenna requirement RSS-Gen 7.1.4 PASS Occupied Bandwidth RSS-210 A8.1(b) PASS Carrier Frequencies Separated RSS…
