U4P-1350001Wireless Cable Modem

1/31 V1.0 DOCSIS 1.1/2.0 Broadband Residential Cable Modem Gateway BRG-35302/BWA-35302 User Manual V1.0 2/31 V1.0 Copyright: Copyright© 2006 HitronTechnologies Inc. All rights reserved. Revision History: Revision Date Description Issued by V1.0 2006/12/6 Initial Draft P. J. Huang 3/31 V1.0 Contents Before You Begin.................................................................................................................................... 4 Introduction..................................................................................................................................... 4 Cable Modem Features ...........................................................................................................4 Local Cable Network Service ................................................................................................. 5 Prepare Your Workspace Ready for the Cable Modem Installation ............................................... 6 Package Contents ............................................................................................................................ 7 Requirements .................................................................................................................................. 7 Verify that you have these items before beginning the installation ........................................ 7 Decide Which Installation Process to Use .............................................................................. 7 Installing the Cable Modem Using the Ethernet Port .............................................................................9 Verify the TCP/IP Protocol Configuration .................................................................................... 10 Configuring TCP/IP on Win 95, Win 98, and Win Me ......................................................... 10 Configuring TCP/IP on the Windows 2000/XP .................................................................... 10 Configuring TCP/IP on the Windows NT 4.0 ....................................................................... 10 Configuring TCP/IP on a Macintosh Computer.................................................................... 11 Connecting the Cable Modem ......................................................................................................11 Installing the Cable Modem Using the USB Port (BRG35302) ........................................................... 13 Hardware Installation.................................................................................................................... 13 USB Driver Installation ................................................................................................................ 15 Windows 98 .......................................................................................................................... 15 Windows 2000/XP ................................................................................................................15 Windows Me ......................................................................................................................... 16 Wireless ConfigurationBWA35302.............................................................................................. 17 Wireless Setting ............................................................................................................................ 19 Channel and SSID......................................................................................................................... 20 SSID ...................................................................................................................................... 20 Channel ................................................................................................................................. 20 Hide SSID ............................................................................................................................. 21 Encryption..................................................................................................................................... 22 Security ................................................................................................................................. 22 Authentication Type (WEP Mode only) ............................................................................... 24 MAC Filtering............................................................................................................................... 25 Cable Modem Front and Rear Panel ..................................................................................................... 26 Front Panel LEDs.......................................................................................................................... 27 Rear Panel ..................................................................................................................................... 29 Notices .................................................................................................................................................. 30 Safety Notice & Warning .............................................................................................................. 30 4/31 V1.0 Chapter 1 Before You Begin This chapter provides an overview of the Hitron™ “Broadband Residential Cable Modem Gateway” BRG-35302 / BWA35302 (cable modem) and helps you prepare for its installation. . ! CAUTION! Be sure to read this entire User’s Manual from front to back in sequence before installing the Hitron “Broadband Residential Cable Modem Gateway” BRG-35302/BWA-35302 (cable modem) Introduction Thank you for purchasing the Hitron “Broadband Residential Cable Modem Gateway ” BRG-35302/BWA35302, which is an MCNS DOCSIS™ 2.0 cable modem featuring the latest DOCSIS technology. The cable modem enables your network cable operator to provide you with broadband applications such as telecommunications, IP dedication for your sma…

Text truncated - open the document above for the full version.

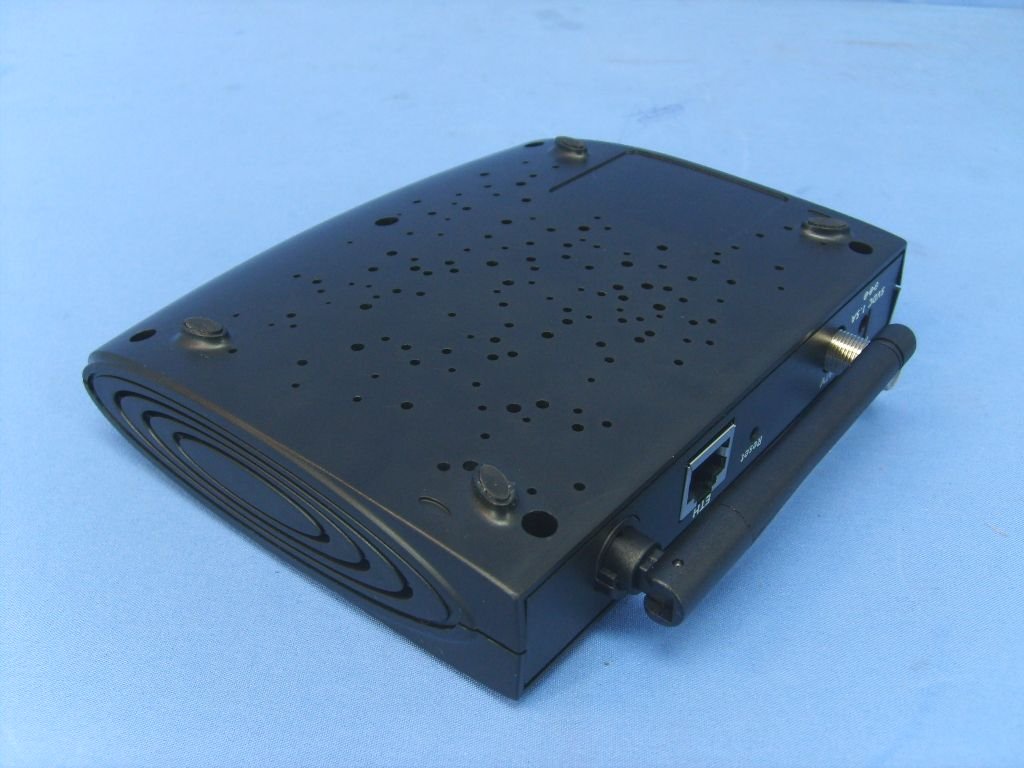

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

RevNoRevision noteSignatureDate 1 Checked 23456 123456 A B C D A B C D Project: Part Name: Part Number Description: Version Dwg No: Material: Coating: Date: Designed by Checked by Approve by-date MAC Label 2A BWA-35302 50番消銀龍 MAC label, 45*36mm FONT height : 1.5mm Barcode height : 2mm 8010400773N0 2007/03/07 Daisy Wang 2.00mm 2.00mm 45.00 3 6 . 0 0 R2.00 1.5mm 2mm R F MAC:0005CAXXXXXX P/N:XXXXXXXXXX H/W Rev.:XX.XX S/W Rev.:XXXXX S/N:XXXXXXXXXX Iden:XXXX Made in XXXXX HitronTech Model:XXX-XXXXX US LISTED I.T.E. E219020 Input: 5Vdc ,1.5A 5mm 5. P/N:XXXXXXXXXX (依照BOM表的成品料號而變動) 8. S/N:XXXXXXXXXX P/N之 2 to 5碼 6. H/W Rev. : XX.XX 此數據會隨著生產的版本而變動 生產用版本，以PM或生產製造或工程單位提供為根據 9. Iden:XXXX 2.RF MAC:0005CAXXXXXX 3. Eth Man. MAC:0005CAXXXXXX 000000~FFFFFF 固定碼 000000~FFFFFF (RF MAC+2) 固定碼 年週 10. Made in XXXXX:隨生產國家不同而異動 （例：生產國家為台灣= Made in Taiwan; 生產國家為大陸= Made in China.........） 1.HitronTech Model:XXX-XXXXX 隨著BOM表上的機種名而變動 7. S/W Rev. : XXXXX 此數據會隨著生產的版本而變動 生產用版本，以PM或生產製造或工程單位提供為根據 4. WAN Man. MAC:0005CAXXXXXX 000000~FFFFFF (RF MAC+4) 固定碼 FCC ID: U4P-1350001FCC ID: U4P-1350001 1.5mm

FCC ID: U4P-1350001 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Adapter Model No.: DSA-20D-05 2 050010 Page 9 Page 10 Adapter Model No.: MU12-2050150-A1 Page 11

Report No.: SA951031H02A Reference No.: 960105H02 1 RF EXPOSURE REPORT REPORT NO.: SA951031H02A MODEL NO.: BWA-35302, BWA-35302-ED, SMC8014WG-SI FCC ID: U4P-1350001 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: HitronTechnologies ADDRESS: NO. 1-8, LISING 1ST RD., HSINCHU SCIENCE PARK, HSINCHU, 300, TAIWAN. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA951031H02A Reference No.: 960105H02 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA951031H02A Reference No.: 960105H02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA951031H02A Reference No.: 960105H02 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.51356 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 68.865 0.021 1.0 6 2437 104.713 0.032 1.0 11 2462 67.453 0.020 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 60.395 0.018 1.0 6 2437 93.325 0.028 1.0 11 2462 61.944 0.019 1.0

Report No.: RF951031H02A 1 Report Format Version 2.0.5 Reference No.: 960105H02 FCC TEST REPORT REPORT NO.: RF951031H02A MODEL NO.: BWA-35302, BWA-35302-ED, SMC8014WG-SI RECEIVED: Jan. 05, 2007 TESTED: Feb. 07 to 15, 2007 ISSUED: Feb. 27, 2007 APPLICANT: HitronTechnologies ADDRESS: NO. 1-8, LISING 1ST RD., HSINCHU SCIENCE PARK, HSINCHU, 300, TAIWAN. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF951031H02A 2 Report Format Version 2.0.5 Reference No.: 960105H02 Table of Contents 1 CERTIFICATION..................................................................................................4 2 SUMMARY OF TEST RESULTS.........................................................................5 2.1 MEASUREMENT UNCERTAINTY.......................................................................6 3 GENERAL INFORMATION..................................................................................7 3.1 GENERAL DESCRIPTION OF EUT....................................................................7 3.2 DESCRIPTION OF TEST MODES......................................................................9 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:....................10 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS...................................12 3.5 DESCRIPTION OF SUPPORT UNITS..............................................................13 3.6 CONFIGURATION OF SYSTEM UNDER TEST...............................................14 4 TEST TYPES AND RESULTS...........................................................................15 4.1 CONDUCTED EMISSION MEASUREMENT....................................................15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................15 4.1.2 TEST INSTRUMENTS.......................................................................................15 4.1.3 TEST PROCEDURES.......................................................................................16 4.1.4 TEST SETUP.....................................................................................................16 4.1.5 EUT OPERATING CONDITIONS......................................................................17 4.1.6 TEST RESULTS.................................................................................................18 4.2 RADIATED EMISSION MEASUREMENT..........................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.......................................22 4.2.2 TEST INSTRUMENTS.......................................................................................23 4.2.3 TEST PROCEDURES.......................................................................................24 4.2.4 TEST SETUP.....................................................................................................25 4.2.5 EUT OPERATING CONDITIONS......................................................................25 4.2.6 TEST RESULTS.................................................................................................26 4.3 6dB BANDWIDTH MEASUREMENT.................................................................42 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................42 4.3.2 TEST INSTRUMENTS.......................................................................................42 4.3.3 TEST PROCEDURE..........................................................................................43 4.3.4 TEST SETUP.....................................................................................................43 4.3.5 EUT OPERATING CONDITIONS......................................................................43 4.3.6 TEST RESULTS.................................................................................................44 4.4 MAXIMUM PEAK OUTPUT POWER.................................................................50 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.................50 4.4.2 TEST INSTRUMENTS.......................................................................................50 4.4.3 TEST PROCEDURES.......................................................................................51 4.4.4 TEST SETUP.....................................................................................................51 Report No.: RF951031H02A 3 Report Format Version 2.0.5 Reference No.: 960105H02 4.4.5 EUT OPERATING CONDITIONS......................................................................51 4.4.6 TEST RESULTS.................................................................................................52 4.5 POWER SPECTRAL DENSITY MEASUREMENT............................................54 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..........................54 4.5.2 TEST INSTRUMENTS.......................................................................................54 4.5.3 TEST PROCEDURE..........................................................................................55 4.5.4 TEST SETUP.....................................................................................................55 4.5.5 EUT OPERATING CONDITIONS......................................................................55 4.5.6 TEST RESULTS.................................................................................................56 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT....................62 4.6.1 LIMITS OF CONDTCTED EMISSION AND BAND EDGES MEASUREMENT.62 4.6.2 TEST IN…

Text truncated - open the document above for the full version.

Report No.: RF951031H02A 50 Report Format Version 2.0.5 Reference No.: 960105H02 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until ROHDE & SCHWARZ Analyzer FSP40 100037 Aug. 15, 2007 Agilent SIGNAL GENERATOR E8257C MY43321031 July 26, 2007 TEKTRONIX OSCILLOSCOPE TDS380 B016335 Jun. 21, 2007 NARDA DETECTOR 4503A FSCM99899 NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF951031H02A 51 Report Format Version 2.0.5 Reference No.: 960105H02 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the peak response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same peak reading on oscilloscope. Record the power level. 4.4.4 TEST SETUP 4.4.5 EUT OPERATING CONDITIONS Same as Item 4.3.5 EUT or S.G OSCILLOSCOPE Detector Report No.: RF951031H02A 52 Report Format Version 2.0.5 Reference No.: 960105H02 4.4.6 TEST RESULTS 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 18deg. C, 62%RH, 970hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 68.865 18.38 30 PASS 6 2437 104.713 20.20 30 PASS 11 2462 67.453 18.29 30 PASS Report No.: RF951031H02A 53 Report Format Version 2.0.5 Reference No.: 960105H02 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 18deg. C, 62%RH, 970hPa TESTED BY Eric Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 60.395 17.81 30 PASS 6 2437 93.325 19.70 30 PASS 11 2462 61.944 17.92 30 PASS Report No.: RF951031H02A 54 Report Format Version 2.0.5 Reference No.: 960105H02 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until ROHDE & SCHWARZ Analyzer FSP40 100037 Aug. 15, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF951031H02A 55 Report Format Version 2.0.5 Reference No.: 960105H02 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 TEST SETUP 4.5.5 EUT OPERATING CONDITIONS Same as 4.3.5 EUT SPECTRUM ANALYZER Report No.: RF951031H02A 56 Report Format Version 2.0.5 Reference No.: 960105H02 4.5.6 TEST RESULTS 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 18deg. C, 62%RH, 970hPa TESTED BY Eric Lee CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 1 2412 -7.52 8 PASS 6 2437 -5.64 8 PASS 11 2462 -7.72 8 PASS Report No.: RF951031H02A 57 Report Format Version 2.0.5 Reference No.: 960105H02 CH1 CH6 Report No.: RF951031H02A 58 Report Format Version 2.0.5 Reference No.: 960105H02 CH11 Report No.: RF951031H02A 59 Report Format Version 2.0.5 Reference No.: 960105H02 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 18deg. C, 62%RH, 970hPa TESTED BY Eric Lee CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 1 2412 -14.97 8 PASS 6 2437 -11.23 8 PASS 11 2462 -15.16 8 PASS Report No.: RF951031H02A 60 Report Format Version 2.0.5 Reference No.: 960105H02 CH1 CH6 Report No.: RF951031H02A 61 Report Format Version 2.0.5 Reference No.: 960105H02 CH11 Report No.: RF951031H02A 62 Report Format Version 2.0.5 Reference No.: 960105H02 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT 4.6.1 LIMITS OF CONDTCTED EMISSION AND BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until ROHDE & SCHWARZ Analyzer FSP40 100037 Aug. 15, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100 MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (RBW = VBW = 100kHz) are attached on the following pages. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 Report No.: RF951031H02A 63 Report Format Version 2.0.5 Reference No.: 960105H02 4.6.6 TEST RESULTS The spectrum plots are attached on the following 12 images. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(d). Report No.: RF951031H02A 64 Report Format Version 2.0.5 Reference No.: 960105H02 802.11b D…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
