U4P-HTEMN2MoCA to WiFi extender

2A 2015/05/13 A3 size,HT-EMN2,English HT-EMN2QIG 100P模造紙 297 mm 420 mm Daisy Wang 0440010198N0 此圖為等比縮小.請參考圖面標示尺寸 灰色虛線為折線 1.折疊後成型尺寸:148(W)x105(H)mm 2.摺疊方式請參考圖1.2.3 圖1 圖2 圖3 3.材質:100P模造紙 4.印刷:黑白雙面印刷.印刷內容請參照附件 QUICK START GUIDE Read me first! Check the box contents 2 STEP Connect to the power outlet 3 STEP Connect to the cable port Connect your building’s coaxial cable to the HT-EMN2’s Coax I/O port. MoCA LED behavior will change from slow blinking to steady if HT-EMN2 connects to MoCA-enabled router over MoCA. 6 STEP 7 STEP 4 STEP 5 STEP Connect with wireless devices (if any) Your HT-EMN2’s SSID (WiFi network name) and security password are provided on a label located on the bottom of the device. On your computer or other wireless device, locate and connect to the network. In Windows 7, click the Network icon, click the network name, then click Connect. When prompted, enter the PassPhrase. Using the supplied Ethernet cable, connect your computer’s network port to the HT-EMN2’s LAN port. Using coaxial cable, connect your TV to the HT-EMN2’s TV port. Connect a computer to a LAN port (if any) Connect to the TV (optional) Access the Internet On your connected computer or device, open a browser and access a website, such as www.hitron-americas.com. If you can see the website, your HT-EMN2 is correctly set up! HITRON HT-EMN2 MoCA 2.0 WiFi Extender Connect to the network Connect your devices Access the Internet Note: Connected to an existing MoCA network. The Hitron HT-EMN2 allows you to connect Multimedia over Coax Alliance (MoCA) devices on your building’s coaxial cable network. This guide assumes that you also have a MoCA-equipped router or network adapter that provides Internet access to your coaxial cable network. For more information, see www.mocalliance.org 1 STEP Look in the box and make sure you have the following: HITRON HT-EMN2 QUICK START GUIDE POWER ADAPTORETHERNET CABLE Connect the supplied 12V/1A power adapter to your HT-EMN2’s POWER port, and plug it in to a power socket. ABCDEFGH P/N:0123456789AB MAC:AB9876543210 S/N:AB1234567890 SSID-2.4G:YZ1234567890 PassPhrase: 9876543210YZ SSID-5G:YZ1234567890XXX FCC ID: U4P-HTEMN2 IC: 10778A-HTEMN2 PassPhrase 2.4G wireless network name 5G wireless network name Note: Please make sure MoCA-enabled router works fine in coaxial network. 0440010198N0(2A) Safety Warnings 7 STEP Setup CompleteTroubleshooting Use the configuration interface to complete control over the device’s behavior. In Web browser, enter 192.168.0.254 in the address bar. Enter cusadmin as the username and password as the password in the screen displays. WARNING Risk of electrical shock. Do not expose the device to water or moisture. The device is a high-performance communications device designed for home and office environments. Do not use the device outdoors. Keep the device in an environment between 0°C ~ 40°C (32°F ~104°F). To avoid overheating, do NOT place any object on top of the device. Do not restrict the flow of air around the device. The manufacturer assumes no liabilities for damage caused by any improper use of the device. DISCLAIMER The manufacturer assumes no liabilities with respect to the contents of this document. The manufacturer also reserves the right to revise this document or update the content thereof without any obligation to notify any person of such revisions or amendments. Specifications subject to change without notice. CAUTION The cable distribution system should be grounded (earthed) in a accordance with ANS/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable. LED Display Green-Steady Off Blue-Blinking Blue-Steady Device is running with AC power. Not powered. Data transmitting over MoCA. Device has discovered another MoCA device. Green-Blinking Green-Steady Blue-Blinking Blue-Steady Data transmitting over 10/100 Mbps. 10/100 Mbps Link up. Data transmitting over 1000 Mbps. 1000 Mbps Link up. Green-Blinking Green-Steady Off Data transmitting over 2.4G Wi-Fi. 2.4G WiFi enabled. 2.4G WiFi disabled. Green-Blinking Green-Steady Off Data transmitting over 5G Wi-Fi. 5G WiFi enabled. 5G WiFi disabled. Green-Steady Red-Blinking Yellow-Blinking Success. Error. In progress. Use this section only if you were unable to connect to the Internet in step 7. Problem: The LEDs do not turn on If no LEDs turn on, check the HT-EMN2 is plugged in to the power source correctly. If the POWER LED turns on, but the MoCA LED does not, wait up to 90 seconds. If the MoCA LED remains off, contact your vendor. If the POWER and MoCA LEDs turn on, but the MoCA LED always blinks slowly, ensure that the HT-EMN2 is correctly connected to the building’s coax cable network, that the MoCA-enabled router or network adapter is likewise correctly connected, and that it is switched on. Problem: I cannot connect via WiFi If your WiFi device cannot find the network, move closer to the HT-EMN2 and away from obstructions. If your WiFi device can find the network name but cannot connect, make sure you are using the correct default password, and that your device supports the IEEE 802.11 b, g, n or ac standard. Problem: I cannot access the Internet Ensure that you can connect to the Internet from a computer connected directly to your network’s MoCA-enabled router or network adapter. Check the cabling connections between the router and your HT-EMN2, and between the HT-EMN2 and your computer (or, for WiFi, ensure it is correctly connected to the network). If problems persist, the HT-EMN2 may have had its WiFi or network settings altered. For information on returning the HT-EMN2 to its default settings, consult your vendor. MoCA Ethernet Power WPS 2.4G Wifi 5G Wifi COPYRIGHT © 2015 HITRON TECHNOLOGIES, INC. FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits ar…

Text truncated - open the document above for the full version.

Airgain Embedded Antenna Preliminary Engineering Data Sheet Profile Series N2420DG2 3611 Valley Centre Drive, Suite 150 San Diego, CA 92130 USA Tel: +1 760 579 0200 Fax: +1 760 579 0892 Information: [email protected] Sales: [email protected] Support: [email protected] Page 2 Proprietary and Confidential Doc. # 508C-02-00-001-1 Rev. 1.1 Airgain N2420DG2 Engineering Data Sheet Revision History (Required) Revision Date Note 508C-02-00-001-1 Rev1.0 April 20, 2015 Preliminary Datasheet 1.0 508C-02-00-001-1 Rev1.1 May 20, 2015 Add silk marker Disclaimers The information in this document is provided in connection with Airgain Antenna products and is proprietary and confidential. Airgain may make changes at any time, without notice. Please verify with Airgain before finalizing a product design. Page 3 Proprietary and Confidential Doc. # 508C-02-00-001-1 Rev. 1.1 Airgain N2420DG2 Engineering Data Sheet Contents 1. Airgain N2420DG2 Embedded Antenna ......................................................................................................... 4 2. Features ............................................................................................................................................................ 4 3. Specifications and Interface ............................................................................................................................. 5 4. Radiation Patterns ............................................................................................................................................ 5 5. Dimensions ...................................................................................................................................................... 9 6. ROHS............................................................................................................................................................... 9 7. Mounting Guidelines ....................................................................................................................................... 9 8. Feature and Options Information ................................................................................................................... 12 8.1 Part Number Conventions ............................................................................................................................. 12 8.2 Part Number Example ................................................................................................................................... 12 9. Cable Data Sheet ........................................................................................................................................... 13 Figures Figure 1 Airgain N2420DG2 embedded antenna ........................................................................................................... 4 Figure 2 Airgain N2420DG2 measurement axes ........................................................................................................... 5 Figure 3 Airgain N2420DG2 radiation patterns at 2.4 GHz ....................................................................................... 6 Figure 4 Airgain N2420DG2 radiation patterns at 5.2 GHz ....................................................................................... 7 Figure 5 Airgain N2420DG2 radiation patterns at 5.8 GHz ....................................................................................... 8 Figure 6 Airgain N2420DG2 embedded antenna and N2420DG2-T pre-applied tape dimensions ....... 9 Figure 7 Case side wall mounting considerations for Airgain N2420DG2 (side view) ............................... 10 Figure 8 Case top considerations when mounting Airgain N2420DG2 on case side wall ....................... 10 Figure 9 Clearance considerations when case top mounting Airgain N2420DG2 (side view) ............... 11 Figure 10 Case side wall mounting considerations when mounting Airgain N2420DG2 (top view) .... 11 Figure 11 Airgain N2420DG2 with connector or stripped cable ............................................................................ 12 Page 4 Proprietary and Confidential Doc. # 508C-02-00-001-1 Rev. 1.1 Airgain N2420DG2 Engineering Data Sheet 1. Airgain N2420DG2 Embedded Antenna The Model N2420DG2 Embedded Antenna provides a high efficiency, dual band embedded antenna solution for Wi-Fi and ISM band applications, such as WLAN products. As embedded antenna solutions become the focus of next generation wireless product design, the Model N2420DG2 provides the flexibility of an embedded antenna with top performance. It is designed to accommodate most WLAN access point applications, such as routers and gateways and can be easily integrated into an ID package design. 2. Features The Airgain N2420DG2 embedded antenna includes the following features:  IEEE 802.11 a/b/g/n/ac standards  Dual 2.4/5-GHz band operation  Case mount  1.9 dBi @ 2.44 GHz; 1.9 dBi @ 5.2 GHz ; 3.2 dBi @ 5.8 GHz peak gain  High efficiency  Quick integration Figure 1 Airgain N2420DG2 embedded antenna Page 5 Proprietary and Confidential Doc. # 508C-02-00-001-1 Rev. 1.1 Airgain N2420DG2 Engineering Data Sheet 3. Specifications and Interface Standard IEEE 802.11 a/b/g/n/ac Frequency range 2.4 to 2.49 and 4.9 to 5.9 GHz Peak gain 1.9dBi @ 2.44 GHz; 1.9 dBi @ 5.2 GHz ; 3.2 dBi @ 5.8 GHz VSWR 2:1 Feed impedance 50 ohms Power handling 30 dBm Interface 50 ohms, 1.13 mm diameter, micro coax cable (available with optional U.FL-compatible cable connector and/or cable-mounted EMI ferrites) Antenna dimensions 40 x 20 x 1 mm Weight 1.56 g ( 0.055 oz) Temperature range Operating: -40° C to +75° C (-40° F to +167° F) Storage: -40° C to +85° C (-40° F to +185° F) Humidity range 0% to 95% non-condensing 4. Radiation Patterns Patterns taken with Model N2420DG2 mounted on 90mm x 90mm x 2.2mm thick, ABS Plastic sheet using 0.5mm double sided tape. Figure 2 Airgain N2420DG2 measurement axes Page 6 Proprietary and Confidential Doc. # 508C-02-00-001…

Text truncated - open the document above for the full version.

Airgain Embedded Antenna Preliminary Engineering Data Sheet Profile Series N2420DGCSS2 3611 Valley Centre Drive, Suite 150 San Diego, CA 92130 USA Tel: +1 760 579 0200 Fax: +1 760 579 0892 Information: [email protected] Sales: [email protected] Support: [email protected] Page 2 Proprietary and Confidential Doc. # 509C-02-00-001 Rev. 1.0 Airgain N2420DGCSS2 Engineering Data Sheet Revision History (Required) Revision Date Note 509C-02-00-001-1 Rev1.0 April 20, 2015 Preliminary Datasheet 1.0 Disclaimers The information in this document is provided in connection with Airgain Antenna products and is proprietary and confidential. Airgain may make changes at any time, without notice. Please verify with Airgain before finalizing a product design. Page 3 Proprietary and Confidential Doc. # 509C-02-00-001 Rev. 1.0 Airgain N2420DGCSS2 Engineering Data Sheet Contents 1. Airgain N2420DGCSS2 Embedded Antenna .................................................................................................. 4 2. Features ............................................................................................................................................................ 4 3. Specifications and Interface ............................................................................................................................. 5 4. Radiation Patterns ............................................................................................................................................ 5 5. Dimensions ...................................................................................................................................................... 9 6. ROHS............................................................................................................................................................... 9 7. Mounting Guidelines ....................................................................................................................................... 9 8. Feature and Options Information ................................................................................................................... 12 8.1 Part Number Conventions ............................................................................................................................. 12 8.2 Part Number Example ................................................................................................................................... 12 9. Cable Data Sheet ........................................................................................................................................... 13 Figures Figure 1 Airgain N2420DGCSS2 embedded antenna ................................................................................................. 4 Figure 2 Airgain N2420DGCSS2 measurement axes ................................................................................................. 5 Figure 3 Airgain N2420DGCSS2 radiation patterns at 2.4 GHz ............................................................................. 6 Figure 4 Airgain N2420DGCSS2 radiation patterns at 5.2 GHz ............................................................................. 7 Figure 5 Airgain N2420DGCSS2 radiation patterns at 5.8 GHz ............................................................................. 8 Figure 6 Airgain N2420DGCSS2-T pre-applied tape dimensions .......................................................................... 9 Figure 7 Case side wall mounting considerations for Airgain N2420DGCSS2 (side view) ..................... 10 Figure 8 Case top considerations when mounting Airgain N2420DGCSS2 on case side wall .............. 10 Figure 9 Clearance considerations when case top mounting Airgain N2420DGCSS2 (side view) ..... 11 Figure 10 Case side wall mounting considerations when mounting Airgain N2420DGCSS2 (top view) ................................................................................................................................................................................................................ 11 Figure 11 Airgain N2420DGCSS2 with connector or stripped cable .................................................................. 12 Page 4 Proprietary and Confidential Doc. # 509C-02-00-001 Rev. 1.0 Airgain N2420DGCSS2 Engineering Data Sheet 1. Airgain N2420DGCSS2 Embedded Antenna The Model N2420DGCSS2 Embedded Antenna provides a high efficiency, dual band embedded antenna solution for Wi-Fi and ISM band applications, such as WLAN products. As embedded antenna solutions become the focus of next generation wireless product design, the Model N2420DGCSS2 provides the flexibility of an embedded antenna with top performance. It is designed to accommodate most WLAN access point applications, such as routers and gateways and can be easily integrated into an ID package design. 2. Features The Airgain N2420DGCSS2 embedded antenna includes the following features:  IEEE 802.11 a/b/g/n/ac standards  Dual 2.4/5-GHz band operation  Case mount  1.2 dBi @ 2.44 GHz; 2.4 dBi @ 5.2 GHz ; 3.1 dBi @ 5.8 GHz peak gain  High efficiency  Quick integration Figure 1 Airgain N2420DGCSS2 embedded antenna Page 5 Proprietary and Confidential Doc. # 509C-02-00-001 Rev. 1.0 Airgain N2420DGCSS2 Engineering Data Sheet 3. Specifications and Interface Standard IEEE 802.11 a/b/g/n/ac Frequency range 2.4 to 2.49 and 4.9 to 5.9 GHz Peak gain 1.2 dBi @ 2.44 GHz; 2.4 dBi @ 5.2 GHz ; 3.1 dBi @ 5.8 GHz VSWR 2:1 Feed impedance 50 ohms Power handling 30 dBm Interface 50 ohms, 1.13 mm diameter, micro coax cable (available with optional U.FL-compatible cable connector and/or cable-mounted EMI ferrites) Antenna dimensions 34.5 x 14.53 x 1 mm Weight 0.99 g ( 0.035 oz) Temperature range Operating: -40° C to +75° C (-40° F to +167° F) Storage: -40° C to +85° C (-40° F to +185° F) Humidity range 0% to 95% non-condensing 4. Radiation Patterns Patterns taken with Model N2420DGCSS2 mounted on 90mm x 90mm x 2.2…

Text truncated - open the document above for the full version.

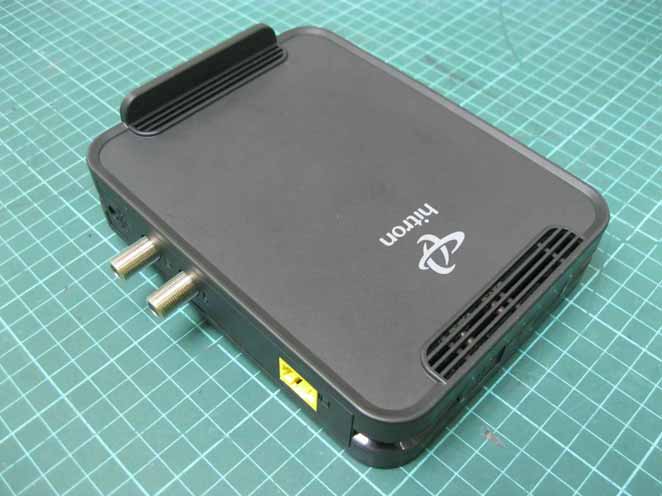

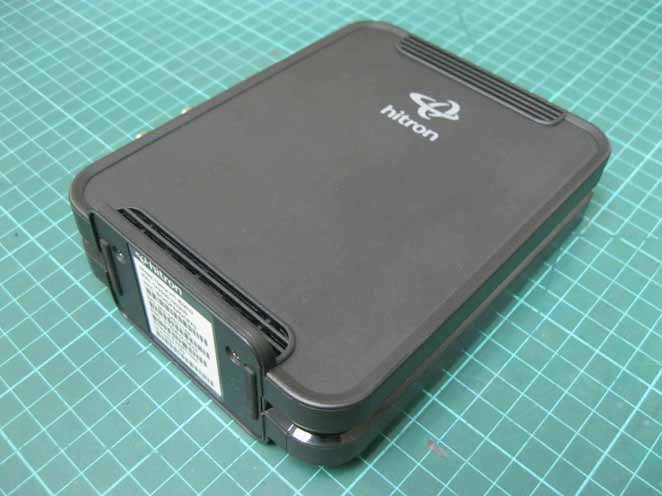

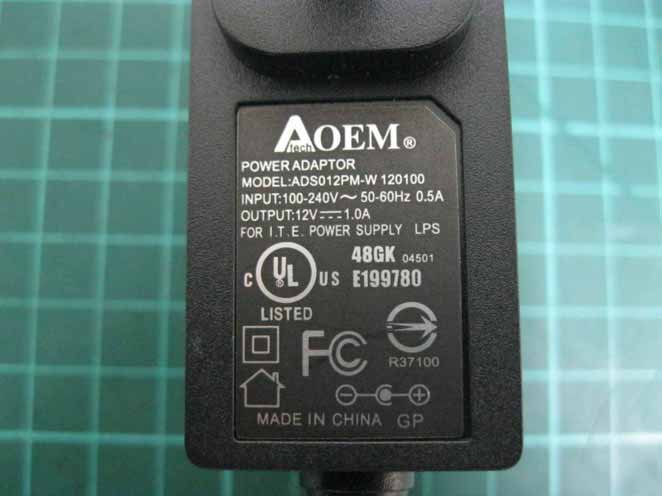

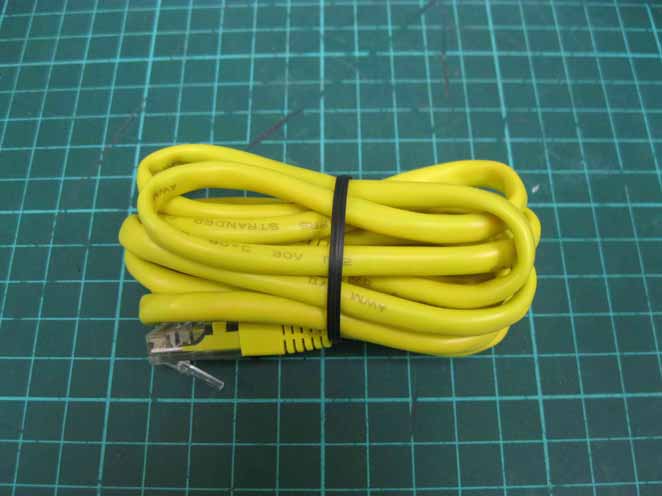

Report No.T150529S02 Page 1 of 4 External Photo Report No.T150529S02 Page 2 of 4 Report No.T150529S02 Page 3 of 4 Power Adapter (Model : ADS012PM-W 120100) Report No.T150529S02 Page 4 of 4 Cable

Font: Arial/RegularFont height: 1.7mm+/-0.3mmBarcode type: Code 39 Barcode height: +/-0.3mm 3.0mm R2 36.0 mm 45.0 mm 2.0 mm 2.0 mm ABCDEFGHP/N:0123456789ABMAC:AB9876543210S/N:AB1234567890SSID-2.4G:YZ1234567890PassPhrase: 9876543210YZ 2. P/N:0123456789AB 此組數據為範例,僅供參考編碼原則請參照 MPD 而變動 , 3. CM MAC:AB9876543210 此組數據為範例,僅供參考編碼原則請參照 MPD 而變動 , 4. S/N:AB1234567890 此組數據為範例,僅供參考編碼原則請參照 MPD 而變動 , 1. ABCDEFGH 此組數據 M odel Name ,圖中數據為範例,僅供參考 編碼原則請參照 MPD 而變動 , 5. SSID-2.4G:YZ1234567890 此組數據為範例,僅供參考編碼原則請參照 MPD 而變動 , 6. PassPhrase:9876543210YZ 此組數據為範例,僅供參考編碼原則請參照 MPD 而變動 , SSID-5G:YZ1234567890XXX FCC ID: U4P-HTEMN2 IC: 10778A-HTEMN2 Font: Arial/RegularFont height: 1.7mm+/-0.3mmBarcode type: Code 39 Barcode height: +/-0.3mm 2.0mm Font: Arial/Font height: 1.7mm+/-0.3mm Bold 5. SSID-5G:YZ1234567890XXX 此組數據為範例,僅供參考編碼原則請參照 MPD 而變動 , HT-EMN2 Case label 0500090273H0 FCC,HT-2013,36Wx45Hmm 3A2015/05/14 Daisy Wang Label Location

Report No.T150529S02 Page 1 of 8 Internal Photo Report No.T150529S02 Page 2 of 8 Report No.T150529S02 Page 3 of 8 Report No.T150529S02 Page 4 of 8 Report No.T150529S02 Page 5 of 8 Report No.T150529S02 Page 6 of 8 Report No.T150529S02 Page 7 of 8 Report No.T150529S02 Page 8 of 8 Antenna

Compliance Certification Services Inc. Report No.: T150529S02-RP1-2 Date of Issue: June 16, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT MoCA to WiFi extender Model HT-EMN2 Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11gn HT40: 2.422GHz ~ 2.452GHz 802.11a, 802.11ac VHT20 : 5180 MHz ~ 5240 MHz / 5745 MHz ~ 5825 MHz 802.11ac VHT40 : 5190 MHz ~ 5230 MHz / 5755 MHz ~ 5795 MHz 802.11ac VHT80 : 5210 MHz / 5775 MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Airgain Embedded Antenna × 2 , 2.4GHz: Antenna 0 (Chian 0)Gain 1.90 dBi (Numeric gain 1.55) 2.4GHz: Antenna 1 (Chian 1)Gain 1.20 dBi (Numeric gain 1.32) Airgain Embedded Antenna × 2 , 5GHz: Antenna 0 (Chian 0)Gain 3.20 dBi (Numeric gain 2.09) 5GHz: Antenna 1 (Chian 1)Gain 3.10 dBi (Numeric gain 2.04) Compliance Certification Services Inc. Report No.: T150529S02-RP1-2 Date of Issue: June 16, 2015 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum output power 2.4G IEEE 802.11b Mode: 19.06 dBm (80.538 mW) IEEE 802.11g Mode: 26.16 dBm (413.048 mW) IEEE 802.11gn HT 20 Mode: 25.82 dBm (381.944 mW) IEEE 802.11gn HT 40 Mode: 25.74 dBm (374.973 mW) 5G UNII Band 1 IEEE 802.11a Mode: 16.82 dBm (48.084 mW) IEEE 802.11ac VHT20 Mode: 15.79 dBm (37.931 mW) IEEE 802.11ac VHT40 Mode: 15.86 dBm (38.548 mW) IEEE 802.11ac VHT80 Mode: 15.89 dBm (38.815 mW) 5G UNII Band 3 IEEE 802.11a Mode: 17.39 dBm (54.828 mW) IEEE 802.11ac VHT20 Mode: 16.67 dBm (46.452 mW) IEEE 802.11ac VHT40 Mode: 16.59 dBm (45.604 mW) IEEE 802.11ac VHT80 Mode: 16.40 dBm (43.652 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T150529S02-RP1-2 Date of Issue: June 16, 2015 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 06/16/2015 Initial Issue ALL Gloria Chang Compliance Certification Services Inc. Report No.: T150529S02-RP1-2 Date of Issue: June 16, 2015 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T150529S02-RP1-2 Date of Issue: June 16, 2015 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 246280.5381.55200.02481 IEEE 802.11g mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 2462413.0481.55200.12741 IEEE 802.11gn HT20 mode: Frq.(MHz)P (mW) Gain (num.)D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2412 ~ 2462381.9441.55200.11781 IEEE 802.11gn HT40 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2422 ~ 2452374.9731.55200.11571 Compliance Certification Services Inc. Report No.: T150529S02-RP1-2 Date of Issue: June 16, 2015 Page 6 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 5G UNII Band 1 IEEE 802.11a mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5180 ~ 524048.0842.09200.02001 IEEE 802.11ac VHT20 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5180 ~ 524037.9312.09200.01581 IEEE 802.11ac VHT40 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5190 ~ 523038.5482.09200.01601 IEEE 802.11ac VHT80 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 521038.8152.09200.01611 5G UNII Band 3 IEEE 802.11a mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5475 ~ 582554.8582.09200.02281 IEEE 802.11ac VHT20 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5475 ~ 582546.4522.09200.01931 IEEE 802.11ac VHT40 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 5755 ~ 579545.6042.09200.01901 IEEE 802.11ac VHT80 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 577543.6522.09200.01821 Compliance Certification Services Inc. Report No.: T150529S02-RP1-2 Date of Issue: June 16, 2015 Page 7 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Service…

Text truncated - open the document above for the full version.

FCC IDU4P-HTEMN2 Report No.T150529S02-RP1-1 Page 1 / 111 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART E AND ANSI C63.10:2013 TEST REPORT For MoCA to WiFi extender Model : HT-EMN2 Trade Name : hitron Issued for Hitron Technologies,Inc. No. 1-8,Lihsin 1st Rd.,HsinChu Science Park,HisnChu,Taiwan 300,R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. No.989-1, Wenshan Rd., Shangshan Village, Qionglin Township, Hsinchu County 30741, Taiwan (R.O.C.) TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: June 16, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDU4P-HTEMN2 Report No.T150529S02-RP1-1 Page 2 / 111 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 06/16/2015 Initial Issue All Page 111 Gloria Chang FCC IDU4P-HTEMN2 Report No.T150529S02-RP1-1 Page 3 / 111 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 7 4. TEST METHODOLOGY ............................................................................................... 9 5. FACILITIES AND ACCREDITATION ........................................................................... 9 5.1 FACILITIES ............................................................................................................ 9 5.2 ACCREDITATIONS ................................................................................................ 9 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 11 7. FCC PART 15.407 REQUIREMENTS .......................................................................... 13 7.1 6dB BANDWIDTH .................................................................................................. 13 7.2 MAXIMUM CONDUCTED OUTPUT POWER ........................................................ 26 7.3 PEAK POWER SPECTRAL DENSITY ................................................................... 33 7.4 RADIATED EMISSION ........................................................................................... 62 7.5 CONDUCTED EMISSION ...................................................................................... 95 7.6 FREQUENCY STABILITY ...................................................................................... 100 APPENDIX I CO-LOCATION ........................................................................................... 104 APPENDIX II SETUP PHOTOS ....................................................................................... 108 FCC IDU4P-HTEMN2 Report No.T150529S02-RP1-1 Page 4 / 111 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Hitron Technologies,Inc. Address No. 1-8,Lihsin 1st Rd.,HsinChu Science Park, HisnChu, Taiwan 300,R.O.C. Equipment Under Test MoCA to WiFi extender Model HT-EMN2 Trade Name hitron Tested Date May 29 ~ June 05, 2015 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart E AND ANSI C63.10:2013 and ANSI C63.4:2014 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the sam…

Text truncated - open the document above for the full version.
