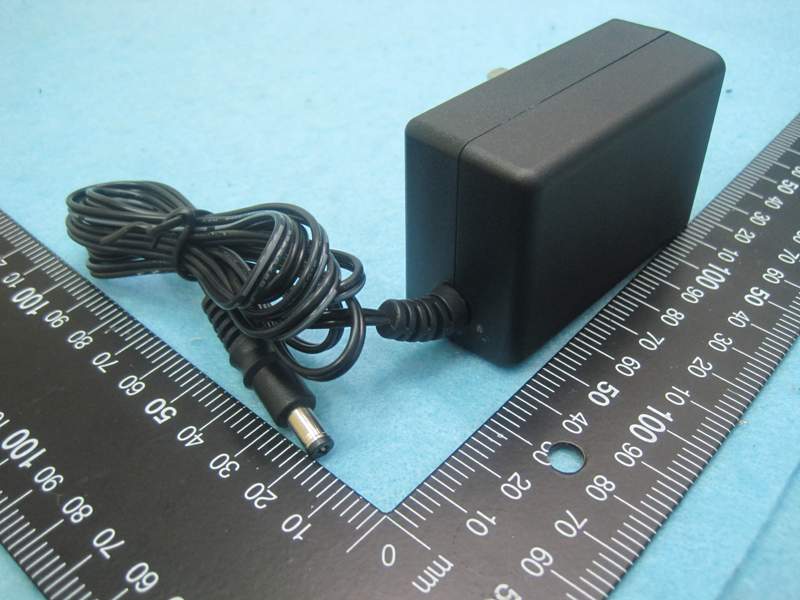

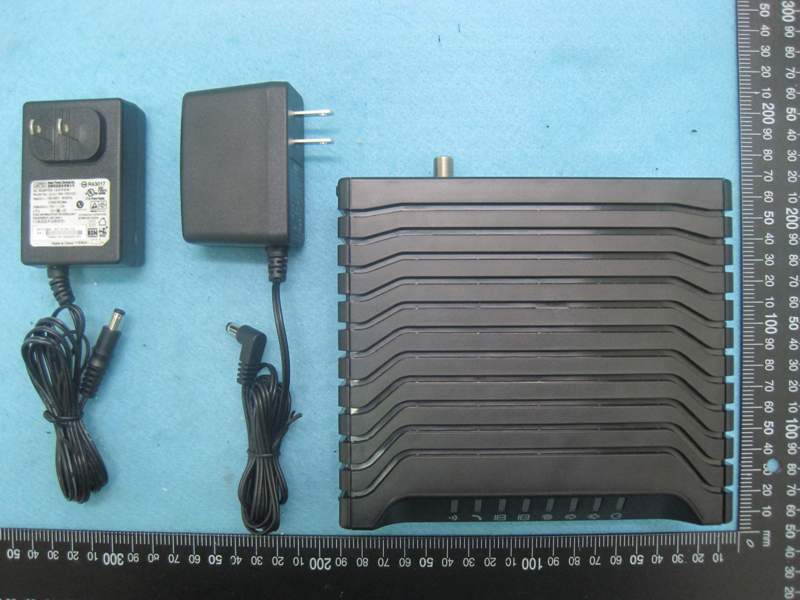

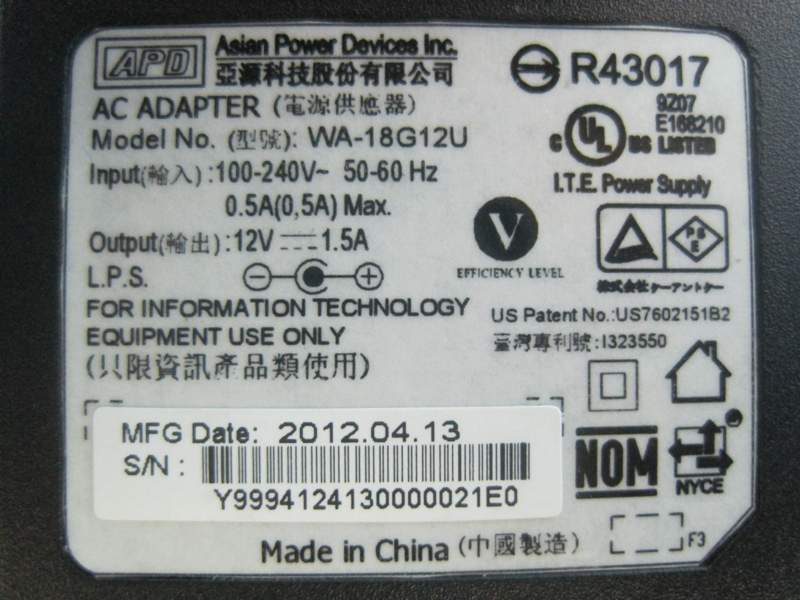

Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Adapter 1 Model No.: ADS18B-W 120150 Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Adapter 2 Model No.: WA-18G12U Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973

Label Here

Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 1 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 2 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 3 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 4 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 5 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 6 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 7 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 8 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973 Report No.: 421183 SPORTON International Inc. PAGE NUMBER : 9 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Mar. 31, 2014 FAX : 886-3-327-0973

Report No.: FR421183 FCC ID: U4P-CGNV2 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR421183 FCC ID: U4P-CGNV2 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR421183 FCC ID: U4P-CGNV2 Page No. : B3 of B3 1.3. Calculated Result and Limit For 2.4GHz Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11g: 24.88 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.62 2.8973 24.8807 307.6575 0.177426 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Hitron Technologies Applicant Address No.1-8, Lising 1st Rd. Hsinchu Science Park, Hsinchu 300, Taiwan FCC ID U4P-CGNV2 Manufacturer’s company Hitron Technologies Manufacturer Address No.1-8, Lising 1st Rd. Hsinchu Science Park, Hsinchu 300, Taiwan Product Name eMTA Brand Name Hitron Model No. CGNV2 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Feb. 10, 2014 Final Test Date Mar. 19, 2014 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r01 and KDB 662911 D01 v02r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR421183 Report Format Version: 01 Page No. : i of ii FCC ID: U4P-CGNV2 Issued Date : Mar. 31, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. EUT Operation during Test ...................................................................................................................................................................8 3.10. Duty Cycle ..........................................................................................................................................................................................9 3.11. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................18 4.3. Power Spectral Density Measurement ..............................................................................................................................................21 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................29 4.5. Radiated Emissions Measurement ....................................................................................................................................................34 4.6. Emissions Measurement ....................................................................................................................................................................53 4.7. Antenna Requirements .....................................................................................................................................................................71 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 72 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 74 APPENDIX A. TEST PHOTOS .............................................................................…

Text truncated - open the document above for the full version.

Report No.: FR421183 FCC ID: U4P-CGNV2 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR421183 FCC ID: U4P-CGNV2 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR421183 FCC ID: U4P-CGNV2 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR421183 FCC ID: U4P-CGNV2 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR421183 FCC ID: U4P-CGNV2 Page No. : A5 of A5 Test Configuration: Above 1GHz / Test mode: Mode 1 FRONT VIEW REAR VIEW
