U4P-HTGDS1Garage Door Sensor

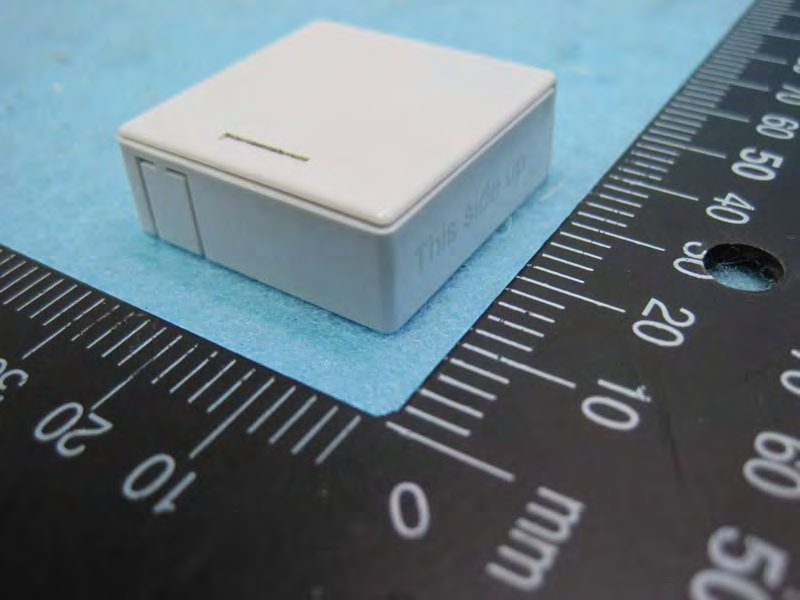

HT-GDS1 0440010185N0(3A) Quick Guide / Manual Installation 1. Activate Battery Slide open HT-GDS1’s top cover and pull the tab to activate it for pairing. 2. Join the Network Follow the instructions on your home control system to add a new HT-GDS1. During the joining need to slide off the top cover, the LED on the HT-GDS1 will blink while it’s searching for the network. More information about this process can be found at: http://www.hitron-americas.com Key Features Unobtrusive Compact Design 3+ Year Coin Cell Battery Life Easy Installation with Tape or Screws Tamper Switch for Extra Security 100m Open space, 60m + Inside Range Contents HT-GDS1 1 CR-2032 Battery Screws and Tape (2 each) LED Indicators/ Troubleshooting Status/Action Description The LED will light green) for 2 seconds when the battery is inserted. ( The LED will flash (green) 3 times every 5 seconds. It will quit flashing when it finds a network. Holding the tamper switch, inserting the battery, and releasing it while the LED is green (within 2 seconds of inserting the battery). Pressing and releasing the tamper switch 5 times within 5 seconds. Star t using your HT-GDS1 HT-GDS1 is ON Search for network Factory reset Forced rejoin Low battery The LED will light (red) always. CK 6 6 3 94V-0 E87 263 D100 + LED Tab Tamper switch Battery Hitron’s Garage Door Sensor (HT-GDS1) enable you to monitor the opening of your garage door. Once the garage door opens to a 45 degree angle, HT-GDS1 will report open message from iControl Touchscreen. 3. Test HT-GDS1 Test HT-GDS1 from the desired location before permanently installing it by flipping it forward as shown above, this is the same action as the garage door opening. Check if is reporting a close or open message from both orientations. 4. Install HT-GDS1 Install HT-GDS1 on a clean surface by using double side tape or screws. 5. Close HT-GDS1’s housing Once you have confirmed is communicating, install it in its mounting plate on the garage door HT-GDS1 HT-GDS1 Tape Screw Mounting plate Screw holes Open/ Close Test Install Alignment Flip Top cover Where not to place (1) Metal can reduce transmission range (2) Damp or Rain or very humid area (3) Over 50 C or Below -10 C oo

105 mm 52 mm 1.折疊後成型尺寸:52.5(W)x26(H)mm 2.摺疊方式請參考圖 3.材質:100P模造紙 4.印刷:黑色單面印刷.印刷內容請參照附件 2014.05.07 Eunice Wu 1A 0440010179N0 Poster HT-DW1 Warning paper,105Wx52Hmm, HT-DW1,English 100P模造紙 此圖為等比縮小.請參考圖面標示尺寸 灰色虛線為折線 Compliances . FCC Part 15.19(a) statement: “This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” B. Industry Canada RSS‐Gen Licence‐exempt, statement: “This device complies with Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.” “Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. “ C. Part 15 Clause 15.105 [ EMC Class A/B statement ]: “Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.” D. Part 15 Clause 15.21 “Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment” E. WEEE Directive 2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. F. RoHs Directive 2002/95/EC RoHS Compliant. Hereby, This product does not contain lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated depheny ethers (PBDE) in more than the percentage specified by EU directive 2002/95/EC, except exemptions stated in EU directive 2002/95/EC annex. G. UL Rating: This device complies with UL Standard UL634 and ULC Standard ULC C634. A

Report No.:512781 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Mar. 20, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:512781 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Mar. 20, 2015 FAX : 886-3-327-0973

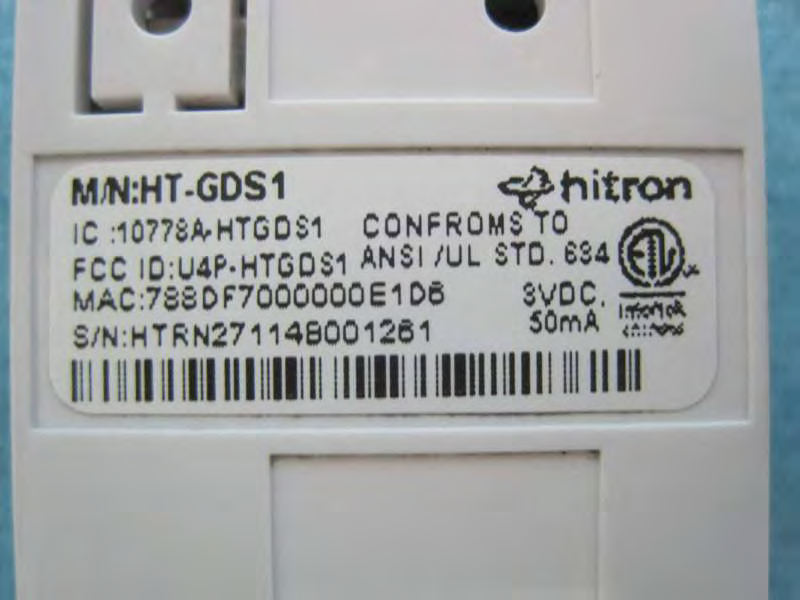

Label: Label here

Report No.:512781 SPORTON International Inc. PAGE NUMBER : 1 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Mar. 20, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:512781 SPORTON International Inc. PAGE NUMBER : 2 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Mar. 20, 2015 FAX : 886-3-327-0973 Report No.:512781 SPORTON International Inc. PAGE NUMBER : 3 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Mar. 20, 2015 FAX : 886-3-327-0973 Report No.:512781 SPORTON International Inc. PAGE NUMBER : 4 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Mar. 20, 2015 FAX : 886-3-327-0973

Report No.: FR512781 FCC ID: U4P-HTGDS1 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR512781 FCC ID: U4P-HTGDS1 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density Report No.: FR512781 FCC ID: U4P-HTGDS1 Page No. : B3 of B3 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 1.3. Calculated Result and Limit Antenna Type : Chip Antenna Conducted Power for IEEE 802.15.4 ZigBee: 7.39dBm The maximum combined Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 2.08 1.6144 7.3900 5.4828 0.001762 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company Hitron Technologies Applicant Address No.1-8, Lising 1st Rd. Hsinchu Science Park, Hsinchu 300, Taiwan FCC ID U4P-HTGDS1 Manufacturer’s company Hitron Technologies Manufacturer Address No.1-8, Lising 1st Rd. Hsinchu Science Park, Hsinchu 300, Taiwan Product Name Garage Door Sensor Brand Name hitron Model No. HT-GDS1 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400~2483.5 MHz Received Date Jan. 27, 2015 Final Test Date Mar. 11, 2015 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.15.4 ZigBee of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart C and KDB 558074 D01 v03r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR512781 Report Format Version: Rev. 01 Page No. : i of ii FCC ID: U4P-HTGDS1 Issued Date : Mar. 20, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. EUT Operation during Test ...................................................................................................................................................................8 3.10. Duty Cycle ..........................................................................................................................................................................................8 3.11. Test Configurations .............................................................................................................................................................................9 4. TEST RESULT ................................................................................................................................................... 11 4.1. Maximum Conducted Output Power Measurement .........................................................................................................................11 4.2. Power Spectral Density Measurement ..............................................................................................................................................13 4.3. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................17 4.4. Radiated Emissions Measurement ....................................................................................................................................................21 4.5. Emissions Measurement ....................................................................................................................................................................31 4.6. Antenna Requirements .....................................................................................................................................................................37 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 38 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 40 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A4 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE .......................................................................................... B1 ~ B3 Repo…
