U4P-CGN21A8x4 D3 WIRELESS ROUTER

RevNo Revision note Signature Date 1 Checked 6 5 4 3 2 6 5 4 3 2 1 ABCD ABCD Project: Part Name: Part Number Description:V ersion Dwg No: Material: Coating: Date: Designed by Checked by Approve by-date 2A 2011/10/24 CVE-30360,EN,Hitron,NCC/TWN 100P ዂആિ 297 mm 420 mm Yvonne Liu Poster 0440010108N0 CVE-30360 ԫშ๊࣐Щᕼϊ/፝୥Մშ८ዀұАωԹՔຏጤ࣐׸ጤ 2/׸᠓ࡤԚ࠯Аω;259)X*y216)I*nn3/ᄨ᠓Рԓ፝୥Մშ 2/3/4 შ2 შ3 შ4 4/؆፵;211Qዂആિ5/Ӡږ;༄Ҫᚗ८Ӡ/ږӠږᚠՔ፝୥Մᄃርኻ-ࠣӠږςৡ፝୥ྲߤӈ QUICK START GUIDE HITRON WIRELESS VOIP CABLE ROUTER Connect to the Internet Connect your phones Set up your wireless network Read me first! 1 STEP Check the package contents 1 Router 1 ETHERNET CABLEQUICK START GUIDE 1 POWER ADAPTOR 2 STEP Connect the cable port Connect your cable outlet to the device’s CABLEconnector. 3 STEP Connect the power Connect the power adaptor to the POWERport. 4 STEP Connect your phones/fax machines (CVE Series only) Use the cables to connect your phones and fax machines to the LINEports. Do this only if you ordered phone/fax service. 5 STEP Connect wired computers (optional) You can use the included Ethernet cable to connect a computer to one of the LANorts. 6 STEP Connect wireless computers (optional) You can connect devices to the wireless network. Look at the sticker on the bottom of the device, and make a note of the SSID andWireless PassPhrase. Next, look at the LEDs (lights) on the front of the device. Is the Wireless LED on, or blinking? If so, the wireless network is on. If not, turn the wireless network on by pressing the WIFIbutton on the side of the device for at least 3 seconds. 1~5s On your computer, open your wireless network utility (this example uses Windows XP). Refresh the network list and locate your device’s SSID. ClickConnect. The next screen shows that you are securely connected. Select the network. In the next screen, enter the Wireless PassPhrase . 157mm (6.18inch) 103 mm (4inch) Mounting Kits Setup Complete LED Display Congratulations! You have successfully set up your router. If you have any problems, see the sections below for help identifying the problem. * Up to ten minutes on first connection, two minutes thereafter. POWER: this LED turns on when power is connected and the router is turned on. If it does not, your router is not receiving power. UPSTREAM/DOWNSTREAM: these LEDs blink while the router is searching for a connection over the Internet, and shine steadily once a connection is established. If they continue to blink for longer than expected*, the router cannot make a connection. LINE 1/LINE 2: (CVE Series only) these LEDs turn on if you have phone/ fax services.If you ordered one phone line LINE 1 turns on, and if you ordered two lines, both LEDs turn on. IP addresses If your router is successfully connected to the network (see LED display) but you cannot access the Internet from a connected computer, your computer’s IP Address may be set up wrongly. In your computer’s control paneleitherensure that the computer is configured to receive an IP address automatically (recommended)orensure that it has a static IP address in the range192.168.0.2~192.168.0.254. For more information, consult your Operating System’s document. Configration interface Your router has a configuration interface allowing complete control over the device’s behavior. In a Web browser, enter 192.168.0.1 in the address bar. In the screen that displays, enter adminas the username andpasswordas the password. Connection options POWER CABLECOMPUTERS PHONES/ FAXES WIRELESS DEVICES STEP Safety Warnings WARNING DISCLAIMER COPYRIGHT © 2011 HITRON TECHNOLOGIES, INC. Notes Wall-mounting lnstallation The mounting holes seperated by 157mm/ 6.18inch on the bottom of device. You may drive two nails or screws with the head size in a diameter of 7.00mm/ 0.28inch and a thickness of 2.7mm/ 0.11inch into the wall to make sure of the nails or screws are capable of withstanding 2.5k load.You also can use the little pack with tapping screws and plastic anchors in box to mount this device on the wall. The steps of wall-mounted installation are (1) Drill two holes with diameters of 6.5mm/ 0.25inch, in distance of 157mm/ 6.18inch on the wall. (2) Nail the plastic anchors into the holes and make sure the whole anchors were inserted in the wall. (3) Screw the tapping screws in the anchors and expose the appropriate length at the screw head to hang the device. There are limitations if plastic anchors are used. The wall surface must be: 1. Fir and pine with a thickness of over 32mm/ 1.25inch;timber or plywood that is capable of withstanding 2.5k load. 2. Brick wall with a thickness of over 32mm/ 1.25inch. 3. Concrete wall with a thickness of over 32mm/ 1.25inch 4. Metal wall with a thickness of over 15mm/ 0.6inch 157mm (6.18inch) 103 mm (4 i n c h) Wall Hole Drilling Diameter 6.50mm/ 0.25inch Tapping screw Plasti canchor Wall The drilling orientation of the actual size is included in the box.Before drilling holes on the wall, you can place this orientation diagram on the wall first and drill holes P/N:0440010108N0(2A) NCC Warning Statement Article 12 Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristics and functions of the original design of the certified lower power frequency electric machinery. Article 14 The application of low power frequency electric machineries shall not affect the naviga- tion safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists. The manufacturer assumes no liabilities with respect to the contents of this document. The manufacturer also reserves the right to revise this document or update the content thereof without any obligation to notify any person of such revisions or amendments. Specifications subject to change without notice. Risk of electrical shock. Do not expose the device to water or moisture. The device is a high-performance communications device…

Text truncated - open the document above for the full version.

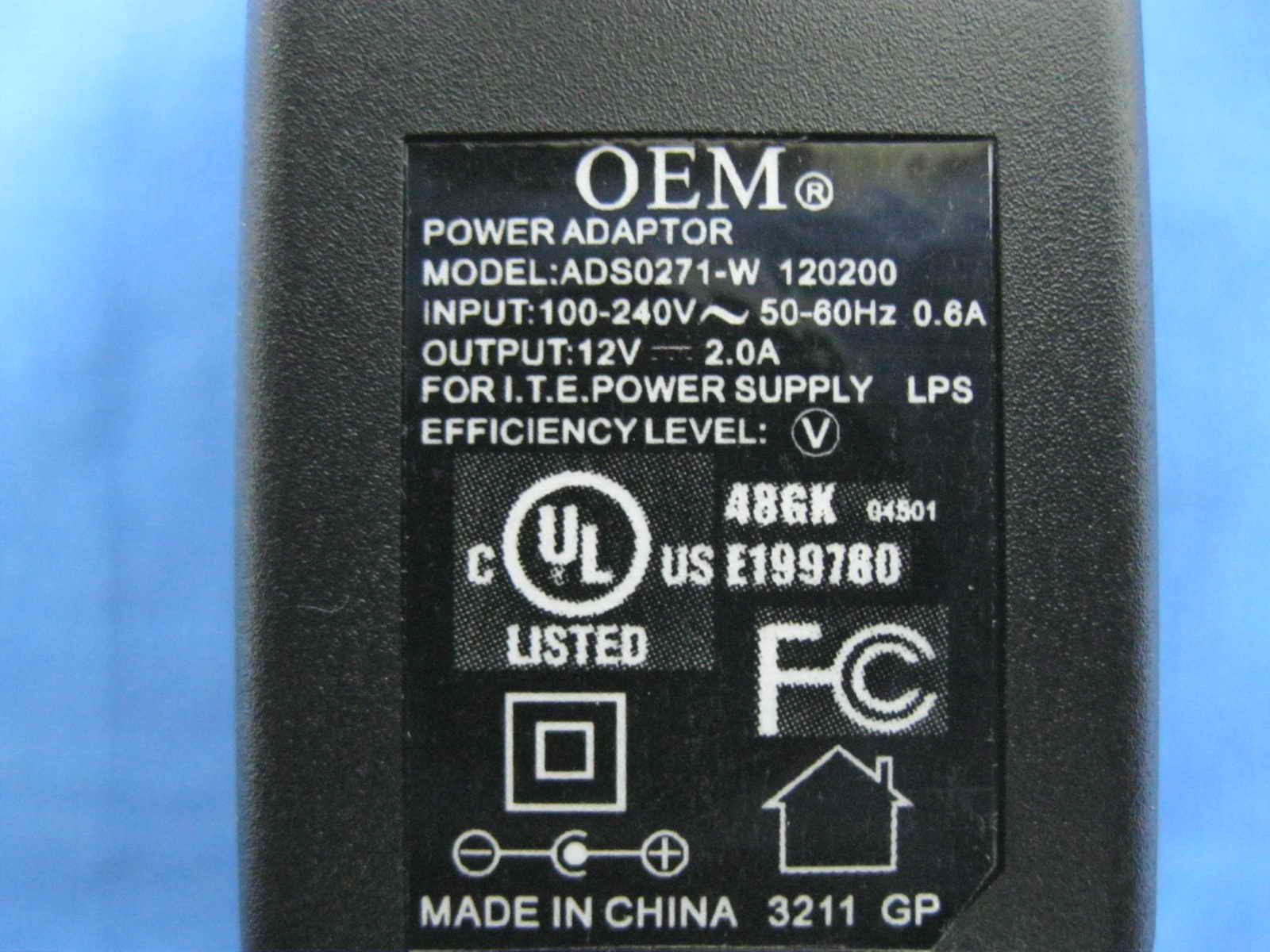

Report No.：T11111730701 Page 1 of 14 External Photo Report No.：T11111730701 Page 2 of 14 Report No.：T11111730701 Page 3 of 14 Report No.：T11111730701 Page 4 of 14 Power Adapter Photo Report No.：T11111730701 Page 5 of 14

Label Location

Report No.：T11111730701 Page 6 of 14 Internal Photo Report No.：T11111730701 Page 7 of 14 Report No.：T11111730701 Page 8 of 14 Report No.：T11111730701 Page 9 of 14 Report No.：T11111730701 Page 10 of 14 Report No.：T11111730701 Page 11 of 14 Report No.：T11111730701 Page 12 of 14 Report No.：T11111730701 Page 13 of 14 Report No.：T11111730701 Page 14 of 14 Antenna Photo

Refer No. T110908301 FCC IDU4P-CGN21A Report No.T11111730701-RP1 Page 1 / 121 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For 8×4 D3 Wireless Router Model : CGN2-XXXXXXXX (Where XXXXXXXX = any alpha character “a” - “z”, “A” - “Z”, or numeric character “0” - “9”, or combination of alpha and numeric characters.) Trade Name : Hitron Issued for Hitron Technologies,Inc. No. 1-8,Lihsin 1st Rd.,HsinChu Science Park, HishChu,Taiwan 300,R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: November 30, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. Refer No. T110908301 FCC IDU4P-CGN21A Report No.T11111730701-RP1 Page 2 / 121 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 11/30/2011 Initial Issue All Page 121 Cindy Pon Refer No. T110908301 FCC IDU4P-CGN21A Report No.T11111730701-RP1 Page 3 / 121 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5-6 3. DESCRIPTION OF TEST MODES ............................................................................... 7 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES............................................................................................................ 8 5.2 ACCREDITATIONS................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 10-11 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 12 7.1 6dB BANDWIDTH ..................................................................................................12-25 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 26-40 7.3 AVERAGE POWER ............................................................................................... 41-43 7.4 POWER SPECTRAL DENSITY............................................................................. 44-58 7.5 CONDUCTED SPURIOUS EMISSION.................................................................. 59-77 7.6 RADIATED EMISSION........................................................................................... 78-110 7.7 CONDUCTED EMISSION ...................................................................................... 111-115 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE..................................................... 116-117 APPENDIX II SETUP PHOTOS .......................................................................................118-121 Refer No. T110908301 FCC IDU4P-CGN21A Report No.T11111730701-RP1 Page 4 / 121 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Hitron Technologies,Inc. Address No. 1-8,Lihsin 1st Rd.,HsinChu Science Park, HishChu,Taiwan 300,R.O.C. Equipment Under Test 8×4 D3 Wireless Router Model CGN2-XXXXXXXX (Where XXXXXXXX = any alpha character “a” - “z”, “A” - “Z”, or numeric character “0” - “9”, or combination of alpha and numeric characters.) Trade Name Hitron Tested Date September 08 ~ 21, 2011 ; November 11 ~ 30, 2011 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer Refer No. T110908301 FCC IDU4P-CGN21A Report No.T11111730701-RP1 Page 5 / 121 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name 8×4 D3 Wireless Router Model Number CGN2-XXXXXXXX (Where XXXXXXXX = any alpha character “a” - “z”, “A” - “Z”, or numeric character “0” - “9”, or combination of alpha and numeric characters.) Identify Number T11111730701 Received Date September 08, 2011 IEEE 802.11b/g, 802.11n HT20 : 2412MHz～2462MHz Frequency Range IEEE 802.11n HT40 : 2422MHz～2452MHz IEEE 802.11b : 10.19 dBm (0.0104 W) IEEE 802.11g : 13.40 dBm (0.0219 W) IEEE 802.11n HT20 : 15.74 dBm (0.0375 W) Transmit Power IEEE 802.11n HT40 : 17.12 dBm (0.0515…

Text truncated - open the document above for the full version.

Refer No. T110908301 FCC IDU4P-CGN21A Report No.T11111730701-RP1 Page 118 / 121 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz Refer No. T110908301 FCC IDU4P-CGN21A Report No.T11111730701-RP1 Page 119 / 121 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz Refer No. T110908301 FCC IDU4P-CGN21A Report No.T11111730701-RP1 Page 120 / 121 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Refer No. T110908301 FCC IDU4P-CGN21A Report No.T11111730701-RP1 Page 121 / 121 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
