U4P-CGNV1AWireless Cable Gateway

Report No.: 121019E04A 1 of 2 Reference No.: 130520E02 CONSTRUCTION PHOTOS OF EUT Report No.: 121019E04A 2 of 2 Reference No.: 130520E02

RevNo Revision noteSignatureDate 1 Checked 23456 123456 A B C D A B C D Project: Part Name: Part Number Description: Version Dwg No: Material: Coating: Date: Designed by Checked by Approve by-date Bottom label 2013/05/27 Eunice Wu Font: Arial/Bold Font height: 1.8 +/-0.2mm Barcode height: 4.5 +/-0.5mm Barcode type: code 128 45.00 mm 80.00 mm 2.00 2.00 R2.00 1A 0500090232H0 靠左對齊 PN,SN,CM MAC,SSID,PassPhrase,45x80mm P/N:0123456789AB S/N:AB1234567890 CM MAC:AB9876543210 SSID:YZ1234567890 PassPhrase: 9876543210YZ H/W Ver:XXXX MADE IN CHINA Model Name: CGNV 2. P/N:0123456789AB 此組數據為範例,僅供參考 編碼原則請參照MPD而變動 , 4. CM MAC:AB9876543210 此組數據為範例,僅供參考 編碼原則請參照MPD而變動 , 3. S/N:AB1234567890 此組數據為範例,僅供參考 編碼原則請參照MPD而變動 , 5. SSID:YZ1234567890 此組數據為範例,僅供參考 編碼原則請參照MPD而變動 , 6. PassPhrase:9876543210YZ 此組數據為範例,僅供參考 編碼原則請參照MPD而變動 , 1. Model Name:ABCDEGH 此組數據為範例,僅供參考 編碼原則請參照MPD而變動 , 7. H/W Ver:XXXX 此組數據為範例,僅供參考 編碼原則請參照MPD而變動 , Input: FCC ID : U4P-CGNV1A AC 100-120V, 0.5A, 50-60Hz I.T.E. LISTED E140523 FCC ID： ：： ：U4P-CGNV1A LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

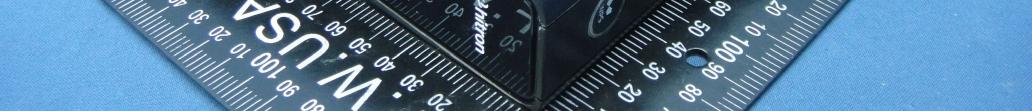

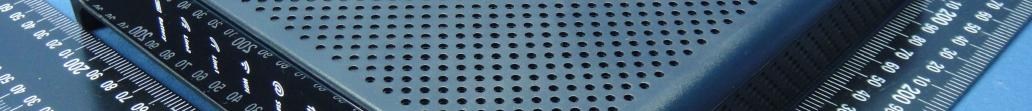

Report No.: 121019E04A 1 of 14 Reference No.: 130520E02 CONSTRUCTION PHOTOS OF EUT Report No.: 121019E04A 2 of 14 Reference No.: 130520E02 Report No.: 121019E04A 3 of 14 Reference No.: 130520E02 Report No.: 121019E04A 4 of 14 Reference No.: 130520E02 Report No.: 121019E04A 5 of 14 Reference No.: 130520E02 Report No.: 121019E04A 6 of 14 Reference No.: 130520E02 Report No.: 121019E04A 7 of 14 Reference No.: 130520E02 Report No.: 121019E04A 8 of 14 Reference No.: 130520E02 Report No.: 121019E04A 9 of 14 Reference No.: 130520E02 Report No.: 121019E04A 10 of 14 Reference No.: 130520E02 Report No.: 121019E04A 11 of 14 Reference No.: 130520E02 Report No.: 121019E04A 12 of 14 Reference No.: 130520E02 Report No.: 121019E04A 13 of 14 Reference No.: 130520E02 Report No.: 121019E04A 14 of 14 Reference No.: 130520E02

Report No.: SA121019E04A 1 of 6 Report Format Version 5.0.0 Reference No.: 130520E02 RF EXPOSURE REPORT REPORT NO.: SA121019E04A MODEL NO.: CGNV, CGNVXXXXXXX (where X may be any alphanumeric character or blank) FCC ID: U4P-CGNV1A RECEIVED: Oct. 19, 2012 TESTED: Nov. 13, 2012 ISSUED: Sep. 04, 2013 APPLICANT: HitronTechnologies ADDRESS: NO. 1-8, LISING 1ST RD., HSINCHU SCIENCE PARK, HSINCHU, 300, TAIWAN. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA121019E04A 2 of 6 Report Format Version 5.0.0 Reference No.: 130520E02 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN....................................................................................................... 5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA121019E04A 3 of 6 Report Format Version 5.0.0 Reference No.: 130520E02 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA121019E04A Original release Sep. 04, 2013 Report No.: SA121019E04A 4 of 6 Report Format Version 5.0.0 Reference No.: 130520E02 1. CERTIFICATION PRODUCT: Wirelesss Cable Gateway BRAND NAME: hitron MODEL NO.: CGNV, CGNVXXXXXXX (where X may be any alphanumeric character or blank) TEST SAMPLE: R&D SAMPLE APPLICANT: HitronTechnologies TESTED: Nov. 13, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: CGNV) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Sep. 04, 2013 ( Elsie Hsu, Specialist ) APPROVED BY : , DATE: Sep. 04, 2013 ( May Chen, Manager ) Report No.: SA121019E04A 5 of 6 Report Format Version 5.0.0 Reference No.: 130520E02 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: Transmitter Circuit Brand Model Antenna Type Gain (Net dBi) Connector type Frequency range (MHz to MHz) Chain (0) Airgain M2445J-T2-100C PCB 4.5 ipex 2400-2490 Chain (1) Airgain M2445J-T2-190C PCB 4.5 ipex 2400-2490 Chain (2) Airgain N2420DS-T-G100C PCB 3.1 ipex 2400-2490 Report No.: SA121019E04A 6 of 6 Report Format Version 5.0.0 Reference No.: 130520E02 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 957.559 4.5 20 0.53690 1.00 --- END --- CONCLUSION: Both of the 2.4GHz and 5GHz can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.441 / 1 + 0.441 / 1 = 0.882, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: RF121019E04A 1 of 61 Report Format Version 5.1.0 Reference No.: 130520E02 FCC TEST REPORT REPORT NO.: RF121019E04A MODEL NO.: CGNV, CGNVXXXXXXX (where X may be any alphanumeric character or blank) FCC ID: U4P-CGNV1A RECEIVED: Oct. 19, 2012 TESTED: Nov. 10 to 13, 2012 and Aug. 26 to 29, 2013 ISSUED: Sep. 04, 2013 APPLICANT: HitronTechnologies ADDRESS: NO. 1-8, LISING 1ST RD., HSINCHU SCIENCE PARK, HSINCHU, 300, TAIWAN. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF121019E04A 2 of 61 Report Format Version 5.1.0 Reference No.: 130520E02 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION ..................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 8 3.2 DESCRIPTION OF TEST MODES........................................................................ 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 14 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 15 3.5 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 16 4. TEST TYPES AND RESULTS ............................................................................... 18 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 18 4.1.2 TEST INSTRUMENTS .......................................................................................... 18 4.1.3 TEST PROCEDURES........................................................................................... 19 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 19 4.1.5 TEST SETUP ........................................................................................................ 19 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 20 4.1.7 TEST RESULTS ................................................................................................... 21 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 23 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 23 4.2.2 TEST INSTRUMENTS .......................................................................................... 24 4.2.3 TEST PROCEDURES........................................................................................... 26 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 26 4.2.5 TEST SETUP ........................................................................................................ 27 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 27 4.2.7 TEST RESULTS ................................................................................................... 28 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 41 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 41 4.3.2 TEST INSTRUMENTS .......................................................................................... 41 4.3.3 TEST PROCEDURE ............................................................................................. 41 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 41 4.3.5 TEST SETUP .....................................................................…
