U4P-CVE1AD3 eMTA WiFi Router

USER’S GUIDE DEFAULT LOGIN DETAILS IP Address192.168.0.1 Usernameadmin Passwordpassword CVE-30360 VERSION 1.1 AUGUST 2011 3 ABOUT THIS USER’S GUIDE ABOUT THIS USER’S GUIDE INTENDED AUDIENCE This manual is intended for people who want to configure the CVE-30360’s features via its Graphical User Interface (GUI). HOW TO USE THIS USER’S GUIDE This manual contains information on each the CVE-30360’s GUI screens, and describes how to use its various features. Use the Introduction (page 15) to see an overview of the topics covered in this manual. Use the Table of Contents (page 7), List of Figures (page 11) and List of Tables (page 13) to quickly find information about a particular GUI screen or topic. Use the Index (page 95) to find information on a specific keyword. Use the rest of this User’s Guide to see in-depth descriptions of the CVE- 30360’s features. RELATED DOCUMENTATION Quick Installation Guide: see this for information on getting your CVE-30360 up and running right away. It includes information on system requirements, package contents, the installation procedure, and basic troubleshooting tips. Online Help: each screen in the CVE-30360’s Graphical User Interface (GUI) contains a Help button. Click this button to see additional information about configuring the screen. DOCUMENT CONVENTIONS This User’s Guide uses various typographic conventions and styles to indicate content type: 4 HITRON CVE-30360 USER’S GUIDE ABOUT THIS USER’S GUIDE Bulleted paragraphs are used to list items, and to indicate options. 1 Numbered paragraphs indicate procedural steps. NOTE: Notes provide additional information on a subject. Warnings provide information about actions that could harm you or your device. Product labels, field labels, field choices, etc. are in bold type. For example: A mouse click in the Graphical User Interface (GUI) is denoted by a right angle bracket ( > ). For example: means that you should click Settings in the GUI, then Advanced settings. A key stroke is denoted by square brackets and uppercase text. For exa mple: CUSTOMER SUPPORT For technical assistance or other customer support issues, please consult your Hitron representative. Select UDP to use the User Datagram Protocol. Click Settings > Advanced Settings. Press [ENTER] to continue. 5 HITRON CVE-30360 USER’S GUIDE ABOUT THIS USER’S GUIDE Copyright 2011 Hitron Technologies. All rights reserved. All trademarks and registered trademarks used are the properties of their respective owners. DISCLAIMER: The information in this User’s Guide is a ccurate at the time of writing. This User’s Guide is provided “as is” without express or implied warranty of any kind. Neither Hitron Technologies nor its agents assume any liability for inaccuracies in this User’s Guide, or losses incurred by use or misuse of the information in this User’s Guide. 6 HITRON CVE-30360 USER’S GUIDE ABOUT THIS USER’S GUIDE 7 TABLE OF CONTENTS TABLE OF CONTENTS About This User’s Guide .................................................................. 3 Table of Contents.............................................................................. 7 List of Figures ................................................................................. 11 List of Tables ................................................................................... 13 Introduction ..................................................................................... 15 1.1 CVE-30360 Overview .........................................................................15 1.1.1 Key Features .............................................................................16 1.2 Hardware Connections .......................................................................16 1.3 LEDs ..................................................................................................18 1.4 IP Address Setup ...............................................................................20 1.4.1 Manual IP Address Setup ..........................................................21 1.5 Logging into the CVE-30360 ..............................................................22 1.6 GUI Overview .....................................................................................23 1.7 Resetting the CVE-30360 ..................................................................23 Cable ................................................................................................ 25 2.1 Cable Overview ..................................................................................25 2.1.1 DOCSIS .....................................................................................25 2.1.2 IP Addresses and Subnets ........................................................25 2.1.2.1 IP Address Format ............................................................25 2.1.2.2 IP Address Assignment .....................................................25 2.1.2.3 Subnets .............................................................................26 2.1.3 DHCP .........................................................................................27 2.1.4 DHCP Lease ..............................................................................28 2.1.5 MAC Addresses .........................................................................28 8 HITRON CVE-30360 USER’S GUIDE TABLE OF CONTENTS 2.1.6 Routing Mode ............................................................................ 28 2.1.7 Configuration Files .................................................................... 29 2.1.8 Downstream and Upstream Transmissions .............................. 29 2.1.9 Cable Frequencies .................................................................... 29 2.1.10 Modulation ............................................................................... 29 2.1.11 TDMA, FDMA and SCDMA ..................................................... 30 2.2 The System Info Screen ........................................................…

Text truncated - open the document above for the full version.

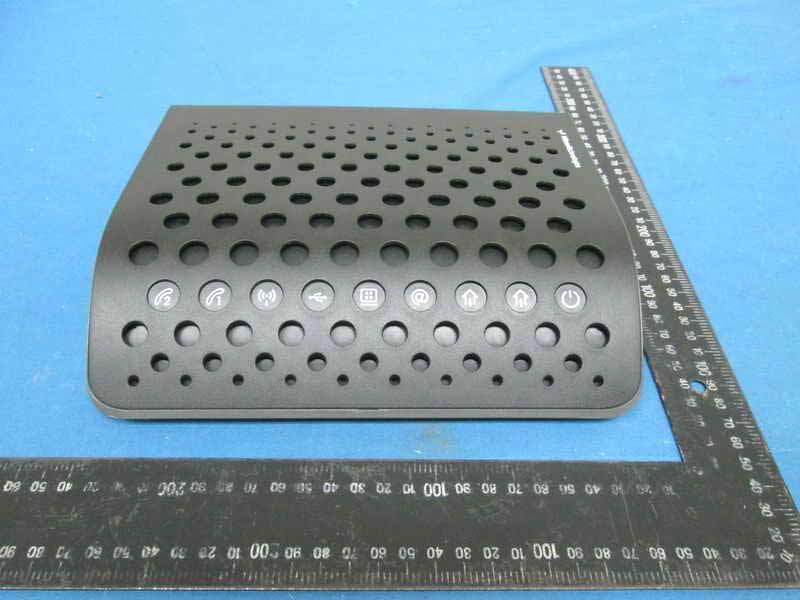

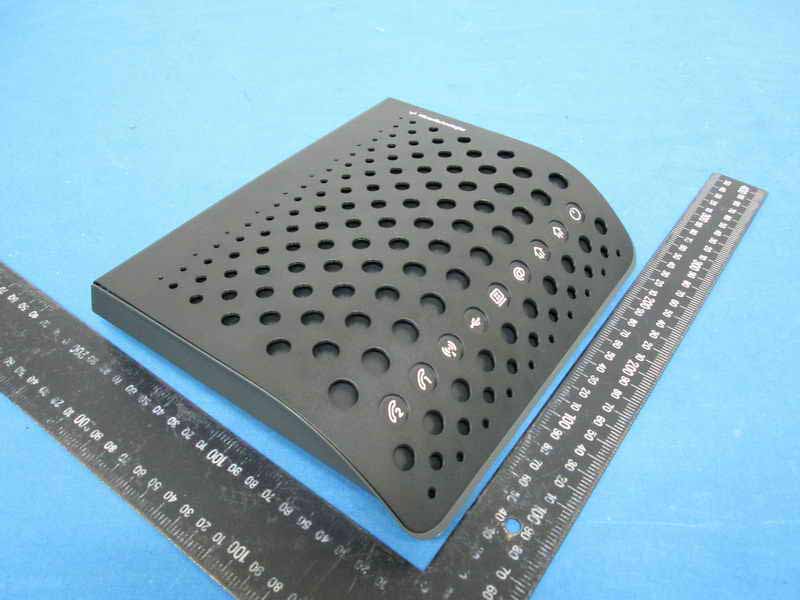

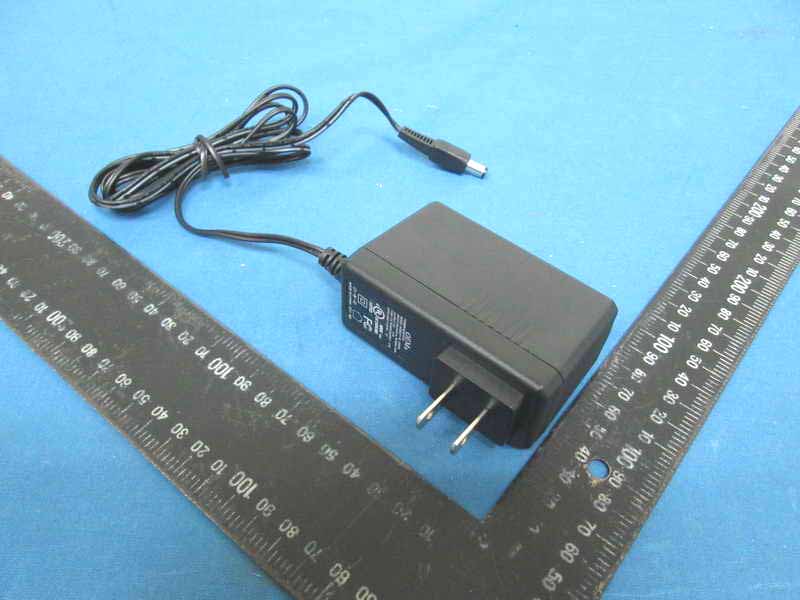

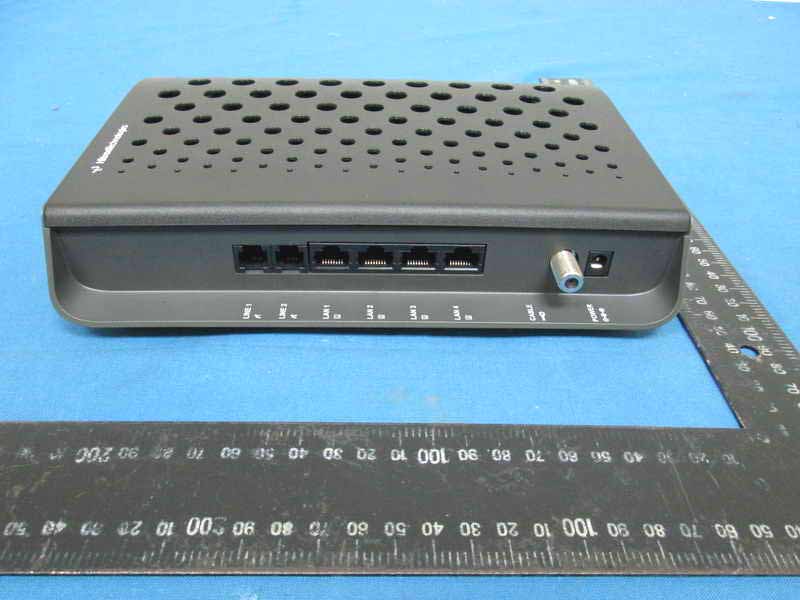

Report No.T120521S01 Page 1 of 19 External Photo Report No.T120521S01 Page 2 of 19 Report No.T120521S01 Page 3 of 19 Report No.T120521S01 Page 4 of 19 Power Adapter Photo (Model: ADS0271-W 120200) Report No.T120521S01 Page 5 of 19

<Label Sample> <Label Location> Bottom of the product. Label here

Report No.T120521S01 Page 6 of 19 Internal Photo Report No.T120521S01 Page 7 of 19 Report No.T120521S01 Page 8 of 19 Report No.T120521S01 Page 9 of 19 Report No.T120521S01 Page 10 of 19 Report No.T120521S01 Page 11 of 19 Report No.T120521S01 Page 12 of 19 Report No.T120521S01 Page 13 of 19 Report No.T120521S01 Page 14 of 19 Report No.T120521S01 Page 15 of 19 Report No.T120521S01 Page 16 of 19 Report No.T120521S01 Page 17 of 19 Report No.T120521S01 Page 18 of 19 Report No.T120521S01 Page 19 of 19 Antenna Photo

FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 104 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 105 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Total Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 4.73 20 8.21 8.21 2.97 1.00 0.003915 IEEE 802.11g 4.73 20 15.07 15.072.97 1.00 0.018999 4.73 16.02 2.97 IEEE 802.11n HT20 3.60 20 16.40 19.22 2.29 1.00 0.043538 4.73 15.61 2.97 IEEE 802.11n HT40 3.60 20 15.68 18.66 2.29 1.00 0.038369 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 1 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For D3 eMTA WiFi Router Model : CVE-30360XXXXXXXX (Where XXXXXXXX = any alpha character “a” - “z”, “A” - “Z”, or numeric character “0” - “9”, or combination of alpha and numeric characters.) Trade Name : Hitron Issued for Hitron Technologies,Inc. No. 1-8,Lihsin 1st Rd.,HsinChu Science Park,HishChu, Taiwan 300,R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: June 04, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 2 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 06/04/2012 Initial Issue All Page 109 Cindy Pon FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 3 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 7 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES............................................................................................................ 8 5.2 ACCREDITATIONS................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 10-11 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 12 7.1 6dB BANDWIDTH ..................................................................................................12-25 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 26-28 7.3 AVERAGE POWER ............................................................................................... 29-31 7.4 POWER SPECTRAL DENSITY............................................................................. 32-46 7.5 CONDUCTED SPURIOUS EMISSION.................................................................. 47-65 7.6 RADIATED EMISSION........................................................................................... 66-98 7.7 CONDUCTED EMISSION ...................................................................................... 99-103 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE..................................................... 104-105 APPENDIX II SETUP PHOTOS .......................................................................................106-109 FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 4 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Hitron Technologies,Inc. Address No. 1-8,Lihsin 1st Rd.,HsinChu Science Park,HishChu, Taiwan 300,R.O.C. Equipment Under Test D3 eMTA WiFi Router Model CVE-30360XXXXXXXX (Where XXXXXXXX = any alpha character “a” - “z”, “A” - “Z”, or numeric character “0” - “9”, or combination of alpha and numeric characters.) Trade Name Hitron Tested Date May 21 ~ June 01, 2012 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 5 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name D3 eMTA WiFi Router Model Number CVE-30360XXXXXXXX (Where XXXXXXXX = any alpha character “a” - “z”, “A” - “Z”, or numeric character “0” - “9”, or combination of alpha and numeric characters.) Identify Number T120521S01 Received Date May 21, 2012 IEEE 802.11b/g, 802.11n HT20 : 2412MHz～2462MHz Frequency Range IEEE 802.11n HT40 : 2422MHz～2452MHz IEEE 802.11b : 8.21 dBm (0.0066W) IEEE 802.11g : 15.07 dBm (0.032W) IEEE 802.11n HT20 : 19.22 dBm (0.0836W) Transmit Power IEEE 802.11n HT40 : 18.66 dBm (0.0734W) Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40 : 5MHz IEEE 802.11b/g, 802.11n HT20 : 11 Channels Channel Number IEEE 802.11n HT40 : 7 Channels IEEE 802.11b : …

Text truncated - open the document above for the full version.

FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 106 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 107 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 108 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC IDU4P-CVE1A Report No.T120521S01-RP1 Page 109 / 109 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
