U5MNANO20BTMobile Printer

User's Manual SPP-R210 Mobile Printer Rev. 1.00 http://www.bixolon.com SPP-R210 ■ Table of Contents ※ Manual Information & Usage Precautions ························································ 3 1. Content Confirmation ··················································································· 10 2. Product Part Names ····················································································· 11 3. Installation & Usage ····················································································· 12 3-1 Battery Installation ··············································································· 12 3-2 Battery Charging ·················································································· 12 3-2-1 Using Battery Charger ····································································· 12 3-2-2 Using Single Battery Cradle (Optional) ················································ 13 3-2-3 Using Vehicle Charger (Optional) ······················································· 13 3-2-4 Using Quad Battery Charger / Quad Docking Cradle (Optional) ··············· 14 3-3 Paper Installation ················································································· 16 3-4 Using Belt Strap··················································································· 17 3-5 Using Belt Clip (Optional) ······································································ 18 3-6 Using Control Panel ············································································· 19 3-7 Using MSR ························································································· 20 4. Self-Test ····································································································· 20 5. Label Printing Function ················································································ 23 5-1 Label Function Setting ·········································································· 23 5-2 Auto Calibration Function ······································································ 23 6. iOS MFi Mode Setting (Optional) ···································································· 24 7. Peripherals Connection ················································································ 25 7-1 Bluetooth & Wireless LAN Connection ····················································· 25 7-2 Interface Cable Connection ···································································· 25 8. Printer Cleaning ·························································································· 26 9. Appendix ···································································································· 27 9-1 Specifications ······················································································ 27 9-2 Certification ························································································ 28 9-3 Label Types ························································································ 29 Re v. 1.00 - 2 - SPP-R210 ■ Manual Information ※ Manual Information & Usage Precautions This user’s manual contains basic information for product usage as well as for emergency measures that may be required. ※ The following separate manuals provide more detailed content on various technological issues and areas. 1. Windows CE Module Program Manual This manual provides information on the dll files required for Windows CE application program development. 2. Windows Driver Manual This manual provides information on installation and main functions of the Windows Driver for this product. 3. Unified Utility Manual This manual provides information on the software used to select functions of this product, modify operation conditions, etc. • VMSM (Virtual Memory Switch Manager) : As a function that sets the basic operation conditions of the product, the use of non-hardware control, software-based virtual switches is explained. • NV Image Download Manager : The downloading of image files, such as logos, intended for repetitive printing is explained. • Firmware Download Manager : The downloading and installation of the latest Firmware, which is subject to ongoing modification for the enhancement of product performance, are explained. 4. Bluetooth & Wireless Manual • Bluetooth : This manual describes how to connect terminals (PDAs, PCs, etc.) with Bluetooth functionality. • Wireless LAN : This manual describes how to connect wireless LAN in infrastructure or ad-hoc mode. 5. Commands Manual This manual provides information on the protocol and functions of the control commands that can be used with this product. 6. Code Pages Manual This manual provides information on each character code page that can be used with this product. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice. Re v. 1.00 - 3 - SPP-R210 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not bend the cable by force or leave it under any heavy object. • A damaged cable can cause a fire. Do not plug in or unplug with your hands wet. • You can be electrocuted. Keep the plastic bag out of children’s reach. • If not, a child may put the bag on his head. Do not pull the cable to unplug. • This can damage the cable, which is the origin of a fire or a breakdown of the printer. You must use only the supplied adapter. • It is dangerous to use other adapters. Do not plug several products in one multi-outlet. • This can provoke over-heating and a fire. • If the plug is wet or dirty, dry or wipe it before usage. • If the plug does not fit perfectly with the outlet, do not plug in. • Be sure to use only s…

Text truncated - open the document above for the full version.

Rev 11/20/07 7TH-8TH FL, MiraeAsset Venture Tower, 20, Pangyoyeok-ro 241beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Tel No : +82-31-218-5582 Fax No : +82-31-218-5589 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U5MNANO20BT Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Parts List Operational description Block Diagram (U5MNANO20BT).pdf Schematics (U5MNANO20BT).pdf Part List (U5MNANO20BT).pdf Operational Description (U5MNANO20BT).pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name - - Sincerely, Jinseob Oh / CEO Rev 11/20/07 BIXOLON Co., Ltd.

7TH-8TH FL, MiraeAsset Venture Tower, 20, Pangyoyeok-ro 241beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Tel No : +82-31-218-5582 Fax No : +82-31-218-5589 ATTESTATION STATEMENT In re : BIXOLON Co., Ltd. FCC ID : U5MNANO20BT Date : April 18, 2014 15.247(a)(1) The hopping sequence is random. Each hopping channels is used equally on the average. The receiver input bandwidth matches the bandwidth of the transmitted signal. The receiver has the ability to shift frequencies in synchronization with the transmitted signals. Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Sincerely, Shin Ji Sung / Assistant Manager BIXOLON Co., Ltd.

7TH-8TH FL, MiraeAsset Venture Tower, 20, Pangyoyeok-ro 241beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Tel No : +82-31-218-5582 Fax No : +82-31-218-5589 Label Statement In re : BIXOLON Co., Ltd. FCC ID : U5MNANO20BT Date : April 21, 2014 The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. Sincerely, Shin Ji Sung / Assistant Manager BIXOLON Co., Ltd.

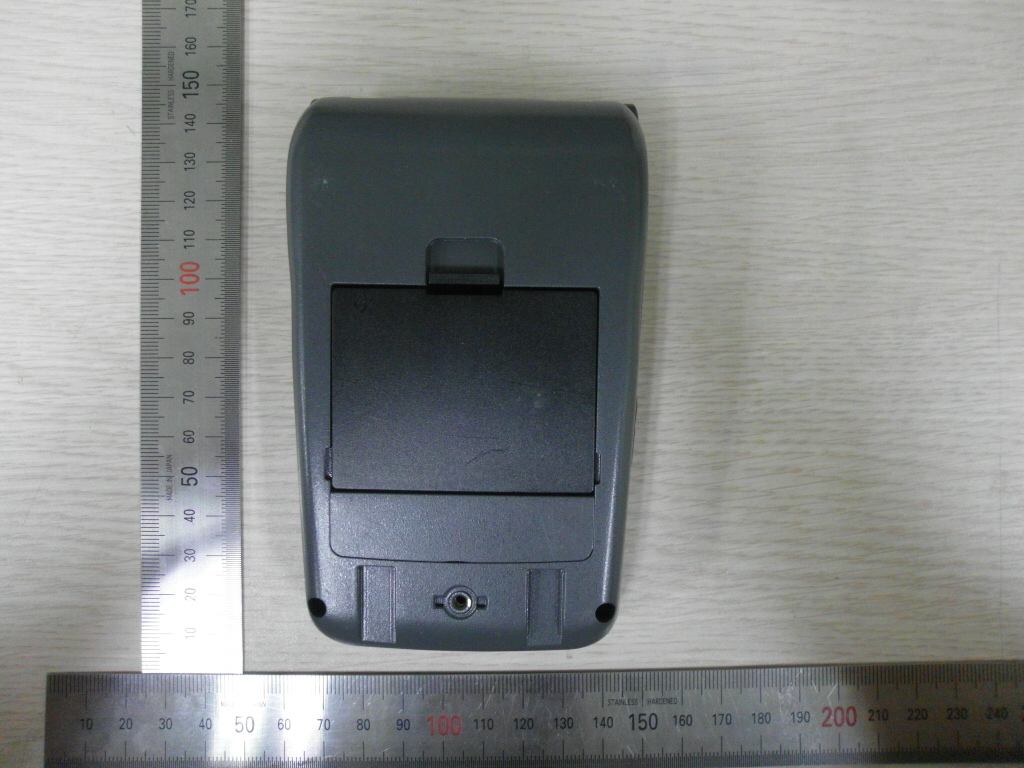

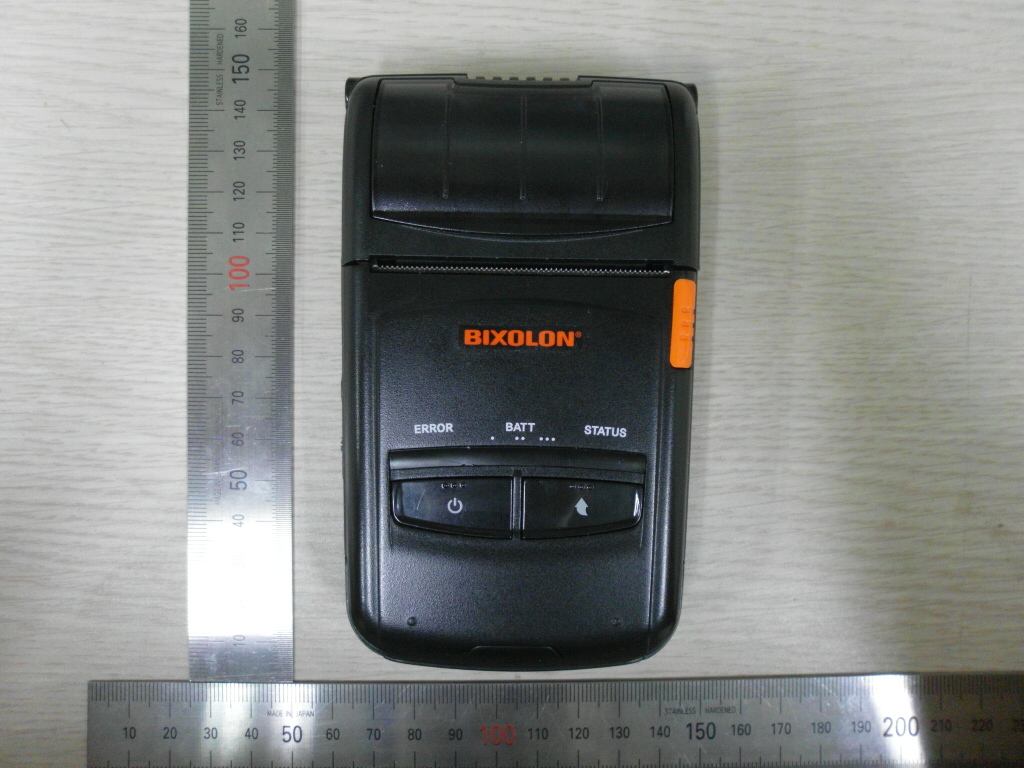

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT External Photographs [SPP-R210_MSR] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [SPP-R210_SCR] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [ZQ110_MSR] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [ZQ110_SCR] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [Battery] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [Port] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [Charger_1] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [Charger_2]

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Label and Location

[APPROVAL SHEET] Nice Korea Components Co., Ltd TEL : 031-470-8989TEL : 0314708989 FAX : 031-470-8949 [APPROVAL SHEET][APPROVAL SHEET] ProductNKC-1 ModelSPP-R200 II Designed byChecked byApproved byDesigned byChecked byApproved by /// 2012. 4. 17 Nice Korea Components Co LtdNice Korea Components Co., Ltd TEL : 031-470-8989 FAX : 0314708949FAX : 031-470-8949 Ver 1.0 (2012.04.17) 2/23 page Ctt-Contents - •표지............................................................1p •목차............................................................3p 1. Revision History ......................................... 4p 2. Features & Applications ..............................5p 3. Electrical Specifications ..............................6p 4. Measurements Method & Conditions ............. 12p 5. PCB Layout & Solder Pad size .....................13p 6. Antenna Dimensions .................................. 16p 7. Marking View .............................................16p 8. Reflow Profile ............................................ 17p 9. Environmental Tests ................................... 18p 10. Packaging ............................................... 19p 11. Usage and Cautions .................................19p 12. RoHS Data .............................................. 20p 3/23 page Ver 1.0 (2012.04.17) 1R ii Hit1. Revision History product NKC-1 ModelSPP-R200 II Rev. No. Rev. IssuePage DesignedDate 1.0Appro. Issue-KC. NAM 2012.4.17 4/23 page Ver 1.0 (2012.04.17) 2F t &A li ti2. Features & Applications 2.1 Features This ceramic chip antenna is applied to 2.4 GHz ISM band applications, i.e. Bluetooth. Zigbee, Wireless LAN, etc... 형태 Bulk Ceramic 재질 유전체Al2O3(Alumina) 전극은(Ag) L = 10+/- 01 크기 (mm) 0.1 W = 2+/- 0.1 T = 1.2+/- L T W 0.1 Weight 97~100 mg T 5/23 page Ver 1.0 (2012.04.17) 3El ti lS ifi ti3. Electrical Specifications 3-1. * All item are measured in room temperature (24~25 ‘C). * All item are measured at customer set condition. No.ItemsTypical Data 1Frequency (MHz)2400 25001Frequency (MHz)2400 ~2500 2VSWR 2.5 : 1 3 Total Gain (Peak/AVG.) [dBi]0.55 / -3.61 4Impedance50 ohmp 5PolarizationLinear 6/23 page Ver 1.0 (2012.04.17) 3-2. VSWR (S11)of USER SET condition 7/23 page Ver 1.0 (2012.04.17) 3-3. Radiation Patterns ThetaVertical Fieldof measured planeThetaVertical Fieldof measured plane PhiHorizontal Fieldof measured plane Total Gain (Peak/Avg) [dBi]0.55 / -3.61 Peak-0.76 Ai h 이득[dBi] (Co-Pola) Avg-3.19 Peak0.55 Avg-3.61 Peak237 Phi Theta Azimuth Elevation1 Peak-2.37 Avg-4.19 Theta Elevation2 8/23 page Ver 1.0 (2012.04.17) (Azimuth) 9/23 page Ver 1.0 (2012.04.17) (Elevation 1) 10/23 page Ver 1.0 (2012.04.17) (Elevation 2) 11/23 page Ver 1.0 (2012.04.17) 4 Measurements Method & Conditions4. Measurements Method & Conditions The measurement of antenna performance is measurement of gain, radiation pattern using ORBIT/FR apparatus in Anechoic chamber and measurement of VSWR using Network analyzer. 4-1. The measurement of Frequency and VSWR [Measurement Method] 1. As seen the above, network analyzer is set up for S11measurement. 2. The measurement frequency range is to set up from 2 GHz to 3 GHz. 3. Perform S11 one port full calibration. 4. Measure the VSWR of three points of Bluetooth frequency range such as 2 4 GHz 2 45 GHz and 2 5 GHzas 2.4 GHz, 2.45 GHz, and 2.5 GHz. 4-2. The measurement of Gain & Radiation Patterns 12/23 page Ver 1.0 (2012.04.17) [Measurement Method] 1. As seen the above, network analyzer is to set up in Anechoic chamber. 2. As seen beneath, for the measurement planes as Azimuth, Elevation 1, and Elevation 2, measure Gain data of vertical polarization and horizontal polarization for each plane. 5. PCB Layout & Solder Pad size 5-1. Top Layout Solder Pad Pattern Pad 13/23 page Unit : mm tolerances : +/- 0.05 Ver 1.0 (2012.04.17) INPUT Via 5-1. Matching Circuits ANT ANT L-type ANT yp T-type ᅲ-type (1)실제적용되는Board의GND SIZE및형태에따른Impedance조정(1) 실제적용되는Board의GND SIZE 및형태에따른Impedance 조정, (2) 설계된 전송선의 50 ohm miss-matching시 Impedance 조정, (3) 안테나 자체의 부족한 Impedance 조정, (4) 이 이외의 다른 변화에 따른 특성 조정에 Lumped elements 사용 시 3가지종류중한가지의matching circuit을적용함 14/23 page 3가지종류중한가지의matching circuit을적용함. Matching circuit 적용 시 matching circuit이 차지하는 면적 및 가장 좋은 결 과를 얻을 수 있는 matching type를 선택함. Ver 1.0 (2012.04.17) 5-2. SOLDERING CREAM AREA 1.5 1.21.2 1.2 2.0 1.6 1.2 2.75 Unit: mm Solder Pad Soldering Cream의 면적은 SMD 업체 현황(메탈 스크린 두께, 온도)에따라변경될수 있으므로협의를요함 Soldering Cream 15/23 page Ver 1.0 (2012.04.17) 있으므로협의를요함 5-3. Antenna position CHIP ANT Pattern Pad 16/23 page Ver 1.0 (2012.04.17) 6. Ag pattern & Dimensions 7. Marking View Only TOP part 17/23 page 7-1. 마킹 종류 * RF용검정잉크사용 Ver 1.0 (2012.04.17) 8. Reflow Profile 8-1. Standard reflow condition(Pb-free) °C Peak temp 245 5 245 Temp( ) ∓ 160 200 245 Preheat 130~180 10~20 25 160 Time(sec) 90~180 30~60 SMD 업체현황에따라peak temp및시간은변경될수있으므로협의를요함 82수동납땜(인두기)을할경우(Pbf) SMD업체현황에따라peak temp및시간은변경될수있협의를함 8-2. 수동납땜(인두기)을할경우(Pb-free) 인두 온도 : 340 ‘C / 시간 : 각 단 max 3 sec 18/23 page Ver 1.0 (2012.04.17) 9. Environmental Tests No. ITEMTEST CONDTEST REQUNNQ 1 High Temperature Resistance 1. Temp: +125±5°C 2. Time: 1000±24hrs 3. Measure Fc after left for 24hrs min. at room temp 1. Within electric spec(VSWR) 2. No visual damage 1.Temp:-40±5°C 2 Low Temperature Resistance 1.Temp 40±5°C 2. Time: 1000±24hrs 3. Measure Fc after left for 48hrs min. at room temp 1. Within electric spec(VSWR) 2. No visual damage 3 Thermal Shock 1. 1cycle/ste p1:-40±3°C,30min step2:+125±3°C,30min 2. Number of cycle:30 3. Measure after left for 48hrs min. at room temp 1. Within electric spec(VSWR) 2. No visual damage 4 Humidity 1. Humidity:85%RH 2. Temp:+85±3°C 3. Time:1000±24hrs 4. Measure Fc after left for 48hrs min. at room temp 1. Within electric spec(VSWR) 2. No visual damage Adhesive 1. Applied force on SMD chip till detached point from PCB.1. No mechanical damage by forces applied 5 Adhesive strength of termination forces applied on the right 2. Strength(F)>5kgf F PCB chip 19/23 page Ver 1.0 (2012.04.17) 10 P …

Text truncated - open the document above for the full version.

CAM350 V 9.5 : Tue Jan 21 17:37:44 2014 - (Untitled) : silk1.gb r CAM350 V 9.5 : Tue Jan 21 17:37:45 2014 - (Untitled) : silk2.gb r CAM350 V 9.5 : Mon Mar 03 13:53:23 2014 - (Untitled) : silk1.gb r CAM350 V 9.5 : Mon Mar 03 13:53:23 2014 - (Untitled) : silk2.gb r CAM350 V 9.5 : Thu Feb 27 15:17:59 2014 - (Untitled) : silk1.gb r CAM350 V 9.5 : Thu Feb 27 15:17:59 2014 - (Untitled) : silk2.gb r CAM350 V 9.1 : Thu Apr 28 18:12:32 2011 - (Untitled) : silk1.gb r CAM350 V 9.1 : Thu Apr 28 18:12:32 2011 - (Untitled) : silk2.gb r CAM350 V 9.5 : Thu Mar 13 11:04:09 2014 - (Untitled) : silk1.gb r CAM350 V 9.5 : Thu Mar 13 11:04:09 2014 - (Untitled) : silk2.gb r CAM350 V 9.5 : Mon Mar 03 14:00:55 2014 - (Untitled) : silk1.gb r CAM350 V 9.5 : Mon Mar 03 14:00:55 2014 - (Untitled) : silk2.gb r CAM350 V 9.5 : Fri Nov 01 14:23:29 2013 - (Untitled) : silk1.gb r CAM350 V 9.5 : Fri Nov 01 14:23:29 2013 - (Untitled) : silk2.gb r

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-00385 Date: 2014-04-01 Page 1 of 67 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TEST REPORT For FCC FCC Standards : FCC 47CFR part 15 subpart C Industry Canada Standards :RSS-210 Issue 8 & RSS-GEN Issue 3 Test Report No. : CTK-2014-00385 Date of Issue : 2014-04-01 FCC ID : U5MNANO20BT IC ID : 7962A-NANO20BT Basic Model/Type No. : SPP-R210, ZQ110 Kind of Product : Mobile Printer Applicant : BIXOLON Co., Ltd. Applicant Address : 7TH-8TH FL, MiraeAsset Venture Tower, 20, Pangyoyeok-ro 241beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Manufacturer : BIXOLON Co., Ltd. Manufacturer Address : 7TH-8TH FL, MiraeAsset Venture Tower, 20, Pangyoyeok-ro 241beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Contact Person : Shin Ji Sung / Assistant Manager Telephone : +82–31-218-5582 Received Date : 2014-01-09 Test period : Start : 2014-01-22 End : 2014-03-24 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. Tested by Reviewed by Young-taek Lee Test Engineer Young-Joon, Park Technical Manager Date: 2014-04-01 Date: 2014-04-01 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-00385 Date: 2014-04-01 Page 2 of 67 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) REPORT REVISION HISTORY Date Revision Page No 2014-04-01 Issued (CTK-2014-00385) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-00385 Date: 2014-04-01 Page 3 of 67 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY ........................................................................................... 2 1.0 General Product Description ................................................................................ 4 1.1 Tested Frequency ............................................................................................... 4 1.2 Tested Mode ...................................................................................................... 4 1.3 Model Differences .............................................................................................. 5 1.4 Device Modifications ........................................................................................... 5 1.5 Peripheral Devices ............................................................................................. 5 1.6 Calibration Details of Equipment Used for Measurement ......................................... 5 1.7 Test Facility ....................................................................................................... 5 1.8 Laboratory Accreditations and Listings .................................................................. 6 2.0 Summary of tests .............................................................................................. 7 2.1 Transmitter Requirements ................................................................................... 8 2.1.1 Carrier Frequency Separation ........................................................................ 8 2.1.2 Number of Hopping Frequencies .................................................................. 10 2.1.4 Time of Occupancy (Dwell Time) .................................................................. 19 2.1.5 Maximum peak Conducted Output Power ...................................................... 25 2.1.6 RF Conducted Emissions ............................................................................. 30 2.1.7 Field Strength of Emissions (TX mode) ......................................................... 41 2.1.8 Field Strength of Emissions (RX Mode) ......................................................... 59 2.1.9 AC Conducted Emissions ............................................................................. 62 APPENDIX A – Test Equipment Used For Tests ................................................................. 67 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-00385 Date: 2014-04-01 Page 4 of 67 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 1.0 General Product Description Equipment model name SPP-R210 Serial number Prototype EUT condition Pre-production, not damaged Antenna type Chip antenna Gain 0.55 dBi Frequency Range 2402 MHz - 2480 MHz RF power 5.934 dBm Peak Conducted (GFSK) 2.710 dBm Peak Conducted (8-DPSK) Type of Modulation Frequency Hopping Spread Spectrum Number of channels 79 Channel Spacing 1 MHz Channel Access Protocol Frequency Hopping Type of Modulation GFSK(1Mbps), DQPSK(2Mbps), 8-DPSK(3Mbps) Power Source Lithium-ion Battery Pack(Rechargeable battery) 7.4 Vdc/1200 mAh 1.1 Tested Frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 1.2 Tested Mode - Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture)…

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Setup Photographs and Configuration Conducted Voltage Emissions [SPP-R210] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [ZQ110] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Radiated Electric Field Emissions [SPP-R210] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [ZQ110] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [SPP-R210] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com [ZQ110]
