U5MSPP-R310MOBILE PRINTER

User's Manual SPP-R310 Mobile Printer Rev. 1.00 http://www.bixolon.com Rev. 1.00 - 2 - SPP-R310 ■ Table of Contents ※ Manual Information & Usage Precautions ························································ 3 1. Content Confirmation ··················································································· 10 2. Product Part Names ····················································································· 11 3. Installation & Usage ····················································································· 12 3-1 Battery Installation ··············································································· 12 3-2 Battery Charging ·················································································· 12 3-2-1 Using Battery Charger ····································································· 12 3-2-2 Using Single Battery Cradle (Optional) ················································ 13 3-2-3 Using Cigarette Lighter Charger (Optional) ·········································· 13 3-2-4 Using Quad Battery Charger (Optional) ··············································· 14 3-3 Paper Installation ················································································· 16 3-4 Using Belt Clip ····················································································· 17 3-5 Using Belt Strap (Optional) ···································································· 18 3-6 Using Control Panel ············································································· 19 3-7 Using MSR (Optional) ··········································································· 20 4. Self-Test ····································································································· 21 5. Label Printing Function ················································································ 24 5-1 Label Function Setting ·········································································· 24 5-2 Auto Calibration Function ······································································ 24 6. Peripherals Connection ················································································ 25 6-1 Bluetooth & Wireless LAN Connection ····················································· 25 6-2 Interface Cable Connection ···································································· 26 7. Printer Cleaning ·························································································· 27 8. Appendix ···································································································· 28 8-1 Specifications ······················································································ 28 8-2 Certification ························································································ 29 8-3 Label Types ························································································ 31 Rev. 1.00 - 3 - SPP-R310 ■ Manual Information ※ Manual Information & Usage Precautions This user’s manual contains basic information for product usage as well as for emergency measures that may be required. ※ The following separate manuals provide more detailed content on various technological issues and areas. 1. Windows CE Module Program Manual This manual provides information on the dll files required for Windows CE application program development. 2. Windows Driver Manual This manual provides information on installation and main functions of the Windows driver for this product. 3. Unified Utility Manual This manual provides information on the software used to select functions of this product, modify operation conditions, and so forth. • VMSM (Virtual Memory Switch Manager) - As a function that sets the basic operation conditions of the product, the use of non-hardware control, software-based virtual switches is explained. • NV Image Download Manager - The downloading of image files, such as logos, intended for repetitive printing is explained. 4. Bluetooth & Wireless Manual • Bluetooth - This manual describes how to connect terminals (PDAs, PCs, etc.) with Bluetooth functionality. • Wireless LAN - This manual describes how to connect wireless LAN in infrastructure or ad-hoc mode. 5. Commands Manual This manual provides information on the protocol and functions of the control commands that can be used with this product. 6. Code Pages Manual This manual provides information on each character code page that can be used with this product. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice. Rev. 1.00 - 4 - SPP-R310 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not bend the cable by force or leave it under any heavy object. • A damaged cable can cause a fire. Do not plug in or unplug with your hands wet. • You can be electrocuted. Keep the plastic bag out of children’s reach. • If not, a child may put the bag on his head. Do not pull the cable to unplug. • This can damage the cable, which is the origin of a fire or a breakdown of the printer. You must use only the supplied adapter. • It is dangerous to use other adapters. Do not plug several products into one multi-outlet. • This can provoke over-heating and a fire. • If the plug is wet or dirty, dry or wipe it before usage. • If the plug does not fit perfectly in the outlet, do not plug in. • Be sure to use only standardized multi-outlets. PROHIBIT ED PROHIBIT ED PROHIBIT ED PROHIBIT ED PROHIBIT ED ONLY SUPPLIED ADAPTER PROHIBIT ED Rev. 1.00 - 5 - SPP-R310 CAUTION Violating following instructions can cause slight wound or damage the appliance. Do not use the printer when it …

Text truncated - open the document above for the full version.

BIXOLON Co.,Ltd. 7th-8th FL, MiraeAsset Venture Tower, 685, Sampyeong-dong, Bundang-gu Seongnam-si, South Korea Date: December 16, 2015 Letter of Authorization We, the undersigned, hereby authorize DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: U5MSPP-R310 including signing of all documents relating to these matters. Any and all acts carried out by DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from BIXOLON Co., Ltd. . “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, JiSung Shin / Assistant Manager

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0 2015-12-16 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, BIXOLON Co.,Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Mobile Printer, SPP-R310) FCC ID: U5MSPP-R310 Sincerely, JiSung Shin / Assistant Manager BIXOLON Co.,Ltd. 7th-8th FL, MiraeAsset Venture Tower, 685, Sampyeong-dong, Bundang-gu Seongnam-si, South Korea

SCS-F19: Confidentiality Request Letter Page 1 of 4 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 4 Rev 5.0 Dec. 16, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: U5MSPP-R310 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : JiSung Shin / Assistant Manager Contact information / address: BIXOLON Co.,Ltd. / 7th-8th FL, MiraeAsset Venture Tower, 685, Sampyeong- dong, Bundang-gu Seongnam-si, South Korea SCS-F19: Confidentiality Request Letter Page 3 of 4 Rev 5.0 Dec. 16, 2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: U5MSPP-R310 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47, and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of / / not to exceed 180 days from the Grant Date. See KDB 726920.. - e.g. User Manual - e.g. Internal Photos - e.g. Test Setup photos - e.g. Ext Photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name & title : JiSung Shin / Assistant Manager Contact information / address: BIXOLON Co.,Ltd. / 7th-8th FL, MiraeAsset Venture Tower, 685, Sampyeong- dong, Bundang-gu Seongnam-si, South Korea

FCC ID: U5MSPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 FCC ID: U5MSPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 FCC ID: U5MSPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. View 3

FCC ID: U5MSPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on manual

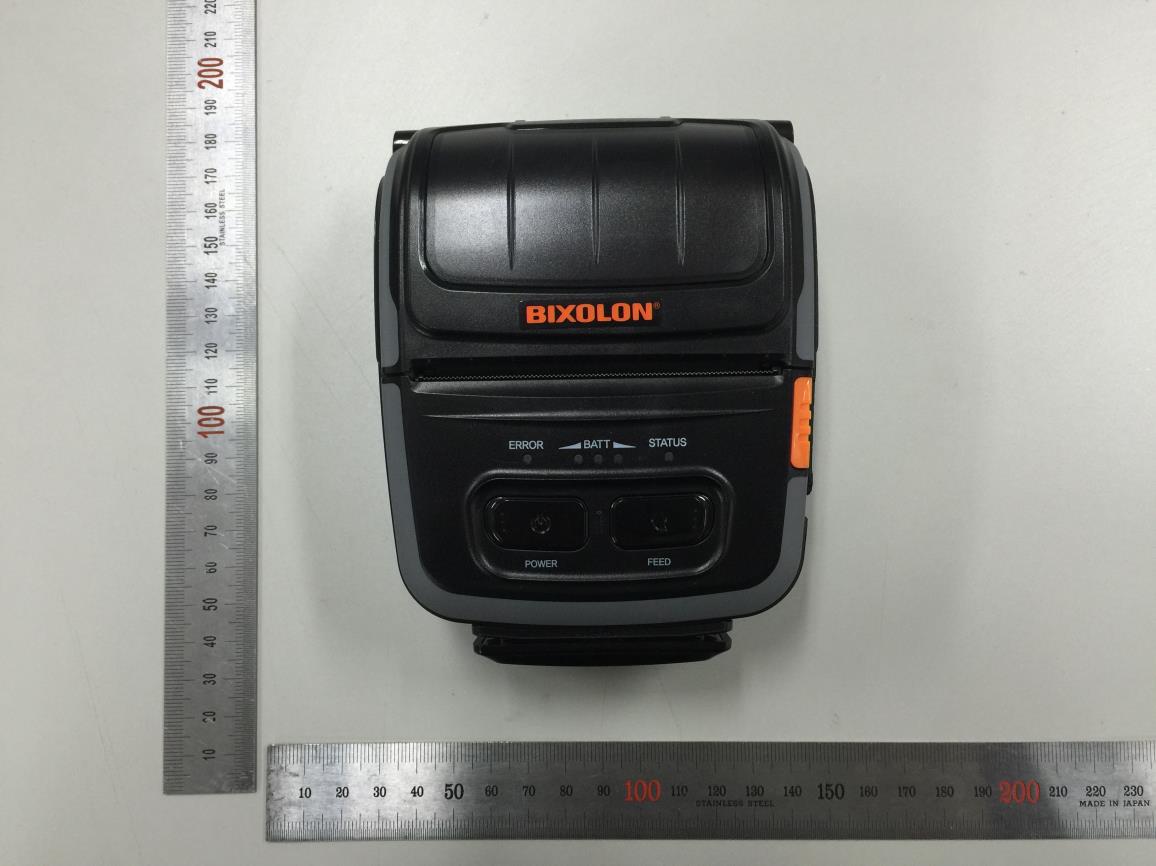

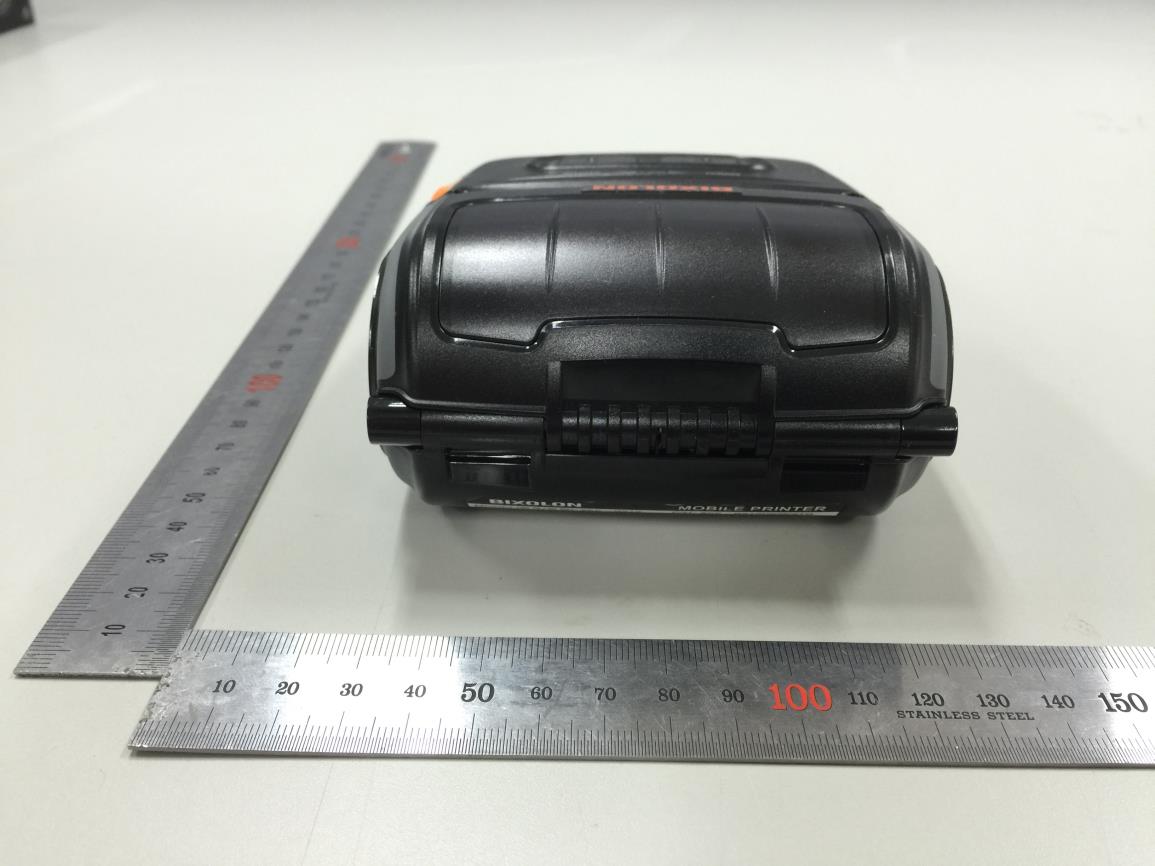

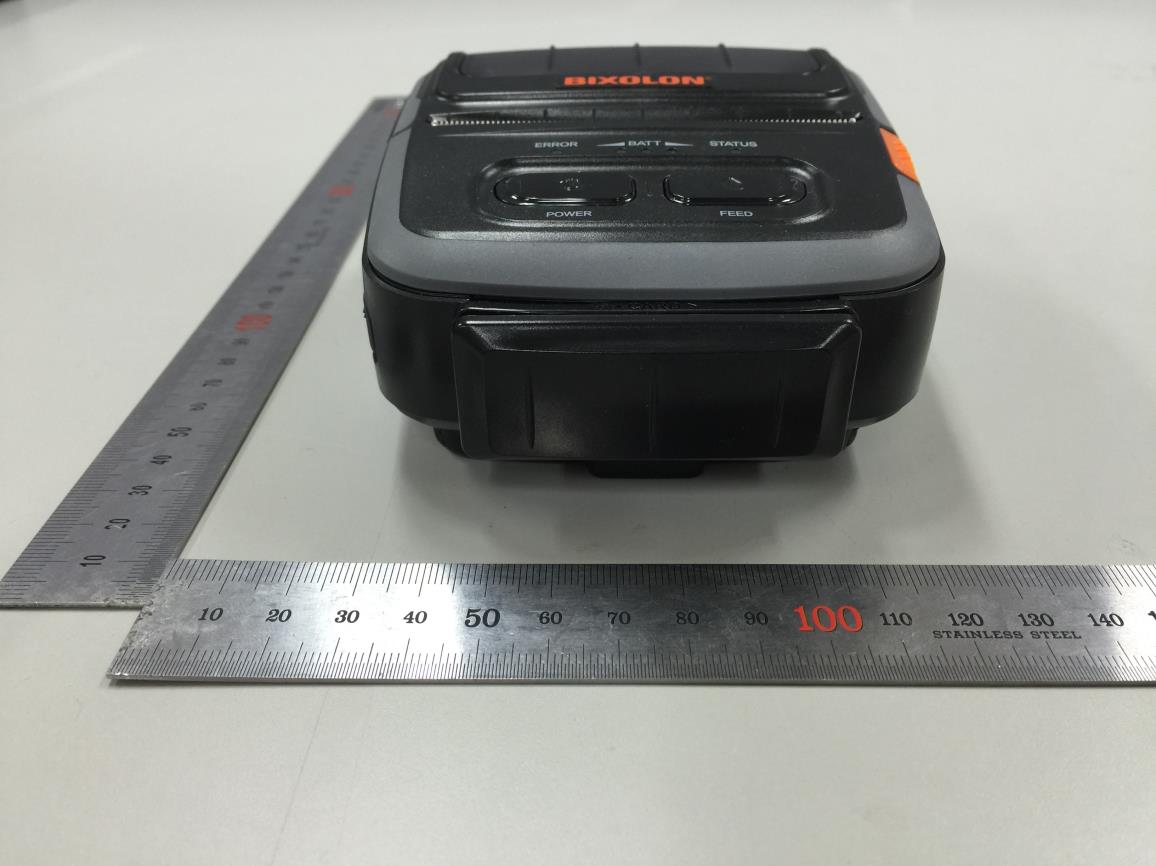

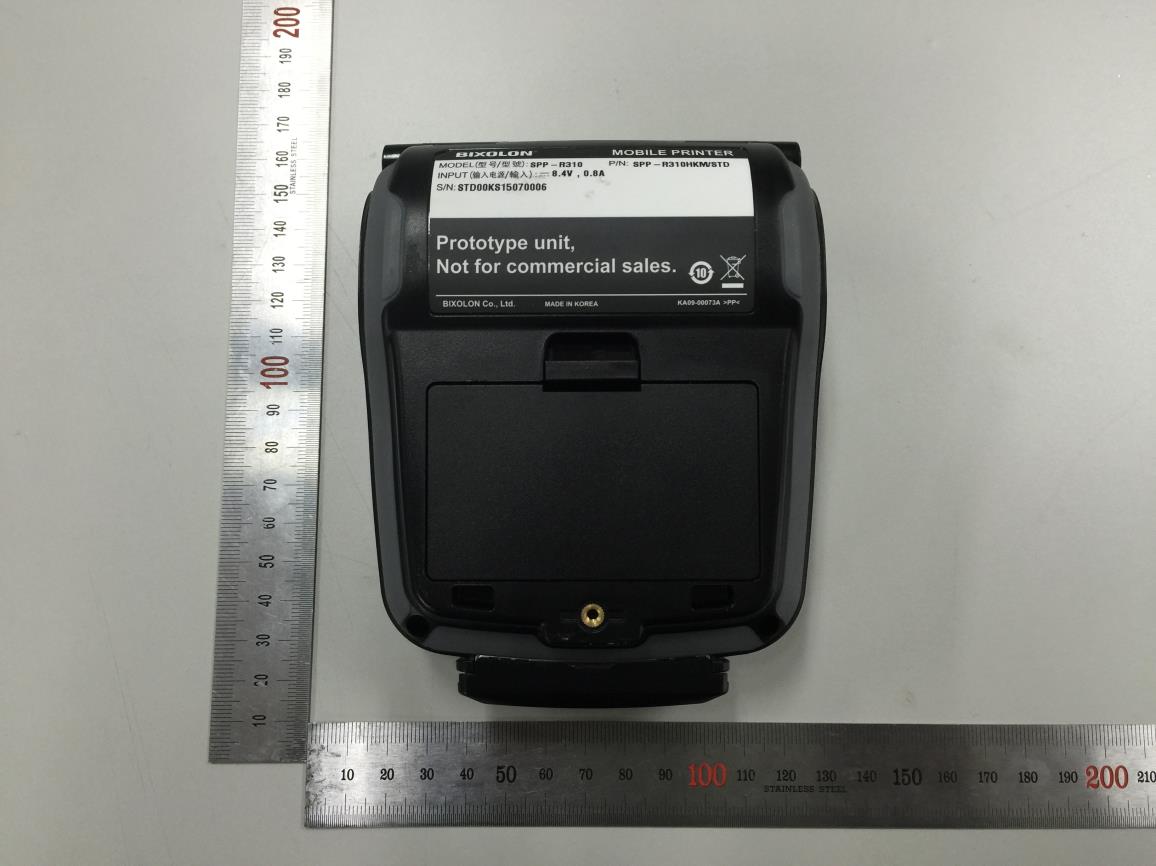

Model Name: SPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 Model Name: SPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 Model Name: SPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. View 3 Model Name: SPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. View 4 Model Name: SPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. View 5 Model Name: SPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. View 5 <ANT>

MHzmm = =[ / ]*[√ ] = Thus SAR for this device is not required. [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW 5 Step 2-1) SAR test exclusion thresholds for 100MHz to 1500MHz at test separationn distances > 50 mm = N/A 0.44 ≤ 3, for 1g SAR Copyright Ⓒ 2015, DT&C Co., Ltd. Step 2-2) SAR test exclusion thresholds for 1500MHz to 6GHz at test separationn distances > 50 mm = N/A 2480 - Min. test separation distance = mW 1.28 1.50 dBm - Min. transmitting frequency = dBm Measured Average Power: U5MSPP-R310 1.41 2.48 5 - Max. power with turn-up tolerance = 1.41 Used Step 1) SAR test exclusion thresholds for 100MHz to 6GHz at te st separationn distances ≤ 50 mm = [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] FCC ID : Standalone SAR test exclusion considerations December 24, 2015

TEST REPORT DT&C Co., Ltd. 42, Yurim-ro, 154Beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel : 031-321-2664, Fax: 031-321-1664 1. Customer • Name : BIXOLON Co.,Ltd. Report No : DRTFCC1512-0264 Pages:(1) I (82) page ~ Dt&C •Address: 7th-8th FL, MiraeAsset Venture Tower, 685, Sampyeong-dong, Bundang-gu Seongnam-si, South Korea 2. Use of Report : FCC Original Grant 3. Product Name (FCC ID): MOBILE PRINTER (U5MSPP-R310) 4. Date of Test: 2015-09-16 -2015-12-17 5. Test Method Used: FCC Part 15 Subpart C.247 6. Testing Environment: See appended test report 7. Test Result: ~ Pass O Fail The results shown in this test report refer only to the samp ?,(s) tested unless otherwise stated. This Test Report cannot be repro~μsed, except in full. Tested by /' / ,,,Tec~cal Manager ~ Affirmation (/ v..-v Name: Chulmin Kim 1'"'i'.,•lo' •1ry Name: GeunKi Son ~·i n·· ,·. (·, 2015 . 12 . 18 . DT&C Co., Ltd. TRF- RF-237(01 )150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 1 / 82 FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 82 Test Report Version Test Report No. Date Description DRTFCC1512-0264 Dec. 18, 2015 Initial issue FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 82 Table of Contents 1. General Information ............................................................................................................... 4 1.1 Testing Laboratory .......................................................................................................................... 4 1.2 Details of Applicant ......................................................................................................................... 4 1.3 Description of EUT .......................................................................................................................... 4 1.4 Declaration by the applicant / manufacturer ................................................................................. 5 1.5 Information about the FHSS characteristics ................................................................................. 5 1.6 Test conditions ................................................................................................................................ 5 1.7 Test Equipment List ......................................................................................................................... 6 1.8 Summary of Test Results ................................................................................................................ 7 1.9 Conclusion of worst-case and operation mode ............................................................................ 8 2. Maximum Peak Output Power Measurement ...................................................................... 9 2.1 Test Setup ........................................................................................................................................ 9 2.2 Limit .................................................................................................................................................. 9 2.3 Test Procedure ................................................................................................................................. 9 2.4 Test Results ................................................................................................................................... 10 3. 20 dB BW .............................................................................................................................. 16 3.1 Test Setup ...................................................................................................................................... 16 3.2 Limit ................................................................................................................................................ 16 3.3 Test Procedure ............................................................................................................................... 16 3.4 Test Results ................................................................................................................................... 16 4. Carrier Frequency Separation ............................................................................................ 22 4.1 Test Setup ...................................................................................................................................... 22 4.2 Limit ................................................................................................................................................ 22 4.3 Procedure ....................................................................................................................................... 22 4.4 Test Results ................................................................................................................................... 22 5. Number of Hopping Frequencies ....................................................................................... 27 5.1 Test Setup ...................................................................................................................................... 27 5.2 Limit ................................................................................................................................................ 27 5.3 Procedure ....................................................................................................................................... 27 5.4 Test Results ................................................................................................................................... 27 6. Time of Occupancy (Dwell Time) ........................................................................................ 33 6.1 Test Setup ...................................…

Text truncated - open the document above for the full version.

FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 45 / 82 7.4.2. Conducted Spurious Emissions Low Band-edge Lowest Channel & Modulation : GFSK Low Band-edge Hopping mode & Modulation : GFSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 46 / 82 Conducted Spurious Emissions Lowest Channel & Modulation : GFSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 47 / 82 Conducted Spurious Emissions Lowest Channel & Modulation : GFSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 48 / 82 Reference for limit Middle Channel & Modulation : GFSK Conducted Spurious Emissions Middle Channel & Modulation : GFSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 49 / 82 Conducted Spurious Emissions Middle Channel & Modulation : GFSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 50 / 82 High Band-edge Highest Channel & Modulation : GFSK High Band-edge Hopping mode & Modulation : GFSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 51 / 82 Conducted Spurious Emissions Highest Channel & Modulation : GFSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 52 / 82 Conducted Spurious Emissions Highest Channel & Modulation : GFSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 53 / 82 Low Band-edge Lowest Channel & Modulation : π/4DQPSK Low Band-edge Hopping mode & Modulation : π/4DQPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 54 / 82 Conducted Spurious Emissions Lowest Channel & Modulation : π/4DQPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 55 / 82 Conducted Spurious Emissions Lowest Channel & Modulation : π/4DQPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 56 / 82 Reference for limit Middle Channel & Modulation : π/4DQPSK Conducted Spurious Emissions Middle Channel & Modulation : π/4DQPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 57 / 82 Conducted Spurious Emissions Middle Channel & Modulation : π/4DQPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 58 / 82 High Band-edge Highest Channel & Modulation : π/4DQPSK High Band-edge Hopping mode & Modulation : π/4DQPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 59 / 82 Conducted Spurious Emissions Highest Channel & Modulation : π/4DQPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 60 / 82 Conducted Spurious Emissions Highest Channel & Modulation : π/4DQPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 61 / 82 Low Band-edge Lowest Channel & Modulation : 8DPSK Low Band-edge Hopping mode & Modulation : 8DPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 62 / 82 Conducted Spurious Emissions Lowest Channel & Modulation : 8DPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 63 / 82 Conducted Spurious Emissions Lowest Channel & Modulation : 8DPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 64 / 82 Reference for limit Middle Channel & Modulation : 8DPSK Conducted Spurious Emissions Middle Channel & Modulation : 8DPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 65 / 82 Conducted Spurious Emissions Middle Channel & Modulation : 8DPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 66 / 82 High Band-edge Highest Channel & Modulation : 8DPSK High Band-edge Hopping mode & Modulation : 8DPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 67 / 82 Conducted Spurious Emissions Highest Channel & Modulation : 8DPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 68 / 82 Conducted Spurious Emissions Highest Channel & Modulation : 8DPSK FCC ID: U5MSPP-R310 Report No.: DRTFCC1512-0264 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 69 / 82 8. Transmitter AC Power Line Conducted Emission 8.1 Test Setup Refer to test…

Text truncated - open the document above for the full version.

FCC ID: U5MSPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: U5MSPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30 MHz) FCC ID: U5MSPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000 MHz) FCC ID: U5MSPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1 GHz) FCC ID: U5MSPP-R310 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photo of Conducted Emissions
