U5MSPP-R300Mobile printer

User's Manual SPP-R300 Mobile Printer Rev. 1.00 http://www.bixolon.com Rev. 1.00 - 2 - SPP-R300 ■ Table of Contents ※ Manual Information & Usage Precautions··································································3 1. Content Confirmation ··································································································10 2. Product Part Names····································································································· 11 3. Installation & Usage·····································································································12 3-1 Battery Installation ······························································································12 3-2 Battery Charging·································································································12 3-2-1 Battery Charging Usage···············································································12 3-2-2 Quad Charger (Optional) Usage···································································13 3-3 Paper Installation ································································································15 3-4 Belt Strap Usage·································································································16 3-5 Protective Case (Optional) Usage······································································17 3-6 Shoulder Strap Usage ························································································18 3-7 Car Cradle (Optional) Usage··············································································19 3-8 Control Panel Usage···························································································20 3-9 MSR Usage········································································································21 4. Self-Test ························································································································21 5. Label Printing Function·······························································································24 5-1 Label Function Setting ························································································24 5-2 Auto Calibration Function ···················································································24 6. Peripherals Connection·······························································································25 6-1 Bluetooth & Wireless LAN Connection·······························································25 6-2 Interface Cable Connection ················································································25 7. Printer Cleaning ···········································································································26 8. Appendix·······················································································································27 8-1 Specifications······································································································27 8-2 Certification·········································································································28 8-3 Label Types········································································································29 Rev. 1.00 - 3 - SPP-R300 ■ Manual Information ※ Manual Information & Usage Precautions This user’s manual contains basic information for product usage as well as for emergency measures that may be required. ※ The following separate manuals provide more detailed content on various technological issues and areas. 1. Windows CE Module Program Manual This manual provides information on the dll files required for Windows CE application program development. 2. Windows Driver Manual This manual provides information on installation and main functions of the Windows Driver for this product. 3. Unified Utility Manual This manual provides information on the software used to select functions of this product, modify operation conditions, etc. • VMSM (Virtual Memory Switch Manager) : As a function that sets the basic operation conditions of the product, the use of non-hardware control, software-based virtual switches is explained. • NV Image Download Manager : The downloading of image files, such as logos, intended for repetitive printing is explained. • Firmware Download Manager : The downloading and installation of the latest Firmware, which is subject to ongoing modification for the enhancement of product performance, are explained. 4. Bluetooth & Wireless Manual • Bluetooth : This manual describes how to connect terminals (PDAs, PCs, etc.) with Bluetooth functionality. • Wireless LAN : This manual describes how to connect wireless LAN in infrastructure or ad-hoc mode. 5. Commands Manual This manual provides information on the protocol and functions of the control commands that can be used with this product. 6. Code Pages Manual This manual provides information on each character code page that can be used with this product. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice. Rev. 1.00 - 4 - SPP-R300 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not bend the cable by force or leave it under any heavy object. • A damaged cable can cause a fire. Do not plug in or unplug with your hands wet. • You can be electrocuted. Keep the plastic bag out of children’s reach. • If not, a child may put the bag on his head. Do not pull the cable to unplug. • This can damage the cable, which is the origin of a fire or a breakdown of the printer. You must use only the supplied adapter. • It is dangerous to …

Text truncated - open the document above for the full version.

A-502~508, Digital Empire Bldg., 980-3, Yeongtong- dong, Yeongtong-gu, Suwon-shi, Gyeonggi-do 443- 813, REPUBLIC OF KOREA Tel No : +82-31-218-5582 Fax No : +82-31-218-5589 Bluetooth Declaration Per FCC 15.247 Requirements 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter whic h is driven by identical input parameters concerning these two parameters. Only a differ ent hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish ne w piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_A DDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UA P (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is neve r adjusted and is never turned off. For synchronisation with other units only offset are u sed. It has no relation to the time of the day. Its resolution is at least half the RX/TX sl ot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire L AP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are use d. With this input values different mathematical procedures (permutations, additions, XOR-o perations) are performed to generate the sequence. This will be done at the beginning o f every new transmission. Regarding short transmissions the Bluetooth system has the following behaviors: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due t o the fact that the Bluetooth clock has a different value, because the period between th e two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviors for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next freque ncy of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. There for all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth system is 1Mhz independent of the …

Text truncated - open the document above for the full version.

RF_160, Issue 02 A-502~508, Digital Empire Bldg., 980-3, Yeongtong-dong, Yeongtong-gu, Suwon-shi, Gyeonggi-do 443-813, REPUBLIC OF KOREA Tel No : +82-31-218-5582 Fax No : +82-31-218-5589 Declaration of Authorization We Name: BIXOLON Co., Ltd. Address: A-502~508, Digital Empire Bldg., 980-3, Yeongtong-dong, Yeongtong-gu City: Suwon-shi, Gyeonggi-do Country: Korea 443-813 Declare that: Name Representative of agent: Mr. Wayne Yap and Ms. Mcgull Yeong Agent Company name: SPADE Consultancy Pte Ltd Address: 22A Ann Siang Road City: 069702 Country Singapore is authorized to apply for Certification of the following product(s): Product description: Mobile Printer Type designation: SPP-R300 Trademark: BIXOLON on our behalf. Date: August 12, 2011 City Suwon-shi: Name: Hyun-suk Son Function: Assistant Manager Signature:

A-502~508, Digital Empire Bldg., 980-3, Yeongtong- dong, Yeongtong-gu, Suwon-shi, Gyeonggi-do 443-813, REPUBLIC OF KOREA Tel No : +82-31-218-5582 Fax No : +82-31-218-5589 August 12, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : BIXOLON Co., Ltd. FCC ID : U5MSPP-R300 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics, Parts list, Block diagram and Operational description. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hyun-suk Son / Assistant Manager BIXOLON Co., Ltd.

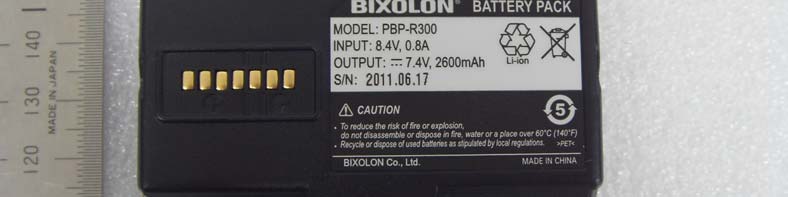

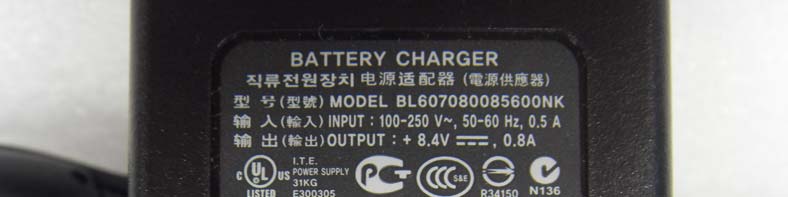

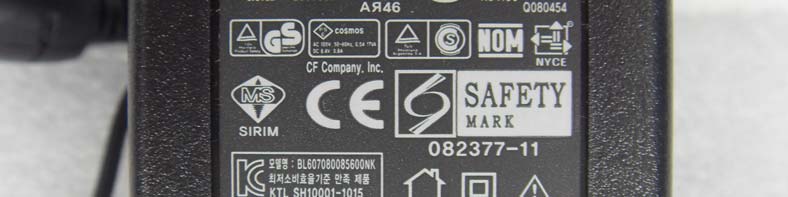

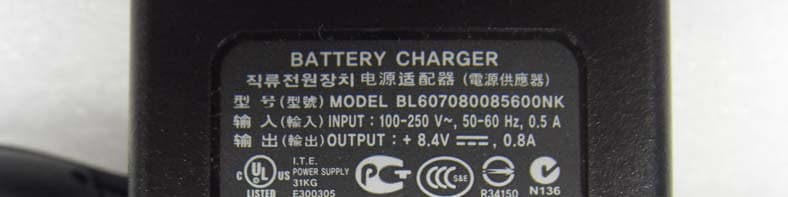

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT External Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Charger CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Charger Label CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Battery

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Label and Location

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Main Board BT Board CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Sub Board CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com WLAN Board CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com MSR Board CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Antenna BT Antenna WLAN

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: 2011070070 Date: July 22, 2011 Page 1 of 46 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TEST REPORT For FCC Test Report No. : 2011070070 Date of Issue : July 22, 2011 FCC ID : U5MSPP-R300 Model/Type No. : SPP-R300 Kind of Product : Mobile Printer Applicant : BIXOLON Co., Ltd. Applicant Address : A-502~508, Digital Empire Bldg., 980-3, Yeongtong-dong, Yeongtong-gu, Suwon-shi, Gyeonggi-do 443-813, REPUBLIC OF KOREA Manufacturer : BIXOLON Co., Ltd. Manufacturer Address : A-502~508, Digital Empire Bldg., 980-3, Yeongtong-dong, Yeongtong-gu, Suwon-shi, Gyeonggi-do 443-813, REPUBLIC OF KOREA Contact Person : Hyun-suk Son / Assistant Manager Telephone : +82-31-218-5582 Received Date : June 06, 2011 Test period : Start : June 06, 2011 End : July 07, 2011 The test results presented in this report relate only to the object tested. Tested by Reviewed by Young-taek Lee Test Engineer Young-Joon, Park Technical Manager Date: July 22, 2011 Date: July 22, 2011 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: 2011070070 Date: July 22, 2011 Page 2 of 46 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) REPORT REVISION HISTORY Date Revision Page No July 22, 2011 Issued (2011070070) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: 2011070070 Date: July 22, 2011 Page 3 of 46 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY ..........................................................................................2 1.0 General Product Description ...............................................................................4 1.1 Tested Frequency .............................................................................................4 1.2 Tested Mode ....................................................................................................4 1.3 Model Differences .............................................................................................5 1.4 Device Modifications .........................................................................................5 1.5 Peripheral Devices ............................................................................................5 1.6 Calibration Details of Equipment Used for Measurement .........................................5 1.7 Test Facility......................................................................................................5 1.8 Laboratory Accreditations and Listings .................................................................6 2.0 Summary of tests .............................................................................................7 2.1 Transmitter Requirements ..................................................................................8 2.1.1 Carrier Frequency Separation .......................................................................8 2.1.2 Number of Hopping Frequencies ................................................................. 10 2.1.3 20 dB bandwidth ...................................................................................... 13 2.1.4 Time of Occupancy (Dwell Time) ................................................................. 19 2.1.5 Maximum peak Conducted Output Power...................................................... 25 2.1.6 Band-edge............................................................................................... 30 2.1.7 Field Strength of Emissions ........................................................................ 38 2.1.8 AC Conducted Emissions............................................................................ 43 APPENDIX A – Test Equipment Used For Tests ................................................................ 46 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: 2011070070 Date: July 22, 2011 Page 4 of 46 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 1.0 General Product Description Equipment model name : SPP-R300 Serial number : Prototype EUT condition : Pre-production, not damaged Antenna type : Chip antenna Gain -0.04 dBi Frequency Range : 2402 MHz - 2480 MHz RF power : 0.646 dBm Peak Conducted (GFSK) : 2.745 dBm Peak Conducted (8-DPSK) Type of Modulation : Frequency Hopping Spread Spectrum Number of channels : 79 Channel Spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK(1Mbps), DQPSK(2Mbps), 8-DPSK(3Mbps) Power Source : Lithium-ion Battery Pack(Rechargeable battery) 7.4 Vdc/2600 mAh 1.1 Tested Frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 1.2 Tested Mode - Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture). - Following channel(s) was (were) selected for the final test as listed below. Tested Ch Modulation Technology Modulation Type Packet Type Low, Mid, High FHSS G…

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Setup Photographs and Configuration Conductedd Voltage Emissions CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Radiated Electric Field Emissions CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com
