U5MWD-MSBWIFI MODULE

1 www.cmaxwireless.co.kr WD-MSB P2P Module User Manual 2 www.cmaxwireless.co.kr Upgrade History Date Version Comment 2013-09-13 V1.0 Release 2013-10-31 V1.1 3 www.cmaxwireless.co.kr Contents 1. General Description ................................................................................................................6 1.1 Features .....................................................................................................................................................6 1.2 Applications ..............................................................................................................................................6 1.3 Product description ................................................................................................................................6 1.4 Specification .............................................................................................................................................7 2. Installation .............................................................................................................................9 2.1 Fundamentals of wireless LAN .............................................................................................................9 2.1.1 Infrastructure Mode ......................................................................................................................9 2.1.2 Ad-hoc Mode ..............................................................................................................................10 2.1.3 Basic Requisites ...........................................................................................................................10 2.1.4 Authentication and Security .....................................................................................................11 2.2 Installation ..............................................................................................................................................11 2.2.1 Making Wireless LAN Network ..............................................................................................12 3. Configuration ........................................................................................................................15 3.1 Configuration with WLAN Module Manager .................................................................................15 3.1.1 Configuration via WLAN ............................................................................................................15 3.1.2 Configuration via Serial .............................................................................................................16 3.1.3 Printer Search ..............................................................................................................................16 3.1.4 System ...........................................................................................................................................17 3.1.5 Protocol .............................................................................................................................................17 3.1.6 BSS Info .............................................................................................................................................18 3.1.7 Network .........................................................................................................................................19 3.1.8 Authentication .............................................................................................................................20 3.1.9 Certification ..................................................................................................................................21 3.1.10 Firmware .....................................................................................................................................21 3.1.11 Information ................................................................................................................................22 3.2 Web Configuration ...............................................................................................................................23 3.2.1 Web Connection ........................................................................................................................23 3.2.2 Home ............................................................................................................................................24 3.2.3 System ..........................................................................................................................................25 3.2.4 Protocol ........................................................................................................................................26 3.2.5 Network .......................................................................................................................................26 4 www.cmaxwireless.co.kr 3.2.6 Authentication ............................................................................................................................27 3.2.7 Wizard ..........................................................................................................................................28 3.2.8 Web Site ...................................................................................................................................... 3.2.9 Contact ........................................................................................................................................ 3.3 TELNET ....................................................................................................................................................30 3.3.1 TELNET Connection ..................................................................................................................30 3.3.2 System .......................................................................................…

Text truncated - open the document above for the full version.

7th~8th FL, Miraeasset Venture Tower, 685, Sampyeong-dong, Bundang-gu Seongnam-si, Gyeonggi-do, Korea Tel No : +82-31-218-5582 Fax No : +82-31-218-5589 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U5MWD-MSB Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Parts List Operational description Block Diagram (U5MWD-MSB).pdf Schematics (U5MWD-MSB).pdf Part List (U5MWD-MSB).pdf Operational Description (U5MWD-MSB).pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name - - Sincerely, Jinseob Oh / CEO BIXOLON Co., Ltd. Rev 11/20/07

7th~8th FL, Miraeasset Venture Tower, 685, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea Tel No : +82-31-218-5582 Fax No : +82-31-218-5589 MODULAR APPROVAL LETTER November 28, 2013 Applicant : BIXOLON Co., Ltd. FCC ID : U5MWD-MSB We would like to answer for limited Single Modular Approval in accordance with the requirement of rule part 15.212 as described below No. Requirements Comment Comply (Y/N) 1 The radio element of the modular transmitter has its own shielding Refer to the external photo Y 2 The modular transmitter must have buffered modulation data/inputs (if such inputs are provided) All input to the modules are buffered through microprocessor inputs. Y 3 The modular transmitter must have its own power supply regulation. Internal power regulators Refer to the Block-diagram Y 4 The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). Refer to the internal photo Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The EUT was tested in a standalone configuration via a SD extension cable Refer to the test setup photo Y 6 The modular transmitter must be labeled with its own FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module Refer to the user manual Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements Refer to the user manual Y 8 The modular transmitter must comply with any applicable RF exposure requirements Refer to the RF exposure statement for more details. Y Sincerely, Shin Ji Sung / Assistant Manager BIXOLON Co., Ltd.

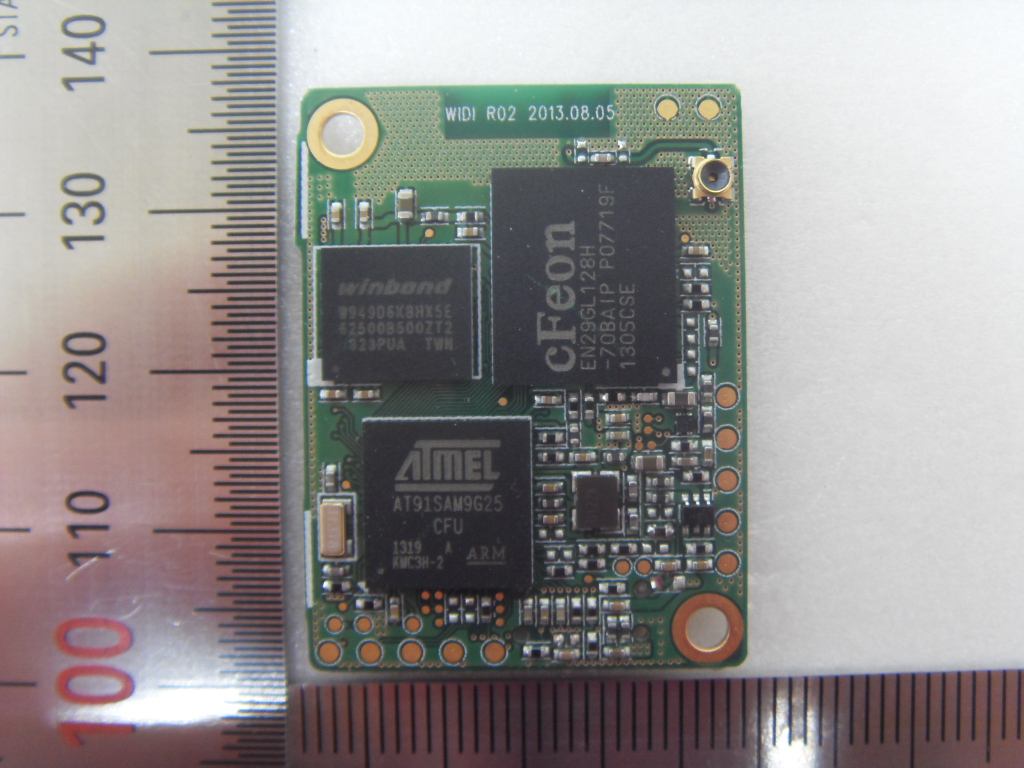

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT External Photographs

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Label and Location

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Antenna Antenna

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 1 of 2 RF EXPOSURE EVALUATION Applicant : BIXOLON Co., Ltd. Applicant Address : 7th~8th FL, Miraeasset Venture Tower, 685, Sampyeong-dong, Bundang-gu Seongnam-si, Gyeonggi-do, Korea Kind of Product : WIFI Module Equipment model name : WD-MSB RF power : 14.41 dBm Peak Conducted Antenna type : Chip antenna Antenna Gain : 3.91 dBi Frequency Range : 2412 - 2462 MHz CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 2 of 2 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) EIRP = 14.41 + 3.91 = 18.32 dBm => 67.92 mW The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (3.91/ 10) G = 2.46 Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) S = (67.92)/(4 * 20 2 * π) S =0.014 mW/cm 2 The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) R = √(67.92 / 4π) R = 2.32 cm

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01718 Date: November 28, 2013 Page 1 of 56 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) TEST REPORT For FCC FCC Standards : FCC 47CFR part 15 subpart C Test Report No. : CTK-2013-01718 Date of Issue : November 28, 2013 FCC ID : U5MWD-MSB Basic Model/Type No. : WD-MSB Variant Model/Type No. : - Kind of Product : WIFI Module Applicant : BIXOLON Co., Ltd. Applicant Address : 7th~8th FL, Miraeasset Venture Tower, 685, Sampyeong-dong, Bundang-gu Seongnam-si, Gyeonggi-do, Korea Manufacturer : BIXOLON Co., Ltd. Manufacturer Address : 7th~8th FL, Miraeasset Venture Tower, 685, Sampyeong-dong, Bundang-gu Seongnam-si, Gyeonggi-do, Korea Contact Person : Shin Ji Sung / Assistant Manager Telephone : +82–31-218-5582 Received Date : October 10, 2013 Test period : Start : October 27, 2013 End : November 21, 2013 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. Tested by Reviewed by Young-taek, Lee Test Engineer Young-Joon, Park Technical Manager Date: November 28, 2013 Date: November 28, 2013 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01718 Date: November 28, 2013 Page 2 of 56 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) REPORT REVISION HISTORY Date Revision Page No November 28, 2013 Issued (CTK-2013-01718) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01718 Date: November 28, 2013 Page 3 of 56 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY ........................................................................................... 2 1.0 General Product Description ................................................................................ 4 1.1 Tested Frequency ............................................................................................... 4 1.2 Device Modifications ........................................................................................... 5 1.3 Peripheral Devices ............................................................................................. 5 1.4 Calibration Details of Equipment Used for Measurement ......................................... 5 1.5 Test Facility ....................................................................................................... 5 1.6 Laboratory Accreditations and Listings .................................................................. 6 2 Summary of tests .................................................................................................... 7 2.1 Technical Characteristic Test ...................................................................................... 8 2.1.1 6dB Bandwidth ............................................................................................ 8 2.1.2 Maximum Peak Conducted Output Power ...................................................... 16 2.1.3 Power Spectral Density ............................................................................... 24 2.1.4 Band - edge .............................................................................................. 32 2.1.5 Field Strength of Emissions ......................................................................... 42 2.1.6 AC Conducted Emissions ............................................................................. 53 APPENDIX A – Test Equipment Used For Tests ................................................................. 56 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01718 Date: November 28, 2013 Page 4 of 56 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) 1.0 General Product Description Equipment model name WD-MSB Serial number Prototype EUT condition Pre-production, not damaged Frequency Range 802.11b/g/n : 2412 MHz - 2462 MHz RF output power 802.11b : 14.41 dBm 802.11g : 13.22 dBm 802.11n : 11.47 dBm Number of channels 802.11b/g/n : 11 Channel Spacing 5 MHz Transfer Rate 802.11b : 11 / 5.5 / 2 / 1 Mbps 802.11g : 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6 Mbps 802.11n: MCS0-7, up to 72.2 Mbps Type of Modulation 802.11b : DSSS 802.11g/n : OFDM Duty cycle 1.0 Power Source DC 3.3 V Antenna Type Chip antenna Antenna Gain 3.91 dBi 1.1 Tested Frequency 802.11b, 802.11g, 802.11n LOW MID HIGH Frequency (MHz) 2412 2437 2462 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01718 Date: November 28, 2013 Page 5 of 56 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) 1.2 Device Modifications The following modifications were necessary for compliance: Not applicable 1.3 Peripheral Devices 1.4 Calibration Details of Equipment Used for Measurement Test equipment and test accessories are calibrated on regular basis. The maximum time…

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Setup Photographs and Configuration Conducted Voltage Emissions CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Radiated Electric Field Emissions CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com
