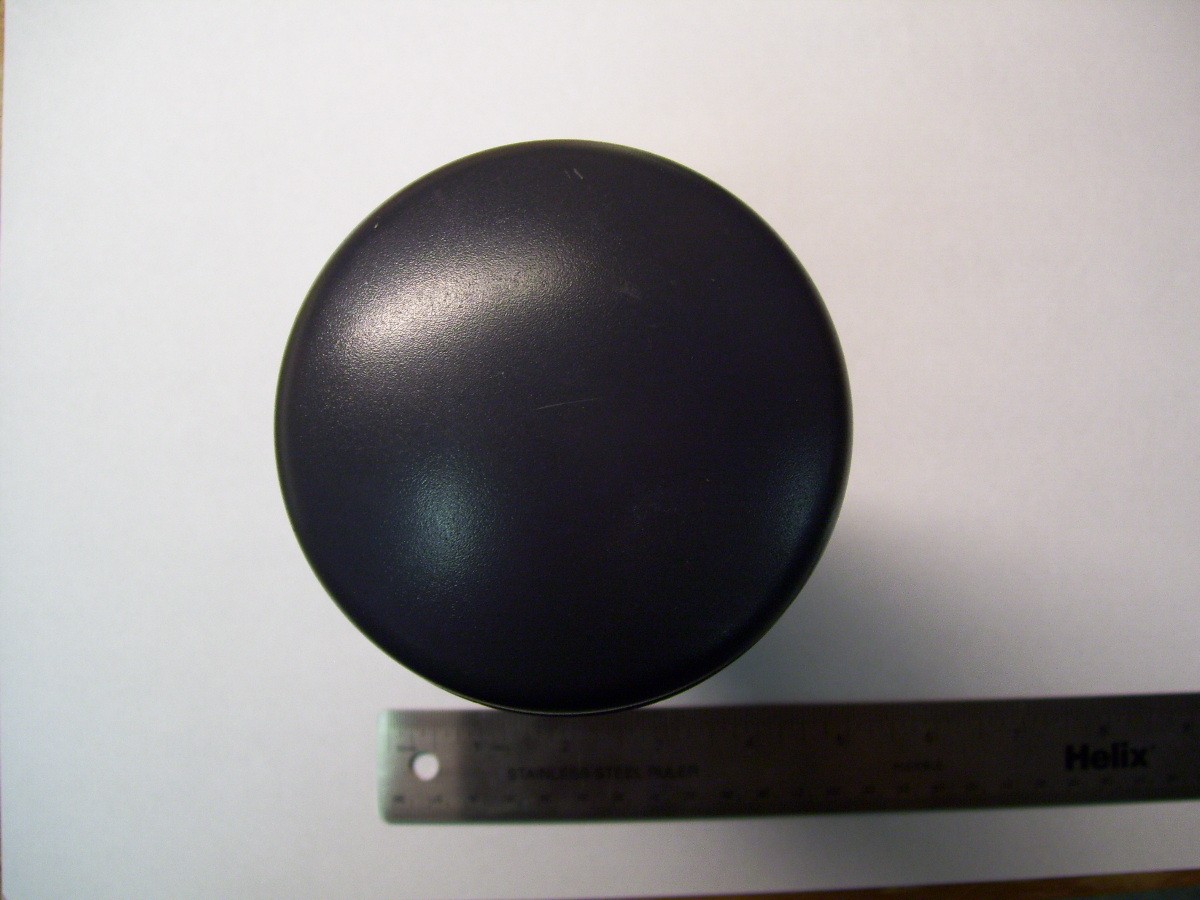

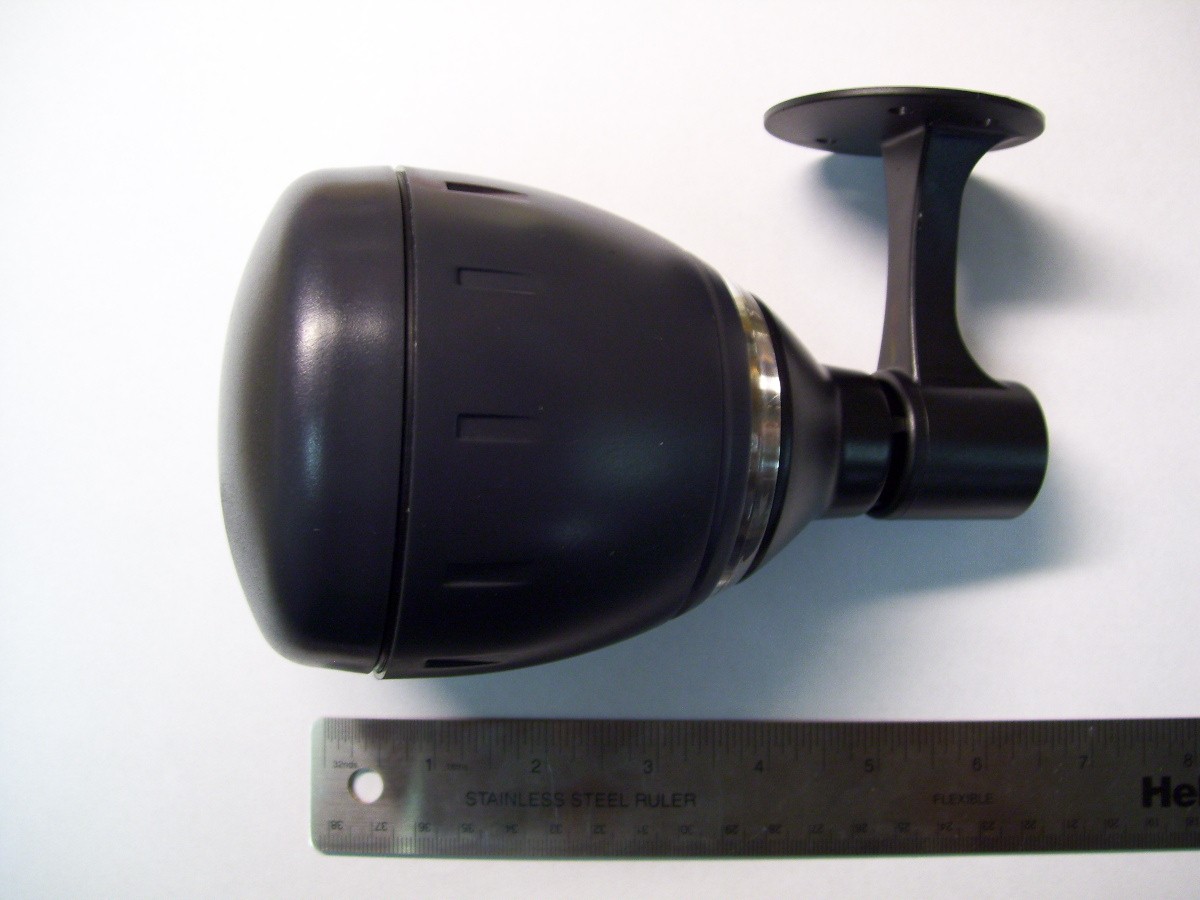

U5X-RE104Driveway Sensor

Wireless Security Solutions RE104 GE-Compatible Driveway Sensor Features •For sensing Vehicles passing by. •Sensor continuously monitors earth’s magnetic field. When the large metal mass of a vehicle drives by, the earth’s magnetic field is twisted. The sensor then transmits a signal wirelessly to the control panel. •Immune to pets, wildlife, leaves, dust, sunlight. •NO DIGGING! •Weatherproof design handles all environments. •Strong, reliable RF signal. •3-5 year battery life on C battery. •Low Battery indication. Key Instructions •Battery “+” face away from springs. Secure batteries with binder. •Use as a chime function. Do not use as an alarm zone. •Mount sensor within 12 feet of target vehicle. Mount more than 24 feet from street. •Do not plug drain hole in the bottom. Do not overtighten top. •Bumping the sensor will cause it to false (it thinks the world moved). •Performance Effects: Improve PerformanceDegrade performance Close to vehicleFar from vehicle Higher (door handle level)Ground level Slow vehicleFast vehicle Large metal vehicleSmall vehicle with lots of plastic Generally, it shouldn’t matter which direction the sensor head is rotated. But turning it 90 degrees may cause some performance change +/-. •Enrolling: Put panel in RF enroll mode. Install sensor battery. Supervision by panel is optional. RE104_GE-Compat_Driveway_Instructions.docPage 1 of 31-Jun-10 www.ResolutionProducts.com Specifications Vehicle sense distance:0 – 15 feet Mounting hardware:post flange or ground stake Replacement Battery:C-Cell Temperature Range:0F to 120F [Note: high temperatures and high humidity can have a significant effect on alkaline battery performance.] Housing dimensions:5.1 x 3.8 inches Specifications subject to change without notice. Exploded Picture RE104_GE-Compat_Driveway_Instructions.docPage 2 of 31-Jun-10 www.ResolutionProducts.com Wooden Post mount Batteries secured by binder Magnetic sensor Ground stake mount Notices “GE”, “Honeywell”, and “DSC” are trademarks owned by General Electric Company, Honeywell International Inc., and Tyco Safety Products Canada LTD, respectively. Resolution Products, Inc. products will function with one of either GE, DSC or Honeywell systems. However, no Resolution product is produced by, endorsed by, nor is officially associated with GE, Honeywell or DSC. Resolution recommends verifying proper enrollment and operation, per control panel installation instructions, at installation. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE104 IC Notice This product meets the applicable Industry Canada technical specifications/Le présent materiel est conforme aux specifications techniques applicables d’Industrie Canada. IC: 8310A-RE104 RE104_GE-Compat_Driveway_Instructions.docPage 3 of 31-Jun-10 www.ResolutionProducts.com

June 9, 2010 RE: U5X-RE104 Confidetiality To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 ｧ0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to our disadvantage as in the market place. lSchematics lTechnical Product Description/Operational Description lBlock Diagram Sincerely, Paul Saldin Vice President Resolution Products, Inc.

Resolution Products, Inc. Wireless Driveway Transmitter FCC ID: U5X-RE104 Certification Test Report June 9, 2010 U5X-RE104 Resolution Products, Inc.06/9/10Page 1 of 10 Test Report 226 Locust Street, Suite 4 Hudson, WI 54016 Contents 1. Introduction.................................................................................................................................................................3 2. Statement of Compliance............................................................................................................................................3 2.1. FCC Part 2 §2.907................................................................................................................................................3 2.2. FCC Part 2 §2.911................................................................................................................................................3 2.3. FCC Part 2 §2.913................................................................................................................................................3 2.4. FCC Part 2 §2.915................................................................................................................................................3 2.5. FCC Part 2 §2.925................................................................................................................................................3 2.6. FCC Part 2 §2.943, 2.945....................................................................................................................................3 2.7. FCC Part 2 §2.947................................................................................................................................................4 2.8. FCC Part 2 §2.948................................................................................................................................................4 2.9. FCC Part 2 §2.1033..............................................................................................................................................5 3. Discussion of Laboratory Measurements and Rules Compliance...............................................................................6 3.1. FCC Part 15 §15.231(a)(1)..................................................................................................................................6 3.2. FCC Part 15 §15.231(a)(3)..................................................................................................................................6 3.3. FCC Part 15 §15.231(a)(4)..................................................................................................................................7 3.4. FCC Part 15 §15.231(a)(5)..................................................................................................................................7 3.5. FCC Part 15 §15.231(b).......................................................................................................................................7 3.5.1. Raw Field Strength Limits............................................................................................................................7 3.5.2. Duty Cycle Correction Factor and Resulting Limits.....................................................................................8 3.5.3. Measured Radiated Field Strength Data.......................................................................................................9 3.6. FCC Part 15 §15.231(c).......................................................................................................................................9 U5X-RE104 Resolution Products, Inc.06/9/10Page 2 of 10 Test Report 226 Locust Street, Suite 4 Hudson, WI 54016 1.Introduction This device is a wireless driveway transmitter for use in a wireless security system. The unit is powered by two C- size alkaline batteries. The transmitter is centered at 319.5MHz and is controlled by a SAW resonator. The device measures 5.1 x 3.8”. This transmitter is activated by an internal magnetometer that detects the change in the earth's magnetic field caused by a nearby vehicle. Transmission packets are sent by the device upon valid activation. These packets are 20ms in length and are sent with a random spacing of 170ms to 800ms. Upon completion of these packets, the device goes into sleep mode and will not transmit again until another activation. If no activation is received for one hour, three supervisory packets are sent with the same spacing given above. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b)All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d)The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid by credit card. g)Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b)Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X- RE104”. See Exhibit A for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measuremen…

Text truncated - open the document above for the full version.

360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 1 of 5 Engineering and Testing for EMC and Safety Compliance Radiated Test Data for Model: Driveway Sensor 319 MHz for Resolution Engineering RTL Project Number 2009319 Test Engineer: Jon Wilson 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 2 of 5 Radiated Test Data - OATS 1 Test Date: April 21, 2010 - 12:01:00 PM Work Order: 2009319 Customer Reference: na Model: 319.5 MHz (RTL BC# 019362) Name: Jon Wilson Limit/Distance: FCC A/3m Emission Frequency (MHz) Test Detector Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 319.570 Pk 65.8 29.3 95.1 95.9 -0.8 Pass 639.122 Pk 70.6 -4.1 66.5 75.9 -9.4 Pass 958.660 Pk 66.1 2.3 68.4 75.9 -7.5 Pass 1278.205 Pk 41.6 7.8 49.4 75.9 -26.5 Pass 1597.778 Pk 55.5 12.0 67.5 75.9 -8.4 Pass 1917.323 Pk 54.0 15.8 69.8 75.9 -6.1 Pass 2236.500 Pk 76.5 -8.2 68.3 75.9 -7.6 Pass 2556.000 Pk 66.3 0.2 66.5 75.9 -9.4 Pass 2875.500 Pk 54.6 16.1 70.7 75.9 -5.2 Pass 3195.000 Pk 24.5 33.6 58.1 75.9 -17.8 Pass Notes: Device was tested through its thee orthogonal planes (X, Y, Z axis) and the test antenna was raised and lowered from 1-4 meters and polarized. These steps were taken in order to find the maximum emission level at each frequency. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 3 of 5 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 4 of 5 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 5 of 5 Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 5/10/2010 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 12/12/2010 EMI Receiver RF Section (9 KHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 6/8/2010 RF Filter Section (100 KHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 6/8/2010 Spectrum Analyzer Hewlett Packard 8596EM 3826A00144 901215 11/23/2010 Amplifier Rhein Tech Laboratories, Inc. PR-1040 1003 900811 7/8/2011 Horn Antenna, 2.0-4.0 GHz EMCO 3161-02 9804-1044 900772 6/13/2010 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A
