U5X-RE1088-Zone Security Transmitter

RE108_Hardwire_to_GE-Compat_Translator.doc Page 1 of 3 21-Sep-09 www.ResolutionProducts.com Wireless Security Solutions RE108 Hardwire to Wireless Takeover Translator, GE-Compatible Features • Converts hardwire zones into GE-compatible wireless signals. • 8 Hardwire loops with end-of-line resistor detection. • Unique wireless ID (or loop) for each zone, plus 1 for main device. • Transmit diversity for long reliable range. • PIR powering (via external supply). • Back-up battery operation. • Complete supervision of tampers, external power supply fault and low battery. Key Instructions • Use with normally closed contacts in-line with 4.7 K-ohms end-of-line resistors. • 4-wire PIRs only. • External supply: 7-14V AC or DC at least 50 mA. • PIR usage: Adds requirements to external supply – see Specifications. • 2 AAA Alkaline batteries are for backup in case of external supply failure. Backup batteries cannot drive the PIR. • Enrolling:
Loops enrolled by tampering (shorting).
Main device enrolled by tamper switch on the board. Operation • 8 Hardwire Zones wireless transmissions (8 unique IDs): Alarm, when Device sees open circuit. Tamper, when device sees short circuit. Supervisories, every hour for each zone. • Translator Main Zone wireless transmission (9 th unique ID): Tamper, when cover opened. Low battery, when either low AAA batteries, OR loss of AC. Supervisory every hour. • LED Operation Green LED: On if AC power present. Red LED: On if device tamper or device low battery RE108_Hardwire_to_GE-Compat_Translator.doc Page 2 of 3 21-Sep-09 www.ResolutionProducts.com Specifications GE Device Type: 10 (all 8 zone ID’s and device ID) Zone sensing duration: State sensed if held more than 600ms. End-of-line Resistors: 4.7k-ohm, 5%. Max wire run: 1000 feet Backup batteries: Two AAA Alkaline. External supply: 7-14V AC or DC, at least 50mA. Current draw with supply: 4mA, normal operation. PIR usage: Supply must be DC only. PIR may need tighter voltage tolerance. Add PIR and device current requirements together to get total current need. AC Fail Conditions: AC gone for 15 minutes. Restores on AC restore. Device Low Battery Conditions: Low battery for 1 minute. Restores on device tamper, AC restore. Back-up Battery Life on AC Fail: 2 years, all zones terminated in 4.7K; longer if unused/open. Housing dimensions: 4x6x1 inches Specifications subject to change without notice. Internal Picture Terminals for Zones 3-8 Terminals for Zones 3-8 Power Terminals Tamper / Enroll Switch RE108_Hardwire_to_GE-Compat_Translator.doc Page 3 of 3 21-Sep-09 www.ResolutionProducts.com Notices “GE”, “Honeywell”, and “DSC” are trademarks owned by General Electric Company, Honeywell International Inc., and Tyco Safety Products Canada LTD, respectively. Resolution Products, Inc. products will function with one of either GE, DSC or Honeywell systems. However, no Resolution product is produced by, endorsed by, nor is officially associated with GE, Honeywell or DSC. Resolution recommends verifying operation at installation. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Engineering, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE108 IC Notice This product meets the applicable Industry Canada technical specifications/Le présent materiel est conforme aux specifications techniques applicables d’Industrie Canada. IC: 8310A-RE108

December 2, 2009 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 ｧ0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to our disadvantage as in the market place. lSchematics lTechnical Product Description/Operational Description lBlock Diagram Sincerely, Paul Saldin Vice President Resolution Products, Inc.

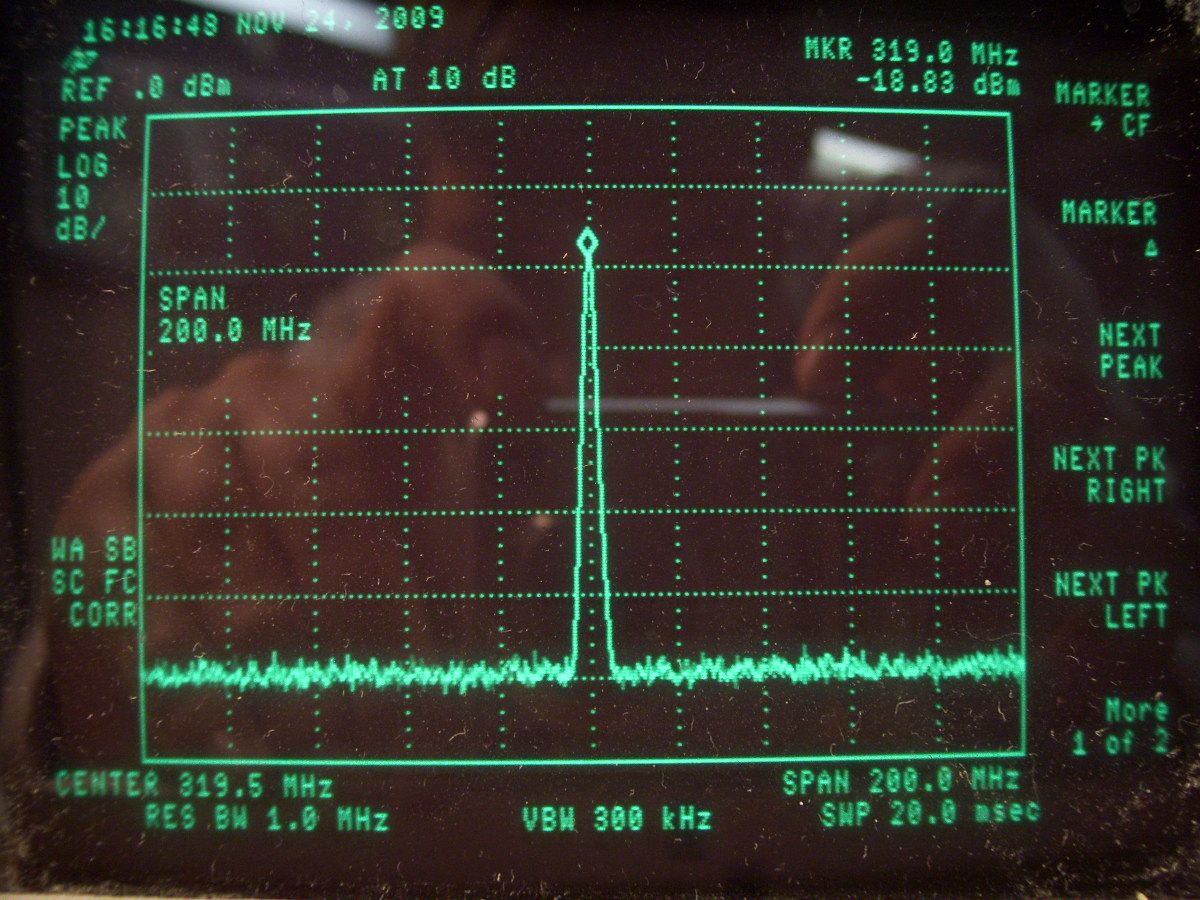

Resolution Engineering, LLC Translator Work Order 2009300 Dan Baltzell November 18, 2009 PEAK LEVELS - FCC 15.231(b) Limits Frequency (MHz) Spectrum Analyzer Level A2 red light (dBuV) Spectrum Analyzer Level A1 green light (dBuV) Harmonic 319.500 105.6 96.0 Fundamental 639.000 74.0 58.3 2 958.500 65.6 51.6 3 1278.000 55.1 54.1 4 A2 Antenna (red light) Frequency (MHz) Spectrum Analyzer Level (Vertical Polarity) (dBuV) Spectrum Analyzer Level (Horizontal Polarity) (dBuV) Site Correction Factor (dB/m) Corrected Analyzer Level (dBuV/m) Limit (dBuV/m) Margin (dB) 319.500 107.2 106.9 -17.6 89.6 95.9 639.000 77.2 74.7 -11.0 66.2 75.9 -9.7 958.500 67.2 67.0 -7.9 59.3 75.9 -16.6 1278.000 53.0 58.5 -5.5 53.0 75.9 -22.9 1597.500 54.3 60.9 -3.6 57.3 74.0 -16.7 1917.000 44.8 55.8 -0.6 55.2 75.9 -20.7 2236.500 47.4 49.9 -6.2 43.7 74.0 -30.3 2556.000 47.7 58.9 -7.1 51.8 75.9 -24.1 2875.500 42.4 45.0 -5.6 39.4 74.0 -34.6 3195.000 41.8 37.2 -5.6 36.2 75.9 -39.7 A1 Antenna (green light) Frequency (MHz) Spectrum Analyzer Level (Vertical Polarity) (dBuV) Spectrum Analyzer Level (Horizontal Polarity) (dBuV) Site Correction Factor (dB/m) Corrected Analyzer Level (dBuV/m) Limit (dBuV/m) Margin (dB) 319.500 103.6 99.5 -17.6 86.0 95.9 639.000 76.8 63.0 -11.0 65.8 75.9 -10.1 958.500 68.3 53.3 -7.9 60.4 75.9 -15.5 1278.000 56.2 55.1 -5.5 50.7 75.9 -25.2 1597.500 57.2 57.7 -3.6 54.1 74.0 -19.9 1917.000 44.6 43.0 -0.6 44.0 75.9 -31.9 2236.500 45.5 48.4 -6.2 42.2 74.0 -31.8 2556.000 54.8 53.6 -7.1 47.7 75.9 -28.2 2875.500 54.4 57.1 -5.6 51.5 74.0 -22.5 3195.000 53.6 50.9 -5.6 48.0 75.9 -27.9 Barcode Manufacturer Model Part Type Serial Number Calibration Due 901215 Hewlett Packard 8596EM Spectrum Analyzer (9kHz-12.8GHz) 3826A00144 10/23/10 901365 MITEQ JS4-00102600- 41-5P Amplifier, 0.1-26 GHz, 30dB gain N/A 3/4/2010 901516 Insulated Wire, Inc. KPS-1503- 2400-KPS RF cable, 20' NA 10/19/2010 901517 Insulated Wire Inc. KPS-1503-360- KPS RF cable 36" NA 10/19/2010 900791 Chase CBL6111B Bilog antenna 30 MHz – 2000 MHz N/A 12/12/2010 900772 EMCO 3161-02 Horn Antenna 2 - 4 GHz 9804-1044 6/14/2010 Front Back

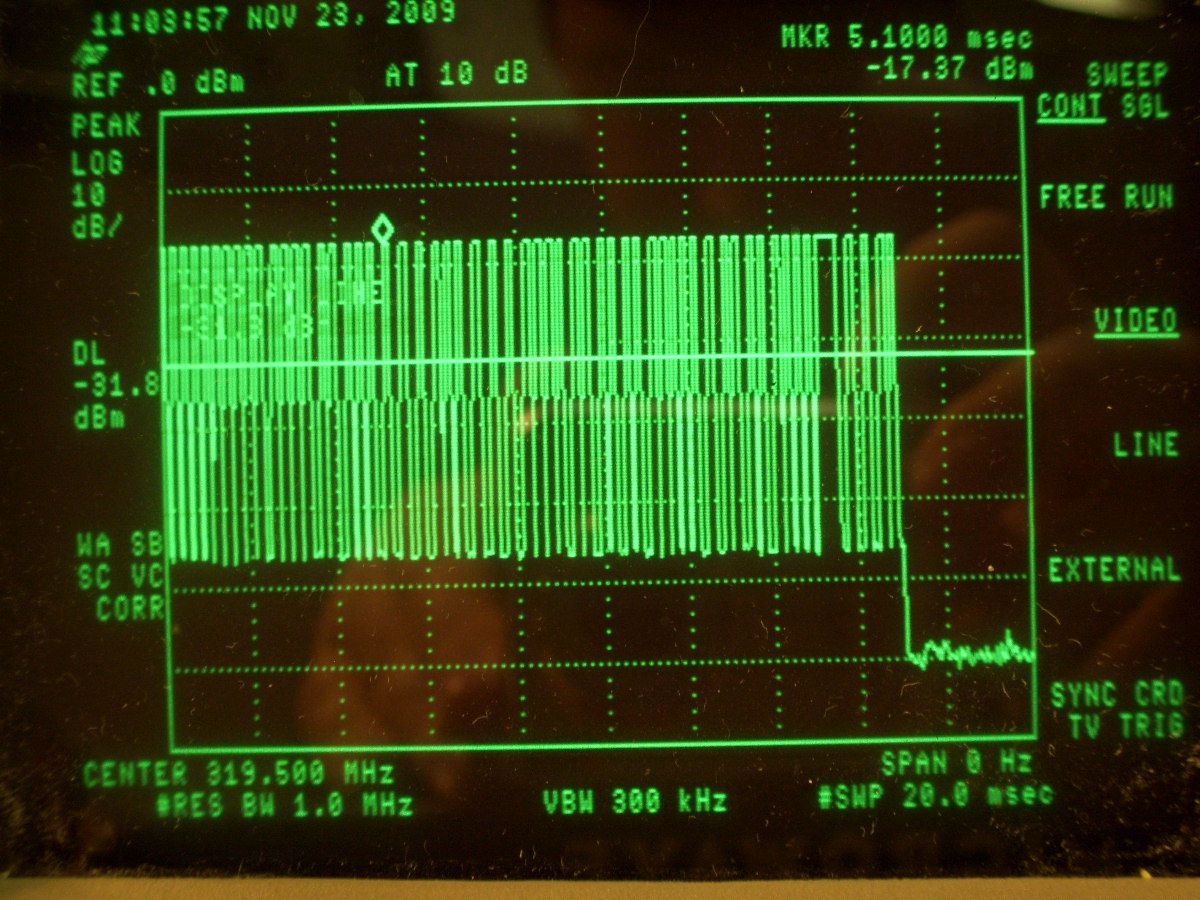

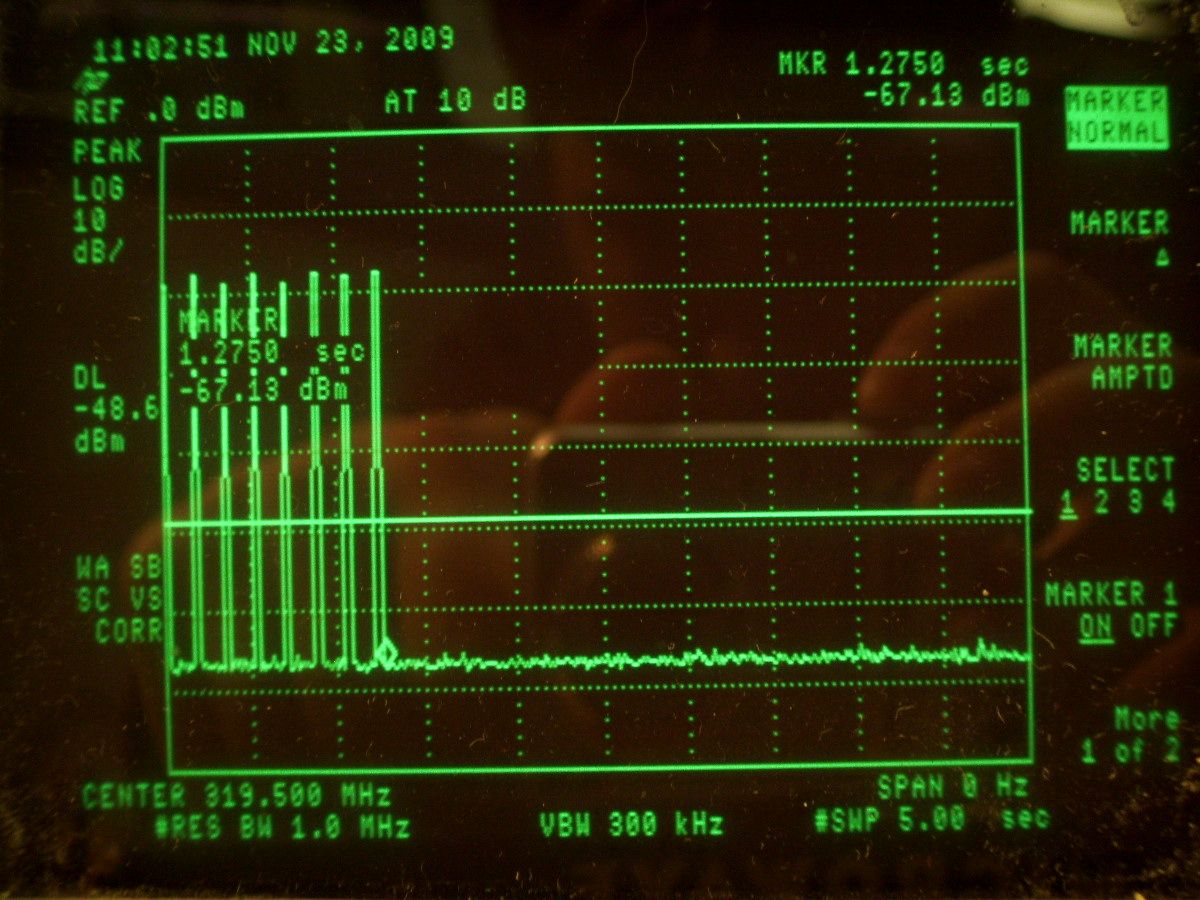

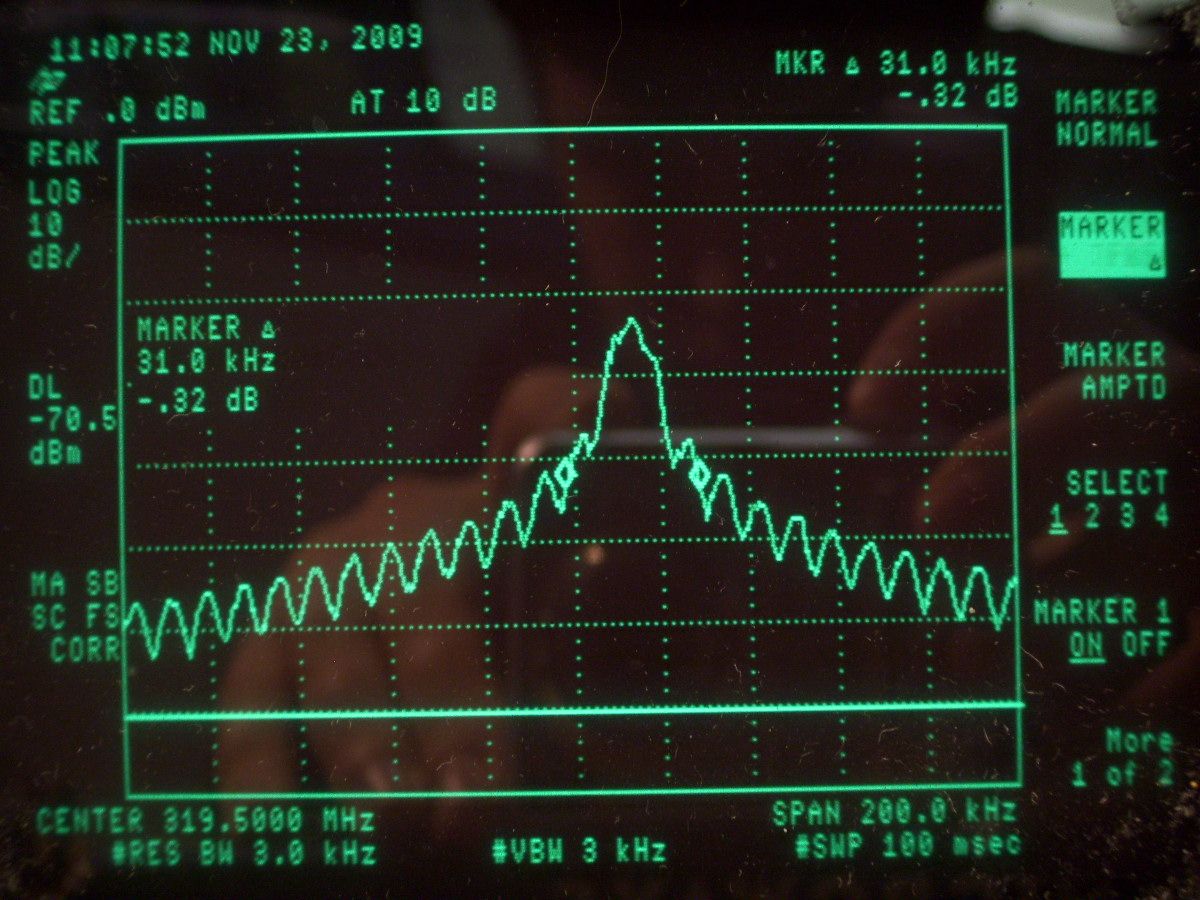

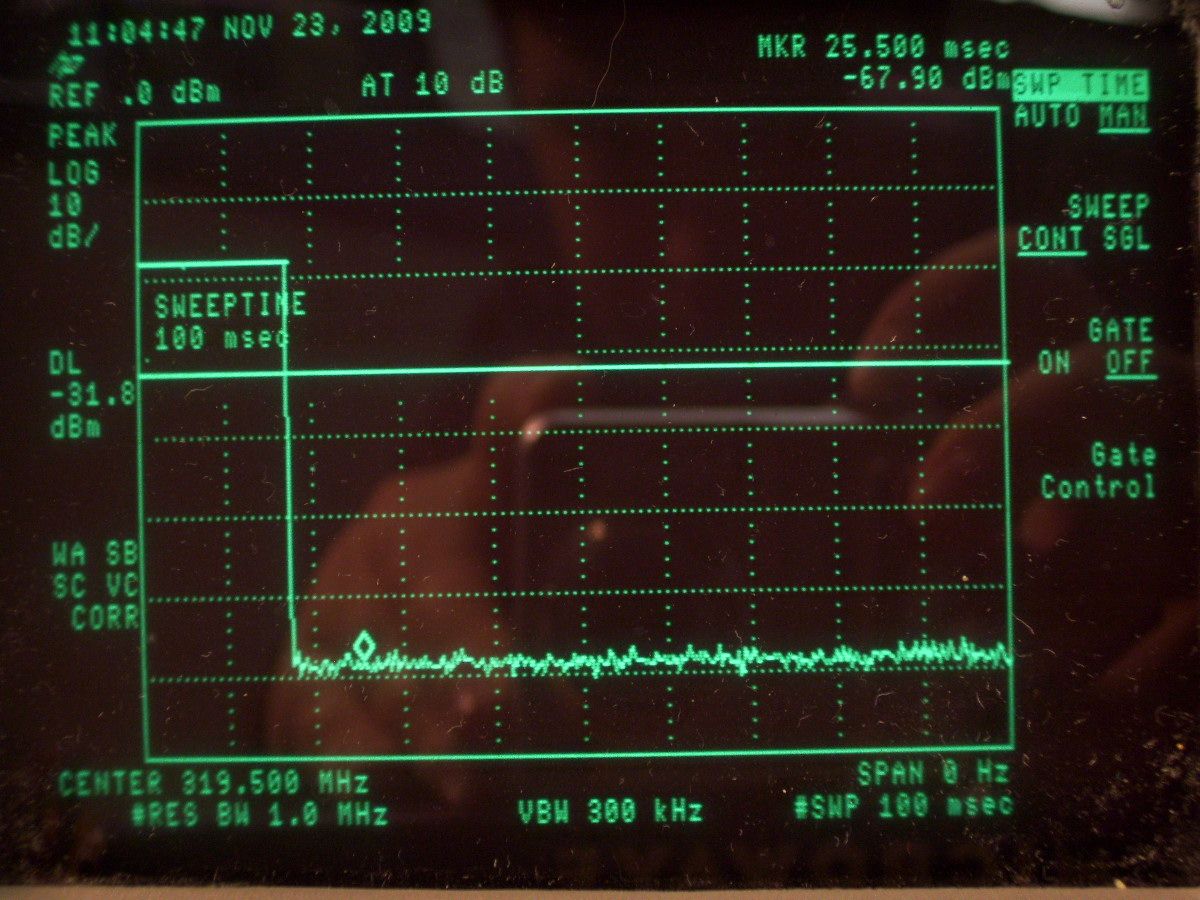

Resolution Products, Inc. 8-Zone Security Transmitter FCC ID: U5X-RE108 Certification Test Report December 2, 2009 U5X-RE108 Resolution Products, Inc.12/2/09Page 1 of 7 Test Report 226 Locust Street, Suite 4 Hudson, WI 54016 Contents 1. Introduction ................................................................................................................................................................. 3 2. Statement of Compliance ............................................................................................................................................ 3 2.1. FCC Part 2 §2.907 ................................................................................................................................................ 3 2.2. FCC Part 2 §2.911 ................................................................................................................................................ 3 2.3. FCC Part 2 §2.913 ................................................................................................................................................ 3 2.4. FCC Part 2 §2.915 ................................................................................................................................................ 3 2.5. FCC Part 2 §2.925 ................................................................................................................................................ 3 2.6. FCC Part 2 §2.943, 2.945 .................................................................................................................................... 3 2.7. FCC Part 2 §2.947 ................................................................................................................................................ 3 2.8. FCC Part 2 §2.948 ................................................................................................................................................ 4 2.9. FCC Part 2 §2.1033 .............................................................................................................................................. 5 3. Discussion of Laboratory Measurements and Rules Compliance ............................................................................... 6 3.1. FCC Part 15 §15.231(a)(1) .................................................................................................................................. 6 3.2. FCC Part 15 §15.231(a)(3) .................................................................................................................................. 6 3.3. FCC Part 15 §15.231(a)(4) .................................................................................................................................. 6 3.4. FCC Part 15 §15.231(a)(5) .................................................................................................................................. 6 3.5. FCC Part 15 §15.231(b) ....................................................................................................................................... 6 3.5.1. Raw Field Strength Limits ............................................................................................................................ 6 3.5.2. Duty Cycle Correction Factor and Resulting Limits ..................................................................................... 7 3.5.3. Measured Radiated Field Strength Data ....................................................................................................... 7 3.6. FCC Part 15 §15.231(c) ....................................................................................................................................... 7 U5X-RE108 Resolution Products, Inc.12/2/09Page 2 of 7 Test Report 226 Locust Street, Suite 4 Hudson, WI 54016 1.Introduction This device is a transmitter for use in a wireless security system. The unit is powered by a 12VDC or 9-18VAC power supply and is backed up by two AA alkaline batteries. The transmitter is centered at 319.500MHz and is controlled by a SAW resonator. The device measures 6.25 x 4 x 1.25” and weighs approximately 8.3 ounces. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b)All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d)The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid by credit card. g)Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b)Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X- RE108”. See Exhibit A for a photograph showing the label and location on the back of the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4. b)A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-approved facility: Rhein Tech Laboratories, Inc. 360 Herndon Pkwy, Suite 1400 Herndon, VA 20170 Contact: Rick McMurray 703-689-0368 A photograph of the test site is shown below: 2.9.FCC Part 2 §2.1033 a)Form 731 has been …
