U5X-RE203FWireless Panic Transmitter

Wireless Security Solutions RE203 Honeywell-Compatible PanicFeatures • Portable device for emergency initiation of system. • Single, red button with comfortable feel. • Fully sealed, water resistant housing. • Strong, reliable RF signal. • “Heartbeat” LED blinks every minute to assure user. • Comes with comfortable, elastic band for easy removability. • 4-6 year battery life. Key Instructions • Enrolling:
Refer to the Honeywell control unit installation manual.
Put the control panel in RF Learning mode. • May be Input Type “RF” for supervised operation. This must stay on site and can monitor “wandering user”. • May be Input Type “UR” for unsupervised operation. • Press and release the button twice to enroll: causing the loop to fault... restore... (panel should beep to indicate ID capture)...fault... restore... [panel will confirm enrollment].
...Or put the control panel in Serial Number entry mode • Enter as Loop 1. • Enter the Serial Number of the device (located on a label on the unit’s back). Operation User presses button in emergency.Unit will send low battery signals.Unit sends supervisory signals hourly. RE203_Honeywell-Compat_Panic-RevF+.doc Page 1 of 212-Aug-11 www.ResolutionProducts.com Red button is Loop 1 Heartbeat LED blinks every 60 seconds Specifications Compatibly Replaces: Honeywell 5802MNButton Function: Loop 1: Press=Fault, Release=RestoreSupervisory signals: sent every hour.Battery: Sealed in unit; not replaceable Water resistant: Not submersible, but tested to 1 meter depth Temperature Range: 0F to 120FHousing dimensions: 1.5x1.2x0.6 inchesSpecifications subject to change without notice. Notices “GE”, “Honeywell”, and “DSC” are trademarks owned by Gener al Electric Company, Honeywell International Inc., and Tyco Safety Products Canada LTD, respectively. Resolution Products, Inc. products will function with one of either GE, DSC or Honeywell systems. However, no Resolution product is produced by, en dorsed by, nor is officially associated with GE, Honeywell or DSC. Resolution rec ommends verifying operation at installation.WarrantyResolution Products, Inc. will replace products that are defecti ve in their first two (2) years. FCC Notice This device complies with Part 15 of the FCC rules. Ope ration is subject to the following two conditions: This device may not cause harmful interference.This device must accept any interference that may be received, i ncluding interference that may cause undesired operation. Changes or modifications not expressly approved by the Resol ution Products, Inc. could void the user's authority to operate this equipment.FCC ID: U5X-RE203F IC Notice This device complies with Industry Canada license-exempt RS S standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and(2)This device must accept any interference, including inte rference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada ap plicables aux appareils radio exempts de licence. L'exploitation est autorisée aux d eux conditions suivantes : (1)l'appareil ne doit pas produire de brouillage, et(2)l'utilisateur de l'appareil doit accepter tout brouillage rad ioélectrique subi, même si le brouillage est susceptible d'en compromettre l e fonctionnement. IC: 8310A-RE203FIC Model: RE203F RE203_Honeywell-Compat_Panic-RevF+.doc Page 2 of 212-Aug-11 www.ResolutionProducts.com

December 2, 2013 RE: Confidentiality Request for U5X-RE203F/8310A-RE203F To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

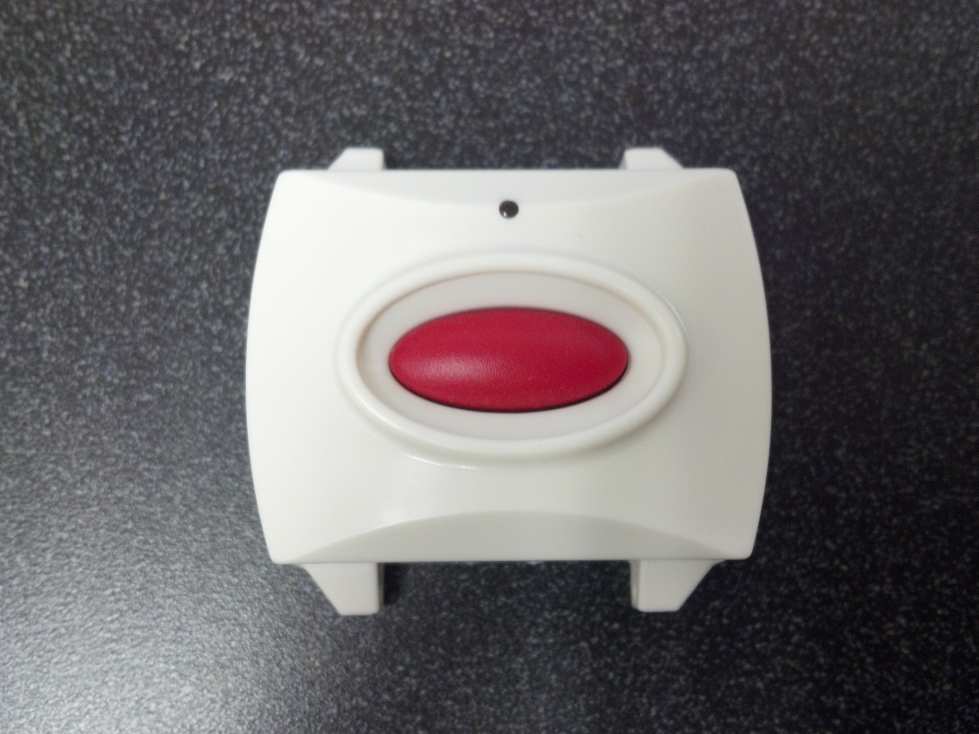

Exhibit A RE203 External Photos

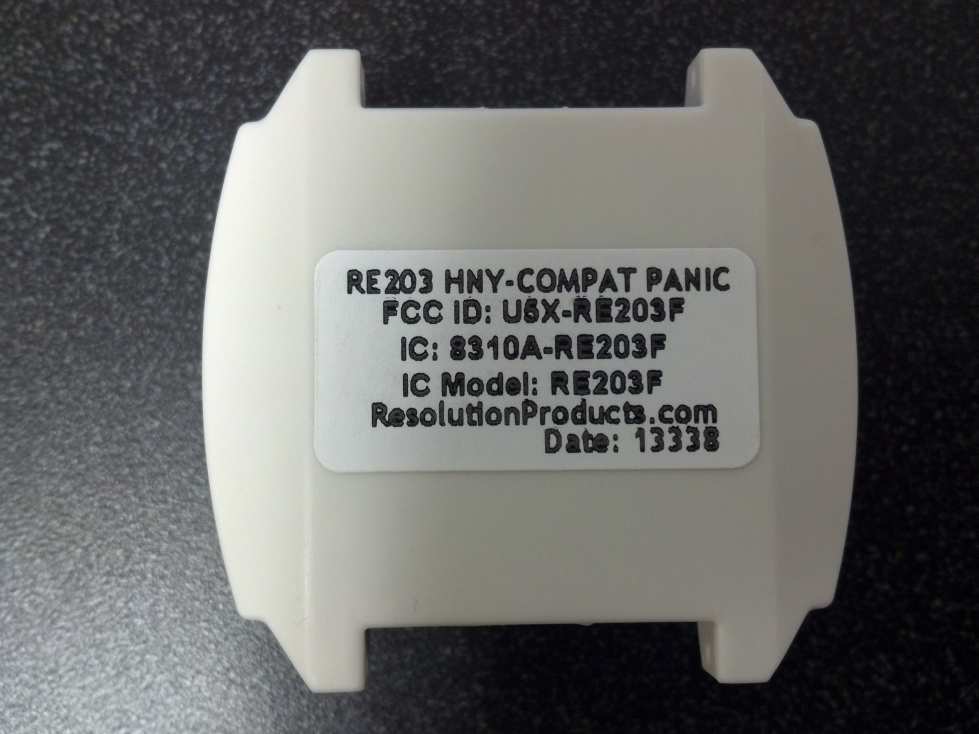

Exhibit B RE203 ID Label Photos

Exhibit C RE203 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.231 Test Data EUT: 56-0005-02 Rev F00 345 MHz Wrist Panic for Resolution Engineering, Inc. 226 Locust Street, Suite 4 Hudson, WI 54016 Contact: Josh Gathje Testing Conducted By Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 RTL Test Engineer: Jon Wilson RTL Project/Report Number: 2013186 August 28, 2013 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-02 Rev F00 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013186 2 of 6 Testing Represented in Report The data and limits presented in this report are for peak emissions limiting per 15.231(b)(2) which references 15.35(b), and peak limiting for restricted bands per 15.209(e), which again references 15.35(b)(2), as procured by Resolution Engineering. No average data is presented in this report. The Equipment Under Test (EUT) was the 56-0005-02 Rev F00 (RTL Bar Code 21091). 15.231 Radiated Emissions Test Data – FCC Limits / 3m Distance Emission Test Antenna Analyzer Site Emission Pass/ Frequency Detector Polarity Reading Correction Level Limit Margin Fail (MHz) (H/V) (dBuV) Factor (dBuV/m) (dBuV/m) (dB) (dB/m) 345.000 Peak H 65.4 26.7 92.1 97.3 -5.2 Pass 689.995 Peak H 55.5 -6.6 48.9 77.3 -28.4 Pass 1,034.993 Peak V 45.7 -2.6 43.1 74.0 -30.9 Pass 1,379.991 Peak V 39.3 1.4 40.7 74.0 -33.3 Pass 1,724.991 Peak H 40.1 3.7 43.8 77.3 -33.5 Pass 2,070.027 Peak H 71.8 -18.6 53.2 77.3 -24.1 Pass 2,415.027 Peak H 62.0 -18.7 43.3 77.3 -34.0 Pass 2,760.027 Peak V 65.0 -18.2 46.8 74.0 -27.2 Pass 3,105.027 Peak V 49.7 -18.0 31.7 77.3 -45.6 Pass 3,450.027 Peak V 65.6 -17.2 48.4 77.3 -28.9 Pass ** all spurious emissions in the applicable frequency range were investigated, only harmonic emissions were present as noted above Test Procedure Radiated fundamental and spurious emissions were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-02 Rev F00 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013186 3 of 6 Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 8/20/14 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 2/2/14 EMI Receiver RF Section (9 kHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 9/20/13 RF Filter Section (100 kHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 9/20/13 Spectrum Analyzer Hewlett Packard 8596EM 3826A00144 901215 3/15/14 Amplifier (1 GHz–26.0 GHz) Rhein Tech Laboratories, Inc. PR-1042 N/A 901364 9/28/13 Horn Antenna (2.0-4.0 GHz) EMCO 3161-02 9804-1044 900772 4/20/15 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A Test Personnel: Jon Wilson August 23, 2013 Test Engineer Signature Date of Test FCC/IC Cross Reference FCC 15.231(b)(2) RSS-210 Issue 8 A1.1 FCC 15.35(b) RSS-Gen Issue 3 7.2.3 FCC 15.205 RSS-Gen Issue 3 7.2.2 FCC 15.209 RSS-Gen Issue 3 7.2.5 Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-02 Rev F00 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013186 4 of 6 Test Configuration Photographs Radiated Emissions Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-02 Rev F00 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013186 5 of 6 Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-02 Rev F00 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013186 6 of 6 EUT Photograph

Resolution Products, Inc. Wireless Panic Transmitter FCC ID: U5X-RE203F Certification Test Report December 2, 2013 U5X-RE203F Resolution Products, Inc. 12/2/13Page 1 of 8 Test Report 1402 Heggen St. Hudson, WI 54016 Contents 1.Introduction..................................................................................................................................................................3 2.Statement of Compliance.............................................................................................................................................3 2.1.FCC Part 2 §2.907................................................................................................................................................3 2.2.FCC Part 2 §2.911.................................................................................................................................................3 2.3.FCC Part 2 §2.913................................................................................................................................................3 2.4.FCC Part 2 §2.915................................................................................................................................................3 2.5.FCC Part 2 §2.925................................................................................................................................................3 2.6.FCC Part 2 §2.943, 2.945.....................................................................................................................................3 2.7.FCC Part 2 §2.947................................................................................................................................................3 2.8.FCC Part 2 §2.948................................................................................................................................................4 2.9.FCC Part 2 §2.1033..............................................................................................................................................4 3.Discussion of Laboratory Measurements and Rules Compliance...............................................................................5 3.1.FCC Part 15 §15.231(a)(1)...................................................................................................................................5 3.2.FCC Part 15 §15.231(a)(3)...................................................................................................................................5 3.3.FCC Part 15 §15.231(a)(4)...................................................................................................................................5 3.4.FCC Part 15 §15.231(a)(5)...................................................................................................................................6 3.5.FCC Part 15 §15.231(b)........................................................................................................................................6 3.5.1.Raw Field Strength Limits.............................................................................................................................6 3.5.2.Duty Cycle Correction Factor and Resulting Limits.....................................................................................6 3.5.3.Measured Radiated Field Strength Data........................................................................................................7 3.6.FCC Part 15 §15.231(c)........................................................................................................................................7 U5X-RE203F Resolution Products, Inc. 12/2/13Page 2 of 8 Test Report 1402 Heggen St. Hudson, WI 54016 1.Introduction The RE203 is a small keypad with a wireless transmitter. The device transmits a panic transmission to a security system. A PIC12LF1501 microcontroller monitors the key and transmits data packets when valid key presses are detected. The device is about the size of a wrist watch, measures approximately 1.5 x 1.25 x 0.5” and weights less than an ounce. The RE203 transmitter circuit consists of a 10.78125MHz crystal and a Micrel MICRF113YM6 PLL Chip. This chip multiplies the crystal frequency to 345MHz. It also includes a circuit that allows ASK modulation of the 345MHz signal. A printed antenna radiates the RF signal. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a) This application has been filed electronically using form 731. b) All required information has been supplied in this application and its attachments. c) This application has been electronically signed by an officer of Resolution Products, Inc. d) The technical test data has been signed by the agency performing the testing. e) Signature supplied in appropriate block on form 731. f) Processing fee has been paid. g) Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a) This application has been filed electronically. b) Appropriate fees have been filed electronically. c) Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X-RE203F”. See Exhibit B for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a) Measurement procedure follows ANSI C63.4: 2009. b) A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-…

Text truncated - open the document above for the full version.

U5X-RE203F 8310A-RE203F Test Setup Photos
