U5X-RE2088 Zone Transmitter

RE208_Hardwire_to_Honeywell-Compat_Translator.doc Page 1 of 4 5/25/2011 www.ResolutionProducts.com Wireless Security Solutions RE208 Hardwire-to-Honeywell ® Wireless Translator™ Features • Converts hardwire zones into Honeywell-compatible w ireless signals. • 8 Hardwire loops with end-of-line resistor detectio n. • Unique wireless ID for each zone, plus 1 for main d evice. • Transmit diversity for long reliable range. • PIR powering (via external supply). • 3 year operation on batteries (contacts only). • Complete supervision of zone tampers and low batter y. Key Instructions • Use with normally closed contacts in-line with 4.7 K-ohms end-of-line resistors. • Not for use with life safety devices, such as Smoke or CO sensors. • External supply requirements (wall-AC): 12V DC at least 50 mA. • PIR & Glassbreak (powered devices) usage:
4-wire devices only. Not for use with 2-wire power ed devices.
2 AA back-up batteries will drive contacts only, an d cannot drive a PIR.
Under external supply failure, the PIR/Glass would likely alarm.
If using PIR/Glass, we recommend using 12V DC, 24-h our back-up supply.
If using old panel 12V DC supply, verify operation and old battery. • Enrolling:
Hardwire zones (labeled “Loops” on the circuit boar d terminals): • Hardwire zones are enrolled into Honeywell system u sing the RF Learning tripping enrollment mode. • Input Type: 3 (Supervised RF), Loop: 2 • When prompted, open/close each zone twice (fault/restore/fault/restore) to enroll the serial number.
Translator itself. Trouble supervision of the Tran slator itself is recommended; Assign the Translator to a zone for sending check-i n supervisories, cover tamper and low battery. • Zone Type: 8 (24 hour Aux) – When cover opened: “fa ult” when system not armed, “alarm” when armed. • Input Type: 3 (Supervised RF), Loop: 4 • When prompted, toggle the tamper switch to enroll t he serial number. Operation • 8 Hardwire 4.7K-ohm Zones – transmit 8 unique wirel ess IDs: Alarm on open circuit. Tamper on short circuit. Supervisories, every hour for each zone. RE208_Hardwire_to_Honeywell-Compat_Translator.doc Page 2 of 4 5/25/2011 www.ResolutionProducts.com 4.7K Contact Closed Normally Open in Alarm Loop x PIR To Enroll zone, perform 2 open/close sequences 12V DC AA Backup batteries will NOT power PIR • Translator Main Zone wireless transmission (9 th unique ID): Tamper, when cover opened. Low battery, when either low AA batteries, OR loss of 12V DC external. Supervisory every hour. • How ID’s work: If the Translator Main Zone is XXX- YYY0, then the Zone 1’s ID is XXX-YYY1, and Zone 2’s ID is XXX-YYY2, etc. • LED Operation Green LED: On if AC power present. Red LED: When 12V DC is present: “Blinks” on transm it to panel; “on” if device tamper or device low battery. • Application Diagram • Connection Diagram New Wireless System Existing Hardwire Sensors New Self-Contained System in public area Old Hardwire Panel Mounted in utility area New System’s wireless language RE208_Hardwire_to_Honeywell-Compat_Translator.doc Page 3 of 4 5/25/2011 www.ResolutionProducts.com Specifications Honeywell Loop: Loop 2 for zones 1-8, Loop 4 for Tr anslator tamper. Transmitter Type: Talks to SAW receivers. Zone sensing duration: State sensed if held more than 600ms. End-of-line Resistors: 4.7k-ohm, 5%. Max wire run: 1000 feet. Backup batteries: Two AA Alkaline. External supply: 12V DC, at least 50mA. Current draw with supply: 4mA, normal operation. PIR usage: PIR may need tight voltage tolerance. Add PIR and device current requirements together to get total current need. Power Fail Conditions: Reports as low battery on ma in device. Device Low Battery Conditions: Low battery, or loss of 12V external power. Back-up Battery Life on AC Fail: 3 years, all zone s terminated in 4.7K; longer if unused/open. Backup batteries will not power PIR. PIR may alarm on power loss. Housing dimensions: 4x6x1 inches Specifications subject to change without notice. Internal Picture Terminals for Zones 1, 2 Terminals for Zones 3-8 Power Terminals Tamper / Enroll Switch RE208_Hardwire_to_Honeywell-Compat_Translator.doc Page 4 of 4 5/25/2011 www.ResolutionProducts.com Notices “GE”, “Honeywell”, and “DSC” are trademarks owned b y General Electric Company, Honeywell International Inc., and Tyco Safety Products Canada LTD, respectively. Resolution Products, Inc. products will function wi th one of either GE, DSC or Honeywell systems. However, no Resolution product is produced by, endo rsed by, nor is officially associated with GE, Honeywell or DSC. Resolution recommends verifying proper enrollment and operation, per control panel installation instructions, at installation. Warranty Resolution Products, Inc. will replace products tha t are defective in their first year. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may b e received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE208 IC Notice This device complies with Industry Canada license-e xempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, includ ing interference that may cause undesired operation of the device. Cet appareil est conforme avec d’Industrie Canada R SS standard exempts de licence. Son fonctionnement est soumis aux deux conditions suiva ntes: 1. Ce dispositif ne peut causer des interférences, et 2. Ce dispositif doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. IC: 8310A-RE208

May 25, 2011 RE: Confidentiality Request for U5X-RE208/8310A-RE208 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

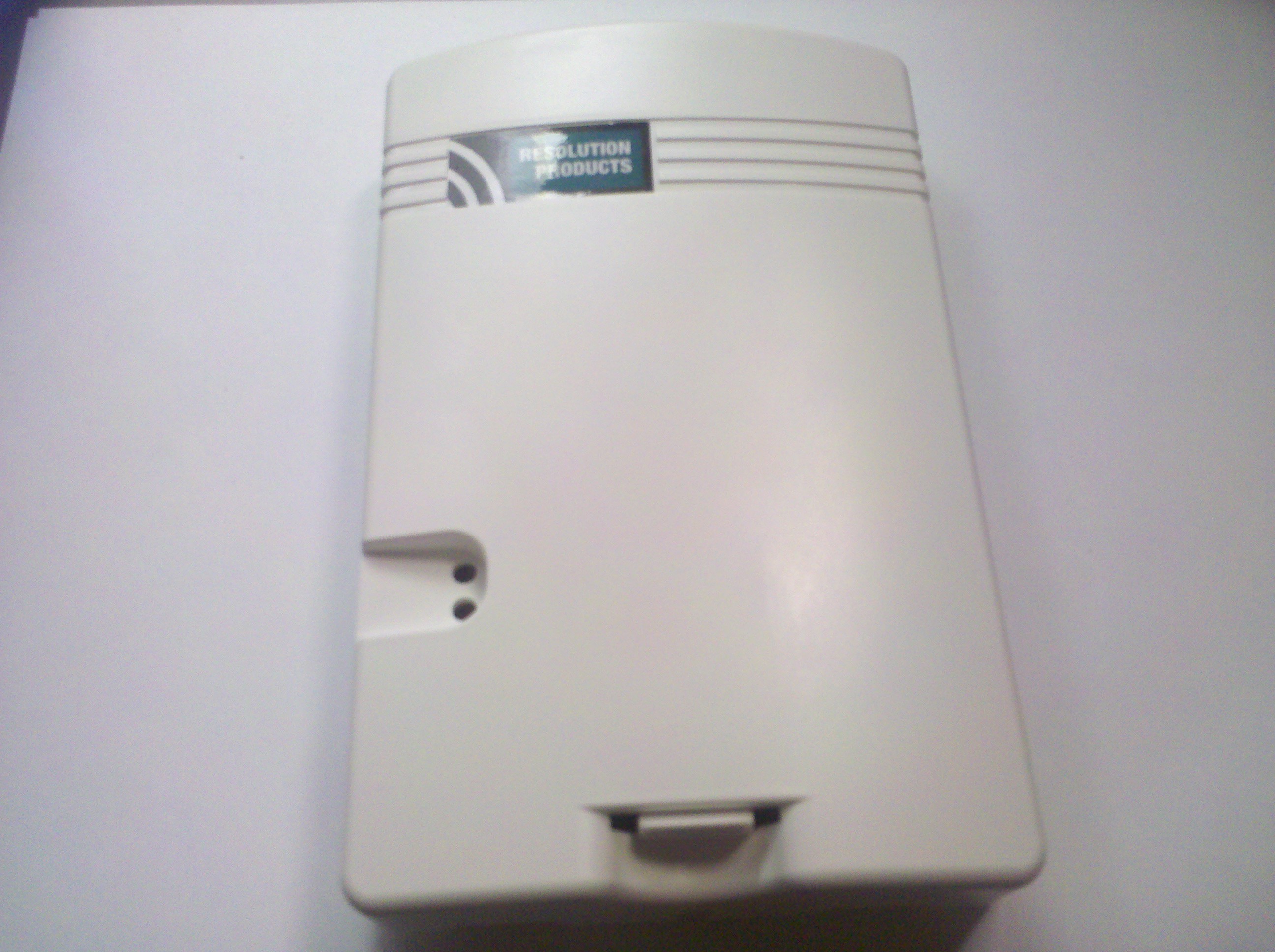

Exhibit A RE208 External Photos

Exhibit B RE208 ID Label Photo

Exhibit C RE208 Internal Photos

Resolution Products, Inc. 8 Zone Transmitter FCC ID: U5X-RE208 Certification Test Report May 25, 2011 U5X-RE208 Resolution Products, Inc.05/25/11Page 1 of 9 Test Report 226 Locust Street, Suite 4 Hudson, WI 54016 Contents 1. Introduction.................................................................................................................................................................3 2. Statement of Compliance............................................................................................................................................3 2.1. FCC Part 2 §2.907................................................................................................................................................3 2.2. FCC Part 2 §2.911................................................................................................................................................3 2.3. FCC Part 2 §2.913................................................................................................................................................3 2.4. FCC Part 2 §2.915................................................................................................................................................3 2.5. FCC Part 2 §2.925................................................................................................................................................3 2.6. FCC Part 2 §2.943, 2.945....................................................................................................................................3 2.7. FCC Part 2 §2.947................................................................................................................................................4 2.8. FCC Part 2 §2.948................................................................................................................................................4 2.9. FCC Part 2 §2.1033..............................................................................................................................................4 3. Discussion of Laboratory Measurements and Rules Compliance...............................................................................5 3.1. FCC Part 15 §15.231(a)(1)..................................................................................................................................5 3.2. FCC Part 15 §15.231(a)(3)..................................................................................................................................5 3.3. FCC Part 15 §15.231(a)(4)..................................................................................................................................6 3.4. FCC Part 15 §15.231(a)(5)..................................................................................................................................6 3.5. FCC Part 15 §15.231(b).......................................................................................................................................6 3.5.1. Raw Field Strength Limits............................................................................................................................6 3.5.2. Duty Cycle Correction Factor and Resulting Limits.....................................................................................6 3.5.3. Measured Radiated Field Strength Data.......................................................................................................7 3.6. FCC Part 15 §15.231(c).......................................................................................................................................8 U5X-RE208 Resolution Products, Inc.05/25/11Page 2 of 9 Test Report 226 Locust Street, Suite 4 Hudson, WI 54016 1.Introduction The RE208 is an 8-zone transmitter for use in a wireless security system. The unit is powered by a 12VDC or 9- 18VAC power supply and is backed up by two AA alkaline batteries. The device measures 6.25 x 4 x 1.25” and weighs approximately 8.3 ounces. The device transmits transmission packets for the purpose of alerting a security system. There are eight sets of terminals which connect to reed switches or other switches installed by the user. There is also a tamper switch on the unit. A microcontroller monitors these inputs for activations and transmits eight data packets when valid activations are detected. In the absence of tamper switch activations, a set of three supervision transmissions is sent by the device once per hour. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b)All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d)The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid. g)Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b)Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X- RE208”. See Exhibit B for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4: 2009. b)A description of utilized …

Text truncated - open the document above for the full version.

Engineering Solutions & Electromagnetic Compatibility Services FCC 15.231, 15.207 Test Data for Model: RE208 345 MHz (RTL barcode: 19865) for Resolution Engineering RTL Project Number 2010171 Test Engineer: Jon Wilson This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE208 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2010171 2 of 12 Radiated Emissions Test Data – FCC Limits / 3m Distance Green LED Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 345.000 Peak V 67.4 28.9 96.3 97.3 -1.0 Pass 690.005 Peak V 58.0 -5.8 52.2 77.3 -25.1 Pass 1035.005 Peak H 46.7 -0.6 46.1 74.0 -27.9 Pass 1379.995 Peak V 42.9 5.1 48.0 74.0 -26.0 Pass 1725.015 Peak V 44.0 7.9 51.9 77.3 -25.4 Pass 2,070.042 Peak V 58.3 -3.9 54.4 77.3 -22.9 Pass 2,415.069 Peak H 61.5 -2.5 59.0 77.3 -18.3 Pass 2,760.096 Peak H 58.6 -1.8 56.8 74.0 -17.2 Pass 3,105.123 Peak H 44.3 -1.2 43.1 77.3 -34.2 Pass 3,450.150 Peak H 35.1 -1.0 34.1 77.3 -43.2 Pass Red LED Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 345.003 Peak V 62.7 28.9 91.6 97.3 -5.7 Pass 690.012 Peak H 61.8 -5.8 56.0 77.3 -21.3 Pass 1035.012 Peak H 45.2 -0.6 44.6 74.0 -29.4 Pass 1380.013 Peak V 41.1 5.1 46.2 74.0 -27.8 Pass 1725.012 Peak H 43.0 7.9 50.9 77.3 -26.4 Pass 2,070.039 Peak V 60.8 -3.9 56.9 77.3 -20.4 Pass 2,415.066 Peak H 53.6 -2.5 51.1 77.3 -26.2 Pass 2,760.093 Peak H 53.3 -1.8 51.5 74.0 -22.5 Pass 3,105.120 Peak H 44.6 -1.2 43.4 77.3 -33.9 Pass 3,450.147 Peak H 48.5 -1.0 47.5 77.3 -29.8 Pass Test Procedure Radiated emissions of the harmonics were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE208 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2010171 3 of 12 Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 4/10/11 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 12/12/10 EMI Receiver RF Section (9 KHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 8/2/11 RF Filter Section (100 KHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 8/2/11 Amplifier (1 GHz–26.4 GHz) Miteq JS4-01002600-36- 5P 849863 901364 2/22/11 Horn Antenna (2.0-4.0 GHz) EMCO 3161-02 9804-1044 900772 6/13/11 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A Test Personnel: Jon Wilson September 9, 2010 Test Engineer Signature Date of Test Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE208 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2010171 4 of 12 Conducted Line Emissions Test Data – FCC Limits Top Antenna, Red LED (Neutral) Top Antenna, Red LED (Phase) Rhein Tech Laboratories, Inc. FCC 15.207 Neutral Line 100.0K1.0M10.0M100.0M Frequency MHz 0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 Amplitude dBuV 10:09:48 AM, Monday, June 13, 2011 C:\Tile4\RTL Conducted Emissions\_SA3 SR2 RTL_CE_CISPR_B.TIL Project # - 2010271 Mode - 115vac 60Hz TX Top Antenna Model Number - RE208 Company - Resolution Engineering C ISPR B A vg C ISPR B QP N eutral Scan Line_2_qp Final_L2_A vg Rhein Tech Laboratories, Inc. FCC 15.207 Phase Line 100.0K1.0M10.0M100.0M Frequency MHz 0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 Amplitude dBuV 10:02:30 AM, Monday, June 13, 2011 Project # - 2010271 Mode - 115vac 60Hz TX Top Antenna Model Number - RE208 Company - Resolution Engineering C ISPR B _QP C ISPR B _A V C _Line_1 Line_1_qp Final_L1_A vg Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE208 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2010171 5 of 12 Side Antenna, Green LED (Neutral) Side Antenna, Green LED (Phase) Result: Pass Test Procedure The power line conducted emission measurements were performed in a Series 81 type shielded enclosure manufactured by Rayproof. The EUT was placed on a wooden table. Power was fed to the EUT through a 50-ohm/50 microhenry LISN. The 50-ohm output of the EUT LISN was connected to the spectrum analyzer input through a Solar 100 kHz high-pass filter. The filter is used to prevent overload of the spectrum analyzer from noise below 100 kHz. Conducted emission levels were measured on each current-carrying line with the spectrum analyzer operating in the CISPR quasi-peak mode (or peak mode if …

Text truncated - open the document above for the full version.

U5X-RE208 8310A-RE208 Test Setup Photos
