U5X-RE253Outdoor Motion Detector, 345MHz

RE253_Honeywell-Compat_Outdoor_PIR_Instructions.doc Page 1 of 3 31-May-13 www.ResolutionProducts.com Wireless Security Solutions RE253 Honeywell-Compatible PIR Motion, Outdoor Features • DFIR™ Dual Frequency IR Detection. o Wind-blown object and air current rejection o White light and lightning rejection o Split View™ look-down element • 44 foot range and 90 degree field of view (45 degre es to each side) • Mountable on Flat-wall, 45 degree corner, or swivel /gimbal (sold separately). • Cover tamper. • Strong, reliable RF signal. • 6-8 year battery life on CR123A battery. • Low Battery indication. Key Instructions • Mount at 7.5 foot height. • Motion Sensitivity:
Jumper on BOTH PINS for Normal sensitivity
Jumper on ONLY 1 PIN for High sensitivity. • External contact activation (enabling):
Insert battery while holding Tamper switch.
DL ID# for Ext Contact is Motion DL ID# + 1. • LED Walk Test: Press Tamper for 3 minute test:
LED lights when motion sensed
Wireless transmissions sent for each detection, so walk test can be used for panel operation test as well
Motion stops (locks out) sensing for 20 seconds aft er LED blinks • Enrolling:
Motion Loop 1: cause a sensing event.
Program as an “RF” type (supervised RF).
Loop 1 = Motion, Loop 2 = Contact, Loop 4 = Tamper. • If wire is routed through housing for external cont act, make sure hole is sealed. Operation • Motion sends wireless transmission after 2 or 3 (se lect via jumper) pulses. • Motion stops (locks out) transmitting wireless sensor a larms for 3 minutes after sending an alarm transmission. This is to conserve battery life. • Tamper, when cover is opened (only Motion reports t amper, not Ext Contact). • Supervisories, every hour (including Ext Contact, i f activated). RE253_Honeywell-Compat_Outdoor_PIR_Instructions.doc Page 2 of 3 31-May-13 www.ResolutionProducts.com Specifications Mounting hardware: # 4 or #6 screws Mounting height: 7.5 ft with normal lens Replacement Battery: CR123A 1550mAH Temperature Range: -20F to 120F White Light Immunity 25,000 lux Housing dimensions: 6.7x3.0x2.4 inches Specifications subject to change without notice. Internal Picture Walk Test LED Sensitivit y Jumper 7.5 ft 18 ft 27 ft 36 ft 4 5 ft Battery + Motion Sensor Tamper & Walk Test Switch unused jumper pins DO NOT connect 0 45 ft 45 ft 45 ft External Contacts RE253_Honeywell-Compat_Outdoor_PIR_Instructions.doc Page 3 of 3 31-May-13 www.ResolutionProducts.com Notices “GE”, “Honeywell”, and “DSC” are trademarks owned b y General Electric Company, Honeywell International Inc., and Tyco Safety Products Canada LTD, respectively. Resolution Products, Inc. products will function wi th one of either GE, DSC or Honeywell systems. However, no Resolution product is produced by, endo rsed by, nor is officially associated with GE, Honeywell or DSC. Resolution recommends verifying proper enrollment and operation, per control panel installation instructions, at installation. Warranty Resolution Products, Inc. will replace products tha t are defective in their first year. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may b e received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE253 IC Notice This device complies with Industry Canada license-e xempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, includ ing interference that may cause undesired operation of the device. Cet appareil est conforme avec d’Industrie Canada R SS standard exempts de licence. Son fonctionnement est soumis aux deux conditions suiva ntes: 1. Ce dispositif ne peut causer des interférences, et 2. Ce dispositif doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du disposi tif. IC: 8310A-RE253

May 29, 2013 RE: Confidentiality Request for U5X-RE253/8310A-RE253 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

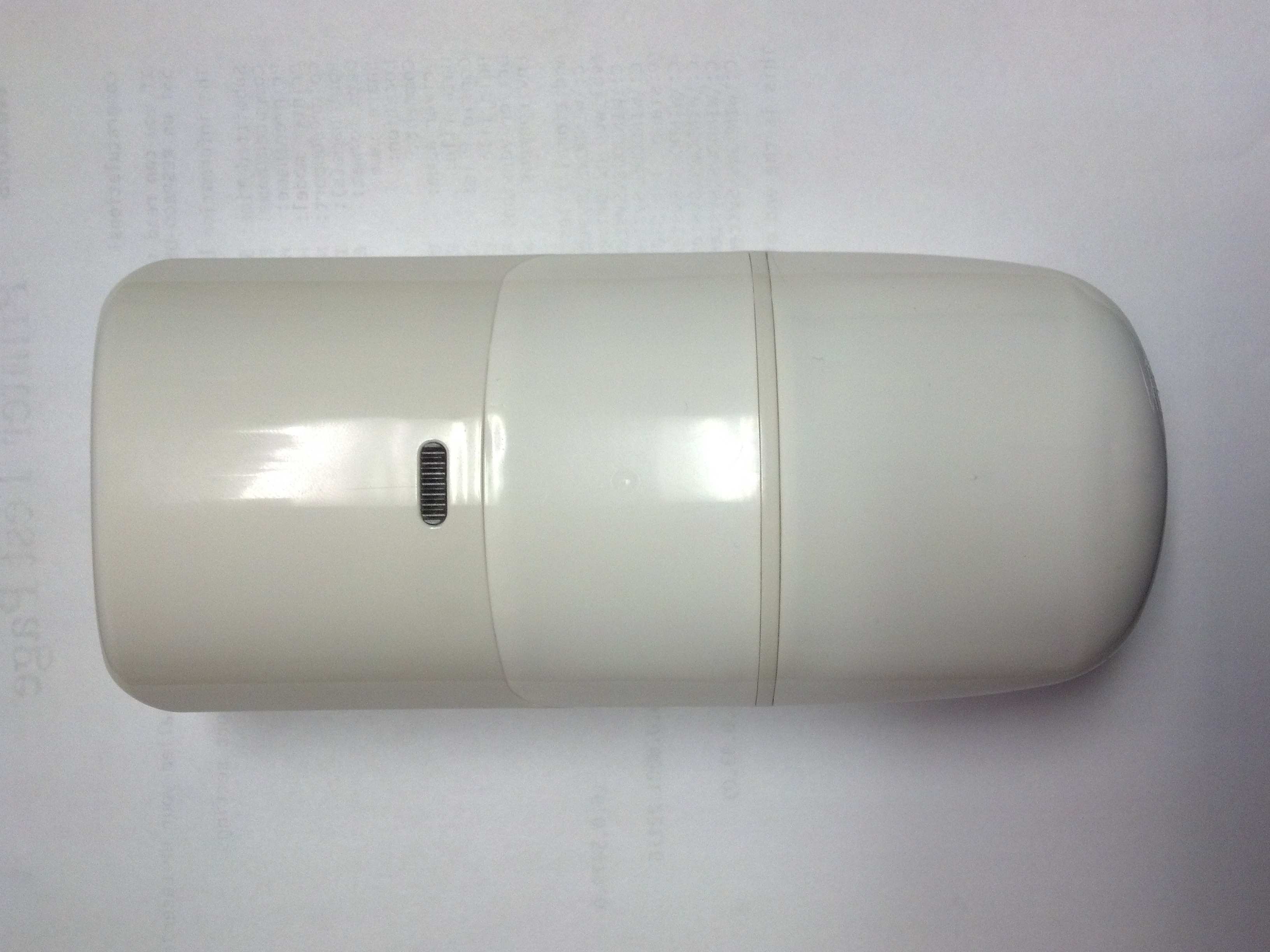

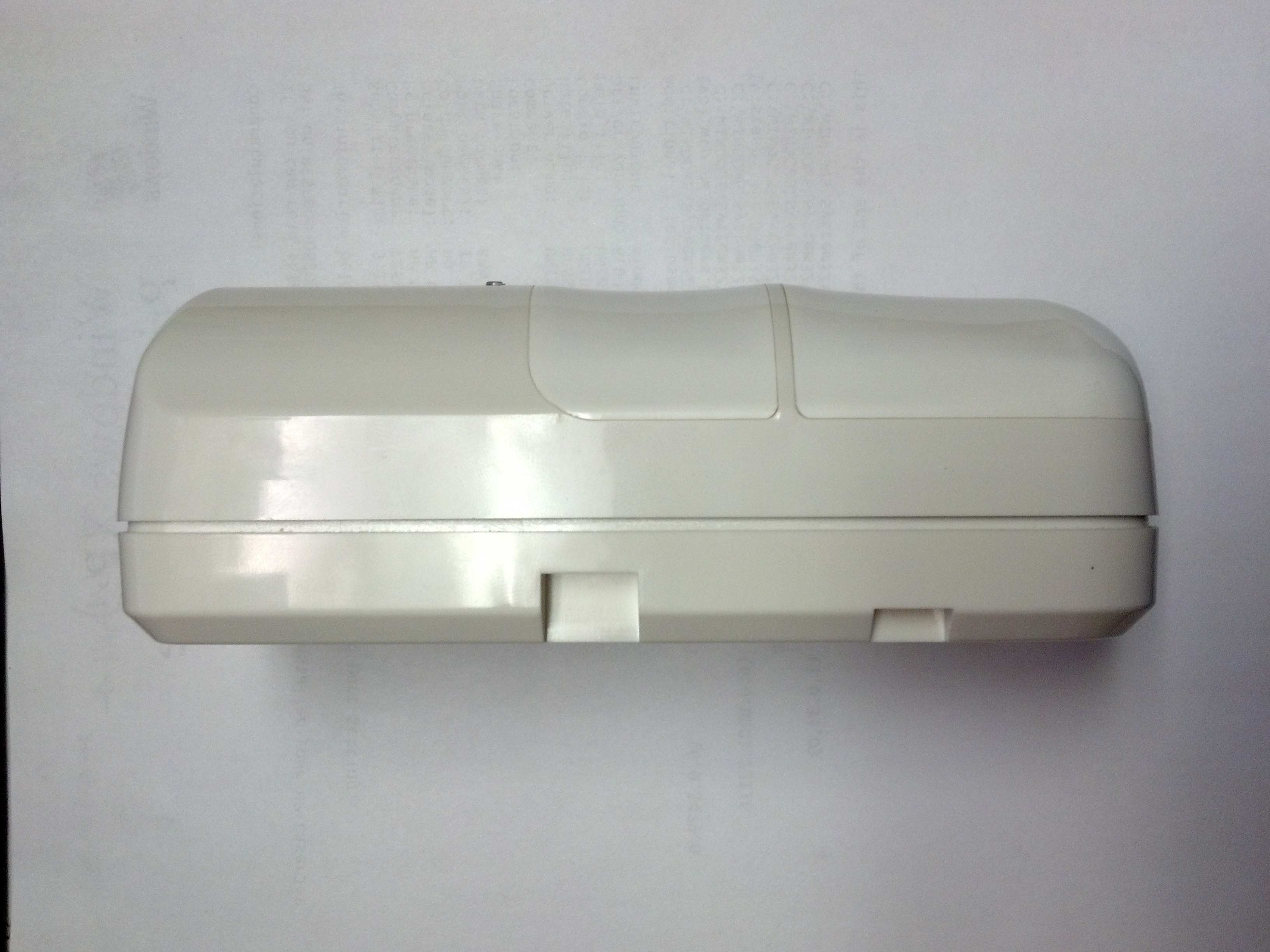

Exhibit A RE253 External Photos

Exhibit B RE253 ID Label Photo

Exhibit C RE253 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services FCC 15.231 Test Data for Model: RE253 345 MHz Outdoor PIR (RTL barcode: 20557) for Resolution Engineering Report #: 2012101 Test Engineer: Jon Wilson This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE253 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2012101 2 of 8 Description of testing presented in this test report The data and limits presented in this report are for peak emissions limiting per 15.231(b)(2) which references 15.35(b), and peak limiting for restricted bands per 15.209(e) which again references 15.35(b)(2), as procured by Resolution Engineering. No average data is presented in this report. Data is also presented for spurious, non-harmonic radiated emissions per 15.209. Radiated Emissions Test Data – FCC Limits / 3m Distance Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 172.520 Qp V 43.2 -21.5 21.7 43.5 -21.8 Pass 258.770 Qp V 43.6 -13.7 29.9 46.0 -16.1 Pass 306.000 Qp V 34.3 -7.9 26.4 46.0 -19.6 Pass 345.017* Peak H 66.1 27.4 93.5 97.3 -3.8 Pass 431.254 Qp V 43.8 -7.5 36.3 46.0 -9.7 Pass 517.546 Qp V 40.7 -8.8 31.9 46.0 -14.1 Pass 690.002 Peak V 61.8 -5.9 55.9 77.3 -21.4 Pass 1035.012 Peak H 56.3 -0.7 55.6 74.0 -18.4 Pass 1380.012 Peak H 52.1 4.2 56.3 74.0 -17.7 Pass 1725.012 Peak H 45.0 8.0 53.0 77.3 -24.3 Pass 2070.012 Peak V 64.1 -14.6 49.5 77.3 -27.8 Pass 2415.012 Peak V 60.5 -14.2 46.3 77.3 -31.0 Pass 2760.012 Peak V 72.4 -14.2 58.2 74.0 -15.8 Pass 3105.012 Peak V 60.0 -13.9 46.1 77.3 -31.2 Pass 3450.012 Peak V 61.6 -13.4 48.2 77.3 -29.1 Pass * fundamental Test Procedure Radiated fundamental and spurious emissions were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE253 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2012101 3 of 8 Radiated Emissions Test Equipment – 2012 testing Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 4/10/12 Spectrum Analyzer (100 Hz-22 GHz) Hewlett Packard HP-8566B 3138A07771 900930 9/13/12 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 12/12/12 EMI Receiver RF Section (9 KHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 6/8/12 RF Filter Section (100 KHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 6/8/12 Amplifier (1 GHz–26.0 GHz) Rhein Tech Laboratories, Inc. PR-1042 N/A 901364 7/14/12 Horn Antenna (2.0-4.0 GHz) EMCO 3161-02 9804-1044 900772 6/13/12 Horn Antenna (4.0-8.0 GHz) EMCO 3161-03 9508-1020 900321 6/13/12 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A Test Personnel: Jon Wilson March 26, 2012 Test Engineer Signature Date of Test Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE253 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2012101 4 of 8 Radiated Emissions Test Equipment – 2013 testing Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 8/20/2013 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 2/2/2014 EMI Receiver RF Section (9 kHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 9/20/2013 RF Filter Section (100 kHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 9/20/2013 Spectrum Analyzer Rohde & Schwarz FSU 1166.1660.50 901581 6/4/2013 Amplifier (1 GHz–26.0 GHz) Rhein Tech Laboratories, Inc. PR-1042 N/A 901364 9/28/2013 Horn Antenna (2.0-4.0 GHz) EMCO 3161-02 9804-1044 900772 4/20/2015 Horn Antenna (4.0-8.2 GHz) EMCO 3161-03 9508-1020 900321 4/20/2015 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A Test Personnel: Jon Wilson April 4, 2013 Test Engineer Signature Date of Test FCC/IC Cross Reference FCC 15.231(b)(2) RSS-210 Issue 8 A1.1 FCC 15.35(b) RSS-Gen Issue 3 7.2.3 FCC 15.205 RSS-Gen Issue 3 7.2.2 FCC 15.209 RSS-Gen Issue 3 7.2.5 Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE253 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2012101 5 of 8 Test Configuration Photographs X-Axis Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway Model: RE253 Suite 1400 FCC ID: N/A Herndon, VA 20170 Standards: FCC Part 2, 15 http://www.rheintech.com Report #: 2012101 6 of 8 Y-Axis Rhein Tech Laboratories, Inc. Client: Resolution Enginee…

Text truncated - open the document above for the full version.

Resolution Products, Inc. Wireless PIR Motion Detector FCC ID: U5X-RE253 Certification Test Report May 29, 2013 U5X-RE253 Resolution Products, Inc.5/29/13Page 1 of 8 Test Report 1402 Heggen St. Hudson, WI 54016 Contents 1. Introduction.................................................................................................................................................................3 2. Statement of Compliance............................................................................................................................................3 2.1. FCC Part 2 §2.907................................................................................................................................................3 2.2. FCC Part 2 §2.911................................................................................................................................................3 2.3. FCC Part 2 §2.913................................................................................................................................................3 2.4. FCC Part 2 §2.915................................................................................................................................................3 2.5. FCC Part 2 §2.925................................................................................................................................................3 2.6. FCC Part 2 §2.943, 2.945....................................................................................................................................3 2.7. FCC Part 2 §2.947................................................................................................................................................3 2.8. FCC Part 2 §2.948................................................................................................................................................4 2.9. FCC Part 2 §2.1033..............................................................................................................................................4 3. Discussion of Laboratory Measurements and Rules Compliance...............................................................................5 3.1. FCC Part 15 §15.231(a)(1)..................................................................................................................................5 3.2. FCC Part 15 §15.231(a)(3)..................................................................................................................................5 3.3. FCC Part 15 §15.231(a)(4)..................................................................................................................................5 3.4. FCC Part 15 §15.231(a)(5)..................................................................................................................................6 3.5. FCC Part 15 §15.231(b).......................................................................................................................................6 3.5.1. Raw Field Strength Limits............................................................................................................................6 3.5.2. Duty Cycle Correction Factor and Resulting Limits.....................................................................................6 3.5.3. Measured Radiated Field Strength Data.......................................................................................................7 3.6. FCC Part 15 §15.231(c).......................................................................................................................................7 U5X-RE253 Resolution Products, Inc.5/29/13Page 2 of 8 Test Report 1402 Heggen St. Hudson, WI 54016 1.Introduction This device is a wireless motion detector transmitter for use in a wireless security system. The unit is powered by a 3V lithium battery. The transmitter is centered at 345MHz and is controlled by a crystal. The device measures 6.75 x 3 x 2.5” and weighs approximately 8.2 ounces. This transmitter is activated via a motion detector or tamper switch. Eight transmission packets are sent by the device only upon valid activation. Upon completion of these packets, the device goes into sleep mode and will not transmit again until another activation. If no activation is received for one hour, three supervisory packets are sent. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b) All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d) The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid. g) Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b) Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X- RE253”. See Exhibit B for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4: 2009. b) A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-…

Text truncated - open the document above for the full version.

U5X-RE253 8310A-RE253 Test Setup Photos
