RE308_Hardwire_to_DSC-Compat_Translator.doc Page 1 of 4 8/2/2011 www.ResolutionProducts.com Wireless Security Solutions RE308 Hardwire to Wireless Takeover Translator™, D SC-Compatible Features • Converts hardwire zones into DSC-compatible wireles s signals. • 8 Hardwire loops with end-of-line resistor detectio n. • Unique wireless ESN for each Translator loop, plus 1 for main device. • Transmit diversity for long reliable range. • PIR powering (via external supply). • 3 year operation on batteries (contacts only). • Complete supervision of zone tampers and low batter y. Key Instructions • Translator is for use with DSC Self Contained and A lexor systems that have “Wireless Enrollment Mode”. If using the Translator with an earlier DSC System, please call Resolution Tech Support, and we will help you determine the IDs to plug in. • Use with normally closed contacts in-line with 4.7 K-ohms end-of-line resistors. • Not for use with life safety devices, such as Smoke or CO sensors. • External supply requirements (wall-AC): 12V DC at least 50 mA. • PIR & Glassbreak (powered devices) usage:
4-wire devices only. Not for use with 2-wire power ed devices.
2 AA back-up batteries will drive contacts only, an d cannot drive a PIR.
Under external supply failure, the PIR/Glass would likely alarm.
If using PIR/Glass, we recommend using 12V DC, 24-h our back-up supply.
If using old panel 12V DC supply, verify operation and old battery. • Enrolling:
Sensor enrollment: 1. Enter Wireless Enrollment Mode on DSC Panel. 2. Open each loop to initiate enrollment. 3. Confirm ESN, Enter Zone # and Zone Type on DSC pan el.
Main Translator device enrolled into panel by its t amper switch. Zone Type 03 will monitor Tamper, Low Battery and S upervisions. Operation • 8 Hardwire 4.7K-ohm Zones – transmit 8 unique wirel ess IDs: Alarm, when Device sees open circuit. Tamper, when device sees short circuit. Supervisories, every hour for each zone. RE308_Hardwire_to_DSC-Compat_Translator.doc Page 2 of 4 8/2/2011 www.ResolutionProducts.com • Translator Main Zone wireless transmission (9 th unique ID): Tamper, when cover opened. Low battery, when either low AA batteries, OR loss of 12V DC external. Supervisory every hour. • LED Operation Green LED: On if AC power present. Red LED: When 12V DC is present: “Blinks” on transm it to panel; “on” if device tamper or device low battery. • Application Diagram • Connection Diagram New Wireless System Existing Hardwire Sensors New Self-Contained System in public area Old Hardwire Panel Mounted in utility area New System’s wireless language 4.7K Contact Closed Normally Open in Alarm Loop x PIR To Enroll zone, short across here to tamper 12V DC AA Backup batteries will NOT power PIR RE308_Hardwire_to_DSC-Compat_Translator.doc Page 3 of 4 8/2/2011 www.ResolutionProducts.com Specifications DSC Device Type: 2 (all 8 zone ESN’s and device ID) Electronic Serial Numbers: Last digit = Translat or Loop # [0 = Module] Zone sensing duration: State sensed if held more than 600ms. End-of-line Resistors: 4.7k-ohm, 5%. Max wire run: 1000 feet Backup batteries: Two AA Alkaline. External supply: 12V DC, at least 50mA. Current draw with supply: 4mA, normal operation. PIR usage: PIR may need tight voltage tolerance. Add PIR and device current requirements together to get total current need. AC Fail Conditions: External 12VDC gone for 15 minu tes. Restores on external 12VDC restore. Device Low Battery Conditions: Low battery for 1 mi nute. Restores on device tamper, external 12VDC restore. Back-up Battery Life on AC Fail: 2 years, all zon es terminated in 4.7K; longer if unused/open. Housing dimensions: 4x6x1 inches Specifications subject to change without notice. Internal Picture Terminals for Zones 1, 2 Terminals for Zones 3-8 Power Terminals Tamper / Enroll Switch RE308_Hardwire_to_DSC-Compat_Translator.doc Page 4 of 4 8/2/2011 www.ResolutionProducts.com Notices “GE”, “Honeywell”, and “DSC” are trademarks owned b y General Electric Company, Honeywell International Inc., and Tyco Safety Products Canada LTD, respectively. Resolution Products, Inc. products will function wi th one of either GE, DSC or Honeywell systems. How ever, no Resolution product is produced by, endorsed by, nor is officially associated with GE, Honeywell or DSC. Resolution recommends verifying operation at instal lation. Do not use Translator for life safety devices, such as smoke or CO sensors. Warranty Resolution Products, Inc. will replace products tha t are defective in their first year. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may b e received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Engineering, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE308 IC Notice This device complies with Industry Canada license-e xempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, includ ing interference that may cause undesired operation of the device. Cet appareil est conforme avec d’Industrie Canada R SS standard exempts de licence. Son fonctionnement est soumis aux deux conditions suiva ntes: 1. Ce dispositif ne peut causer des interférences, et 2. Ce dispositif doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. IC: 8310A-RE308

October 24, 2011 RE: Confidentiality Request for U5X-RE308/8310A-RE308 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

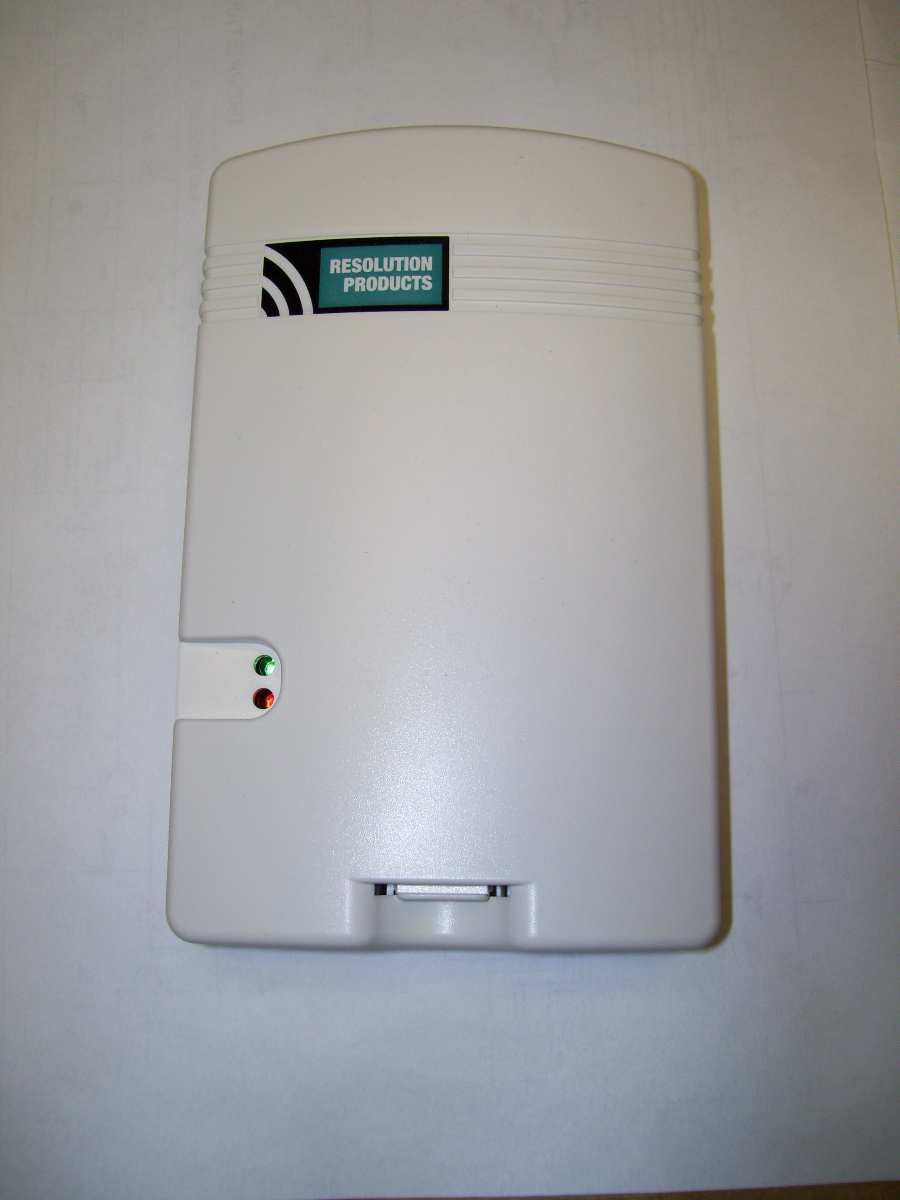

Exhibit A RE308 External Photos
