U5X-RE322Wireless Door Window Transmitter, 433MHz

RE322_DSC-Compatible_NanoMax_Instructions Page 1 of 2 31-Jul-14 24-Hour Tech Support Line: (715)808-0164 www.ResolutionProducts.com Wireless Security Solutions RE322 DSC-Compatible NanoMax Door / Window Features • For sensing things that open or separate. • Magnet and Internal reed switch operation. • 1-inch magnet gap! • External Contact. • Cover tamper. • Strong, reliable RF signal. • 6+ year battery life on CR1632 battery. • Low Battery indication. Key Instructions • Battery “+” faces up. • Enrolling:
Place control panel in Learn Sensor Mode
Open cover to tamper device, or
Tamper enrollment signal can be sent by touching a magnet to the sensor 5 times within 5 seconds Operation • Magnetic and hardwire zone Alarm, when... ... magnet is pulled away from reed switch or ... hardwire changes to alarm. Tamper, when cover is opened. Supervisories, every hour. Specifications Magnet trip distance: 1 inch nominal Mounting fastener: 3M VHB (Very High Bond) Tape Replacement Battery: CR1632 Temperature Range: 0F to 120F Housing dimensions: 1.8 x .77 x .39 inches Specifications subject to change without notice. RE322_DSC-Compatible_NanoMax_Instructions Page 2 of 2 31-Jul-14 24-Hour Tech Support Line: (715)808-0164 www.ResolutionProducts.com Internal Picture Notices Warranty Resolution Products, Inc. will replace products that are defective in their first five (5) years. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the followin g two conditions: This device may not cause harmful interference. This device must accept any interference that may be received, including interfer ence that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Products, Inc. could void t he user's authority to operate this equipment. FCC ID: U5X-RE322 IC Notice This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IC: 8310A-RE322 External Contact Connection Magnetic Reed Switch Battery Bucket

August 25, 2014 RE: Confidentiality Request for U5X-RE322/8310A-RE322 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ Paul Saldin, Vice President (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

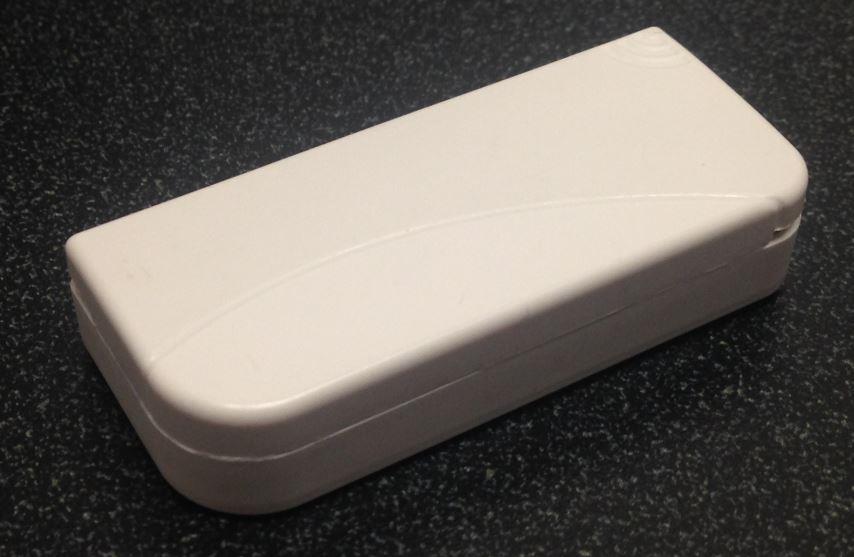

Exhibit A RE322 External Photos

Exhibit B RE322 ID Label Photos

Exhibit C RE322 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.231 Test Data EUT: 433.9 MHz Micro Door Window Sensor for Resolution Engineering, Inc. 1402 Heggen Street Hudson, WI 54016 Contact: Jake Peterson Testing Conducted By Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 RTL Test Engineer: Jon Wilson RTL Project/Report Number: 2014074 April 21, 2014 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 433.9 MHz Micro Door Window Sensor Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014074 2 of 6 Testing Represented in Report The data and limits presented in this report are for radiated emissions per 15.231(b)(2) which references 15.35(b), and peak limiting for restricted bands per 15.209(e), which again references 15.35(b)(2), as procured by Resolution Engineering. No average data is presented in this report. Data is also presented for spurious, non-harmonic radiated emissions per 15.209. The Equipment Under Test (EUT) was the 433.9 MHz Micro Door Window Sensor (RTL Bar Code 21425). 15.231 Radiated Emissions Test Data – FCC Limits/ 3m Distance Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 433.920 Peak V 74.8 18.1 92.9 100.8 -7.9 Pass 867.840 Peak H 67.2 -2.8 64.5 80.8 -16.4 Pass 1301.763 Peak H 57.1 2.4 59.5 74.0 -14.5 Pass 1735.688 Peak H 71.4 5.2 76.6 80.8 -4.2 Pass 2169.590 Peak H 62.3 -10.8 51.5 80.8 -29.3 Pass 2603.510 Peak V 48.3 -9.4 38.9 80.8 -41.9 Pass 3037.430 Peak H 44.5 -8.7 35.8 80.8 -45.0 Pass 3471.350 Peak H 37.4 -6.8 30.6 80.8 -50.2 Pass 3905.270 Peak H 52.2 -6.0 46.2 74.0 -27.8 Pass 4339.190 Peak V 48.3 -1.0 47.3 74.0 -26.7 Pass * IC restricted band All spurious emissions in the applicable frequency range were investigated, only harmonic emissions were present as noted above Test Procedure Radiated fundamental and spurious emissions were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 433.9 MHz Micro Door Window Sensor Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014074 3 of 6 Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 8/20/14 Spectrum Analyzer (10 Hz-26.5 GHz) Agilent EXA N9010 MY51250846 901583 4/16/15 Bilog Periodic Antenna (25 MHz-2000 MHz) ARA LPB-2520 1037 900724 4/19/15 Amplifier (1 GHz–26.5 GHz) Hewlett Packard 8449B OPT H02 3008A00505 900932 8/10/2014 Horn Antenna (2.0-4.0 GHz) EMCO 3161-02 9804-1044 900772 4/20/15 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A Test Personnel: Jon Wilson April 18, 2014 Test Engineer Signature Date of Test FCC/IC Cross Reference FCC 15.231(b)(2) RSS-210 Issue 8 A1.1 FCC 15.35(b) RSS-Gen Issue 3 7.2.3 FCC 15.205 RSS-Gen Issue 3 7.2.2 FCC 15.209 RSS-Gen Issue 3 7.2.5 Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 433.9 MHz Micro Door Window Sensor Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014074 4 of 6 Test Configuration Photograph Radiated Emissions Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 433.9 MHz Micro Door Window Sensor Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014074 5 of 6 EUT Photograph Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 433.9 MHz Micro Door Window Sensor Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014074 6 of 6

U5X-RE322 Resolution Products, Inc. 8/25/2014 Page 1 of 7 Test Report 1402 Heggen St. Hudson, WI 54016 Resolution Products, Inc. Wireless Door/Window Transmitter FCC ID: U5X-RE322 Certification Test Report August 25, 2014 U5X-RE322 Resolution Products, Inc. 8/25/2014 Page 2 of 7 Test Report 1402 Heggen St. Hudson, WI 54016 Contents 1. Introduction ............................................................................................................................. 3 2. Statement of Compliance ......................................................................................................... 3 2.1. FCC Part 2 §2.907 ............................................................................................................ 3 2.2. FCC Part 2 §2.911 ............................................................................................................ 3 2.3. FCC Part 2 §2.913 ............................................................................................................ 3 2.4. FCC Part 2 §2.915 ............................................................................................................ 3 2.5. FCC Part 2 §2.925 ............................................................................................................ 3 2.6. FCC Part 2 §2.943, 2.945 ................................................................................................. 3 2.7. FCC Part 2 §2.947 ............................................................................................................ 4 2.8. FCC Part 2 §2.948 ............................................................................................................ 4 2.9. FCC Part 2 §2.1033 .......................................................................................................... 4 3. Discussion of Laboratory Measurements and Rules Compliance ........................................... 4 3.1. FCC Part 15 §15.231(a)(1) ............................................................................................... 4 3.2. FCC Part 15 §15.231(a)(3) ............................................................................................... 5 3.3. FCC Part 15 §15.231(a)(4) ............................................................................................... 5 3.4. FCC Part 15 §15.231(a)(5) ............................................................................................... 5 3.5. FCC Part 15 §15.231(b) ................................................................................................... 5 3.5.1. Raw Field Strength Limits ........................................................................................ 5 3.5.2. Duty Cycle Correction Factor and Resulting Limits ................................................ 6 3.5.3. Measured Radiated Field Strength Data ................................................................... 6 3.6. FCC Part 15 §15.231(c) ................................................................................................... 7 1. Introduction The RE322 is a very small Door/Window Sensor for use in a home security system. The unit is powered by a 3V CR1632 Lithium battery. The device measures 1.8” x .77” x .38” and weighs approximately .3 ounces. The device transmits packets to a security system indicating the status of a door or window. A PIC12LF1572 microcontroller monitors the reed switch input and transmits 8 data packets when a valid activation is detected. In the absence of reed switch activations, a set of three supervision transmissions is sent once per hour. The RE322 transmitter circuit consists of a 13.56MHz crystal and a Micrel MICRF113YM6 PLL Chip. This chip multiplies the crystal frequency to 433.92MHz. It also includes a circuit that allows ASK modulation of the 433.92MHz signal. A ceramic chip antenna radiates the RF signal. The transmitted packet is ASK modulated and has an on-time of 7.68ms. Precautions are taken in the firmware to ensure that there are at least 100ms between packets. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2. Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1. FCC Part 2 §2.907 This is an application for certification of original equipment 2.2. FCC Part 2 §2.911 a) This application has been filed electronically using form 731. b) All required information has been supplied in this application and its attachments. c) This application has been electronically signed by an officer of Resolution Products, Inc. d) The technical test data has been signed by the agency performing the testing. e) Signature supplied in appropriate block on form 731. f) Processing fee has been paid. g) Signatures have been supplied electronically. 2.3. FCC Part 2 §2.913 a) This application has been filed electronically. b) Appropriate fees have been filed electronically. c) Equipment samples shall be supplied as requested. 2.4. FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5. FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X-RE322”. See Exhibit B for a photograph showing the label and location on the device. 2.6. FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7. FCC Part 2 §2.947 a) Measurement procedure follows ANSI C63.4: 2009. b) A description of utilized test equipment is contained in the report. 2.8. FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-approved facility: Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 USA Contact: Rick McMurray 703-689-0368 Photographs of the test site are shown in Exhibit J. 2.9. FCC Part 2 §2.1033 a) Form 731 has been filed electronically. b) The technical report, along with its exhibits, contains the inform…

Text truncated - open the document above for the full version.

U5X-RE322 8310A-RE322 Test Setup Photos
